VIDEO TRANSFORMER TRN-1/400A

€22.80
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Delta
Product code:
TRN-1/400A / 5902887016738

Specification

Attenuation::4.43 MHz @ 0.73 dB 11 MHz @ 1.24 dB 21 MHz @ 2.16 dB 38 MHz @ 3.35 dB 42 MHz @ 3.54 dB 67.5 MHz @ 3.72 dB
Connector type::BNC Socket DC Cable Clamps
Device type::Active / Transmitter
Dimensions::118 x 61 x 30 mm
I/o voltage 75ω (cvbs)::1 Vpp
Impedance of the balanced connector::100 Ω
Input voltage::Max. 45 VDC
Manufacturer / brand::DELTA
Number of channels::1 DC Video1
Output voltage adjustment::4 V ... 14 VDC
Output voltage::12 V DC / max. 900 mA (factory setting)
Power supply range::Power supply 24 V DC1080 m @ 250 mA260 m @ 750 mA Power supply 29 V DC1600 m @ 250 mA500 m @ 750 mA
Scales::0.09 kg
Standard::AHD - 5 Mpx, HD-CVI - 8 Mpx 4K UHD, HD-TVI - 8 Mpx 4K UHD, CVBS - PAL, NTSC

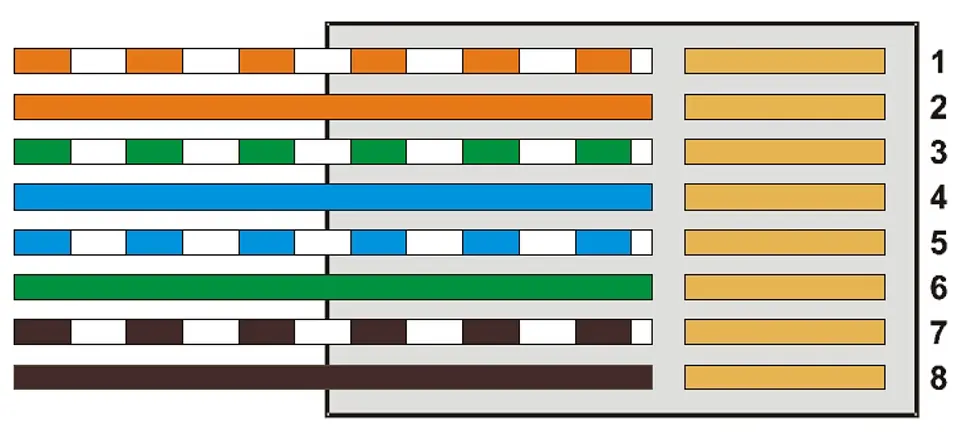

Symmetrical connector type::RJ-45 (8-pin, 4 pairs) Socket
Video coverage::250 m @ 720p - UTP cat. 5e 150 m @ 1080p - UTP cat. 5e 400 m @ CVBS - PAL / NTSC - UTP cat. 5e
Warranty::3 years

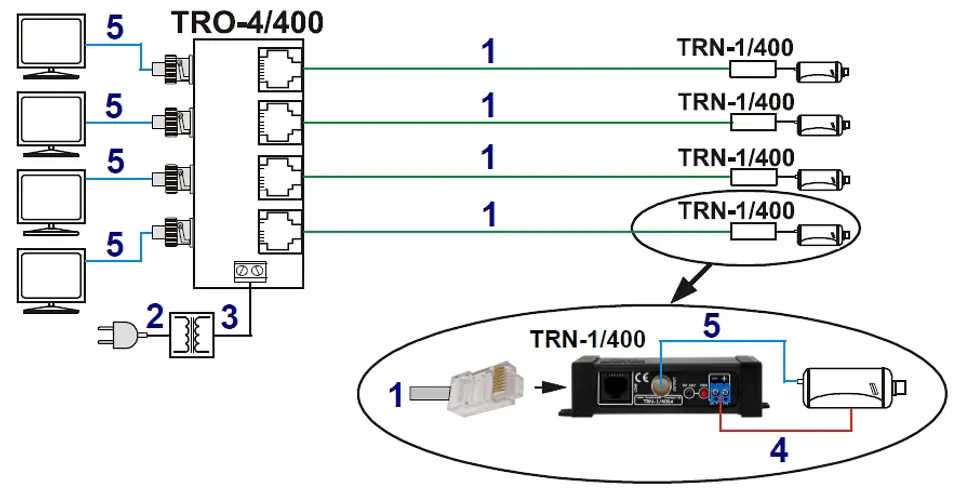

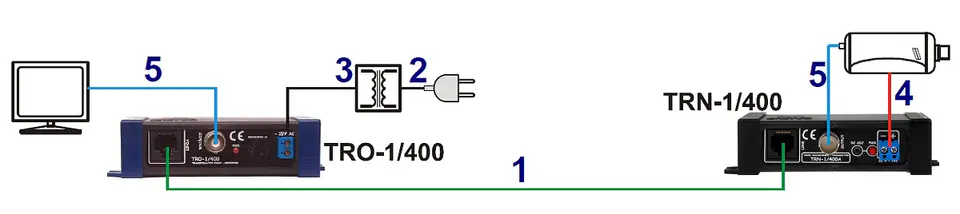

TRN-1/400A is designed for video signal transmission and power supply via twisted pair cable (UTP, FTP)The signal from the camera is connected to the input of the TRN-1/400A transmitter, is sent to the TRO-4G/400 or TRO-1/400 receiver via twisted pair cable In the transmitter and receiver, the impedance of the 75Ω coaxial cable is matched to the impedance of the symmetrical cable, which ensures video transmission up to 400m

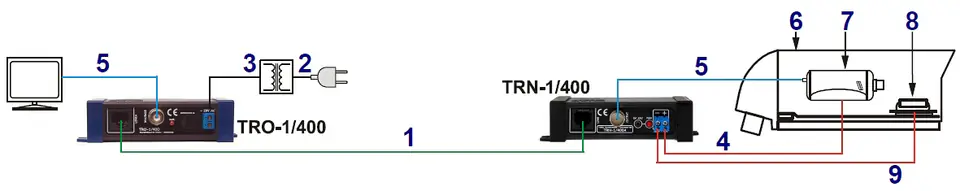

The TRO-1/400 receiver allows unstabilized DC voltage (up to a maximum of 45V DC) into the twisted pair cable, which in the TRN-1/400A transmitter is stabilized to 4V ... 14V DC allowing to power cameras with thermostat

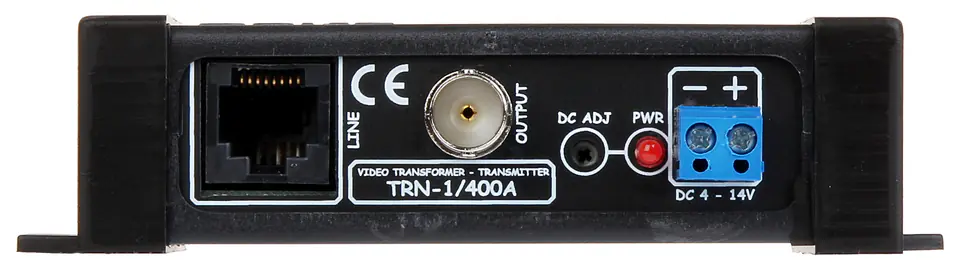

The device allows you to change the output voltage in the range of 4V ... 14V with potentiometer

REMARK! The TRN-1/400A is not standalone and works only with TRO-1/400, TRO-4G/400 devices

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
