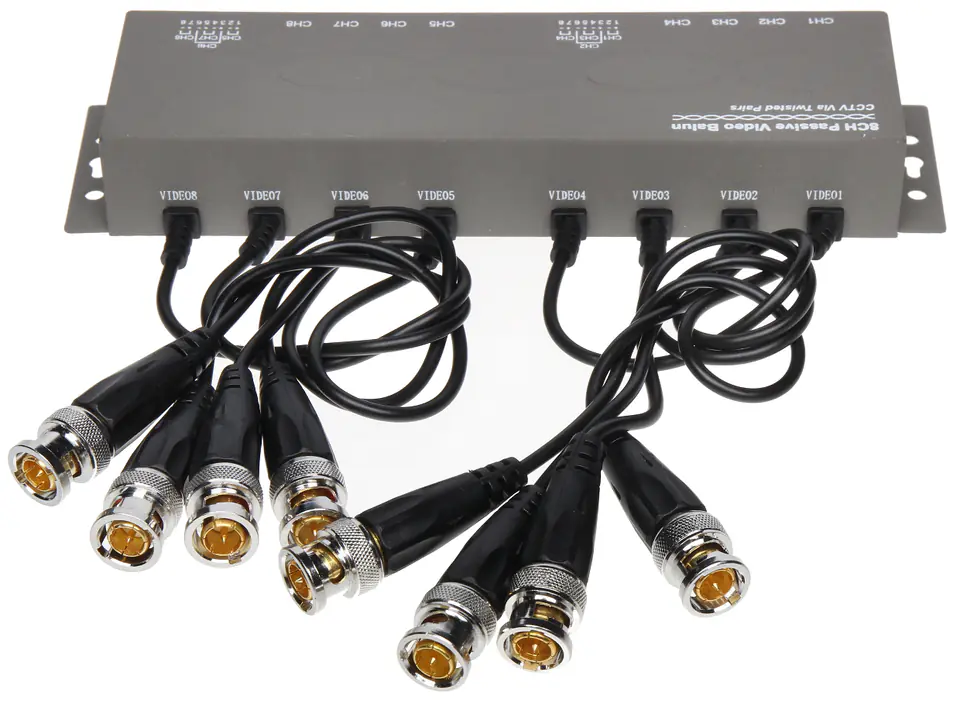

| Attenuation:: | 4.43 MHz @ 0.42 dB 11 MHz @ 0.64 dB 21 MHz @ 0.91 dB 38 MHz @ 1.41 dB 42 MHz @ 1.53 dB 67.5 MHz @ 2.22 dB The given attenuation applies to two devices connected to each other |
|---|---|
| Cmrr (db @ 5mhz):: | 60 dB |
| Coaxial connector impedance:: | 75 Ω |
| Coaxial connector type:: | 8 x BNC Plug on cable |
| Device type:: | Passive |
| Dimensions:: | 185 x 58 x 25 mm |
| I/o voltage 75ω (cvbs):: | 1 Vpp |
| Impedance of the balanced connector:: | 100 Ω |
| Number of channels:: | 8 pcs. Video |
| Operating temperature:: | -10 °C ... 70 °C |
| Permissible relative humidity:: | < 95 % |
| Scales:: | 0.32 kg |
| Separation between inputs:: | > -50 dB |
| Standard:: | AHD - 5 Mpx, HD-CVI - 8 Mpx 4K UHD, HD-TVI - 8 Mpx 4K UHD, CVBS - PAL, NTSC |

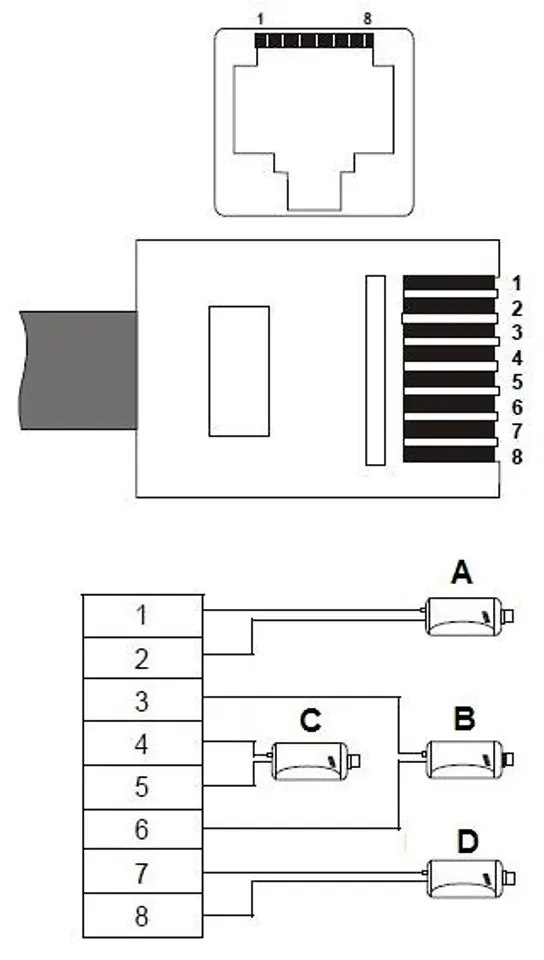

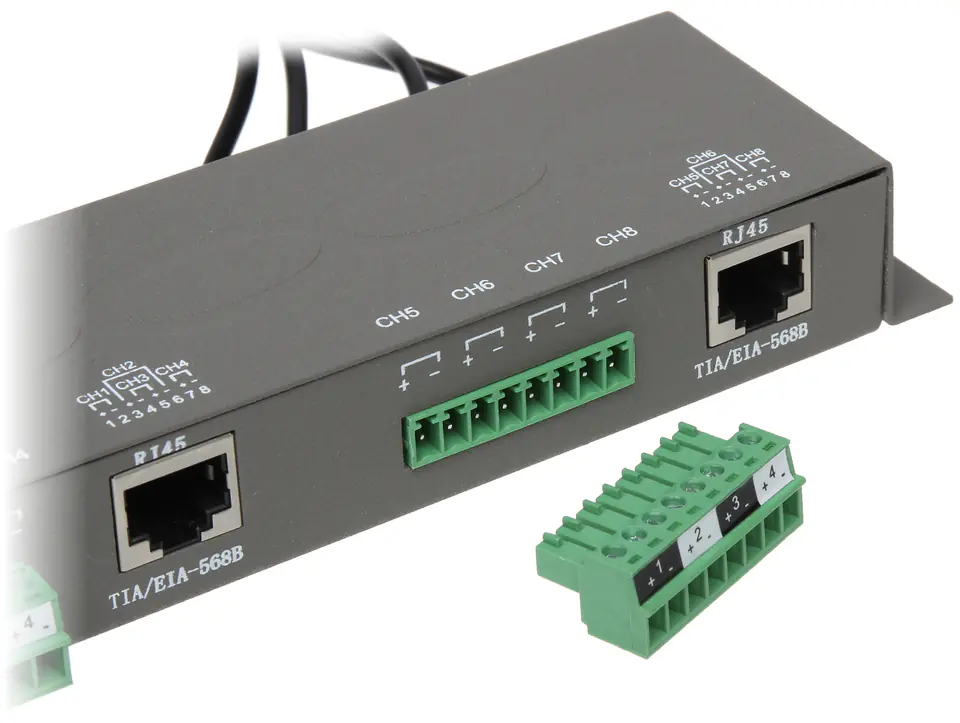

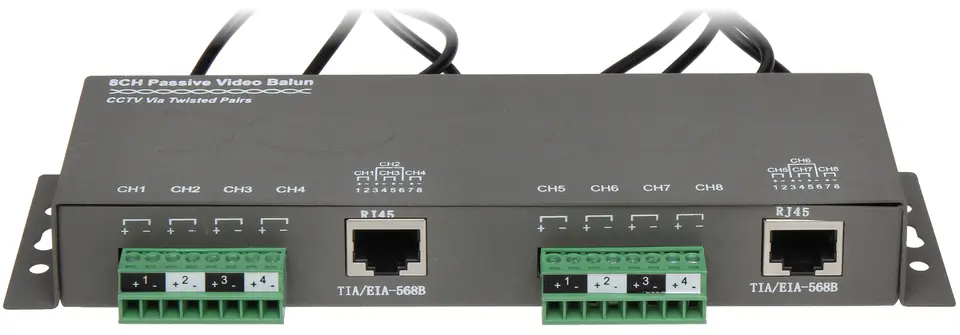

| Symmetrical connector type:: | Cable Terminals / 2 x RJ-45 (8-pin, 4 pairs) Socket |
| Video coverage:: | 250 m @ 720p - UTP cat. 5e 150 m @ 1080p - UTP cat. 5e 400 m @ CVBS - UTP cat. 5e |
| Warranty:: | 2 years |

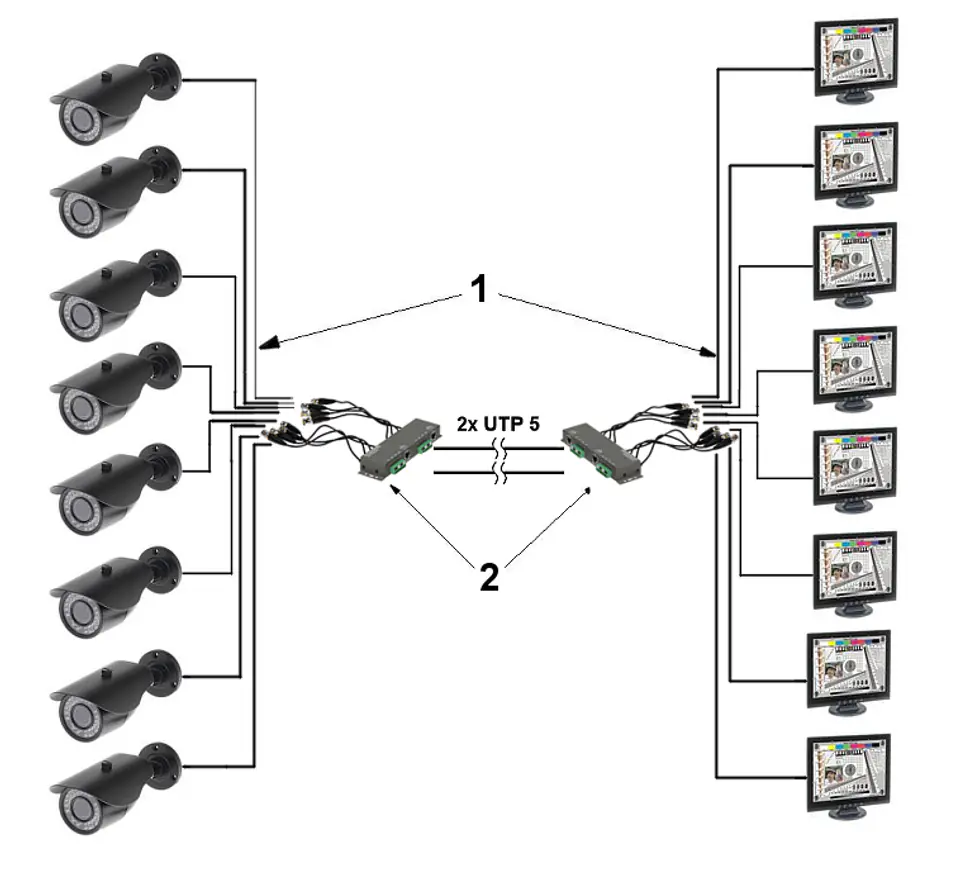

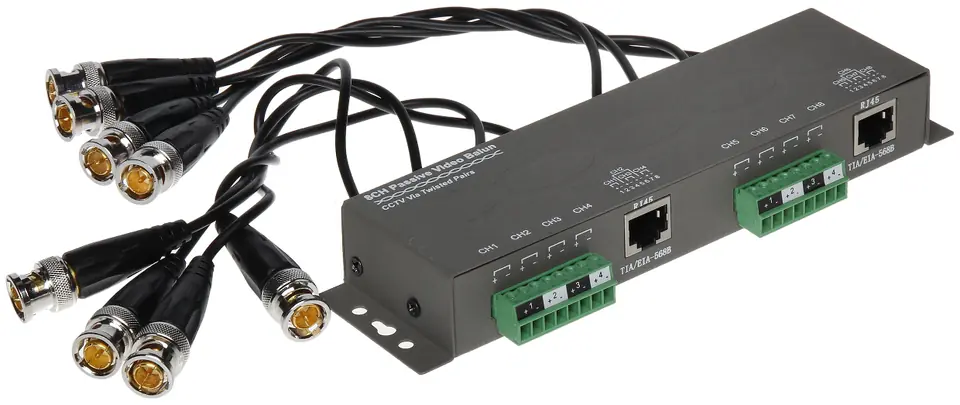

TR-8M is designed for video signal transmission via twisted pair cableThe device adjusts the impedance of a 75Ω coaxial cable to the impedance of a symmetrical cable, providing video signal transmission up to 400m (twisted pair cable of 5 categories) and eliminates asymmetrical interference

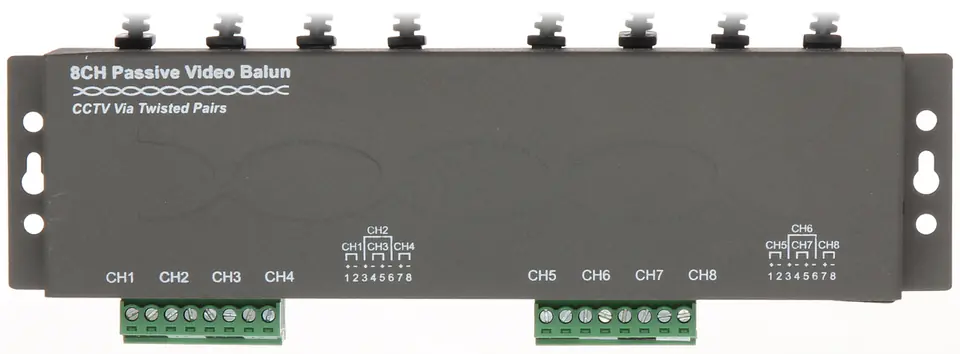

Pay attention to the correct connection of terminals (+) and (-)Reverse connection will cause image interference

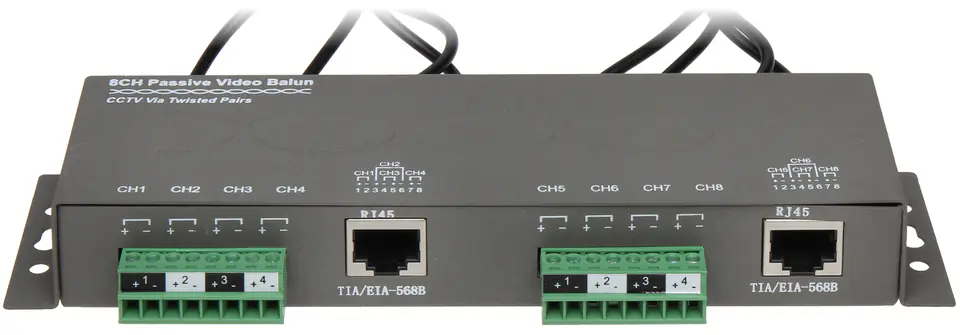

The whole enclosed in a metal casing
