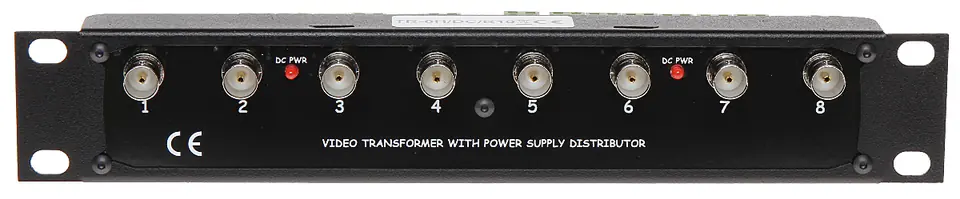

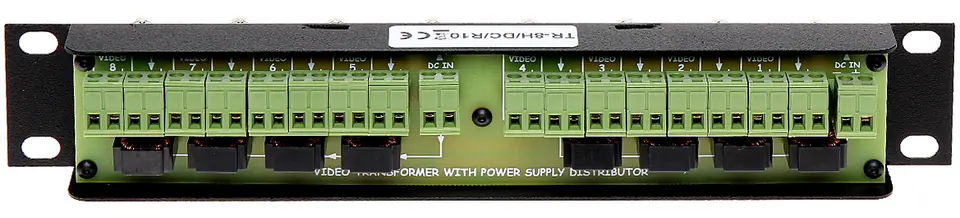

VIDEO TRANSFORMER TR-8H/DC/R10

€65.33

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Tue, Dec 24 - Fri, Dec 27

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: Delta
Product code:: TR-8H/DC/R10 / 5902887016721

Specification

Attenuation::	4.43 MHz @ 0.09 dB 11 MHz @ 0.42 dB 21 MHz @ 1.04 dB 38 MHz @ 0.85 dB 42 MHz @ 1.00 dB 67.5 MHz @ 0.87 dB
Coaxial connector impedance::	75 Ω
Connector type::	Video - 8 x BNC DC Socket - Cable Terminals
Device type::	Passive
Dimensions::	256 x 44 x 53 mm
Housing type::	Rack 10", 1U
I/o voltage 75ω (cvbs)::	1 Vpp
Impedance of the balanced connector::	100 Ω
Input current::	2 x max. 10 A
Manufacturer / brand::	DELTA
Max. single output current::	2.5 A
Maximum supply voltage::	Max. 40 VDC / 28 V AC
Number of channels::	8 Video + DC
Operating temperature::	-10 °C ... 55 °C
Permissible relative humidity::	< 95 %
Power supply range::	Power supply 12V DC 353 m @ 50 mA235 m @ 75 mA176 m @ 100 mA141 m @ 125 mA117 m @ 150 mA88 m @ 200 mA70 m @ 250 mA58 m @ 300 mA50 m @ 350 mA44 m @ 400 mA39 m @ 450 mA35 m @ 500 mA29 m @ 600 mA25 m @ 700 mA22 m @ 800 mA19 m @ 900 mA17 m @ 1000 mA
Scales::	0.28 kg
Standard::	AHD - 5 Mpx, HD-CVI - 8 Mpx 4K UHD, HD-TVI - 8 Mpx 4K UHD, CVBS - PAL, NTSC
Symmetrical connector type::	Cable clamps
Video coverage::	250 m @ 720p - UTP cat. 5e 400 m @ CVBS - PAL / NTSC - UTP cat. 5e
Warranty::	3 years

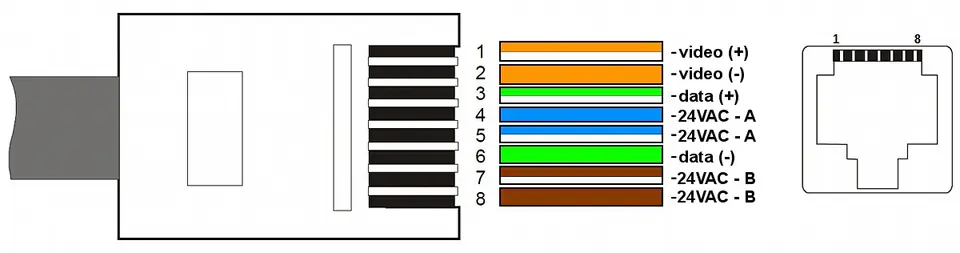

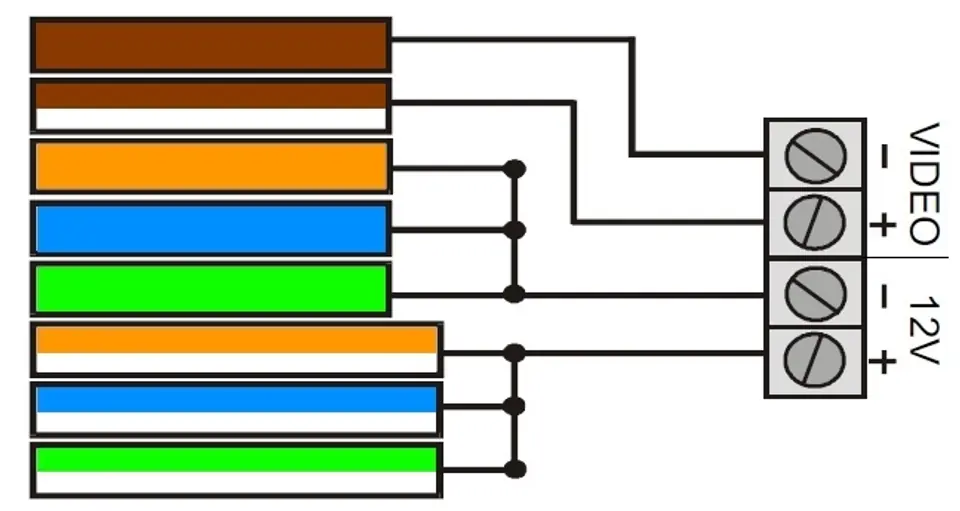

TR-8H/DC/R10 is designed for video signal transmission and power supply via twisted pair cable (UTP, FTP)The device adjusts the impedance of the 75Ω coaxial cable to the impedance of the symmetrical cable, ensuring video signal transmission up to 400m @ PAL (twisted pair of 5 categories) and eliminates asymmetric interferenceThe video signal uses one pair of twisted pair cables, the other three pairs are used to transmit the supply voltage

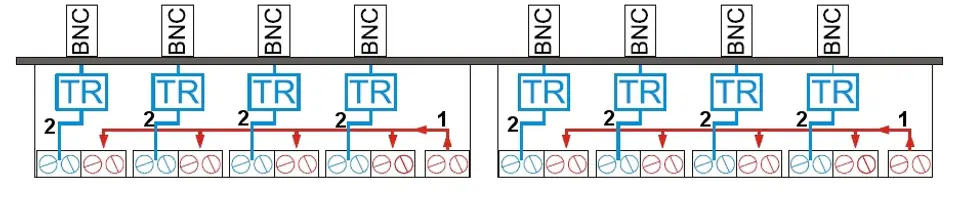

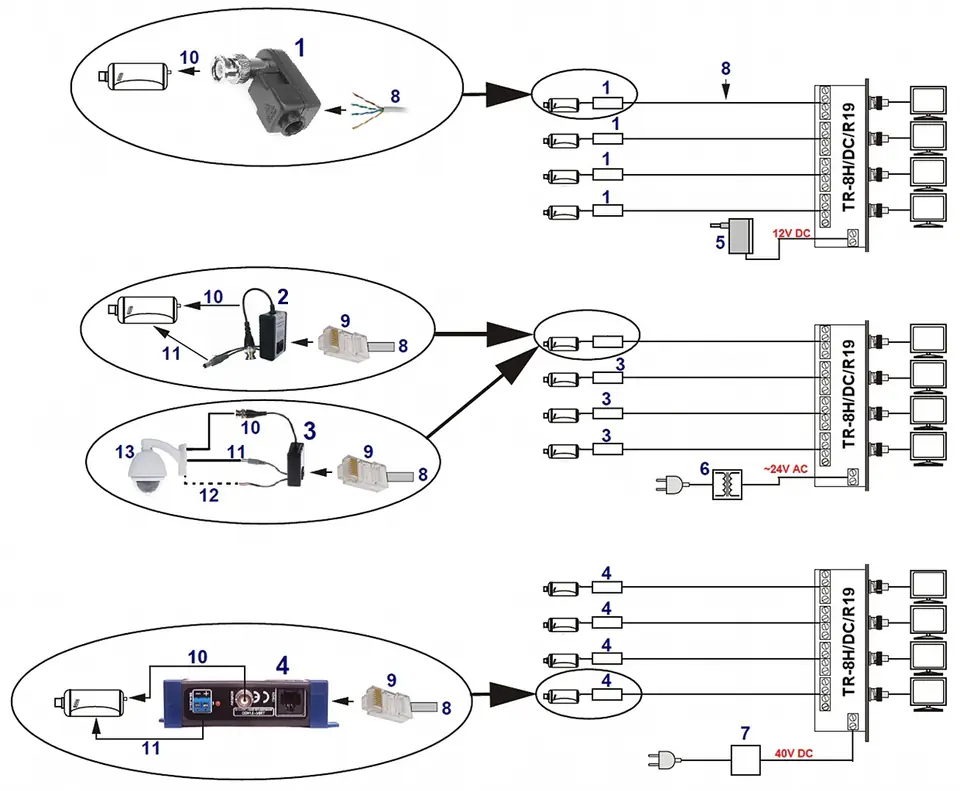

The device consists of 2 independent power modules (see diagram below) which allows for different configurationsThe 12V DC power supply transmission allows the use of TR-1M/70 and TR-1PV/70Some of the outputs can also be powered by 12V, the rest, e.g. 40V, which allows the transmission of power over longer distances (application from TRN-1/400, ZK-40/6 or ZK-40/16)
