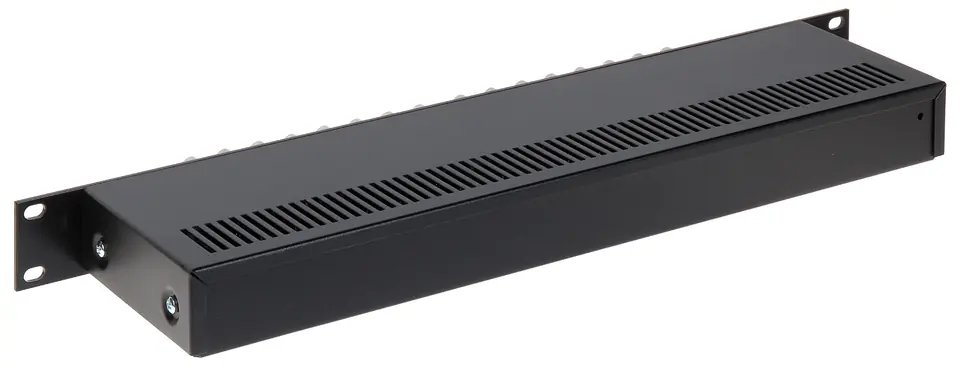

VIDEO TRANSFORMER TR-16/DC-RACK

€248.14

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Tue, Dec 24 - Fri, Dec 27

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: Delta
Product code:: TR-16/DC-RACK / 5902887016639

Specification

Attenuation::	4.43 MHz @ 0.73 dB 11 MHz @ 1.24 dB 21 MHz @ 2.16 dB 38 MHz @ 3.35 dB 42 MHz @ 3.54 dB 67.5 MHz @ 3.72 dB

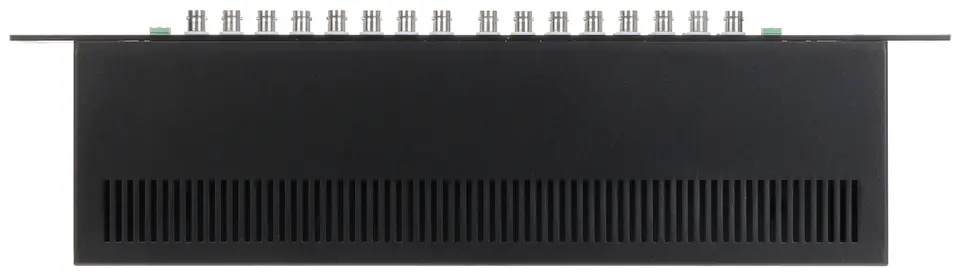

Connector type::	16 x BNC Video Jack2 x Cable Terminals DC2.1 / 5.5 mm DC Jack
Device type::	Passive / Receiver
Dimensions::	483 x 44 x 245 mm
Housing type::	RACK 19", 1U
I/o voltage 75ω (cvbs)::	1 Vpp
Impedance of the balanced connector::	100 Ω
Input voltage::	Max. 40 V DCmax. 10 A Power connector "A"max. 10 A Power connector "B"
Manufacturer / brand::	DELTA
Number of channels::	16 Video + DC
Operating temperature::	-40 °C ... 55 °C
Output voltage::	Max. 40 volts
Output::	1 A @ 1 ... 16
Permissible relative humidity::	< 95 %
Power supply range::	Power supply 12V DC 353 m @ 50 mA235 m @ 75 mA176 m @ 100 mA141 m @ 125 mA117 m @ 150 mA88 m @ 200 mA70 m @ 250 mA58 m @ 300 mA50 m @ 350 mA44 m @ 400 mA39 m @ 450 mA35 m @ 500 mA29 m @ 600 mA25 m @ 700 mA22 m @ 800 mA19 m @ 900 mA17 m @ 1000 mA
Scales::	1,250 kg

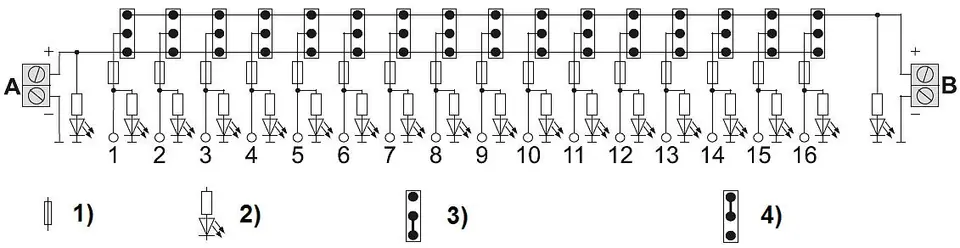

Selected features::	Each of the 16 power outputs can be assigned to the "A" or "B" power supply using jumpers located inside the device housing
Standard::	AHD - 5 Mpx, HD-CVI - 8 Mpx 4K UHD, HD-TVI - 8 Mpx 4K UHD, CVBS - PAL, NTSC

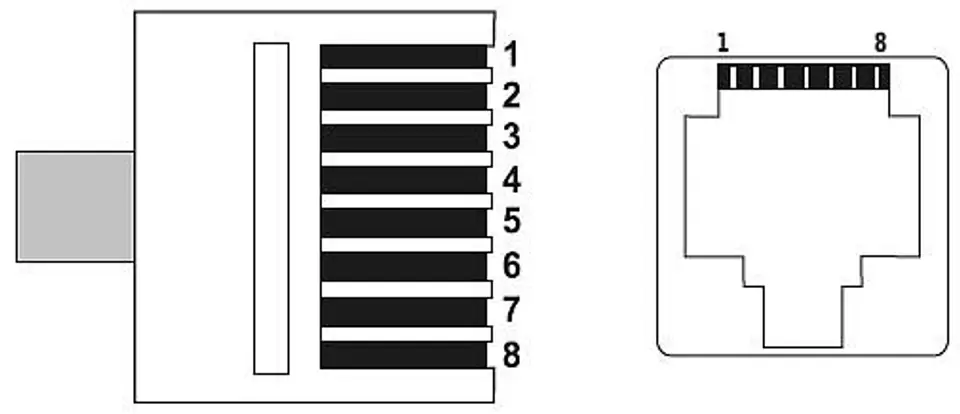

Symmetrical connector type::	16 x RJ-45 (8-pin, 4 pairs) Socket
Video coverage::	250 m @ 720p - UTP cat. 5e 150 m @ 1080p - UTP cat. 5e 400 m @ CVBS - PAL, NTSC - UTP cat. 5e
Warranty::	3 years

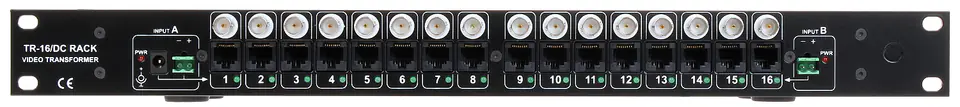

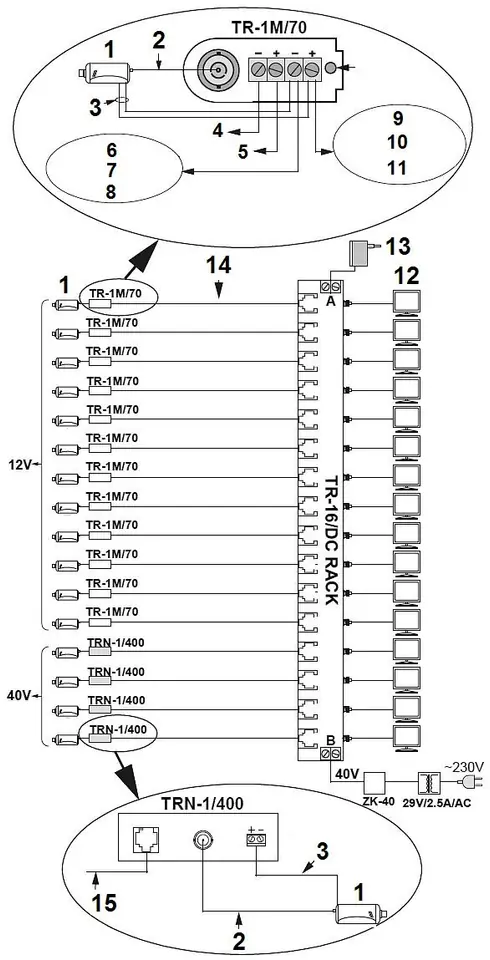

TR-16/DC-RACK is designed for video signal transmission and power supply via twisted pair cable (UTP, FTP)The device adjusts the impedance of the 75Ω coaxial cable to the impedance of the symmetrical cable, providing video signal transmission up to 400m (twisted pair of 5 categories) and eliminates unbalanced interferenceThe video signal uses one pair of twisted pair cables, the other three pairs are used to transmit the power supply voltageTR-16/DC-RACK can be powered from one or two external power supplies (A or B)

Each current path is protected by a polymer fuse and has a green LED informing about its operation (lack of lighting means power cut off)When one of the outputs is overloaded, the resistance and temperature of the polymer fuse increases (>100 ° C), and the LED goes outBy the heated fuse flows a small currentAfter the overload cause has ceased, the fuse automatically returns to its original state

In the device there is a voltage drop on polymer fuses depending on the current consumption: 160mV for I = 0.5A ; 300mV for I=0.7A ; 340mV for I=1A
