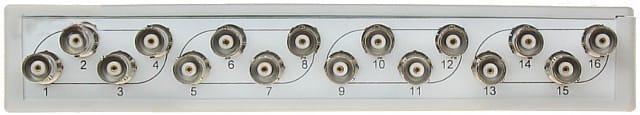

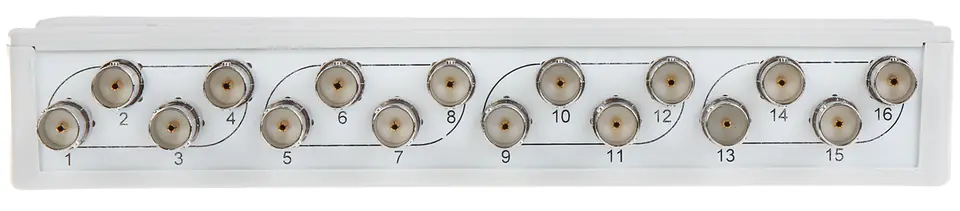

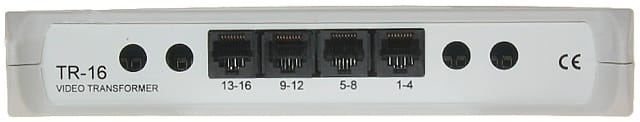

| Attenuation:: | 4.43 MHz @ 0.71 dB 11 MHz @ 1.26 dB 21 MHz @ 1.89 dB 38 MHz @ 4.00 dB 42 MHz @ 4.59 dB 67.5 MHz @ 4.41 dB |
|---|---|
| Cmrr (db @ 5mhz):: | 50 dB |
| Coaxial connector impedance:: | 75 Ω |
| Coaxial connector type:: | 16 x BNC Straight socket |
| Device type:: | Passive |
| Dimensions:: | 213 x 36 x 101 mm |
| I/o voltage 75ω (cvbs):: | 1 Vpp |
| Impedance of the balanced connector:: | 100 Ω |
| Manufacturer / brand:: | DELTA |
| Number of channels:: | 16 pcs. Video |
| Operating temperature:: | -50 °C ... 55 °C |
| Permissible relative humidity:: | < 95 % |
| Scales:: | 0.336 kg |
| Standard:: | AHD - 5 Mpx, HD-CVI - 8 Mpx 4K UHD, HD-TVI - 8 Mpx 4K UHD, CVBS - PAL, NTSC |
| Symmetrical connector type:: | 16 x Cable Terminals / 4 x RJ-45 (8-pin, 4 Pairs) Socket |
| Video coverage:: | 250 m @ 720p - UTP cat. 5e 150 m @ 1080p - UTP cat. 5e 400 m @ CVBS - PAL, NTSC - UTP cat. 5e |
| Warranty:: | 3 years |

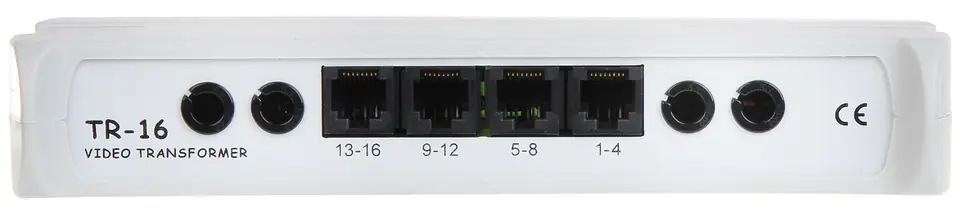

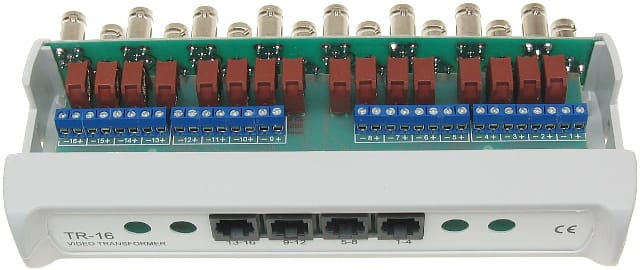

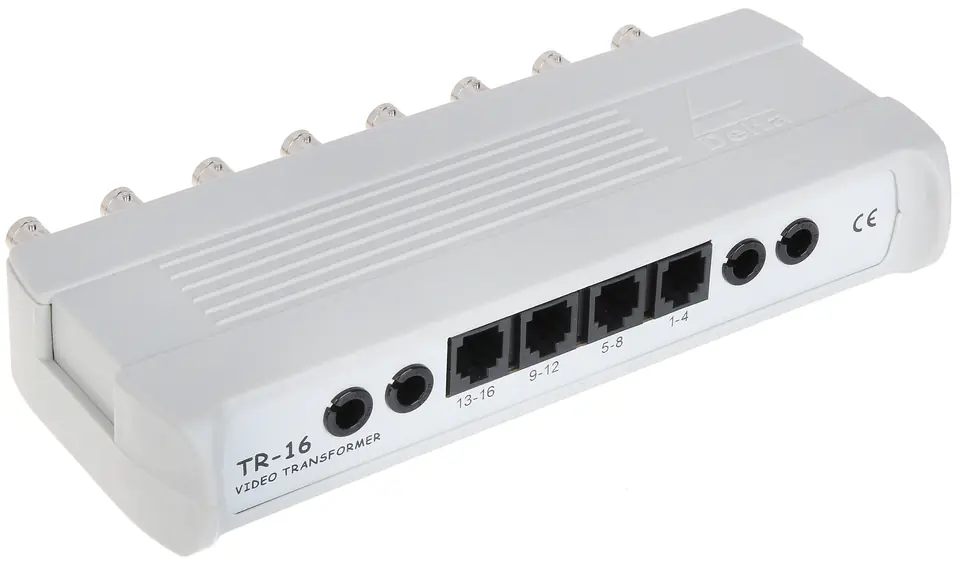

TR-16 is designed for video signal transmission via twisted pair cableThe device adjusts the impedance of a 75Ω coaxial cable to the impedance of a symmetrical cable, providing video signal transmission up to 400m (twisted pair cable of 5 categories) and eliminates asymmetric interference

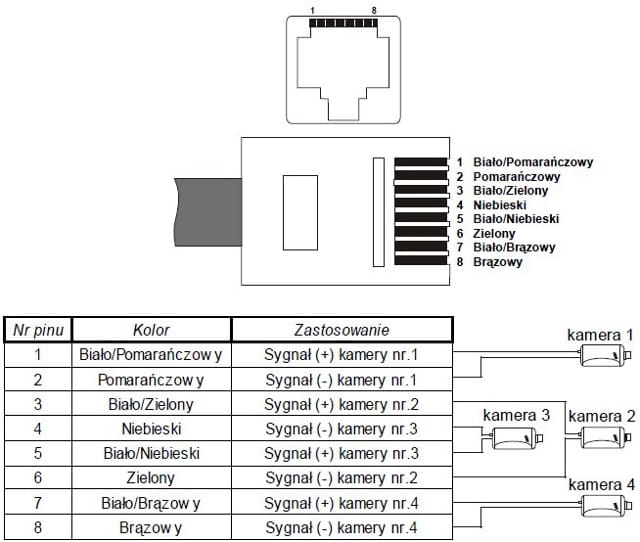

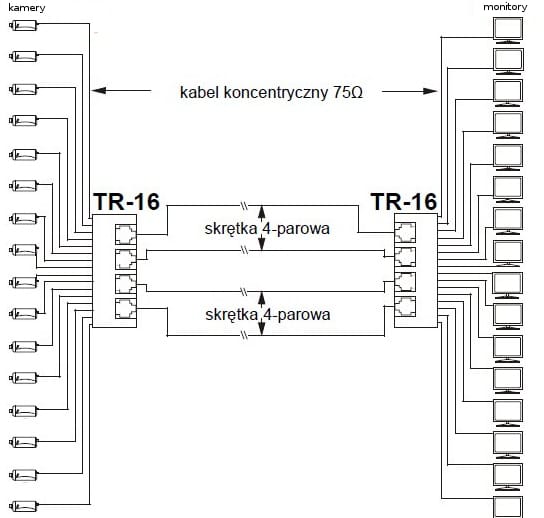

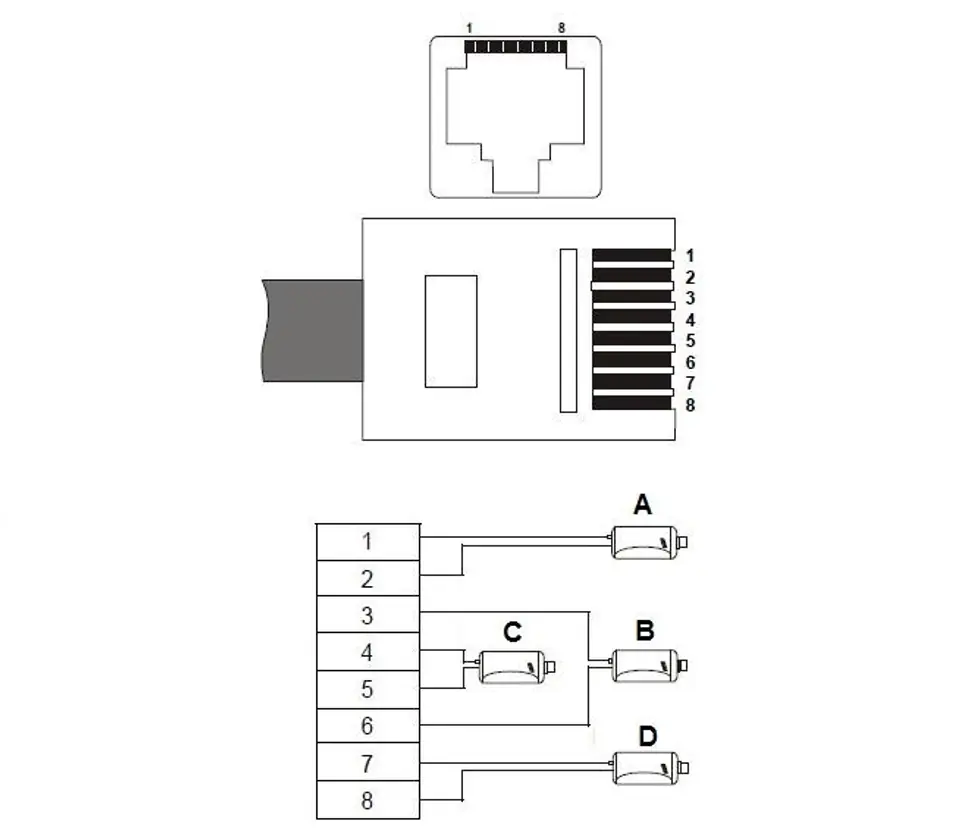

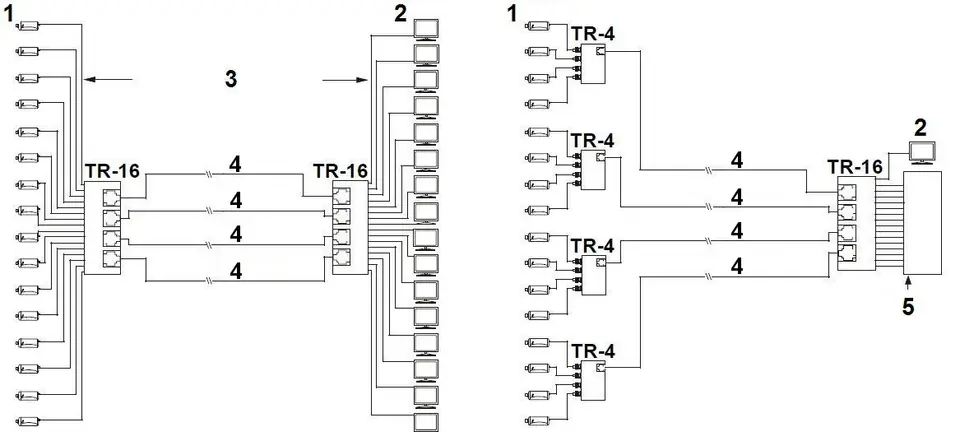

Two such devices are required to build a full signal transmission pathThe correct connection of terminals (+) and (-)The reverse connection will cause image interference
