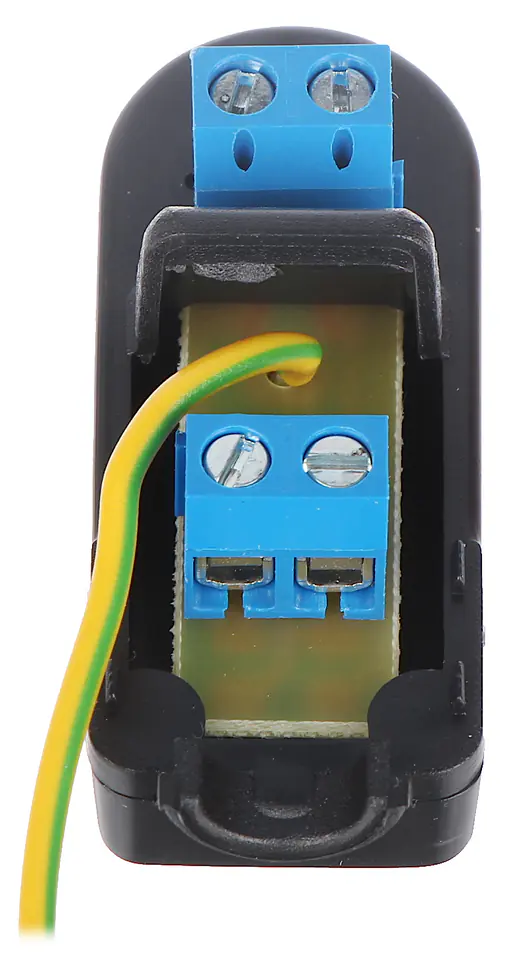

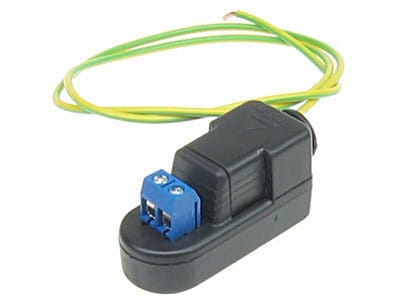

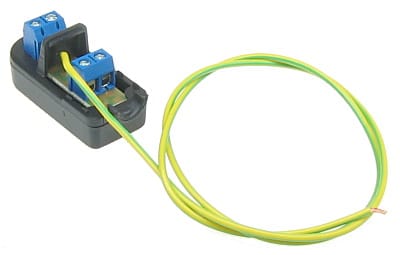

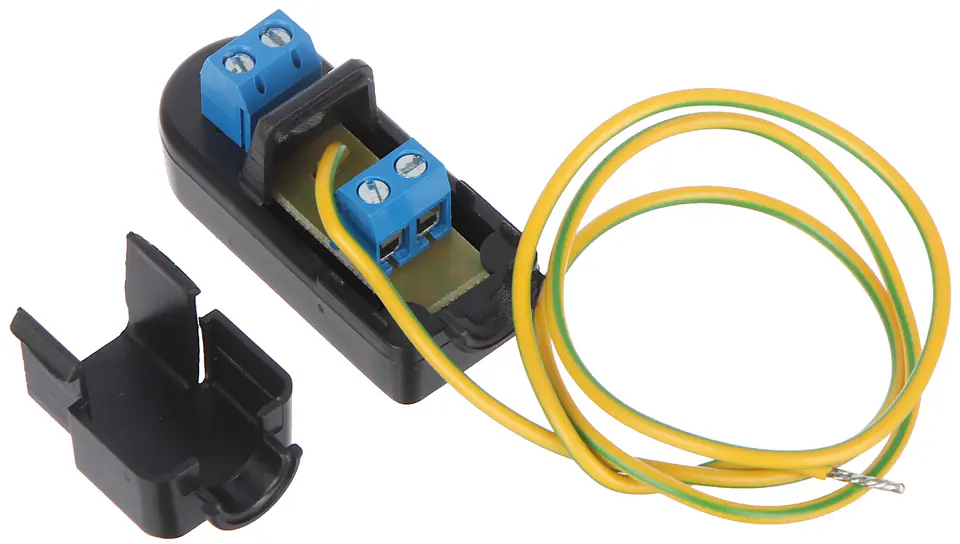

VIDEO SURGE ARRESTER OPV-1S SYMMETRICAL LINE

€5.86
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Delta
Product code:
OPV-1S / 5902887016370

Specification

Ground grounding:Indirect ground, by diode
Input connector type:cable clamps
Maximum discharge current:30 A (t=8.3ms)
Operating temperature:- 50  ... 55 °C
Output connector type:cable clamps
Permissible relative ambient humidity:< 95 %
Producer / brand:DELTA
Protection voltage:> 2.4 V (core/core)> 18.4 V (core/earth)
Response time:15 ns
Scales:0.014 g
Secured line:Symmetric
Standard:AHD - 5 Mpx, HD-CVI - 8 Mpx 4K UHD, HD-TVI - 5 Mpx, CVBS - PAL / NTSC
Warranty:3 years

Our statistics collected for many years on the site indicate that about 25% of damage to electronic equipment was caused by overvoltagesThe OPV-1S surge arrester effectively protects the transmission line by allowing surge current to be discharged to the ground, thus providing proper surge protection for electronic devices

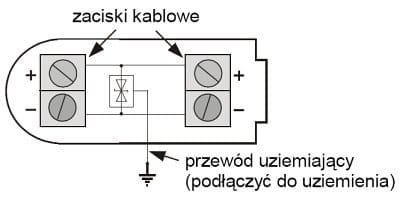

The device is dedicated to applications in which video signals are transmitted differentially via twisted pair cableOPV-1S does not cause loss of signal quality and is a passive device that does not require powerThe device uses ultra-fast high-power switching diodesIn the event of a voltage greater than 2.4V between the ground and the signal wire, the LEDs will quickly shorten the line, which will prevent damage to the deviceOPV-1S can of course be used for protection as well recorders or capture cards

REMARK! Before installation, you should read the following recommendations

OPV-1S should be connected to a good grounding installation
The limiter should be placed as close as possible to the device to be protected

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
