| Amplification: | 0 dB |
|---|---|
| Bandwidth: | 0 ... 120 MHz (-3dB) |
| Current consumption: | 120 mA @ 12 VDC |
| Dimensions: | 490 x 44 x 38 mm |
| Enclosure type: | 1 U 19" rack |
| Input impedance: | 75 Ω |
| Input protection: | ESD, IEC 61000-4-2, ±30kV contact, ±30kV airLightning, IEC 61000-4-5, 12A (tP=8/20μs) |
| Number of inputs: | 8 pcs. BNC |
| Number of outputs: | 16 pcs. BNC |
| Output impedance: | 75 Ω |
| Power: | 7 ... 26 V DC (not included power supply) |
| Producer / brand: | DELTA |
| Protection of outputs: | ESD, IEC 61000-4-2, ±30kV contact, ±30kV airLightning, IEC 61000-4-5, 12A (tP=8/20μs) |
| Scales: | 0.34 kg |
| Standard: | AHD / HD-CVI / HD-TVI - 8 Mpx 4K UHD, CVBS - PAL, NTSC |
| Warranty: | 5 years |

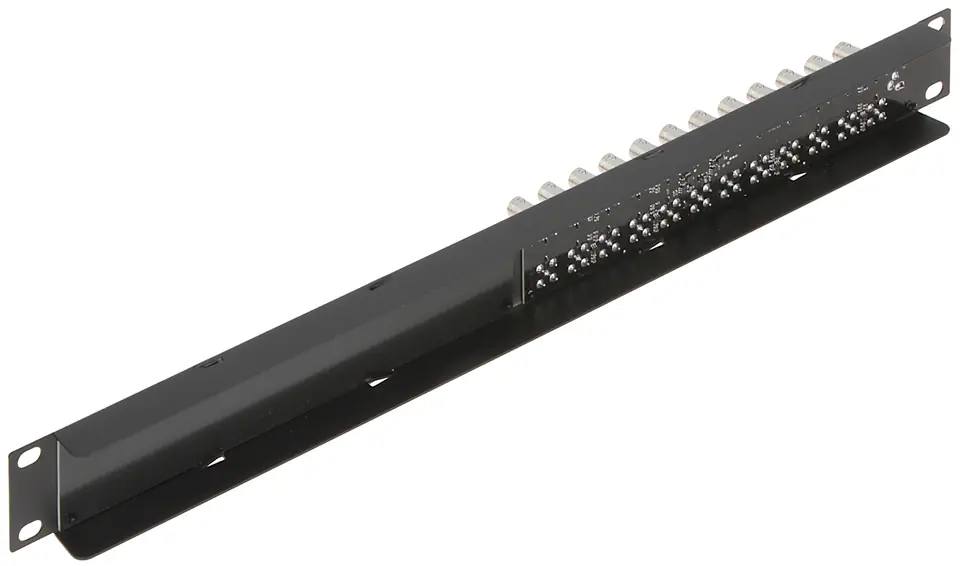

The RV-8/16-UHD/R19 splitter consists of 8 independent two-output video splittersModern design of the device allows cooperation with all standards commonly used in CCTV systems, operating in the band up to 120MHzThis means that the signal can be split in the maximum resolution: AHD - 8Mpx, HD-CVI - 8Mpx, HD-TVI - 8Mpx, CVBS - 960H
The device is designed for continuous operation, in enclosed spaces

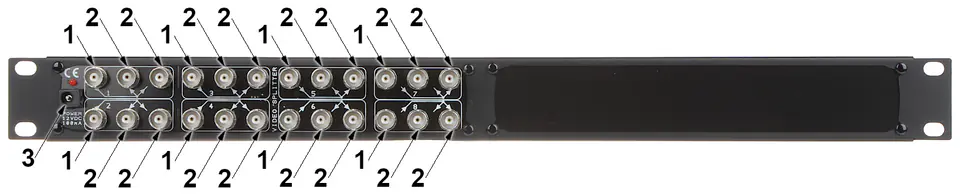

Appropriate distances between sockets allow you to freely tighten any BNC plug with your fingers
