VIDEO SPLITTER RV-8/16-UHD/R

€84.73

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Tue, Dec 24 - Fri, Dec 27

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: Delta
Product code:: RV-8/16-UHD/R / 5902887062155

Specification

Amplification::	0 dB
Current consumption::	60 mA @ 12 V DC
Dimensions::	218 x 40 x 22 mm (without stand)
Input impedance::	75 Ω
Input/output protection::	ESD, IEC 61000-4-2, ±30kV contact, ±30kV airLightning, IEC 61000-4-5, 12A (tP=8/20μs)
Manufacturer / brand::	DELTA
Number of inputs::	8 pcs. BNC
Number of outputs::	16 pcs. BNC
Operating band::	0 ... 120 MHz (-3dB)
Output impedance::	75 Ω
Power::	7 ... 26 V DC (no power supply included)
Scales::	0.13 kg
Standard::	AHD / HD-CVI / HD-TVI - 8 Mpx 4K UHD, CVBS - PAL, NTSC
Warranty::	5 years

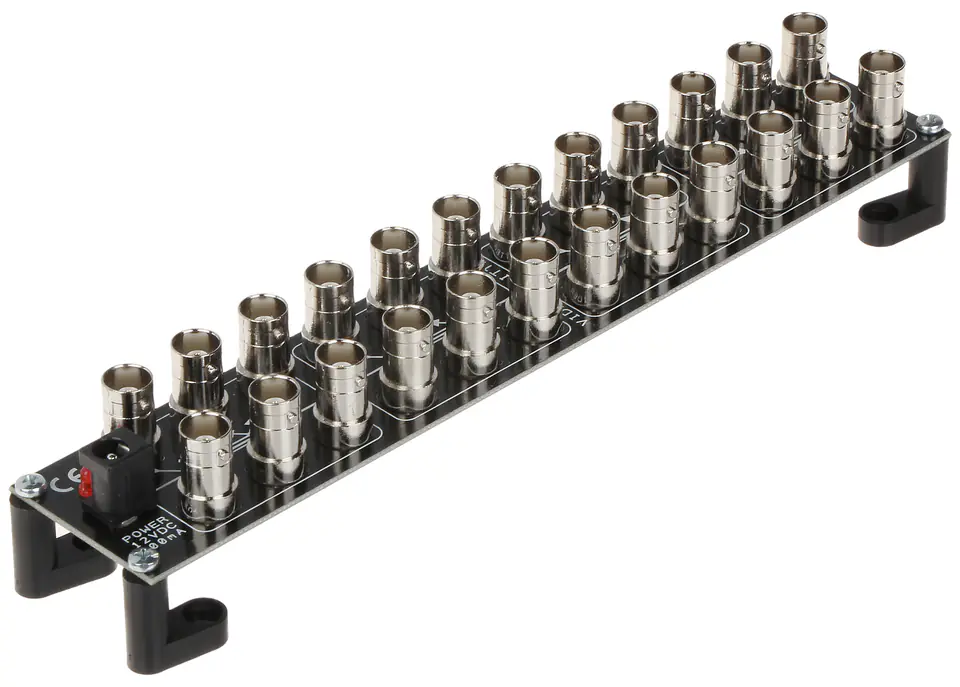

The RV-8/16-UHD/R splitter consists of 8 independent two-output video signal splittersModern design of the device allows cooperation with all standards commonly used in CCTV systems, operating in the band up to 120MHzThats the possibility of separating the signal in the maximum resolution: AHD - 8Mpx, HD-CVI - 8Mpx, HD-TVI - 8Mpx, CVBS - 960H

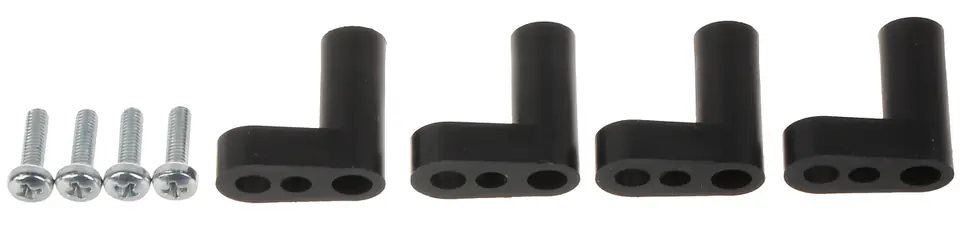

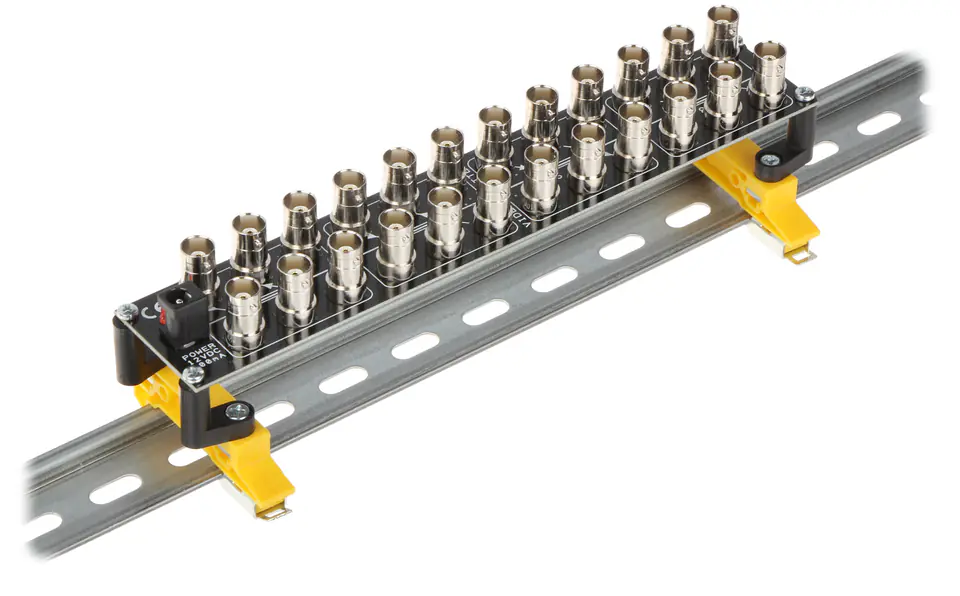

The design allows the module to be placed in the frame of the 1U, 10" or 19" RACK system By combining two modules in a double frame, you can get a 16/32 splitterThe device is adapted for continuous operation, indoors

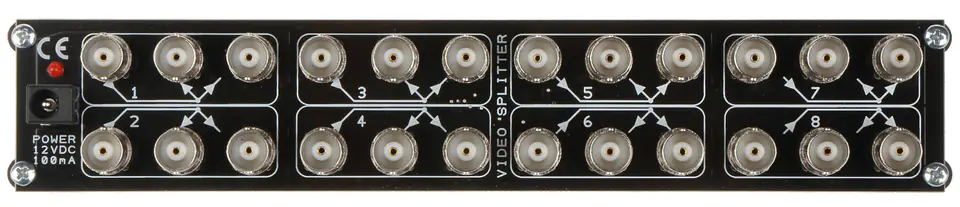

Appropriate distances between sockets allow you to freely tighten any BNC plug with your fingers

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
