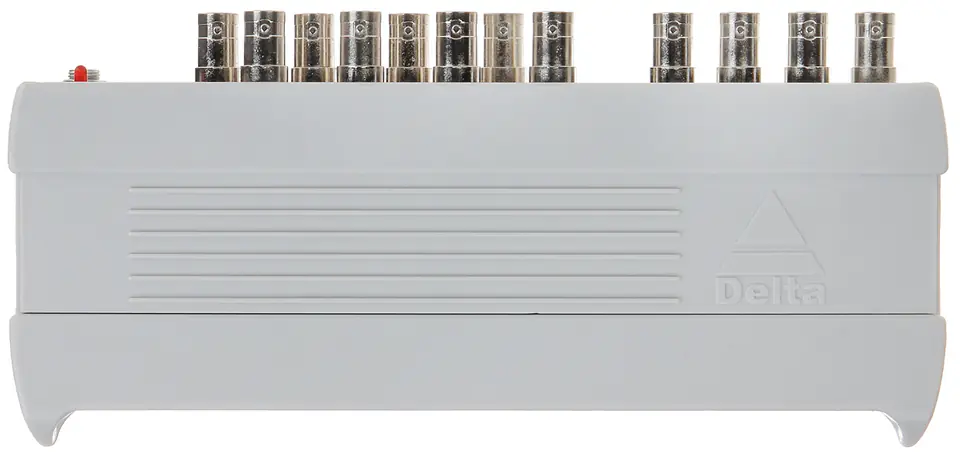

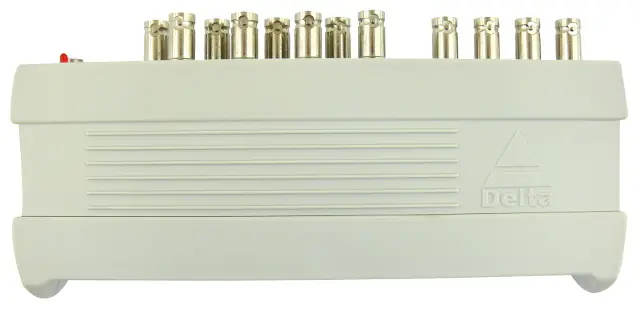

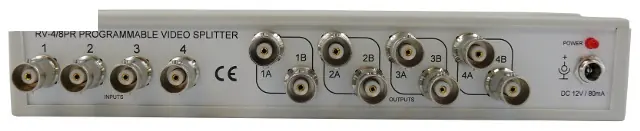

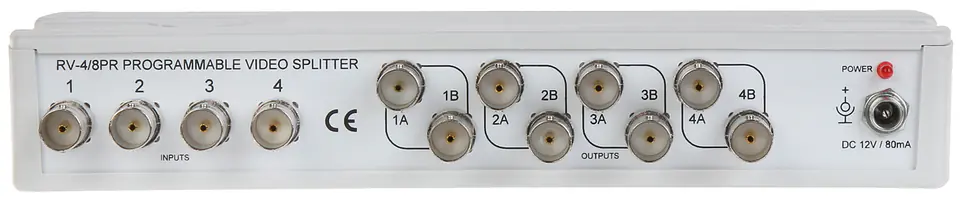

RV-4/8PR video splitter allows video signals to be separatedThe device is adapted for continuous operation, indoorsA device adapted to color, black and white cameras, PALOase the distance between the sockets, allows you to freely tighten any BNC plug with your fingers

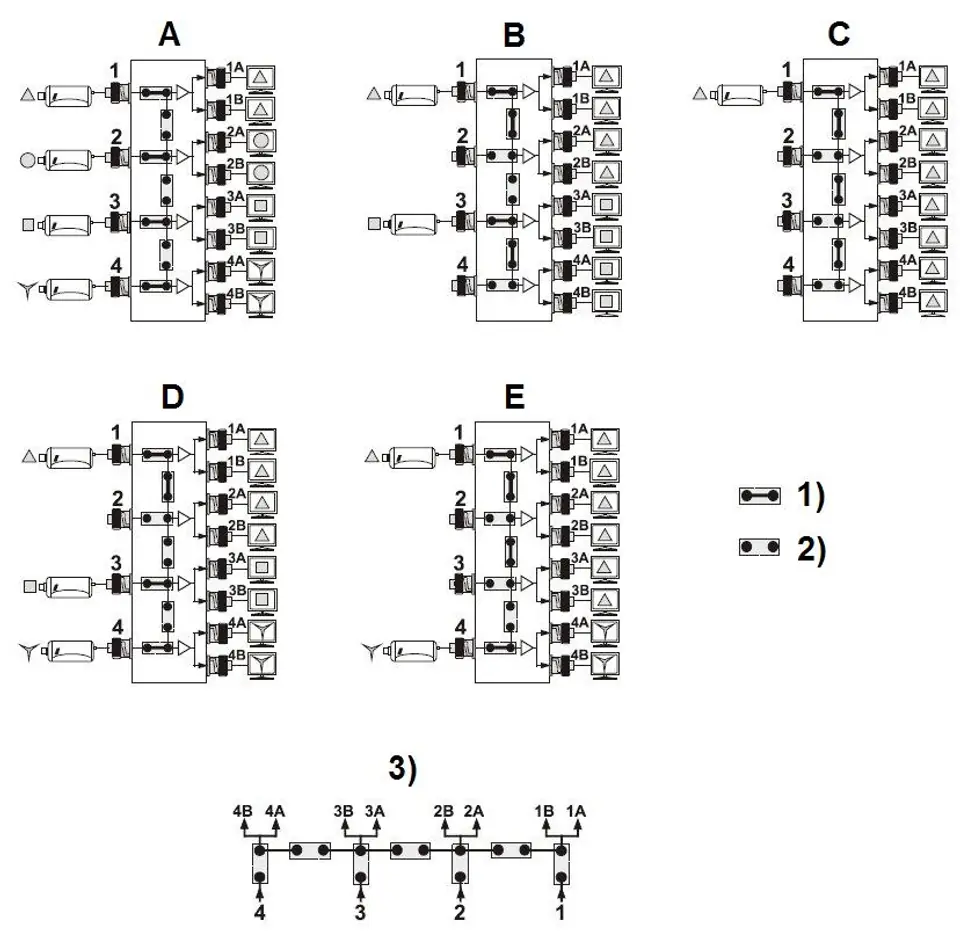

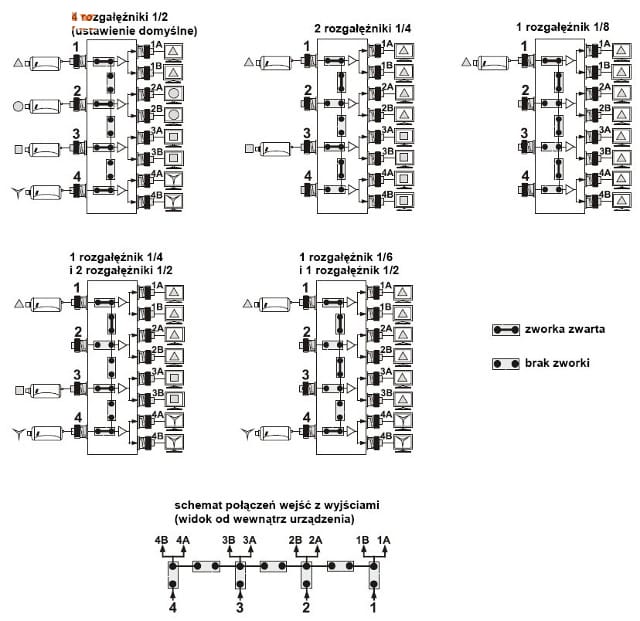

By default, the RV-4/8PR is set as 4 independent 1/2 video splitters. It is very easy to reconfigure it using jumpers, which are available after removing the cover. There are 5 combinations available, which are presented below. Vertical jumpers activate individual inputs, while horizontal jumpers connect the outputsit is very easy to reprogram it using jumpers located on the front panel. Number of combinations:5. Examples of four of them are visible in the drawings. When programming, use the table. Vertical jumpers activate individual entrances, while horizontal jumpers connect the exits
