| Adjustable gain:: | -3 dB ... +3 dB |
|---|---|
| Bandwidth:: | 33 MHz / 1 Vpp |
| Dimensions:: | 120 x 62 x 30 mm |
| Galvanic (optical) separation between signal inputs and outputs:: | 1000 V peak |
| Galvanic separation between the power supply and signal inputs and outputs:: | 1000 V peak |
| Input impedance:: | 75 Ω |
| Manufacturer / brand:: | DELTA |
| Number of inputs:: | 1 pc. BNC |
| Number of outputs:: | 1 pc. BNC |
| Output impedance:: | 75 Ω |
| Power:: | 12 VDC / 90 mA |
| Scales:: | 0.088 kg |
| Standard:: | AHD - 4 Mpx HD-CVI - 720p CVBS - PAL / NTSC |
| Warranty:: | 3 years |

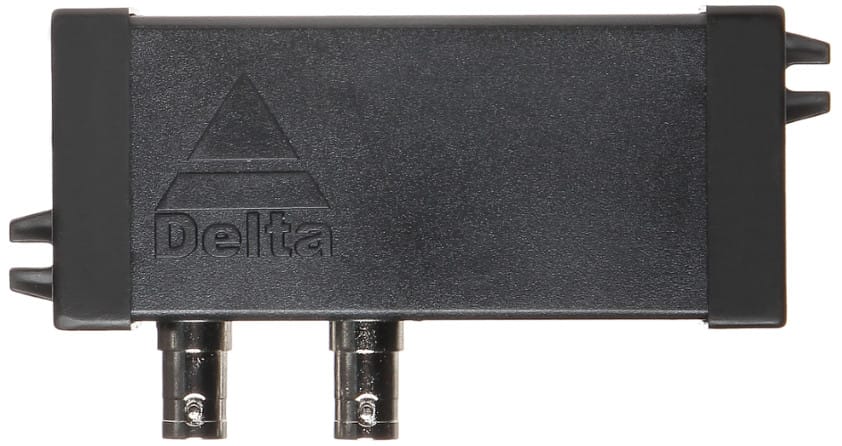

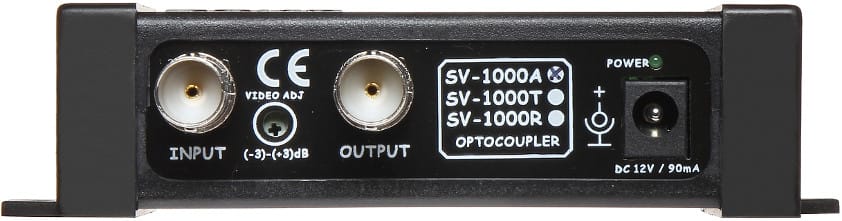

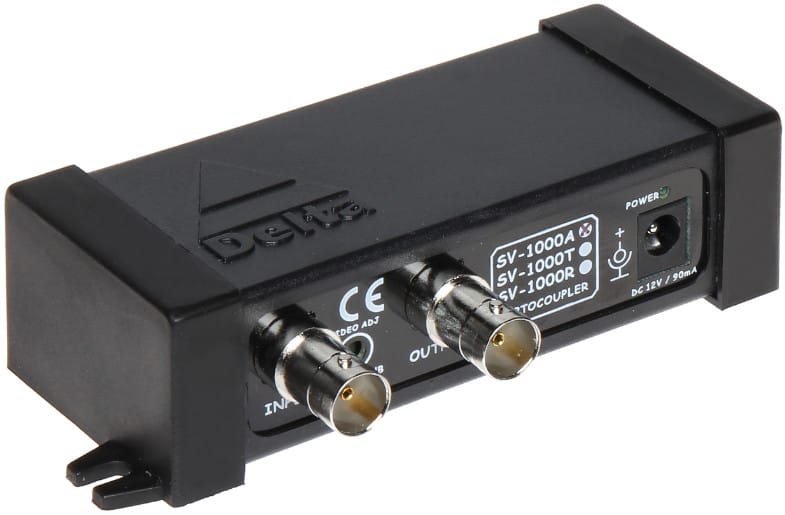

The SV-1000A video seprarator is designed for additional protection in CCTV systems with AHD-M, AHD-H, HD-CVI 720p systems, protecting them against the potential difference between devices and currents flowing through the signal mass
The device eliminates interference in the transmission of video signals through galvanic (optical) isolation between input and outputPlating isolation also occurs between the power supply of input and output circuitsReseparates the main power supply of the device
