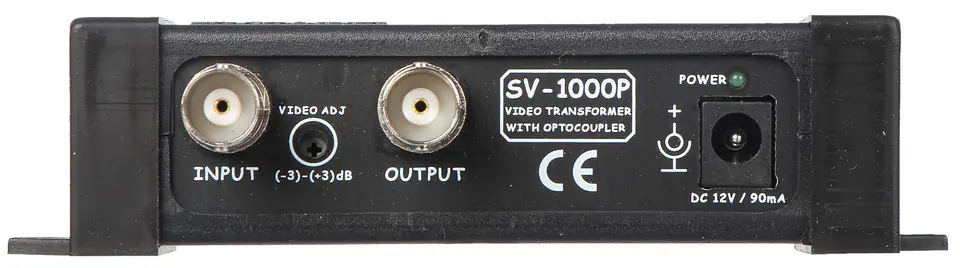

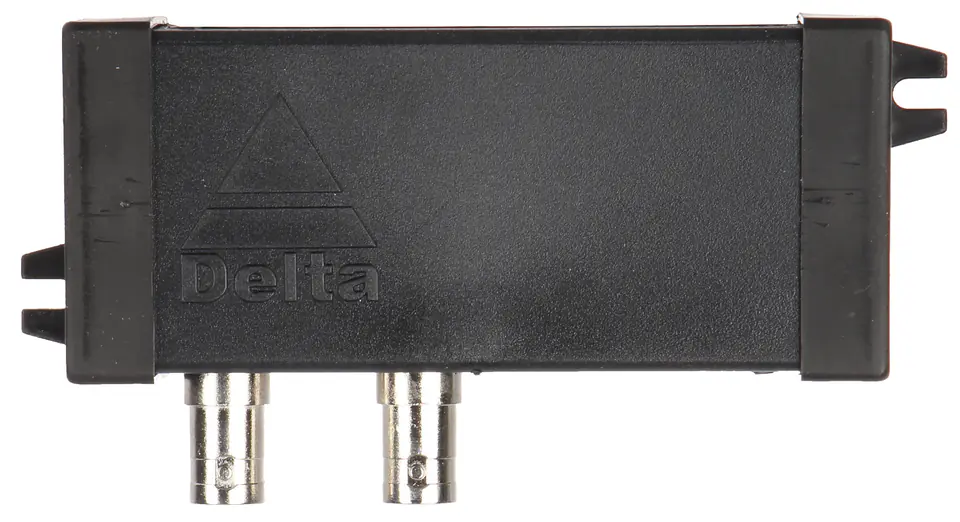

VIDEO SEPARATOR SV-1000P STANDARD: PAL,

€43.59
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Delta
Product code:
SV-1000P / 5902887016608

Specification

Adjustable gain::-5 dB ... +5 dB
Assembly:: to the wall
Bandwidth::9 MHz / 1 Vpp
Dimensions::61 x 120 x 30 mm
Galvanic (optical) separation between signal inputs and outputs::1000 V peak
Galvanic separation between the power supply and signal inputs and outputs::1000 V peak
Input impedance::75 Ω
Manufacturer / brand::DELTA
Nonlinear distortion::0.75 % (f=3.58MHz, Vin=1Vpp)
Number of inputs::1 pc. BNC
Number of outputs::1 pc. BNC
Output impedance::75 Ω
Power::12 VDC / 80 mA
Scales::0.095 kg
Standard::CVBS - PAL / NTSC
Warranty::3 years

SV-1000P is designed for additional protection in CCTV systems of cameras and other devices, protecting them against the potential difference between devices and currents flowing with the signal mass

The device eliminates interference when transmitting a signal over a distance of several hundred meters

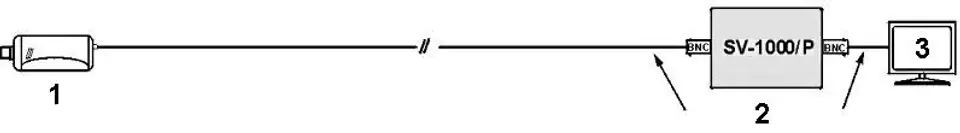

Connecting the SV-1000P video separator according to the diagram below (Fig. 1) eliminates interference caused by the potential difference between the camera mass and the weight of the monitorThe voltage resulting from this potential difference may add to the useful signal voltageThis are low-frequency interference manifested, for example, by black bars slowly moving vertically
