| Adjustable gain:: | -5 ... +5 dB (access to potentiometers after removing the cover) |
|---|---|
| Assembly:: | to the wall |
| Bandwidth:: | 9 MHz / 1 Vpp |
| Dimensions:: | 213 x 36 x 93 mm |
| Galvanic (optical) separation between signal inputs and outputs:: | 1000 V peak |
| Galvanic separation between signal inputs:: | 1000 V peak |
| Galvanic separation between signal outputs:: | 1000 V peak |
| Galvanic separation between the power supply and signal inputs and outputs:: | 1000 V peak |
| Input impedance:: | 75 Ω |
| Manufacturer / brand:: | DELTA |
| Nonlinear distortion:: | 0.75 % (f=3.58MHz, Vin=1Vpp) |

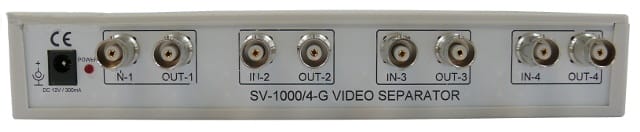

| Number of inputs:: | 4 pcs. BNC |
| Number of outputs:: | 4 pcs. BNC |
| Output impedance:: | 75 Ω |
| Power:: | 12 VDC / 300 mA |
| Scales:: | 0.310 kg |
| Standard:: | CVBS - PAL / NTSC |
| Warranty:: | 3 years |

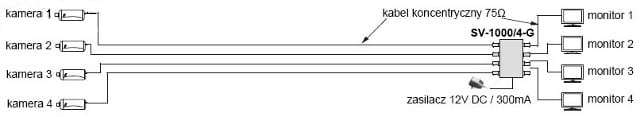

SV-1000/4-G is designed for additional protection in CCTV systems of cameras and other devices, protecting them against the potential difference between devices and currents flowing with the signal mass

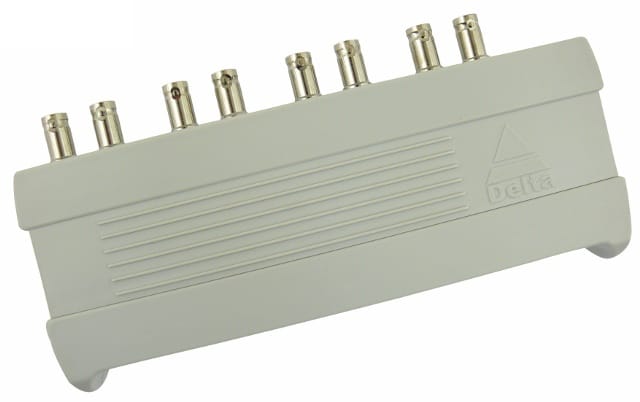

The device eliminates interference when transmitting the signal over a distance of several hundred metersThe extension after removing the cover allows it to be mounted with screws to the wall (not included)
