VIDEO SEPARATOR D-SEP/HD-4

€24.59

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Tue, Nov 19 - Fri, Nov 22

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: Delta
Product code:: D-SEP/HD-4 / 5902887043758

Specification

Attenuation::	4.43 MHz @ 0.37 dB 11 MHz @ 0.47 dB 21 MHz @ 0.62 dB 38 MHz @ 0.93 dB 42 MHz @ 0.93 dB 67.5 MHz @ 1.16 dB
Bandwidth::	200 MHz
Device type::	Passive
Dimensions::	103 x 78 x 30 mm
Entrance protection::	ESD, IEC 61000-4-2, ±30kV contact, ±30kV airEFT, IEC 61000-4-4, 40A (5/50ns)Lightning, IEC 61000-4-5, 30A (tP=8/20μs)
Galvanic separation between individual channels::	> 2000 V
Galvanic separation between inputs and outputs::	50 VDC
Input impedance::	75 Ω
Manufacturer / brand::	DELTA
Number of inputs::	4 pcs. BNC socket
Number of outputs::	4 pcs. BNC socket
Operating temperature::	-20 °C ... 55 °C
Output impedance::	75 Ω
Scales::	0.12 kg
Standard::	AHD - 8 Mpx, 4K UHD HD-CVI - 8 Mpx, 4K UHD HD-TVI - 8 Mpx 4K UHD CVBS - PAL / NTSC
Warranty::	3 years

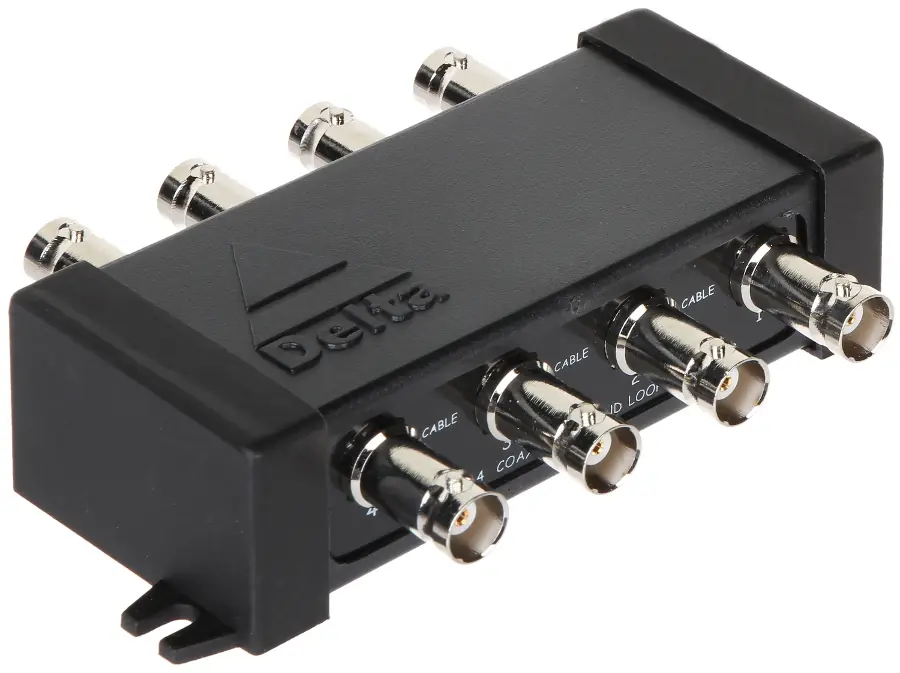

D-SEP/HD-4 ground loop isolator is a passive device that eliminates or reduces signal interference resulting from the potential difference between devices and currents flowing with signal groundThe device provides galvanic separation and is designed for applications using the signal standard: AHD, HD-CVI, HD-TVI, PALD-SEP/HD-4 consists of 4 independent (galvanically separated) channels Each input is protected by a specialized TVS diode

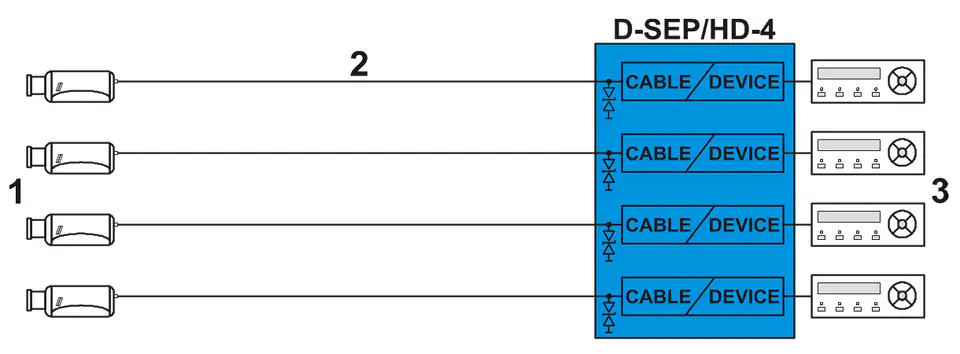

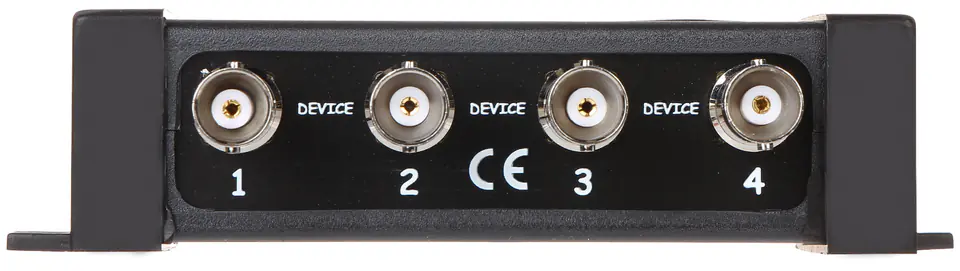

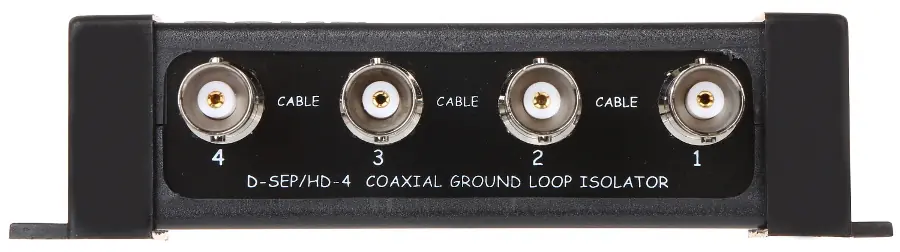

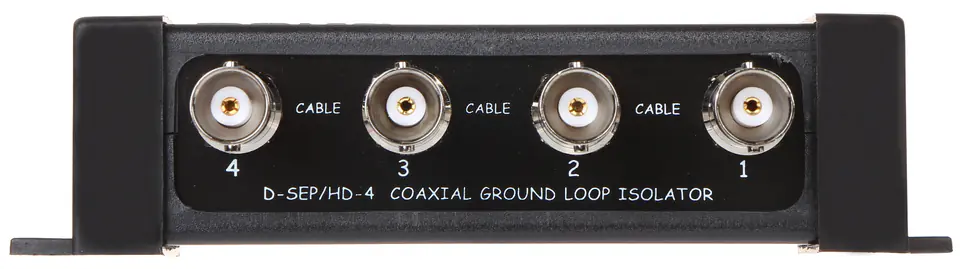

Remark! The D-SEP/HD-4 device requires a correct connection: Cable (BNC socket) – camera signal (transmission line), Device (BNC socket) – recorder, monitor

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
