| Built-in proximity reader : | Access Control Cards - MIfare S50 |
|---|---|
| Case: | Zinc alloy, Waterproof |
| Colour: | Graphite |

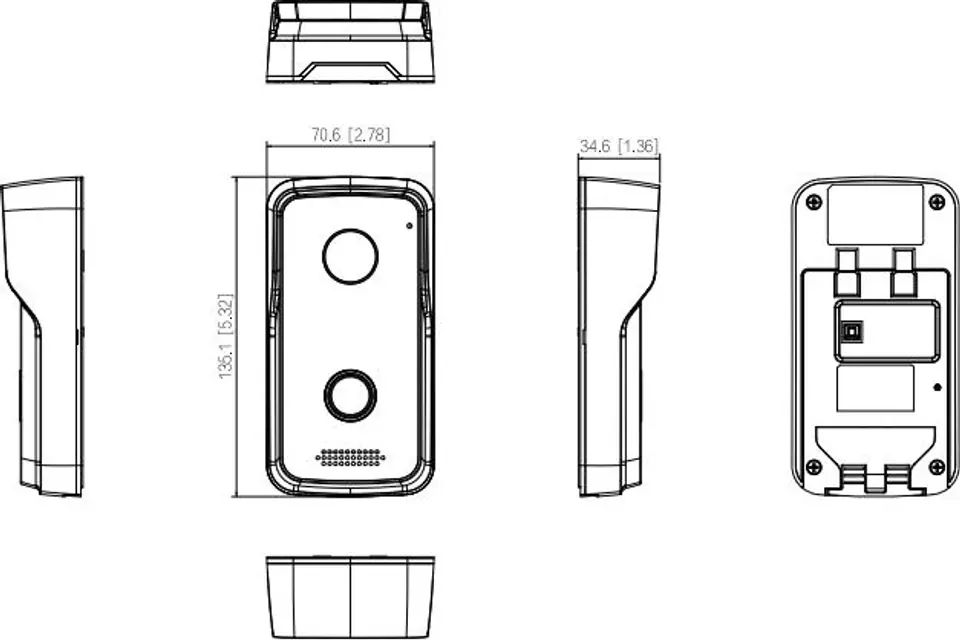

| Dimensions: | 135 x 71 x 35 mm |
| Image compression method: | H.264 |
| Mobile phone access: | Port: 37777 or cloud access (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app |
| Number of subscribers served: | 1 |
| Operating temperature: | -30 °C ... 60 °C |
| Power: | PoE (802.3af), 12 V DC / 1000 mA |
| Power consumption: | ≤ 5 watts |
| Scales: | 0.16 kg |
| Sealing: | IP65 - after additional sealing of the connection of the housing with the mounting surface, e.g. silicone, |

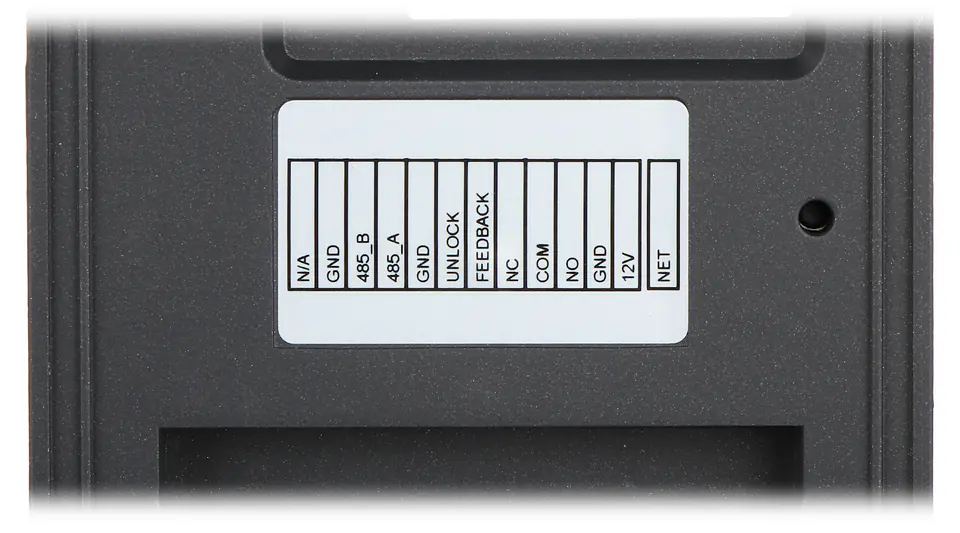

| Selected features: | Can work without VTH monitor, only with mobile app The function of a monitor with the possibility of opening the door, can be performed by a smartphone, tablet or VTH internal panel WDR motion detection - Wide dynamic range of lighting Two-way communication, Built-in microphone, Built-in speakers, Tamper detection - enclosure opening, Inputs for reed switch detector and exit button |
| Transducer: | 1/4", 1 Mpx CMOS |
| Utp category: | UTP cat. 5e |
| Viewing angle: | 107 ° |

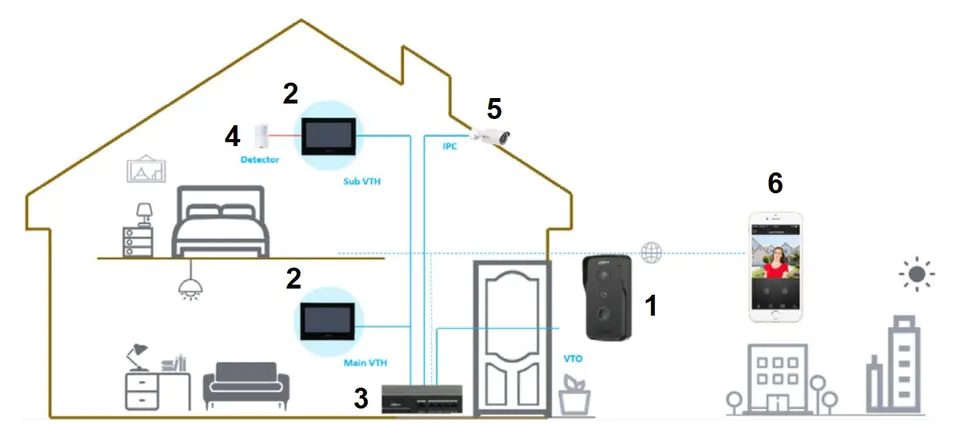

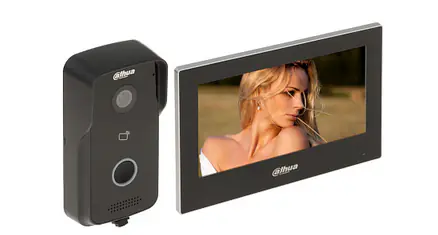

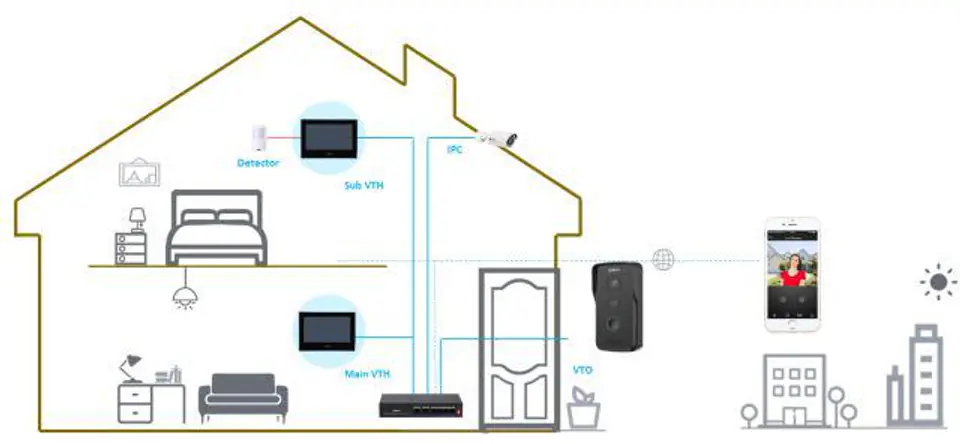

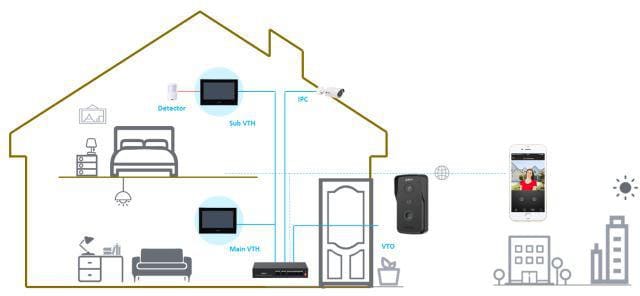

IP video intercom set with a 7-inch touch monitor, the possibility of alarm integration and 2 inputs, as well as a remote intercom from a mobile applicationIt can also act as a simplified alarm control panel or notification module by operating 6 alarm inputs

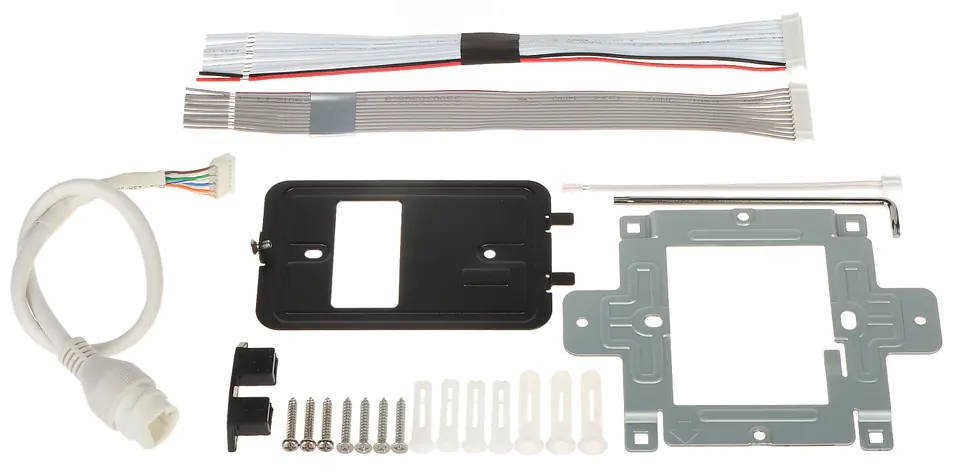

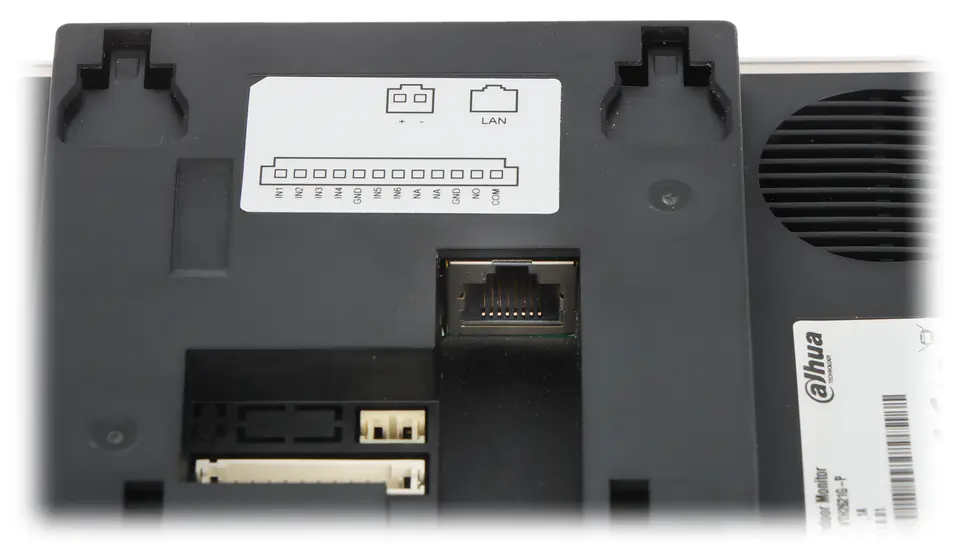

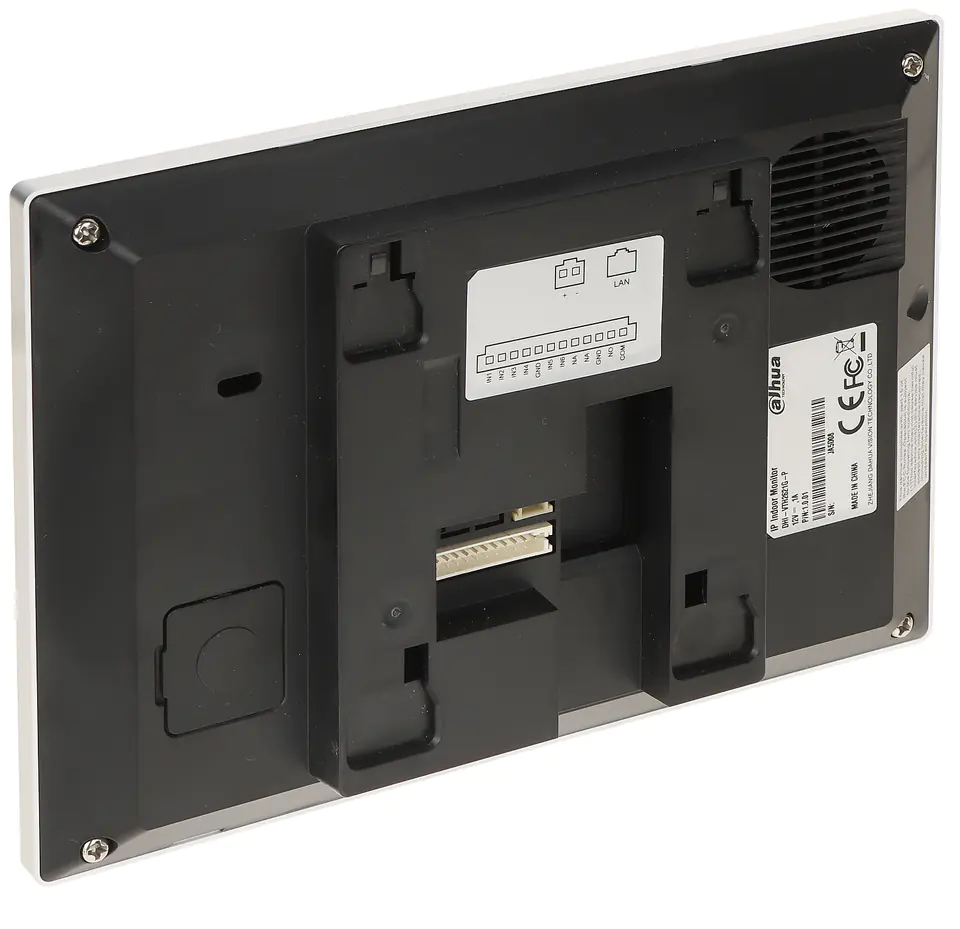

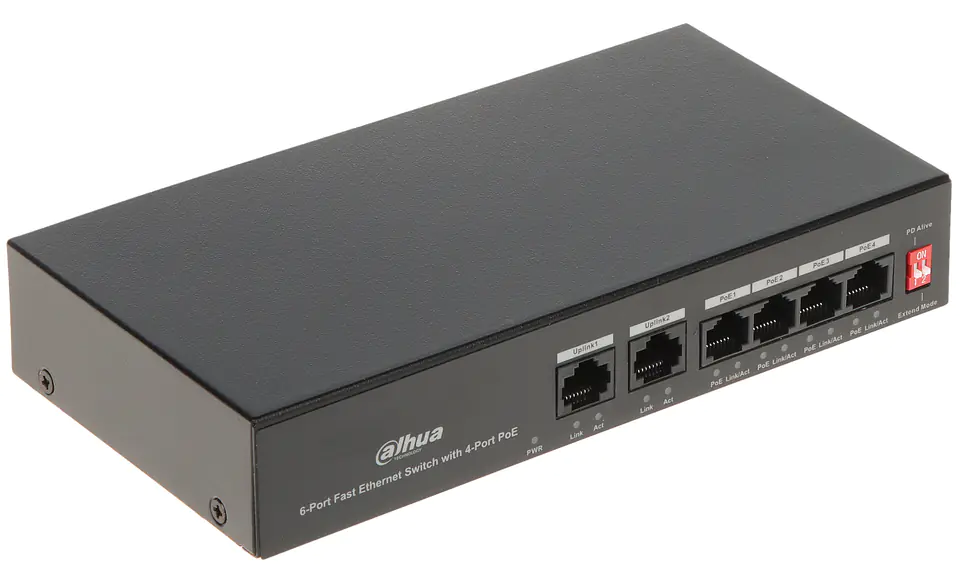

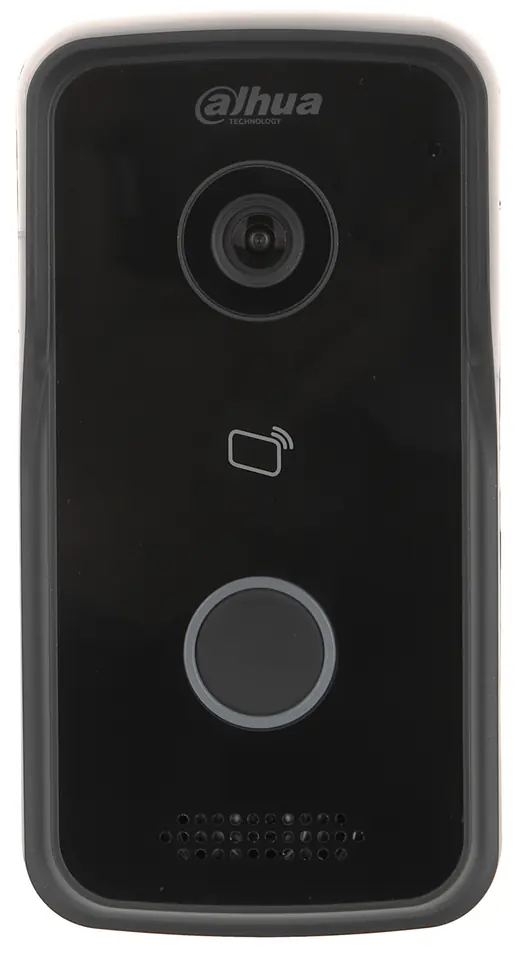

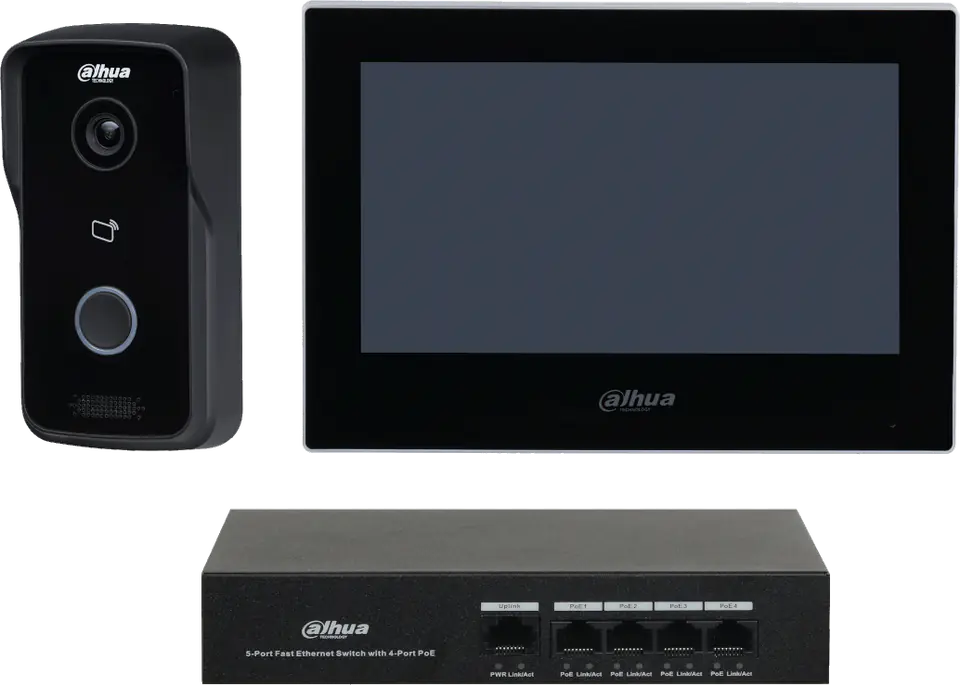

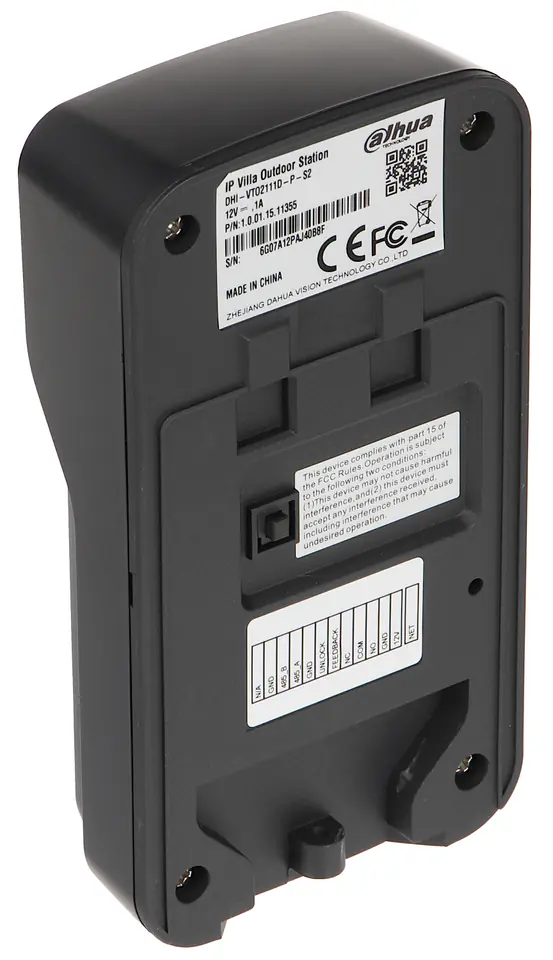

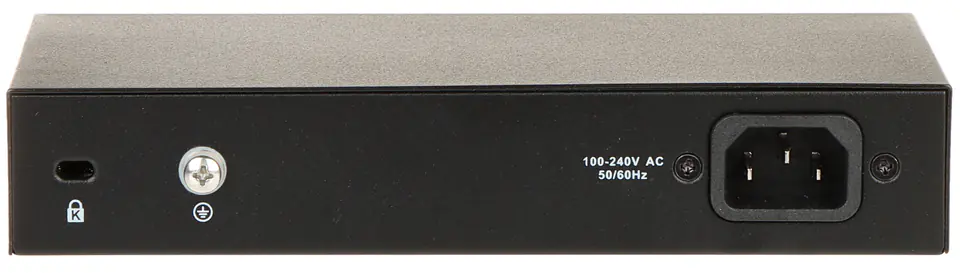

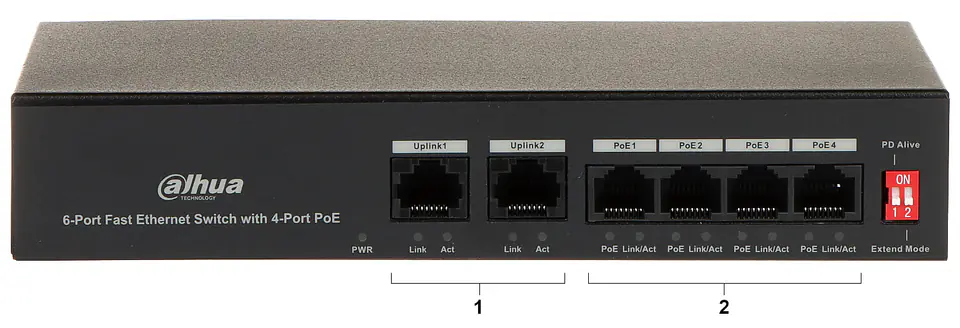

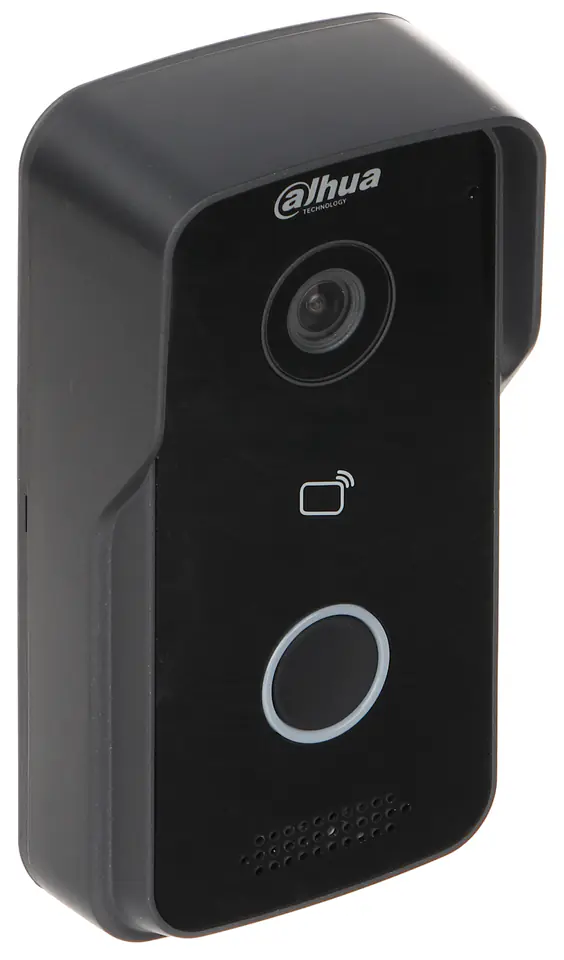

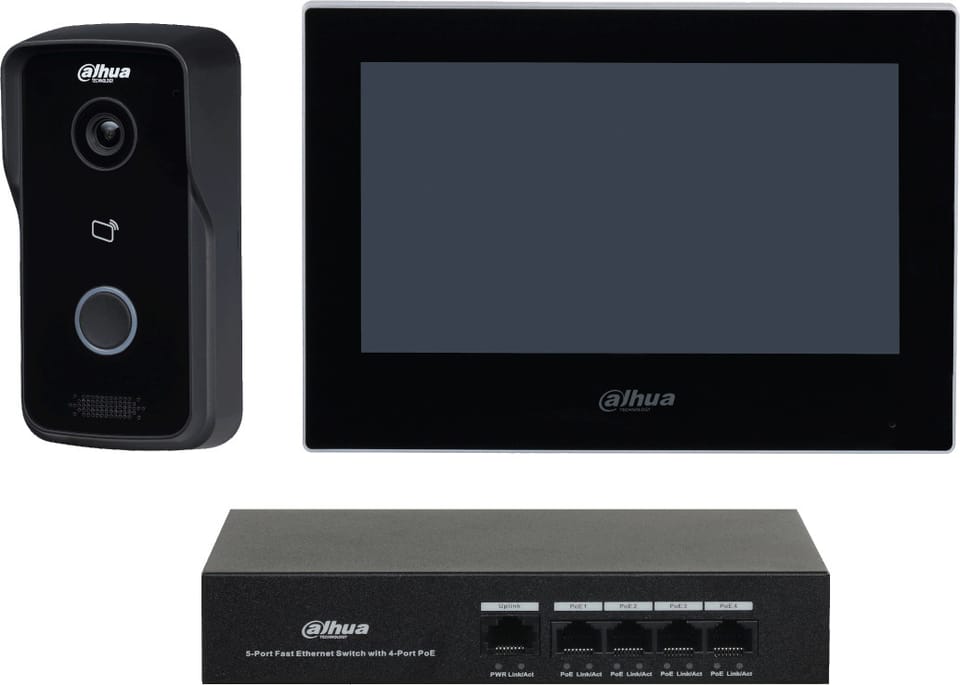

The set includes: VTH2621G-P internal panel, VTO2111D-P-S2 video intercom and PFS3006-4ET-36 PoE switch
REMARK! The device does not work with the Dahua analog system
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
