VIDEO BALUN TRO-8/400PV-RACK

€387.77

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Tue, Dec 24 - Fri, Dec 27

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: Delta
Product code:: TRO-8/400PV-RACK / 5902887016851

Specification

75ω i/o voltage (cvbs):	1 Vpp
Attenuation:	4.43 MHz @ 0.73 dB 11 MHz @ 1.24 dB 21 MHz @ 2.16 dB 38 MHz @ 3.35 dB 42 MHz @ 3.54 dB 67.5 MHz @ 3.72 dB
Balanced connector impedance:	100 Ω
Capacity:	< 7 pF
Connector type:	8 x BNC Video Jack
Dimensions:	483 x 44 x 245 mm
Enclosure type:	19" RACK, 1U
Ground:	5mm screw
Ground protection voltage (wire-ground):	> 47 volts> 18.4 volts
Input voltage:	230 VAC

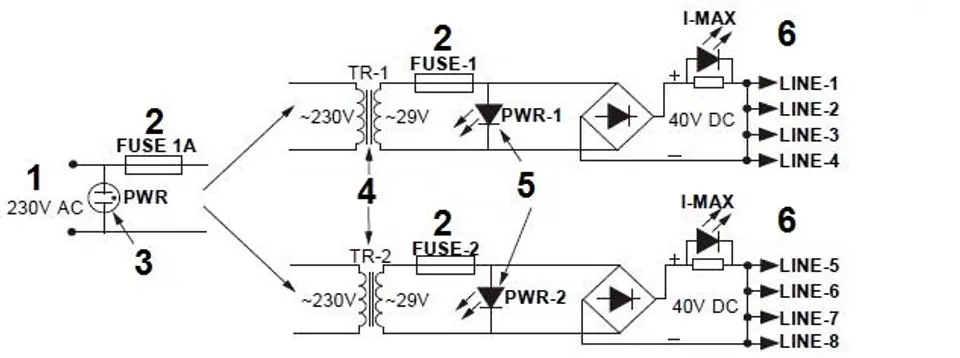

Led signaling:	Green PWR-1 or PWR-2 LEDs indicate a blown FUSE fuseBroken I-MAX LEDs light up when overload greater than 2A
Maximum discharge current (8/20μs):	5 kA
Number of channels:	8 Video + DC
Operating temperature:	-50 °C ... 55 °C
Output:	2 A @ LINE 1 ... 4 2 A @ LINE 4 ... 8
Output voltage:	.max. 40 volts
Permissible relative ambient humidity:	< 95 %
Power supply range:	LINE 1 ... 4 420 m @ 4 x 750 mA440 m @ 3 x 750 mA + 1200 m @ 1 x 250 mA480 m @ 2 x 750 mA + 1400 m @ 2 x 250 mA480 m @ 1 x 750 mA + 1500 m @ 3 x 250 mA1700 m @ 4 x 250 mALINE 5 ... 8 420 m @ 4 x 750 mA440 m @ 3 x 750 mA + 1200 m @ 1 x 250 mA480 m @ 2 x 750 mA + 1400 m @ 2 x 250 mA480 m @ 1 x 750 mA + 1500 m @ 3 x 250 mA1700 m @ 4 x 250 mA
Power surge arrester:	1000 volts
Producer / brand:	DELTA

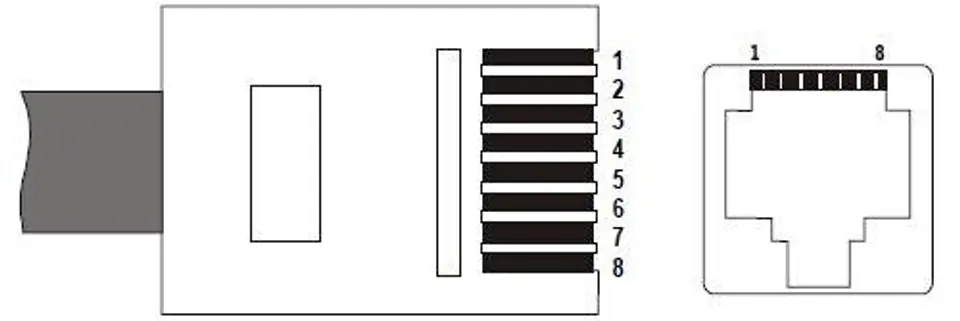

Protected cables in rj-45 connector:	1 ... 6 7 ... 8
Protection voltage (vein-vein):	> 47 volts> 2.4 volts
Response time:	15 ns15 ns
Scales:	4.200 kg
Selected features:	Fuse time-lag 5 x 20 4 A / 250 V
Standard:	AHD - 5 Mpx, HD-CVI - 8 Mpx 4K UHD, HD-TVI - 8 Mpx 4K UHD, CVBS - PAL, NTSC
Symmetrical connector type:	8 x RJ-45 (8-pin, 4 pairs) Socket
Type of device:	Active / Receiver
Video coverage:	250 m @ 720p - UTP cat. 5e 150 m @ 1080p - UTP cat. 5e 400 m @ CVBS - PAL / NTSC - UTP cat. 5e
Video surge arrester:	Video surge arrester:
Warranty:	3 years

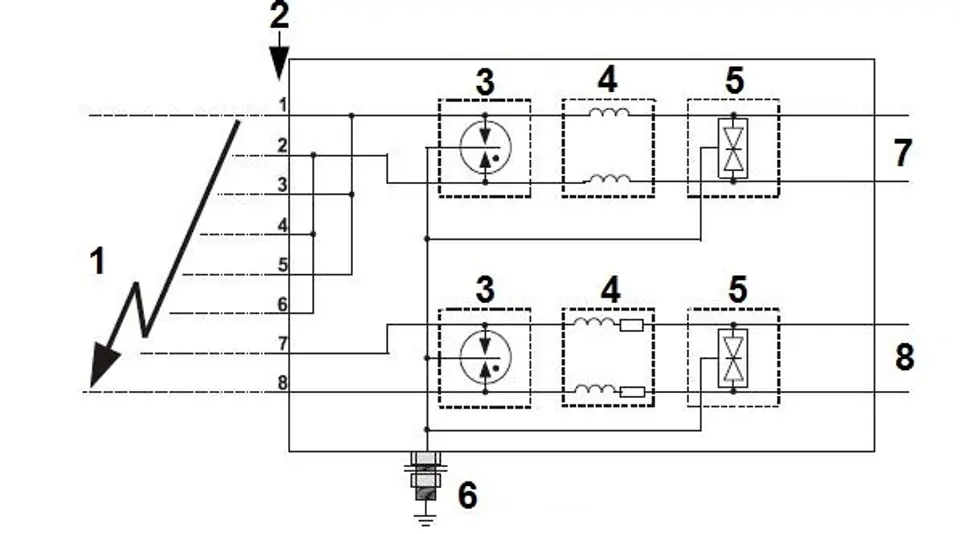

TRO-8/400PV-RACK is designed for DC power supply and reception of video signals from 8 TRN-1/400 devices (video baluns - transmitters), using twisted-pair cables (UTP, FTP) over distances up to 400 metersThe TRO-8/400PV-RACK surge arrester effectively protects the transmission line by enabling the surge current to be discharged to the ground, thus providing proper surge protection for electronic devices

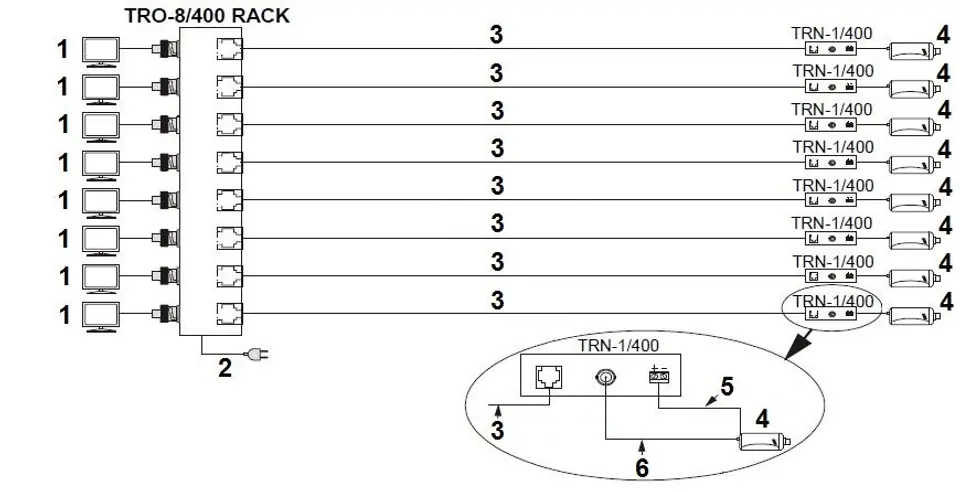

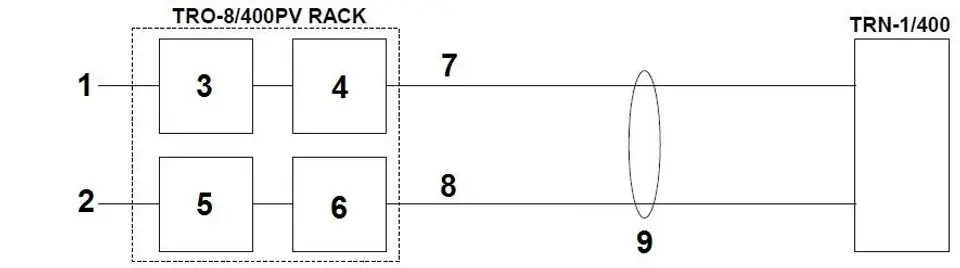

The signal from the camera to the input of the TRN-1/400 transmitter is transmitted to the TRO-8/400PV-RACK receiver via twisted-pair cable. The transmitter and receiver match the impedance of the 75Ω coaxial cable to the impedance of the symmetrical cable, which ensures video transmission up to 400 meters. The TRO-8/400PV-RACK receiver allows unstabilized DC voltage (up to 40V DC) into the twisted-pair cable, which in the TRN-1/400 transmitter is stabilized to 12V DC, allowing to power cameras with a thermostat

All parameters apply to category 5 twisted pair cable with 0.5mm copper conductors (24 AWG)

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
