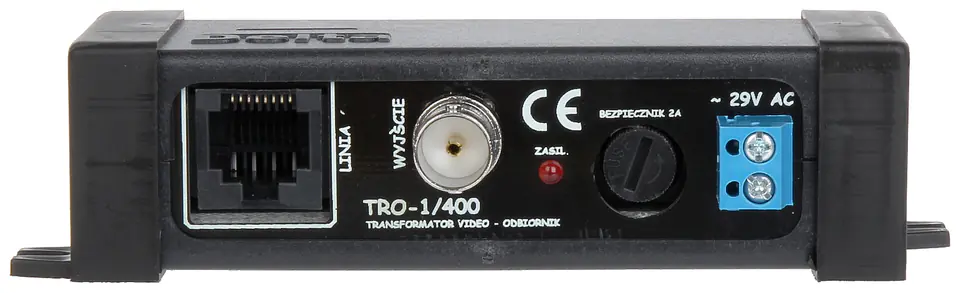

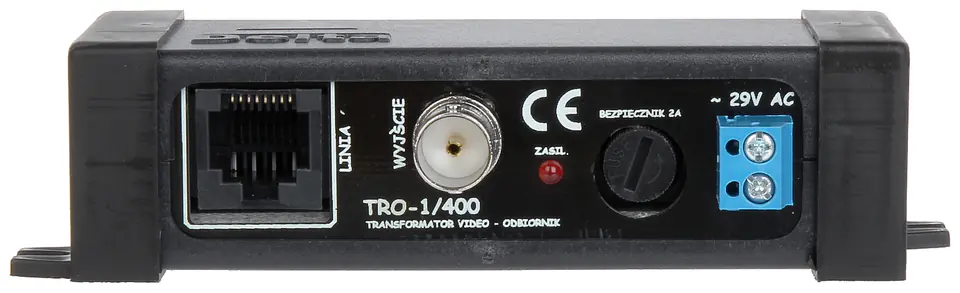

VIDEO BALUN TRO-1/400

€15.77

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Tue, Dec 24 - Fri, Dec 27

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: Delta
Product code:: TRO-1/400 / 5902887039713

Specification

75ω i/o voltage (cvbs):	1 Vpp
Balanced connector impedance:	100 Ω
Connector type:	BNC Socket VideoDC Cable Terminals
Dimensions:	117 x 64 x 30 mm
Input voltage:	.max. 29 V AC / 1 A
Number of channels:	1 Video1 DC
Output voltage:	.max. 40 V DC / 1 A
Power supply range:	Power supply 24 V1080 m @ 250 mA260 m @ 750 mA Power supply 29 V1600 m @ 250 mA500 m @ 750 mA
Producer / brand:	DELTA
Scales:	0.100 kg
Selected features:	Fuse time-lag 5x20, 2 A / 250 V
Symmetrical connector type:	RJ-45 (8-pin, 4 pairs) Socket
Type of device:	Active / Receiver
Video bandwidth:	0 ... 50 MHz
Video coverage:	.max. 400 m UTP Cat. 5e
Warranty:	3 years

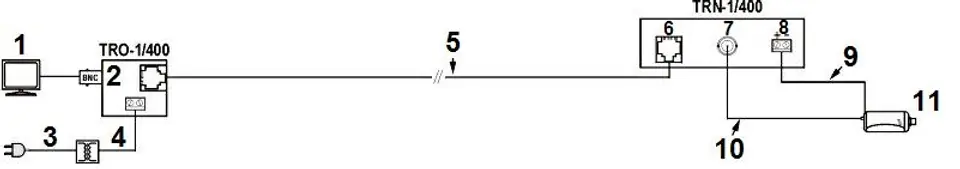

TRO-1/400 is not a stand-alone deviceMust work with TRN-1/400

TRO-1/400 is designed for video signal transmission and power supply via twisted-pair cable (UTP, FTP)

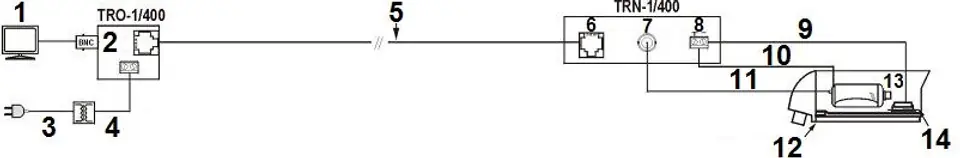

The transmitter and receiver match the impedance of the 75Ω coaxial cable to the impedance of the symmetrical cable, which ensures video transmission up to 400mThe TRO-1/400 receiver allows unstabilized DC voltage (up to 40V DC) into the twisted-pair cable, which in the TRN-1/400 transmitter is stabilized to 12V DC, allowing to power cameras with a thermostat

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
