TR-1RJ-HD*P2 is designed for video signal transmission and power supply via twisted-pair cable (UTP, FTP)The device matches the impedance of 75 Ω coaxial cable to the impedance of a balanced cable, providing video signal transmission up to 250m @ 720p / 150m @ 1080p (twisted-pair cable 5e category) and eliminates unbalanced interference

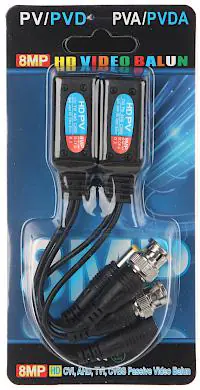

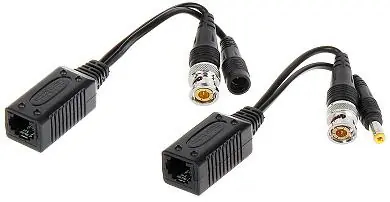

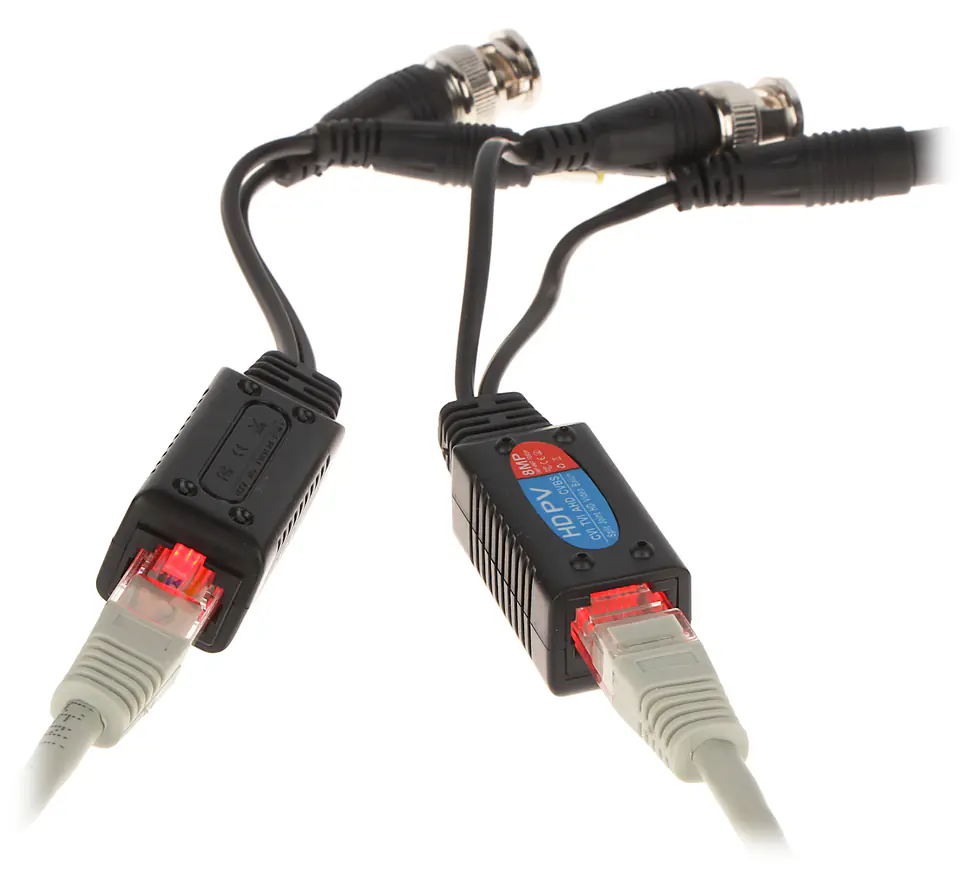

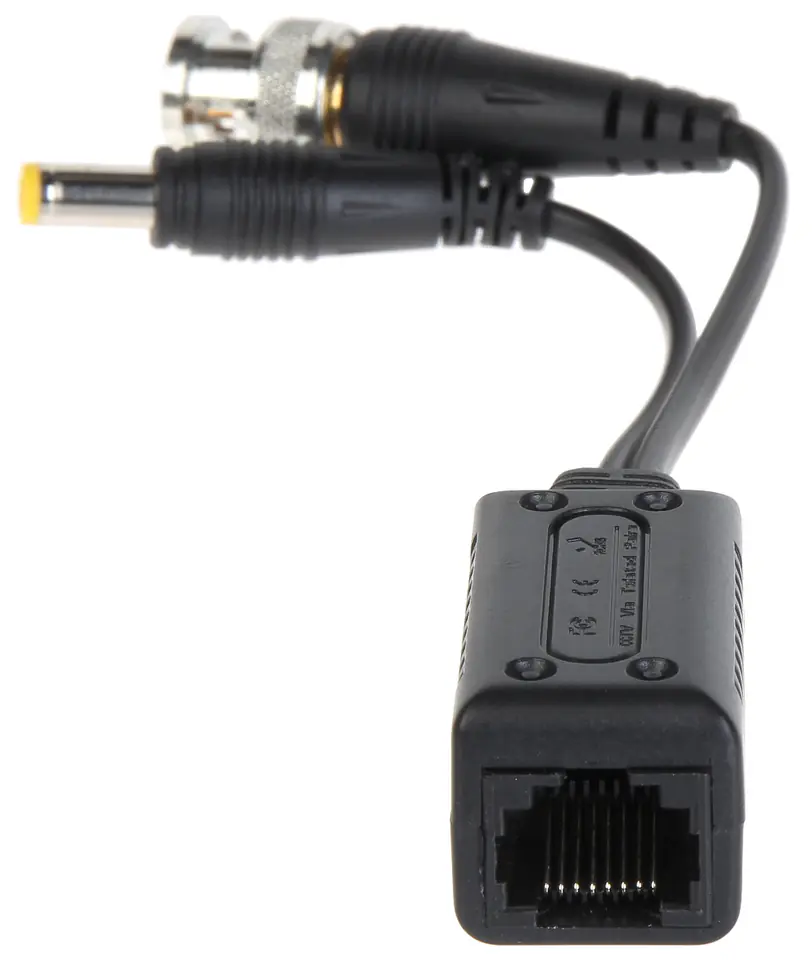

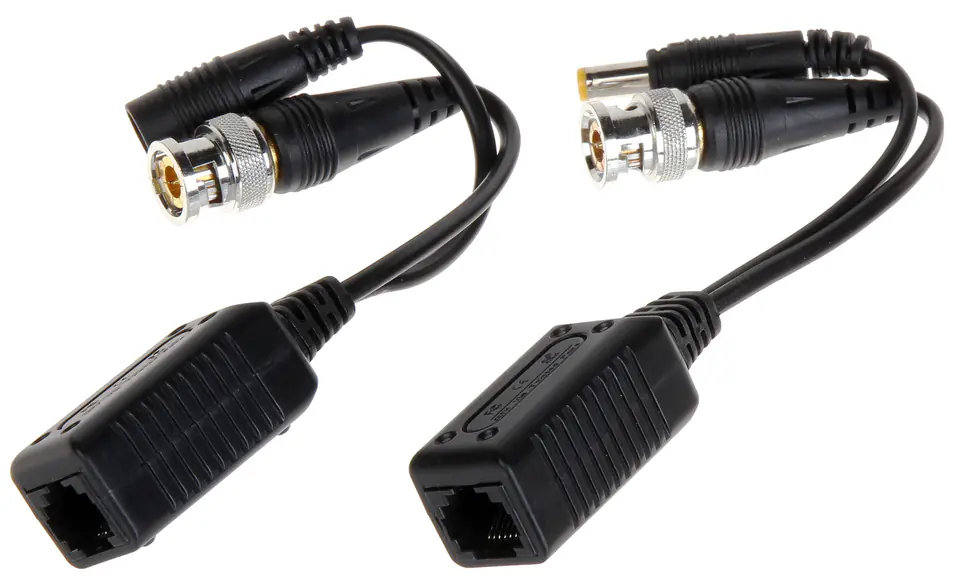

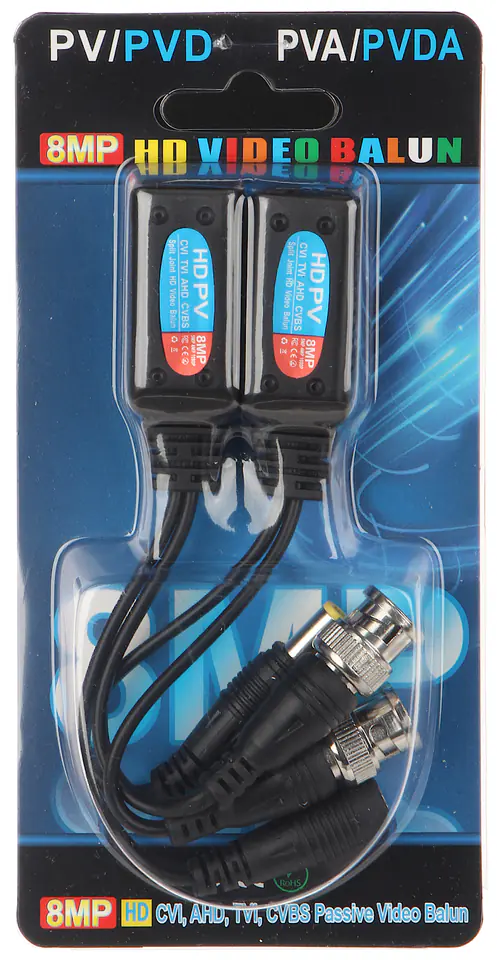

VIDEO BALUN TR-1RJ-HD*P2
€5.26
Shipping from warehouse: H7
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- INNY-D
- Product code:
- TR-1RJ-HD*P2 / 5902887024443
Share this product:
Specification
| 75ω i/o voltage (cvbs): | 1 Vpp |
|---|---|
| Attenuation: | 4.43 MHz @ 0.64 dB 11 MHz @ 0.85 dB 21 MHz @ 1.09 dB 38 MHz @ 1.19 dB 42 MHz @ 1.23 dB 67.5 MHz @ 2.06 dB |
| Balanced connector impedance: | 100 Ω |

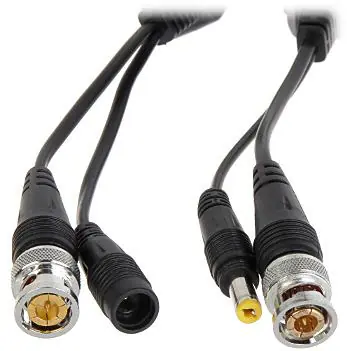

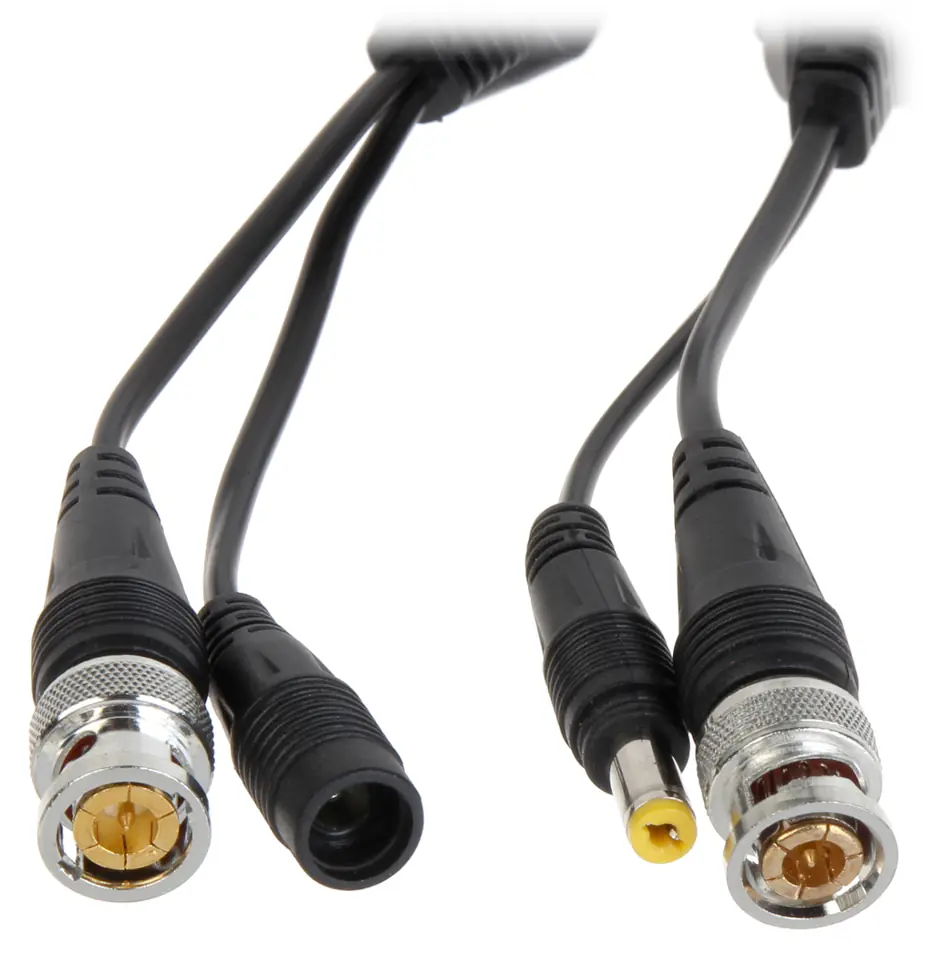

| Connector type: | Video - BNC Plug on the cablePower supply - Socket / Plug 2.1/5.5 mm |

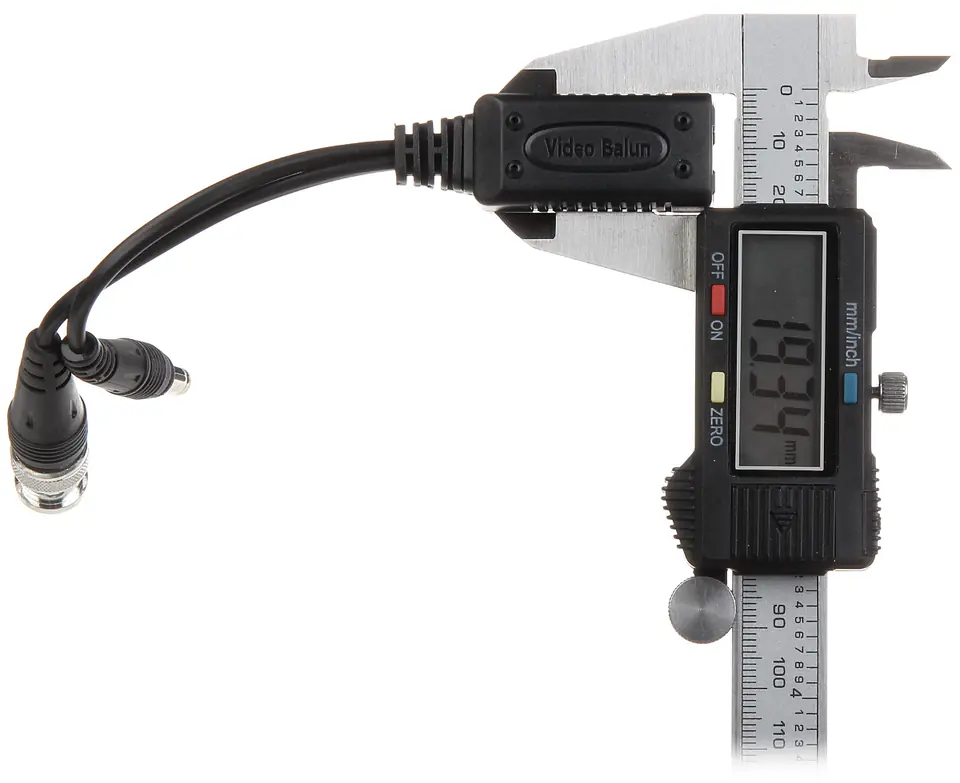

| Dimensions: | 41 x 19.3 x 19.2 mm |
| In the package: | 2 pcs. Price per pack |
| Number of channels: | 1 Video, 1 DC |
| Operating temperature: | -50 °C ... 55 °C |
| Permissible relative ambient humidity: | < 95 % |
| Power supply range: | Power supply 12V DC : 150 m @ 110 mA100 m @ 160 mA50 m @ 330 mA30 m @ 550 mA |
| Scales: | 0.030 kg |
| Standard: | AHD - 8 Mpx 4K UHD, HD-CVI - 8 Mpx 4K UHD, HD-TVI - 8 Mpx 4K UHD, CVBS - PAL, NTSC |

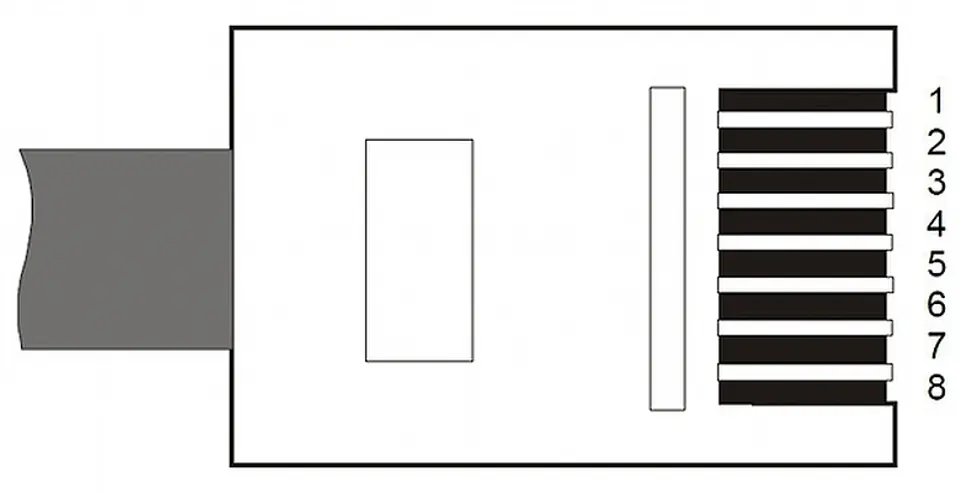

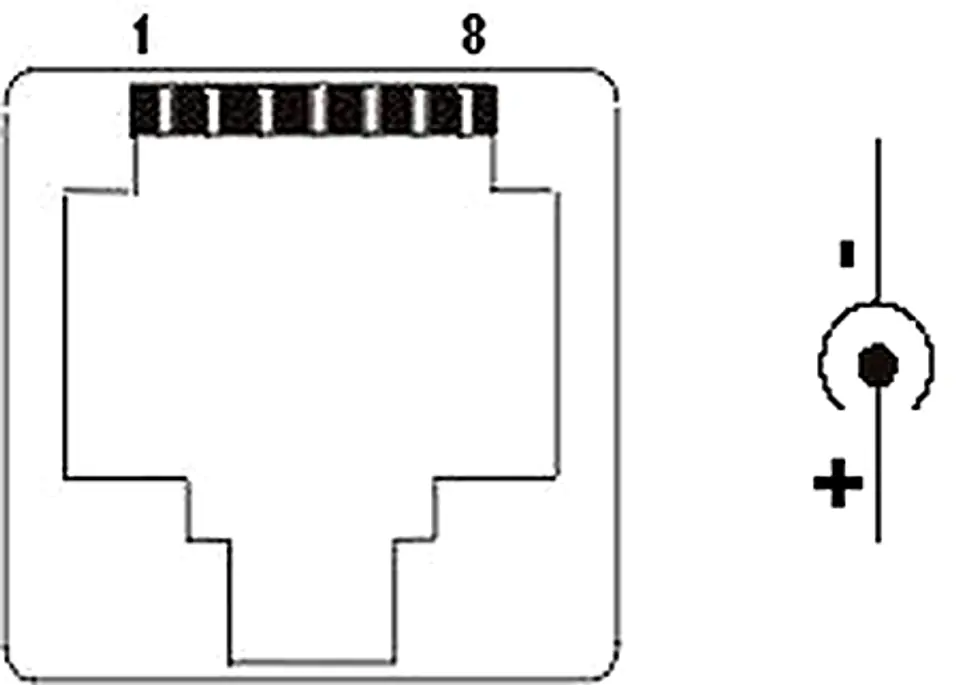

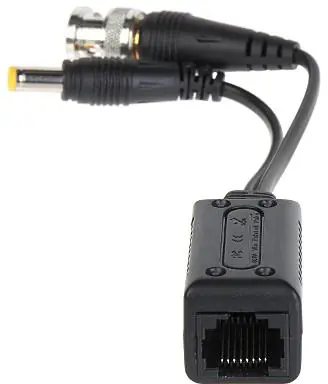

| Symmetrical connector type: | RJ-45 (8-pin, 4 pairs) Socket |
| Type of device: | Passive |
| Video coverage: | 250 m @ 720p - UTP cat. 5e 150 m @ 1080p - UTP cat. 5e 400 m @ CVBS - PAL, NTSC - UTP Cat. 5e |
| Warranty: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
