| 75ω i/o voltage (cvbs): | 1 Vpp |
|---|---|
| Attenuation: | 4.43 MHz @ 0.51 dB 11 MHz @ 0.68 dB 21 MHz @ 0.91 dB 38 MHz @ 1.52 dB 42 MHz @ 1.69 dB 67.5 MHz @ 1.93 dB |
| Balanced connector impedance: | 100 Ω |

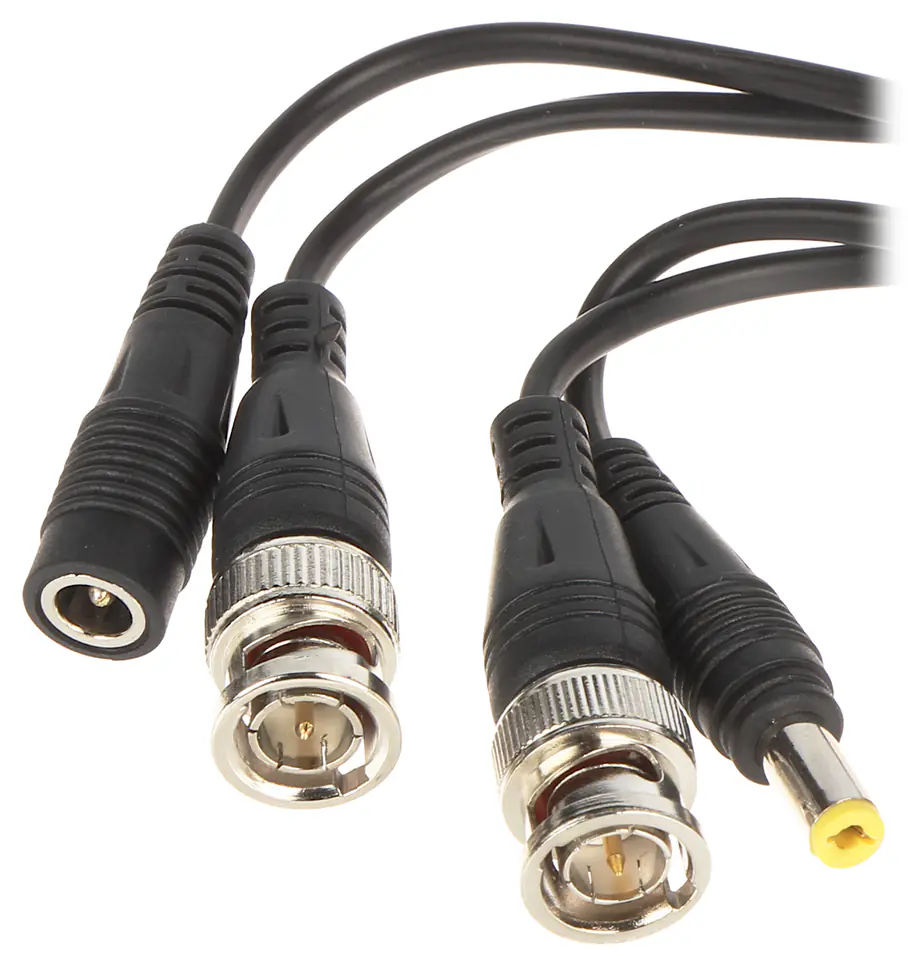

| Connector type: | BNC Plug on cable - Video2.1 / 5.5 mm - Socket / Plug on DC cable |
| Dimensions: | 62 x 33 x 25 mm |

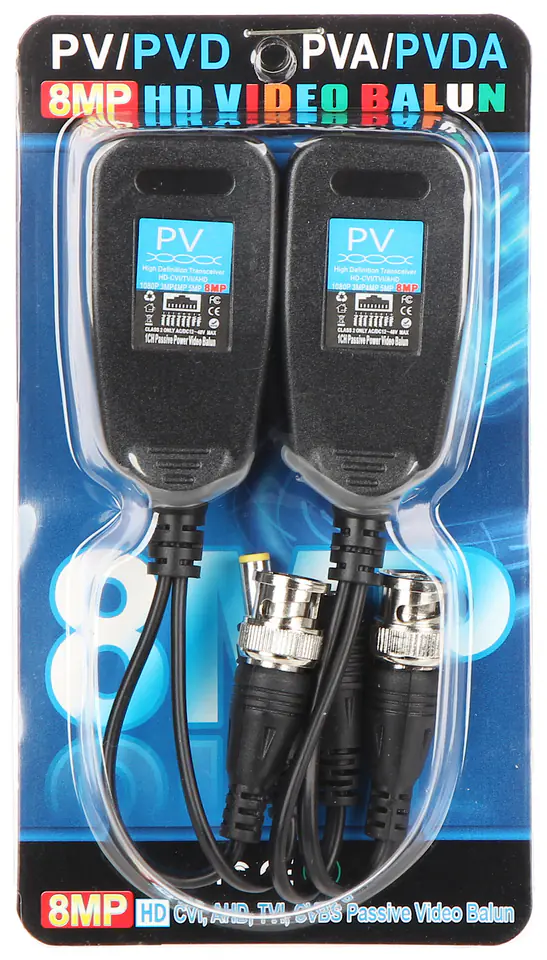

| In the package: | 2 pcs. Price per pack |
| Number of channels: | 1 x Video 1 x DC |
| Operating temperature: | -50 °C ... 55 °C |
| Permissible relative ambient humidity: | < 95 % |
| Power supply range: | Power supply 12V DC 100 m @ 160 mA90 m @ 180 mA80 m @ 200 mA70 m @ 230 mA60 m @ 270 mA50 m @ 330 mA40 m @ 410 mA30 m @ 550 20 m @ 820 mA10 m @ 1.65 A |
| Scales: | 0.080 kg |
| Standard: | AHD - 8 Mpx, HD-CVI - 8 Mpx 4K UHD, HD-TVI - 8 Mpx 4K UHD, CVBS - PAL, NTSC |

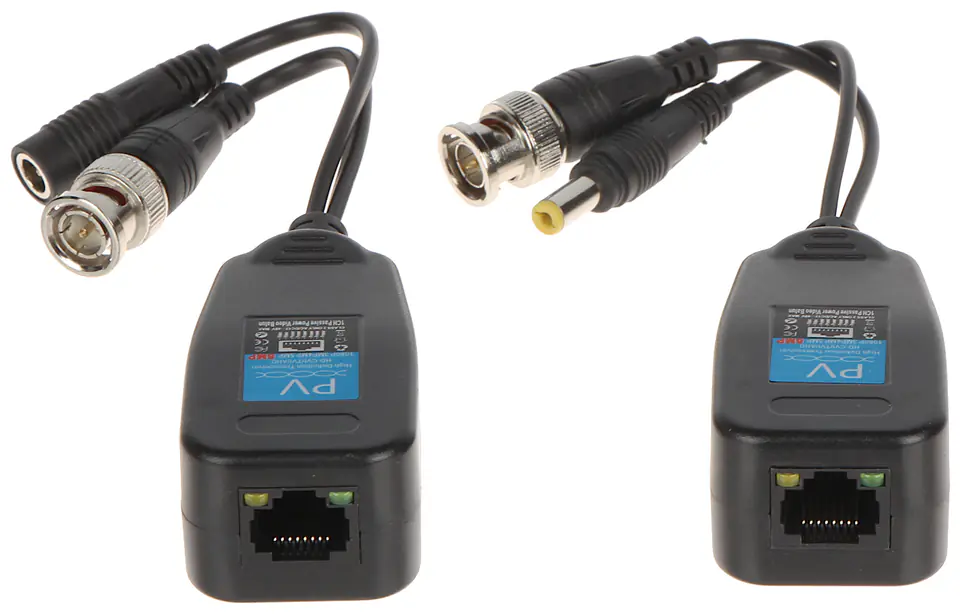

| Symmetrical connector type: | RJ-45 (8-pin, 4 pairs) Socket |
| Type of device: | Passive |
| Video coverage: | 250 m @ 720p - UTP cat. 5e 150 m @ 1080p - UTP cat. 5e 400 m @ CVBS - PAL / NTSC - UTP cat. 5e |
| Warranty: | 2 years |

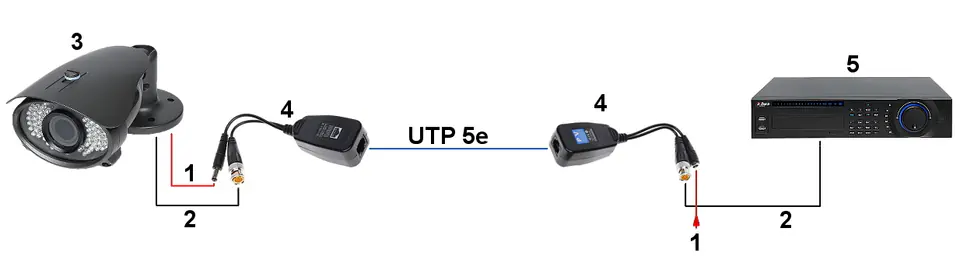

TR-1/PV*P2 is designed for video signal transmission and power supply via twisted-pair cable (UTP, FTP)The device matches the impedance of 75Ω coaxial cable to the impedance of a balanced cable, providing video signal transmission up to 400m (category 5 twisted pair cable) and eliminates unbalanced interference
If the power connectors are not used, they can be used to transmit the DATA signal
