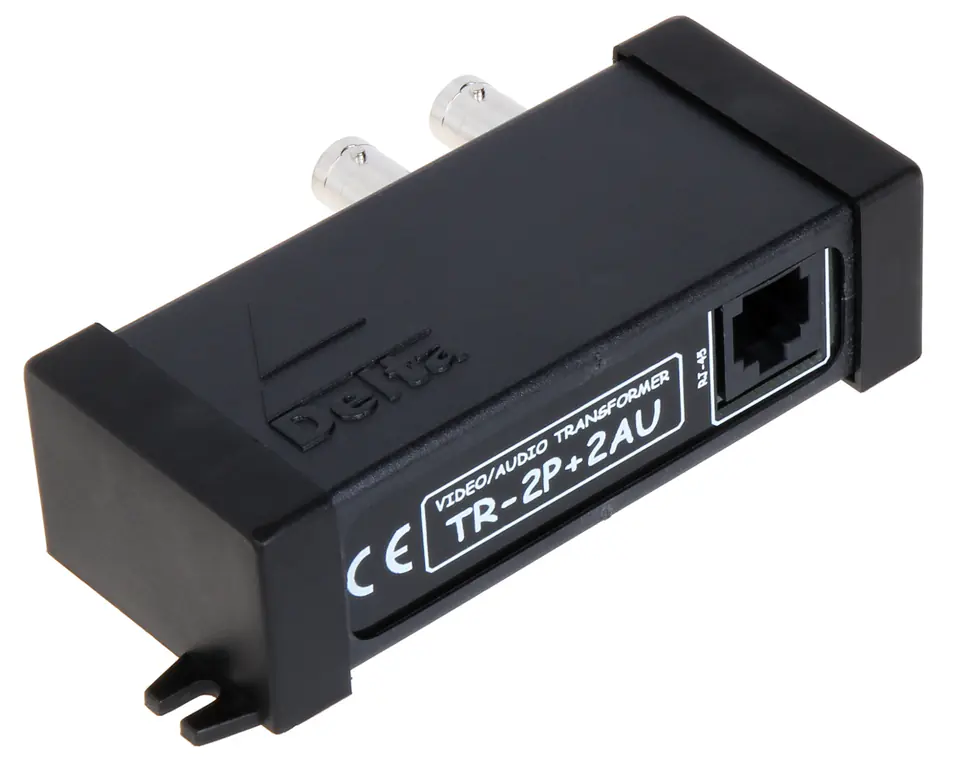

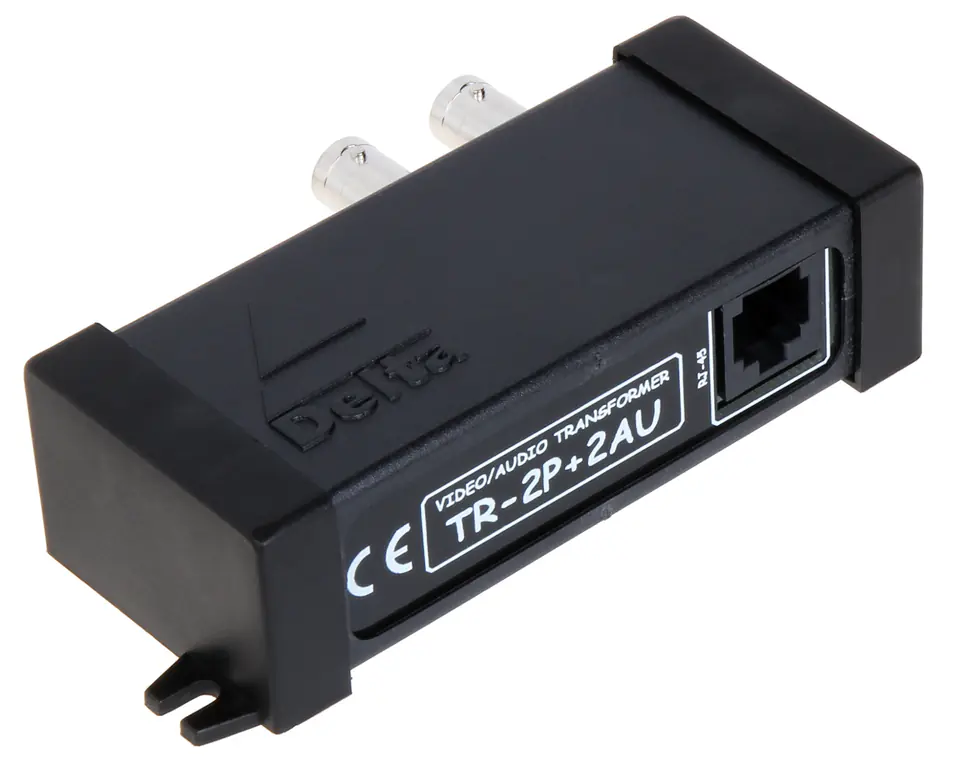

VIDEO-AUDIO TRANSFORMER TR-2P+2AU

€17.99
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Delta
Product code:
TR-2P+2AU / 5902887016691

Specification

Attenuation::4.43 MHz @ 0.73 dB 11 MHz @ 1.24 dB 21 MHz @ 2.16 dB 38 MHz @ 3.35 dB 42 MHz @ 3.54 dB 67.5 MHz @ 3.72 dB
Audio band range::20 Hz ... 20 kHz
Audio range::Max. 1200 m
Cmrr (db @ 5mhz)::50 dB
Coaxial connector impedance::75 Ω Video600 Ω AUDIO

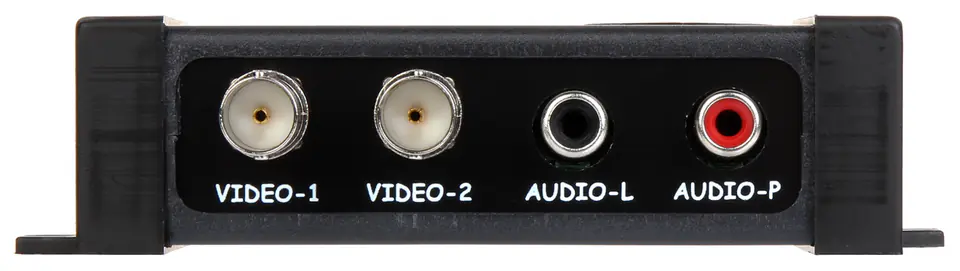

Coaxial connector type::2 x BNC Video Jack2 x CINCH AUDIO Jack
Device type::Passive
Dimensions::117 x 64 x 30 mm
Galvanic separation between inputs and outputs::600 volts - Audio
I/o voltage 75ω (cvbs)::1 Vpp
Impedance of the balanced connector::100 Ω Video100 Ω AUDIO
Manufacturer / brand::DELTA
Nominal audio input level::1 volts
Nominal audio output level::1 volts
Number of channels::2 Video2 AUDIO
Operating temperature::-50 °C ... 55 °C
Permissible relative humidity::< 95 %
Scales::0.107 kg
Separation between inputs::> -50 dB Video
Standard::AHD - 5 Mpx HD-CVI - 8 Mpx 4K UHD HD-TVI - 8 Mpx 4K UHD CVBS - PAL / NTSC

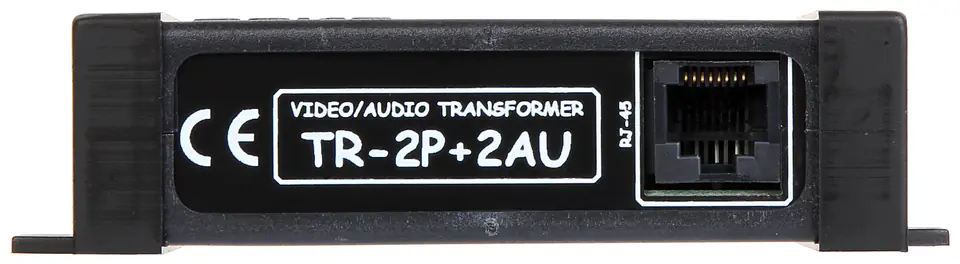

Symmetrical connector type::RJ-45 (8-pin, 4 pairs) Socket
Video coverage::Max. 400 m UTP cat. 5e
Warranty::3 years

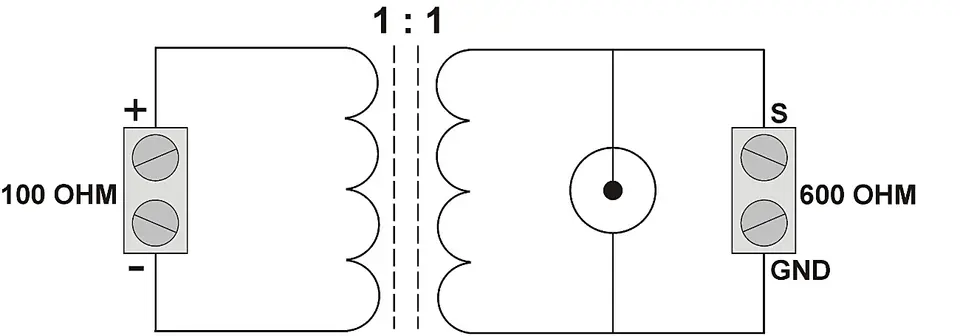

TR-2P+2AU is designed for video signal transmission via twisted pair cableThe device adjusts the impedance of a 75Ω coaxial cable to the impedance of a symmetrical cable, ensuring video signal transmission up to 400m (twisted pair cable of 5 categories) and eliminates asymmetric interferenceIn the audio path, galvanic separation takes place and the impedance of the 600Ω signal is matched to the impedance of the symmetrical cable, which allows the transmission of audio signal up to 1200 meters

Two such devices are required to build a full signal transmission path

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
