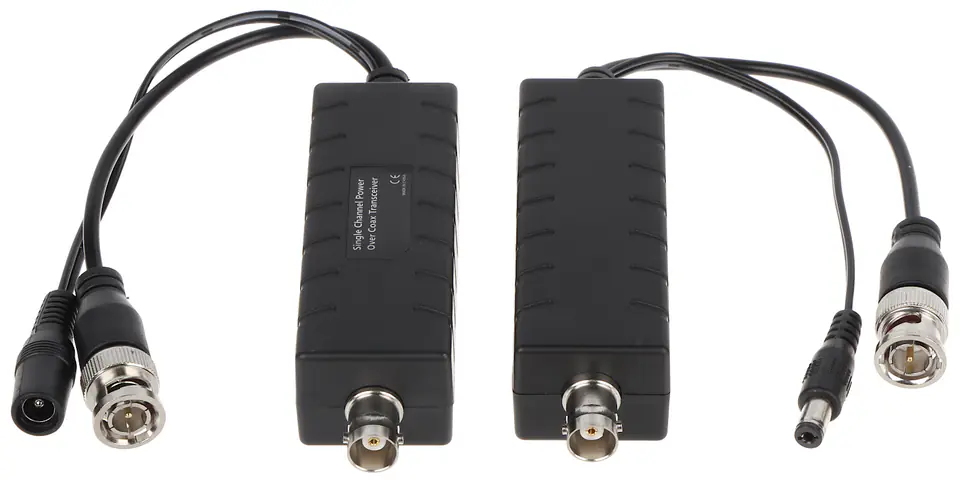

The POC-H201 set allows to transmit power and video signals from CCTV cameras in one coaxial cable over a maximum distance of 400mThe device is dedicated for use with coaxial cables with impedance of 75Ω, compliant with RG-59 specification or higher

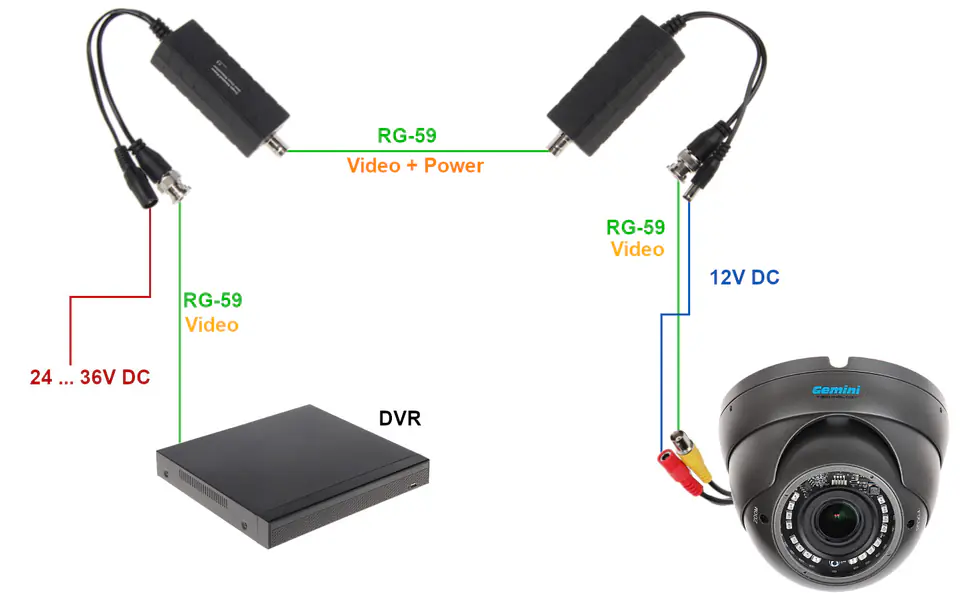

The POC-H201 kit can power analog cameras operating in AHD / HD-CVI / HD-TVI / CVBS standard up to 1080p resolution with 12V DC voltage with a maximum current consumption of 0.75AW coaxial cable flows the current supplying power to the camera and video signal from the camera to the recorderThe maximum range is determined by the quality of the coaxial cable used
REMARK! The use of other power supplies or transformers is not allowedThe device works as a dedicated setOn the way transformer A – transformer B no additional devices (video splitters, amplifiers, etc.) can be mounted. Only coaxial cables with copper core should be usedFor internal use onlyProtect from moisture and dust
