| Coaxial connector impedance:: | 75 Ω |
|---|---|
| Coaxial connector type:: | 8 x BNC Straight socket |
| Device type:: | Active |
| Dimensions:: | 117 x 30 x 80 mm |
| Manufacturer / brand:: | DELTA |
| Number of channels:: | 4 Video |
| Power:: | 12V/90mA (no power supply included) |
| Scales:: | 0.1 kg |
| Selected features:: | Signal correction |
| Standard:: | CVBS - PAL / NTSC |
| Video band range:: | 0 ... 9 MHz |
| Video coverage:: | Max. 1200 m |
| Warranty:: | 3 years |
VCA-4/1200 is designed to amplify video signals transmitted via coaxial cable, which allows video transmission over a distance of up to 2000 m
The adjustment knob is used to simultaneously change the amplitude (gain) and frequency (correction) characteristics As the gain increases, the correction value increases proportionally

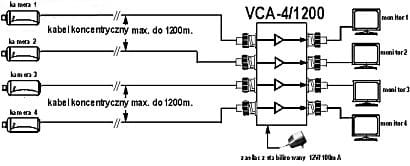

The amplifier should be used at the end of the transmission line (at the monitor)
