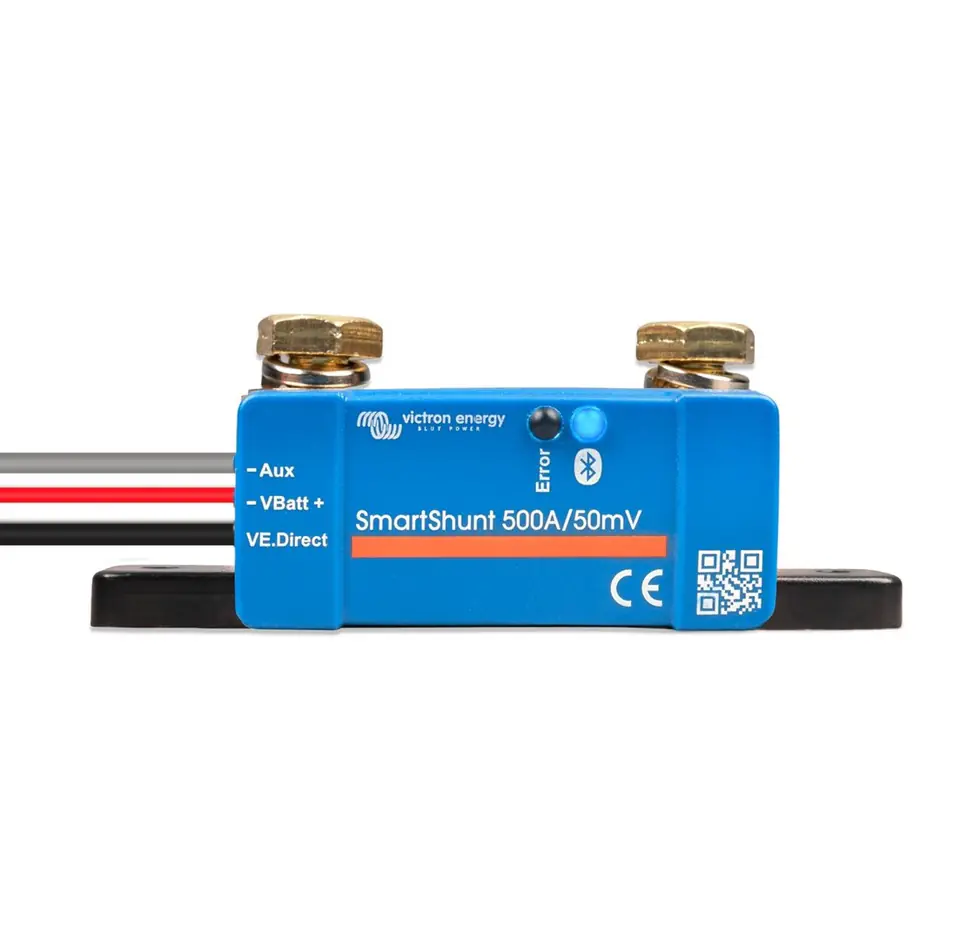

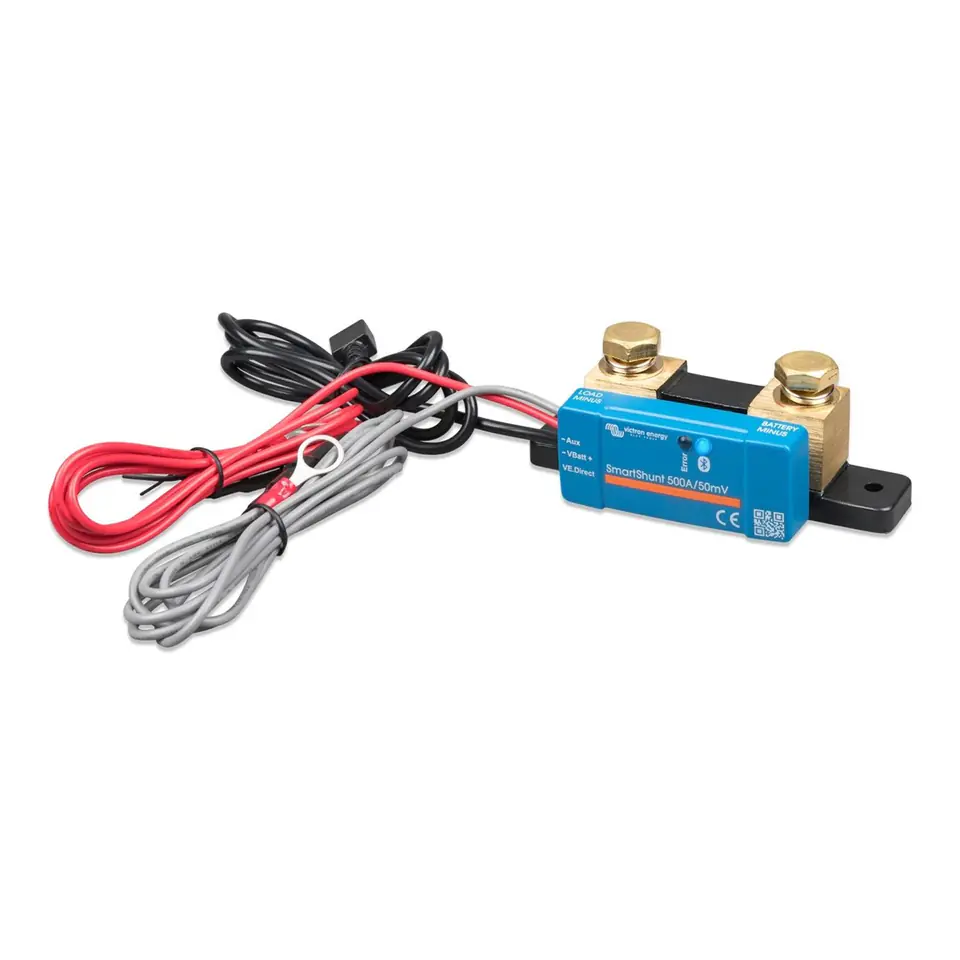

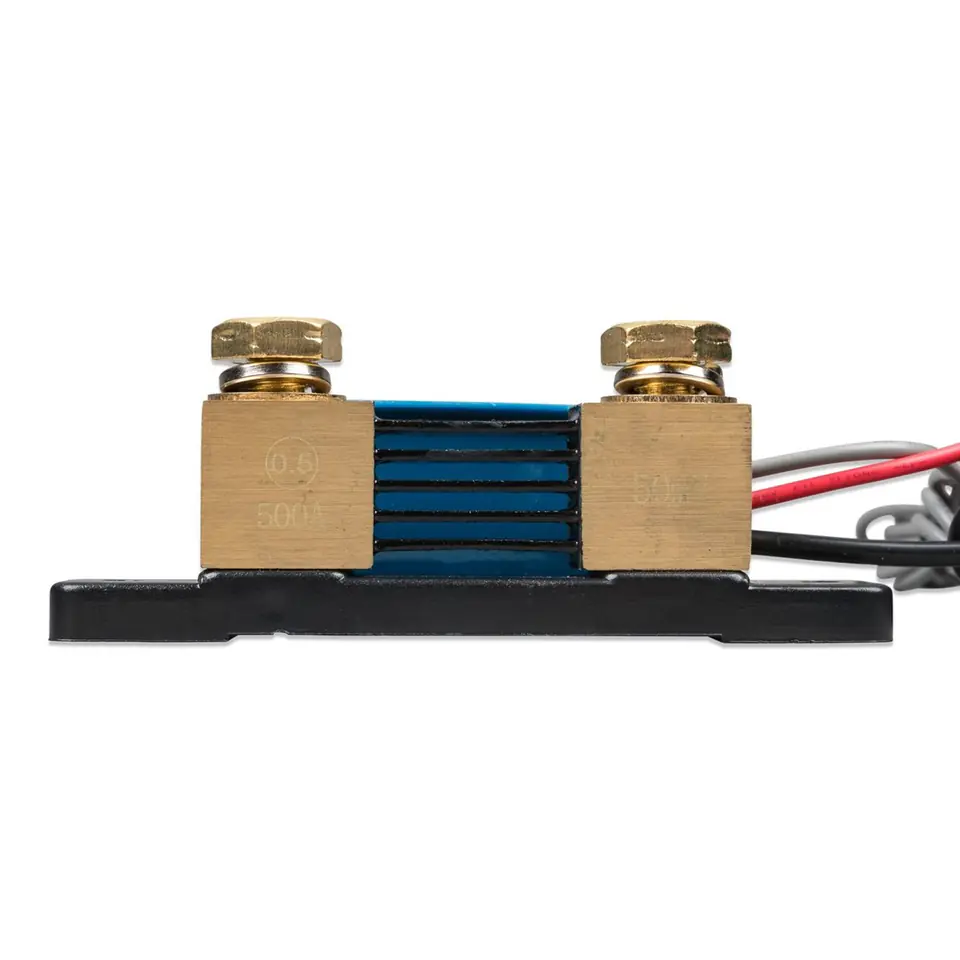

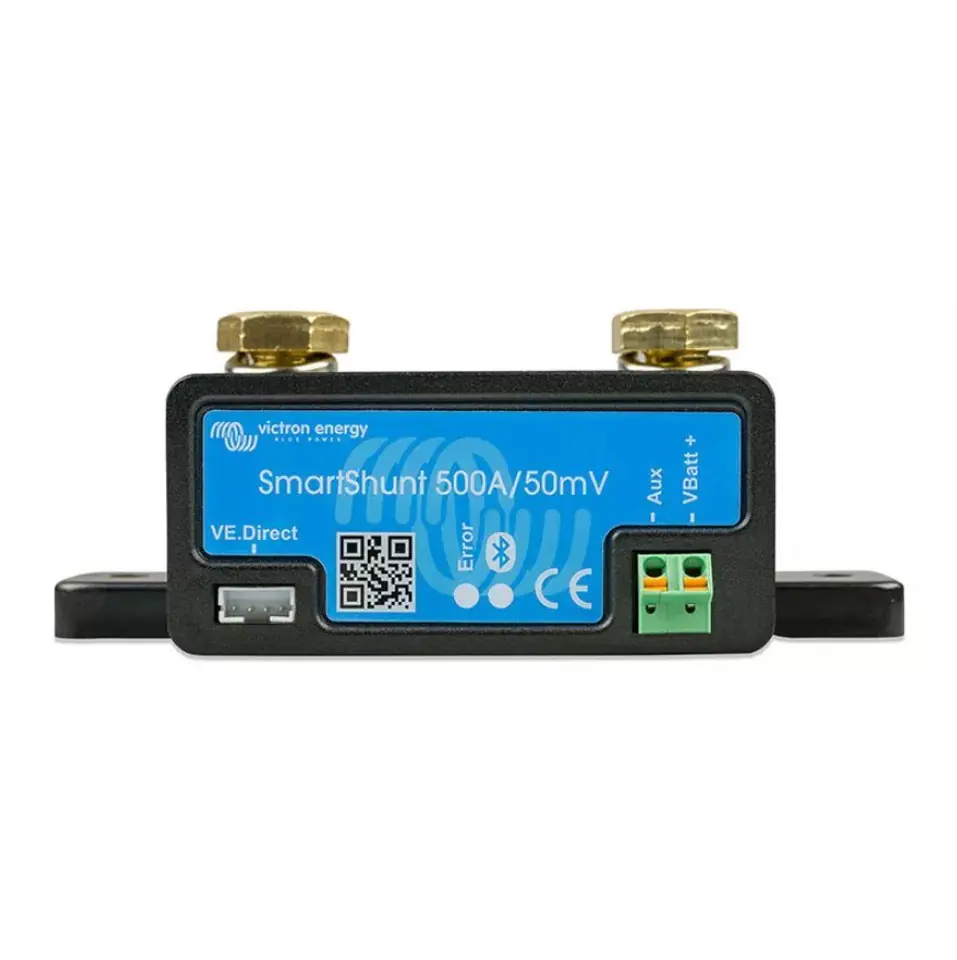

Victron Energy SmartShunt 500 A battery monitor
This product is not available
- Availability:
- expected delivery
- Brand:
- Victron Energy
- Product code:
- SHU050150050 / 8719076044253
Share this product:
Specification
| Bluetooth: | Yes |
|---|---|
| Compatible with: | Lynx DC |
| Data synchronisation with smartphone: | Yes |
| Dc voltage range: | 6.5 - 70 V |
| Dedicated application: | VictronConnect |
| Depth: | 54 mm |
| Height: | 46 mm |
| International protection (ip) code: | IP21 |
| Maximum current: | 500 A |
| Mounting type: | M10 |
| Product colour: | Blue |
| Product type: | Battery monitor |
| Suitable for: | Photovoltaic system |
| Supported battery capacity: | 1 - 9999 Ah |
| Temperature measuring range: | -20 - 50 °C |
| Temperature monitoring: | Yes |
| Ve.direct port: | Yes |
| Voltage monitoring: | Yes |
| Width: | 120 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
