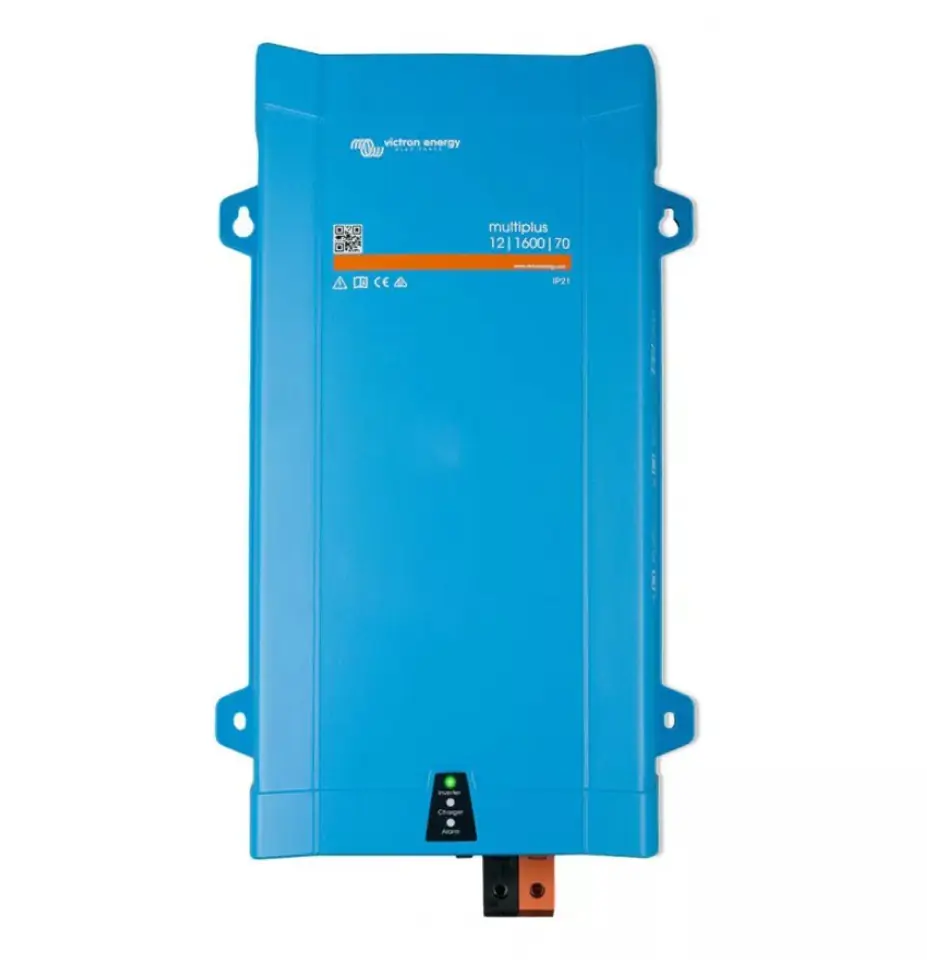

Victron Energy MultiPlus Slim 12/1600/70 inverter
This product is not available
- Availability:
- expected delivery
- Brand:
- Victron Energy
- Product code:
- PMP122160000 / 8719076044949
Share this product:
Specification
| Ac input voltage: | 187 - 265 V |
|---|---|
| Apparent power: | 1600 VA |
| Built-in display: | No |
| Charging the current battery: | 70 A |
| Charging voltage (absorption): | 14.4 V |
| Charging voltage (liquid): | 13.8 V |
| Connectivity: | Ethernet |
| Cross-section connections supported: | 50 mm² |
| Dc input voltage: | 12 V |
| Depth: | 120 mm |
| Dip switch: | Yes |
| Efficiency: | 93% |
| Frequency: | 50 Hz |
| Frequency range: | 45 - 65 Hz |
| Height: | 470 mm |
| Input voltage: | 9.5 - 17 V |
| International protection (ip) code: | IP21 |
| Material: | Steel, ABS |
| Number of ve.bus ports: | 1 |
| Ongoing charging of the starter battery: | 1 A |
| Operating relative humidity (h-h): | 0 - 95% |
| Operating temperature (t-t): | -40 - 65 °C |
| Output power at 25°c: | 1300 W |
| Output power at 40°c: | 1100 W |
| Output power at 65°c: | 800 W |
| Output voltage: | 230 V |
| Peak power: | 2800 W |
| Power at zero load: | 10 W |
| Power current type: | DC/AC |
| Power protection features: | Overheating, Overvoltage protection, Under voltage, Over power, Over voltage |
| Power supply type: | Indoor/outdoor |
| Product colour: | Blue |
| Purpose: | Solar panel |
| Quantity per pack: | 1 pc(s) |
| Three-phase and parallel operation: | Yes |
| Weight: | 10.2 kg |
| Width: | 265 mm |
