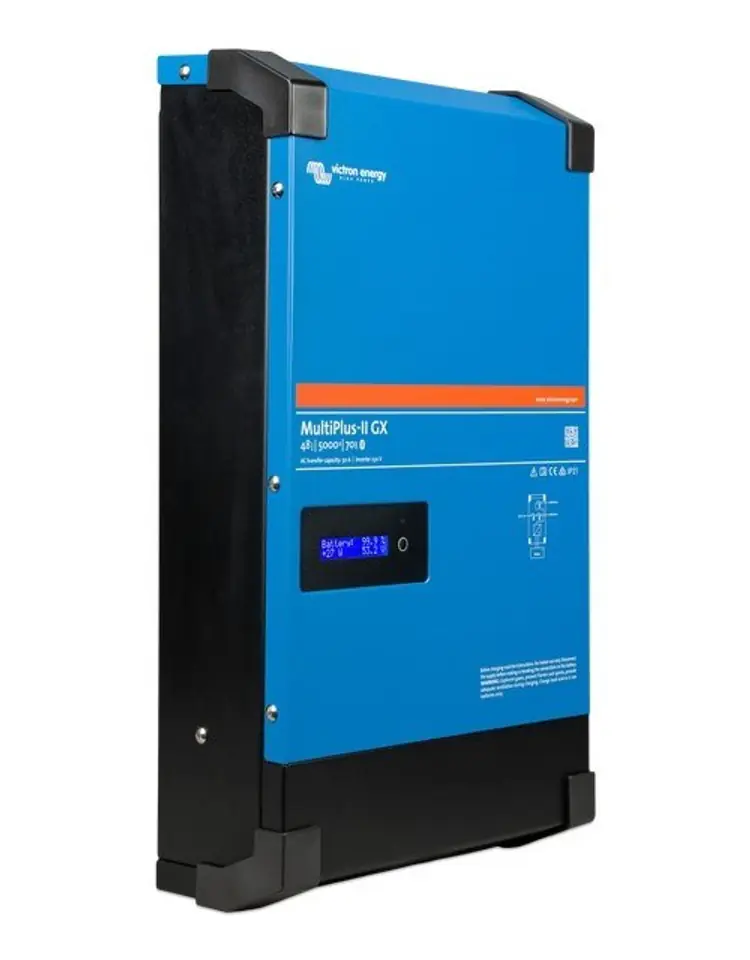

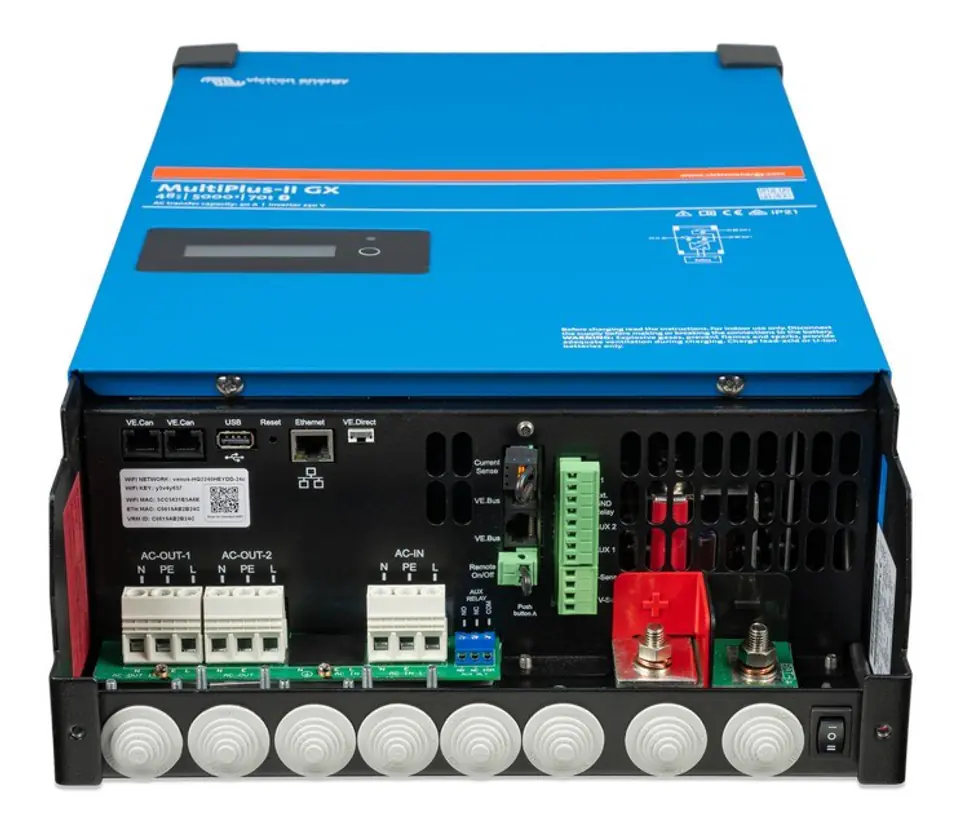

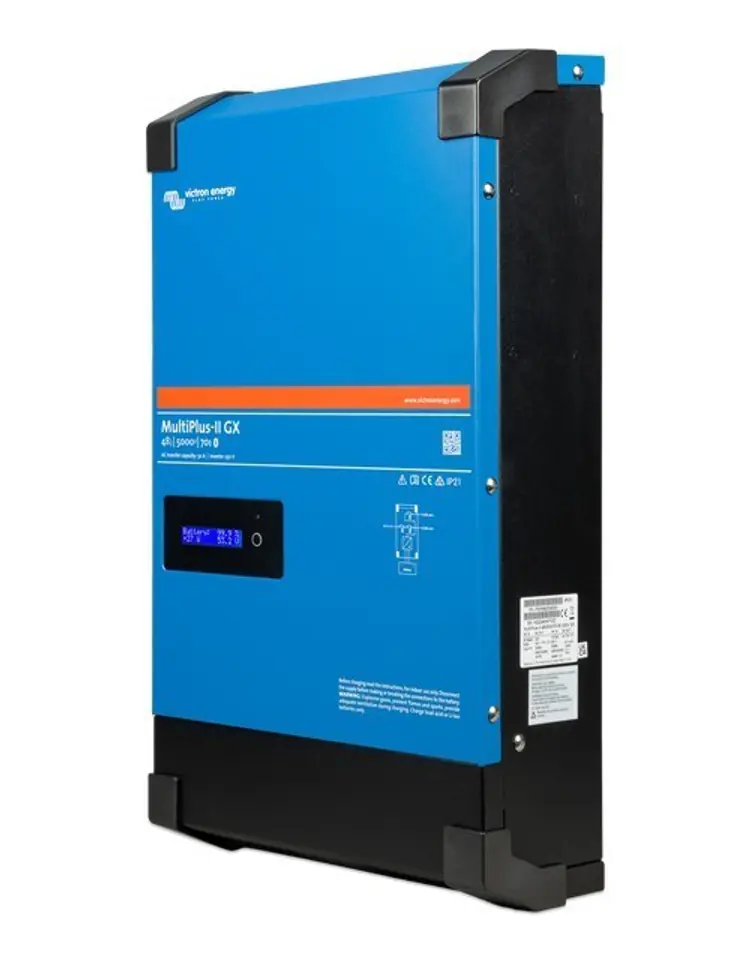

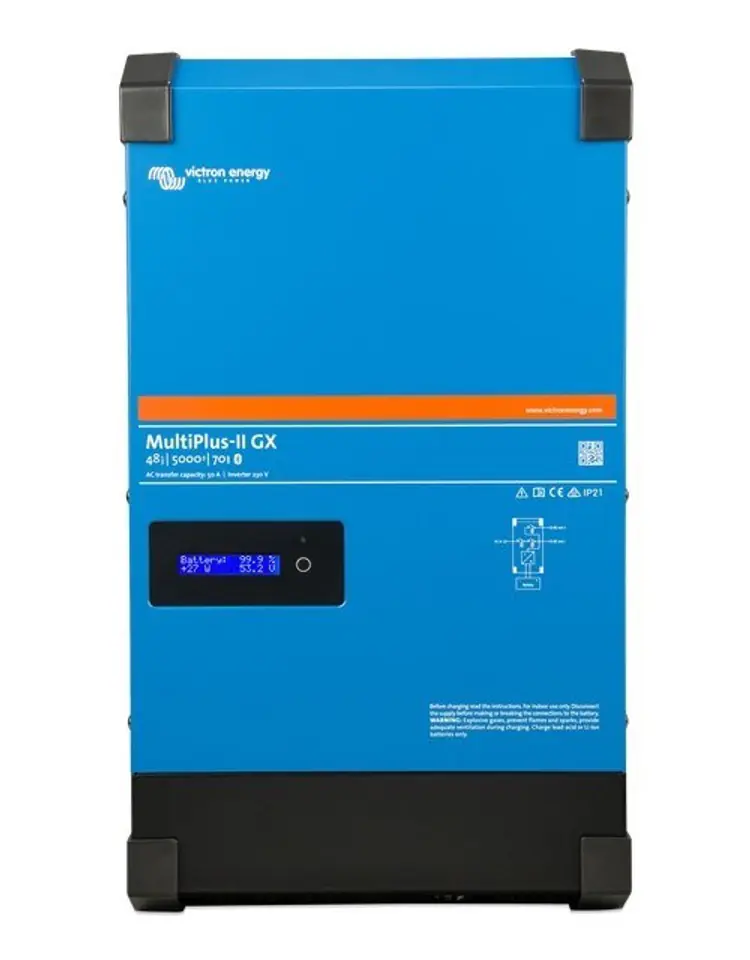

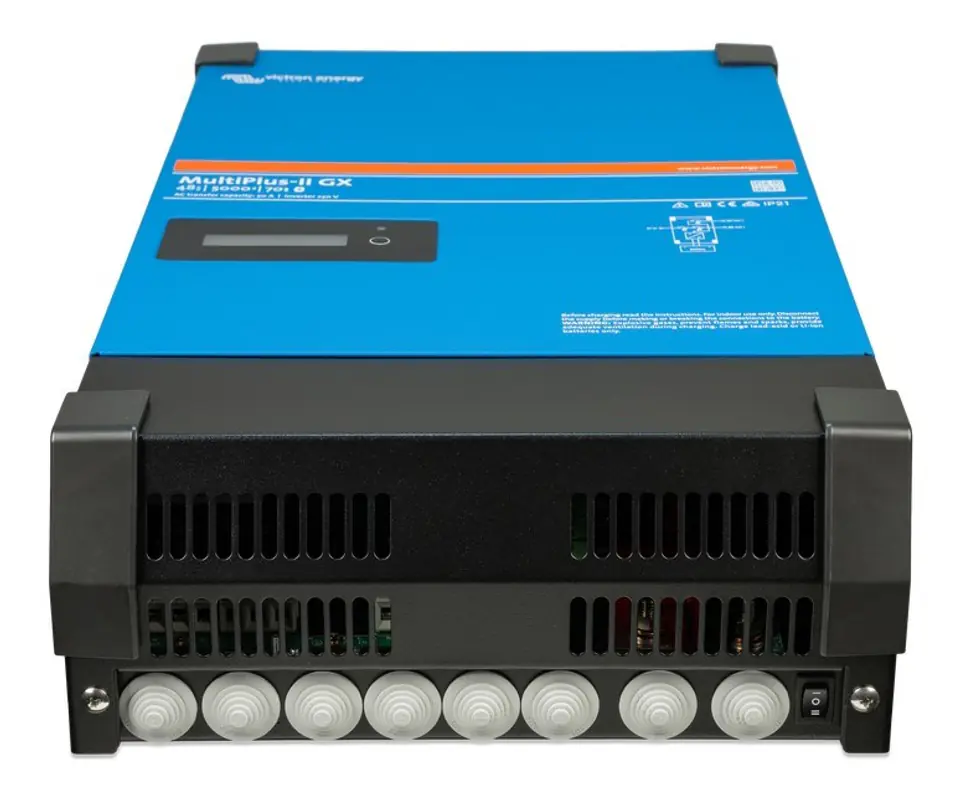

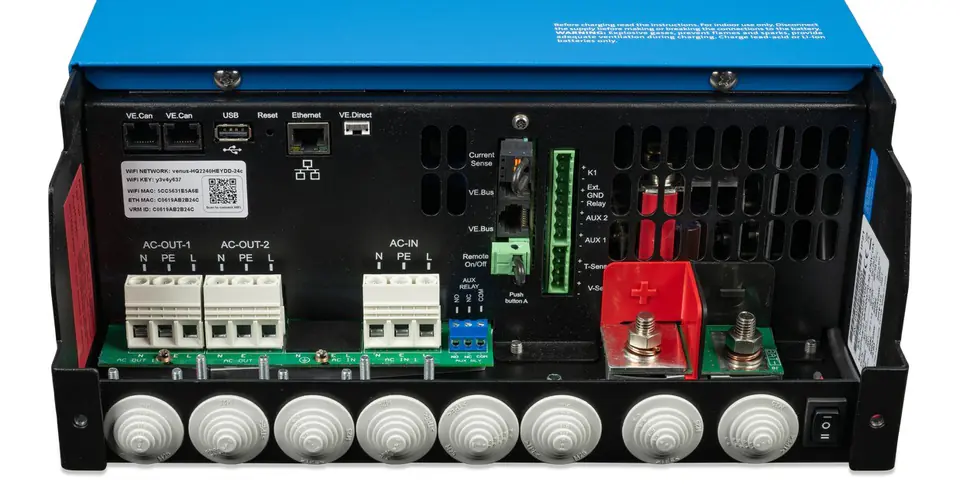

Victron Energy MultiPlus-II GX 48V 5000/70-50 multifunction inverter
€1,120.16
Shipping from warehouse: A3
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Victron Energy
- Product code:
- PMP482506000 / 8719076048824
Share this product:
Specification
| Ac input: | 187 - 265 VAC |
|---|---|
| Automatic inverter start-up in the event of network failure: | Yes |
| Battery management system (bms): | Yes |
| Brand compatibility: | Victron Energy |
| Built-in display: | Yes |
| Charging voltage (absorption): | 57.6 V |
| Charging voltage (liquid): | 55.2 V |
| Compatible with: | ESS (Energy Storage Systems) |
| Dc voltage range: | 38 - 66 V |
| Dedicated application: | VictronConnect, VRM |
| Depth: | 148 mm |
| Efficiency: | 96% |
| Energy management: | Yes |
| Energy storage: | Yes |
| Ethernet: | Yes |
| Fernbedienung: | Y |
| Frequency: | 50 Hz |
| Height: | 565 mm |
| Housing material: | Steel |
| Input current (max): | 50 A |
| Input voltage: | 230 V |
| International protection (ip) code: | IP21 |
| Maximum apparent power supply: | 5000 VA |
| Maximum battery charge current: | 70 A |
| Moisture (max): | 95% |
| Mounting type: | M8 |
| Number of ve.bus ports: | 1 |
| Operating temperature (t-t): | -40 - 65 °C |
| Overload protection: | Yes |
| Parallel ports quantity: | 2 |
| Peak power: | 9000 W |
| Power at zero load: | 18 W |
| Product colour: | Blue |
| Protection class: | a - g |
| Suitable for: | Photovoltaic system |
| Three-phase and parallel operation: | Yes |
| Usb port: | Yes |
| Ve.direct port: | Yes |
| Weight: | 31 kg |
| Wi-fi: | Yes |
| Width: | 323 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
