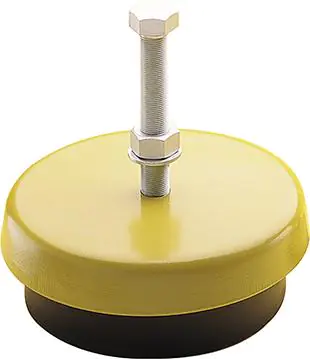

Vibroisolator for machines LEVEL-MOUNT 8000kg LM 7-77 EFFBE

€345.15
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Wed, Nov 13 - Mon, Nov 18
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
EFFBE
Product code:
FB60001348 / 4330816414408

Specification

Compression overall to 110/min strokes:6500 kg
Grinders:3000 kg

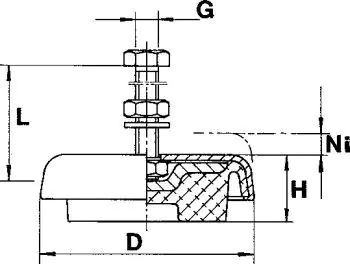

Height h:54 mm
Lathes:3000 kg
Levelling height:20 mm
Load per element:3000-8000 kg
Machines in general:7200 kg
Max. machine leg thickness:70 mm
Max. static load:8000 kg
Milling machines:3600 kg
Model:LM 7-77
Ø d:241 mm
Ø thread g:M24x1.5
Standard screw length l:140 mm

Vibroisolator LEVEL-MOUNT®

Execution: Elastomeric body of synthetic rubber, resistant to oils and aging, metal outer cover, powder coated yellow, ductile iron pressure plate, steel screw, galvanized.
Use: For flexible, foundationless positioning of machines and presses.
Tip: The load values shown in the table are the recommended values, which are determined assuming good machine stability and setting without anchoring.
Choosing the right shrink hose:
1. Determine the load per element (weight of the device: number of attachment points)
2. Specify the type of machine
3. Select the items according to the table below
4. Compare the size of the screw with the size of the hole

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
