| Dimensions:: | 100 x 62 x 26 mm |
|---|---|

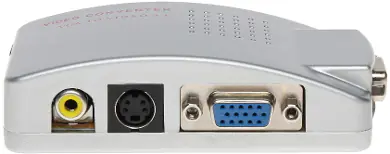

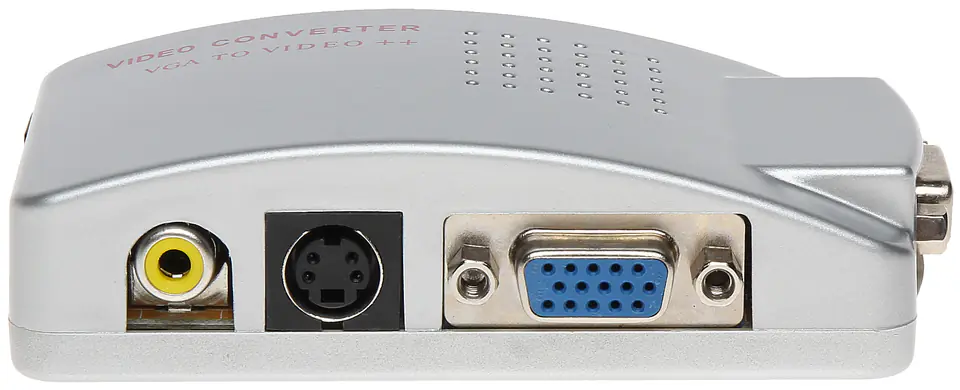

| Egress:: | Video composite (Cinch), S-VIDEO, VGA (bypass) |

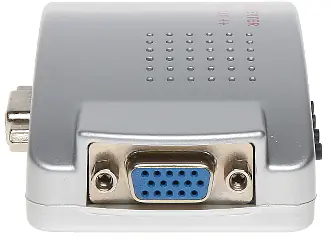

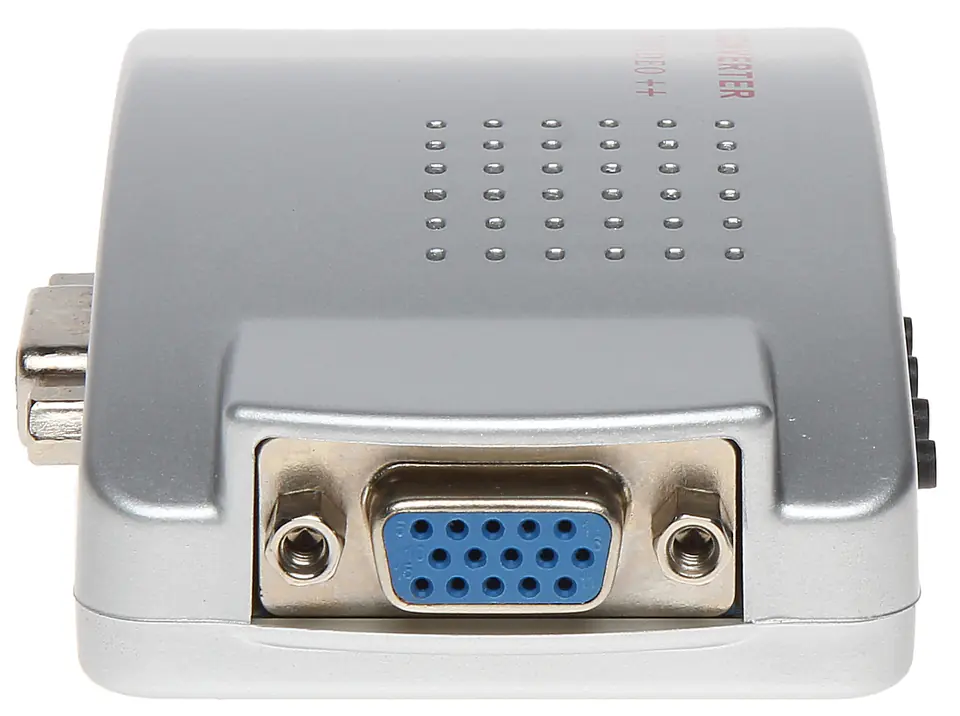

| Entrance:: | VGA |
| Possible output signal standards:: | PAL / NTSC |

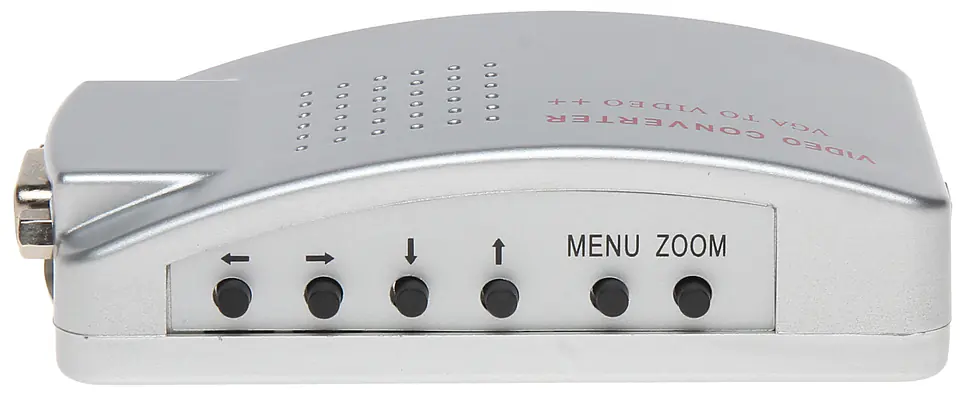

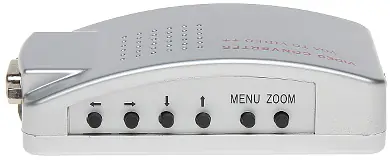

| Possible settings:: | vertical and horizontal size, vertical and horizontal image panning, contrast, saturation sharpen, hueMonitor type correction - LCD/CRT |

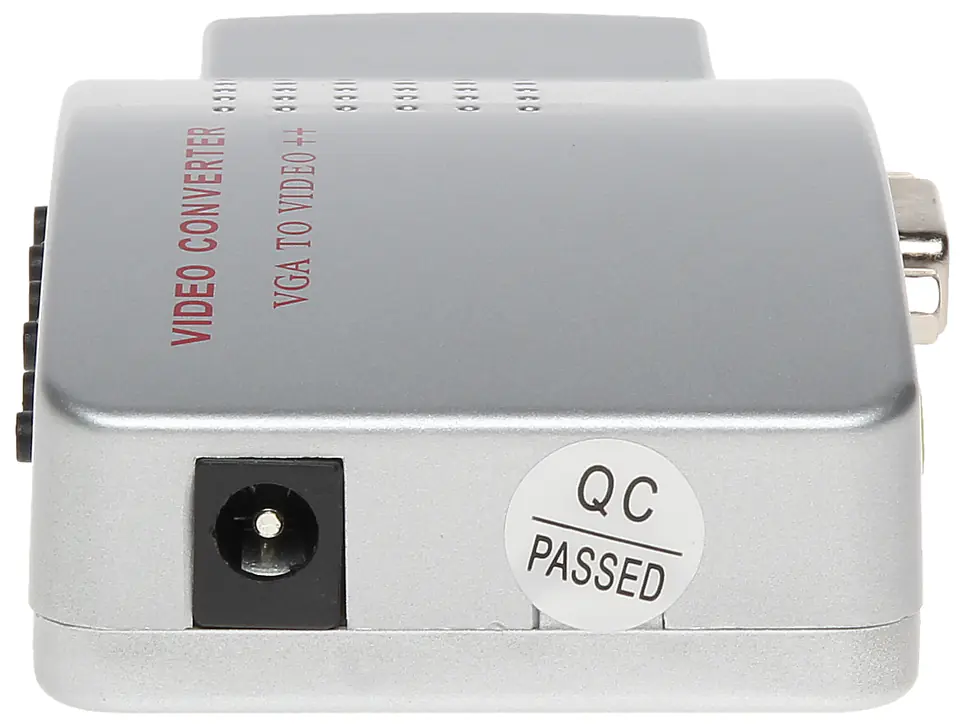

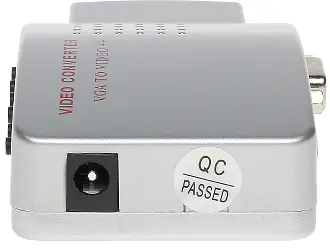

| Power:: | USB or 5V DC power adapter (power adapter not included) |
| Scales:: | 0.064 kg |
| Supported resolutions:: | 640 x 480, 800 x 600, 1024 x 640, 1024 x 768, 1280 x 768, 1280 x 800, 1280 x 1024, 1280 x 960, 1360 x 768, 1440 x 900, 1600 x 1200, 1680 x 1050, 1768 x 992, 1792 x 1344, 1800 x 1440, 1920 x 1080, 1920 x 1200, 1920 x 1440, 2048 x 1152, 2048 x 1280, 2048 x 1536, 2560 x 1600 |
| Warranty:: | 2 years |

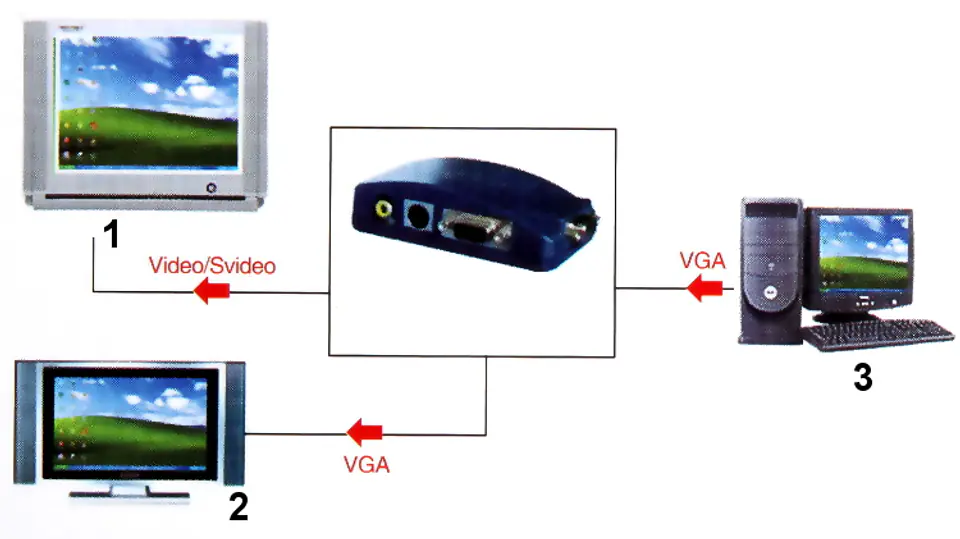

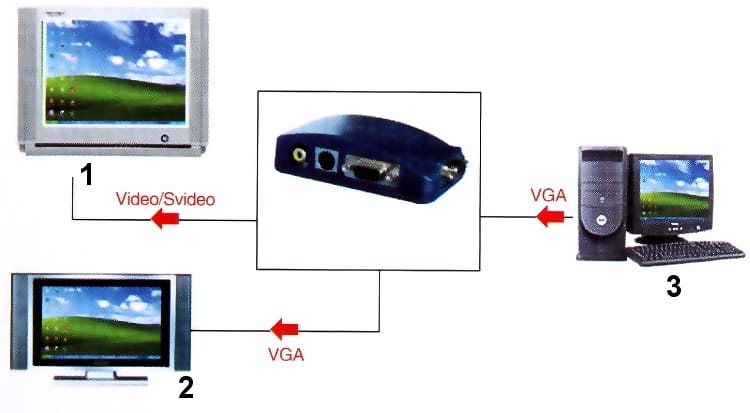

The AX-2560 converter allows you to connect a VGA signal (e.g. from a computer) to a regular monitor or projector with AV input (Composite Video signal) or S-Video input
The device is ideal for various types of presentations, shows, where the image from the computer should be displayed on a much larger monitor (TV)
Remark! With a pass-through VGA connection, you may notice a slight deterioration in image quality
