Technical Specifications
Make: Bessey
Manufacturer code:
Working range: 35mm
Auto adjustment: 20mm
Clamping force: 1100 N
Weight: 0.22 kg
Vertical pressure with open arm and horizontal base 35mm
- The lever in the closed position is set vertically
- Automatic, stepless adjustment of the clamping height up to 35 mm with almost unchanged clamping force – no manual setting of the pressure screw required
- Clamping force adjustable up to 2,500 N depending on the position of the pressure screw in the joint
- Strong and rigid construction made of high-quality sheet metal for long clamping life
- Base with spacing of mounting holes in mm and inches
- Two-component handle made of high quality oil-resistant plastic
**
Illustrative photos

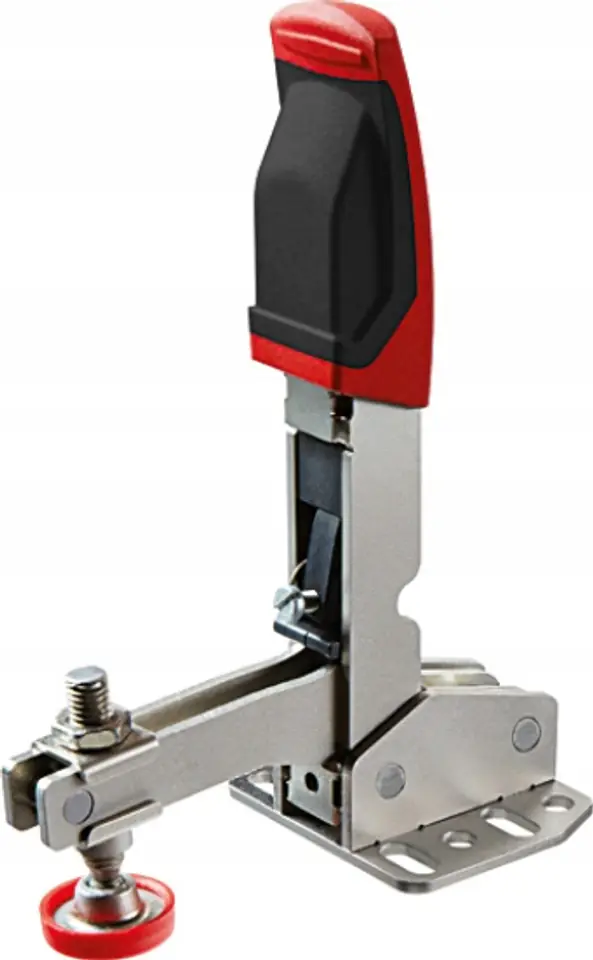

VERTICAL PRESSURE WITH OPEN ARM AND HORIZONTAL BASE 35MM
€39.46
Shipping from warehouse: U1
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- BESSEY
- Product code:
- 4008158036984
Share this product:
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
