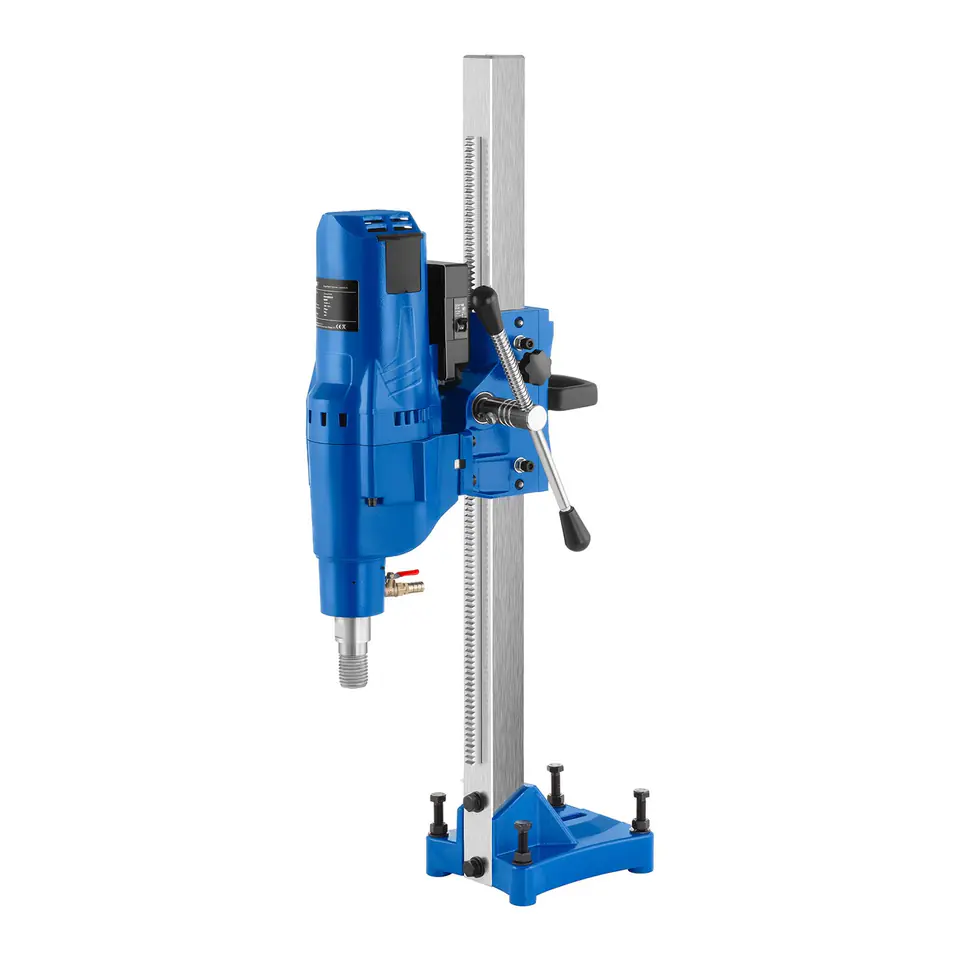

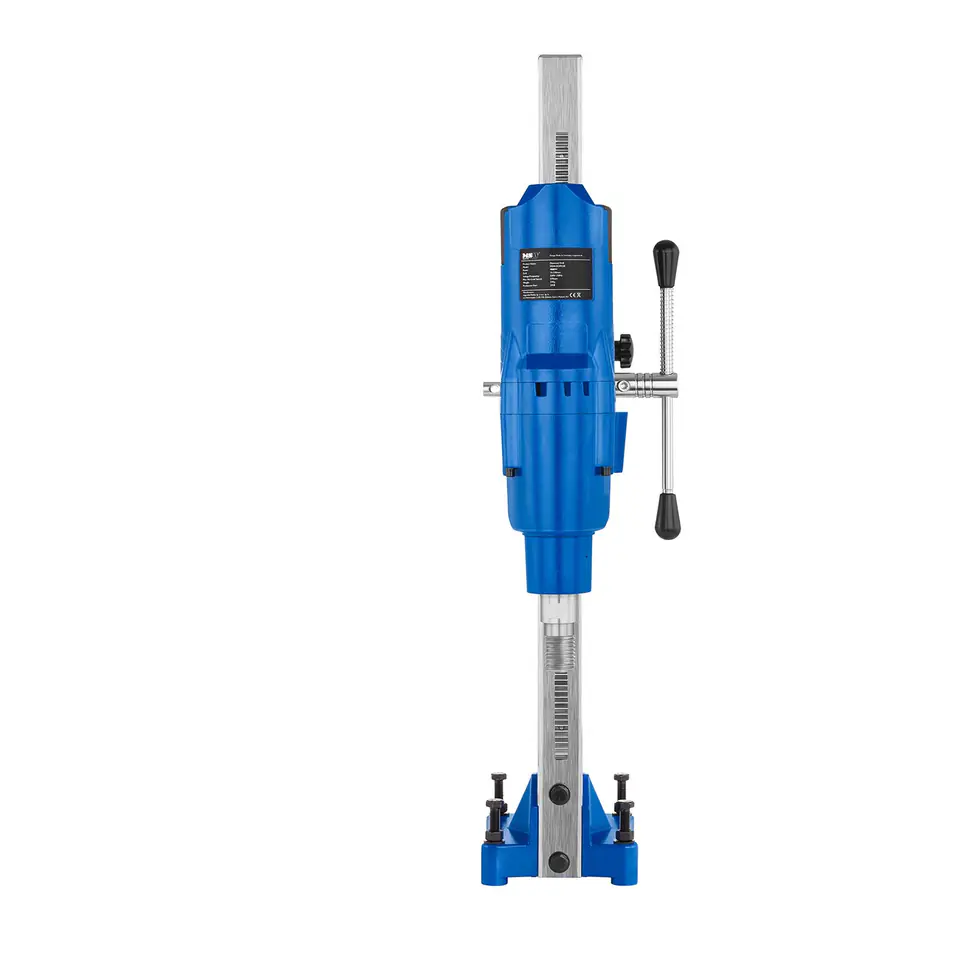

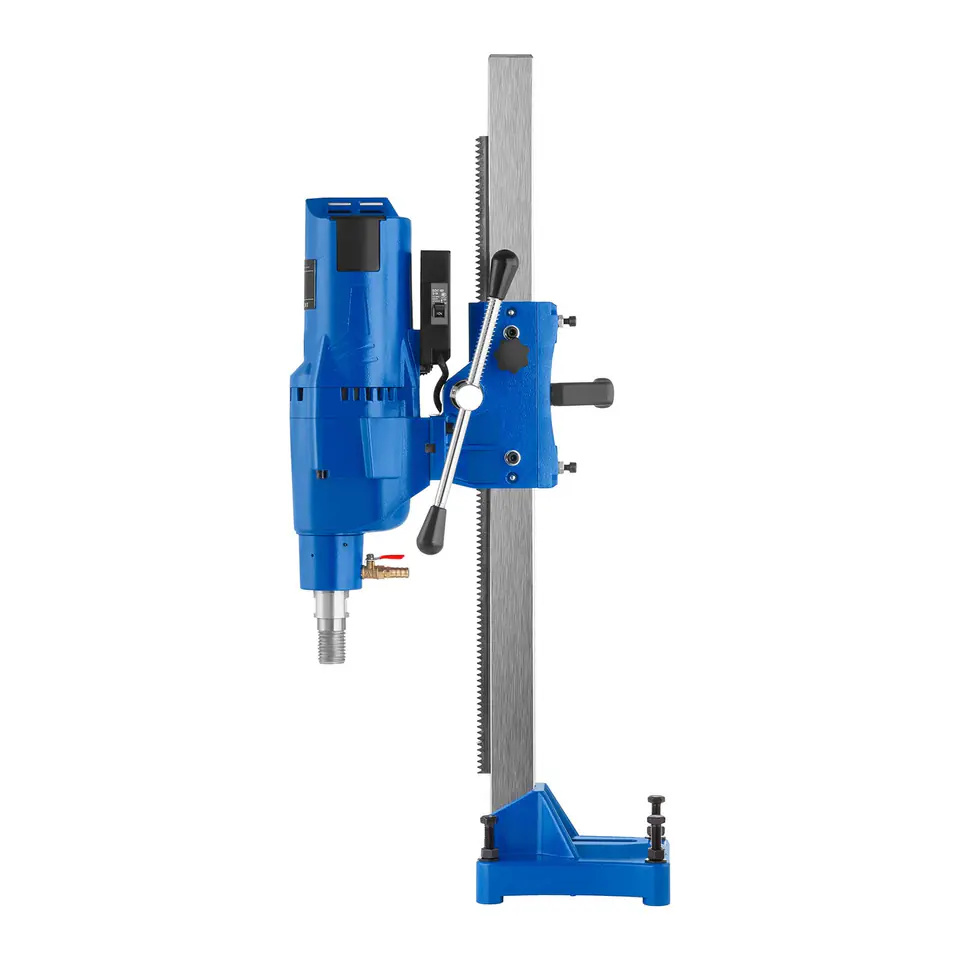

MSW 10060435 Professional drilling rig MSW-DDM230power 4080 W up to 570 rpm adjustment of boring depth in the range of 0 - 520 mmspecial fitting and hose diameter up to 230 mmPRCD module (residual current circuit breaker)Product features:
- - Reliability - solid construction allows wet and dry work,
- - Multitasking - the ability to drill in various hard materials such as brick, concrete, reinforced concrete or stone,
- - Versatility - compatibility with diamond drill bits with a diameter of up to 230 mm,
- - Security - built-in PRCD module.
- - Model - MSW-DDM230
- - Catalog no. - 10060435
- - Housing material - Aluminum, steel, plastic
- - Power - 4080 W
- - Voltage/frequency - 230V/50Hz
- - Sound pressure - 70 dB(A)
- - Sound power - 85 dB(A)
- - Max. drilling diameter - 230 mm
- - Drill cap diameter - 1 1/4"

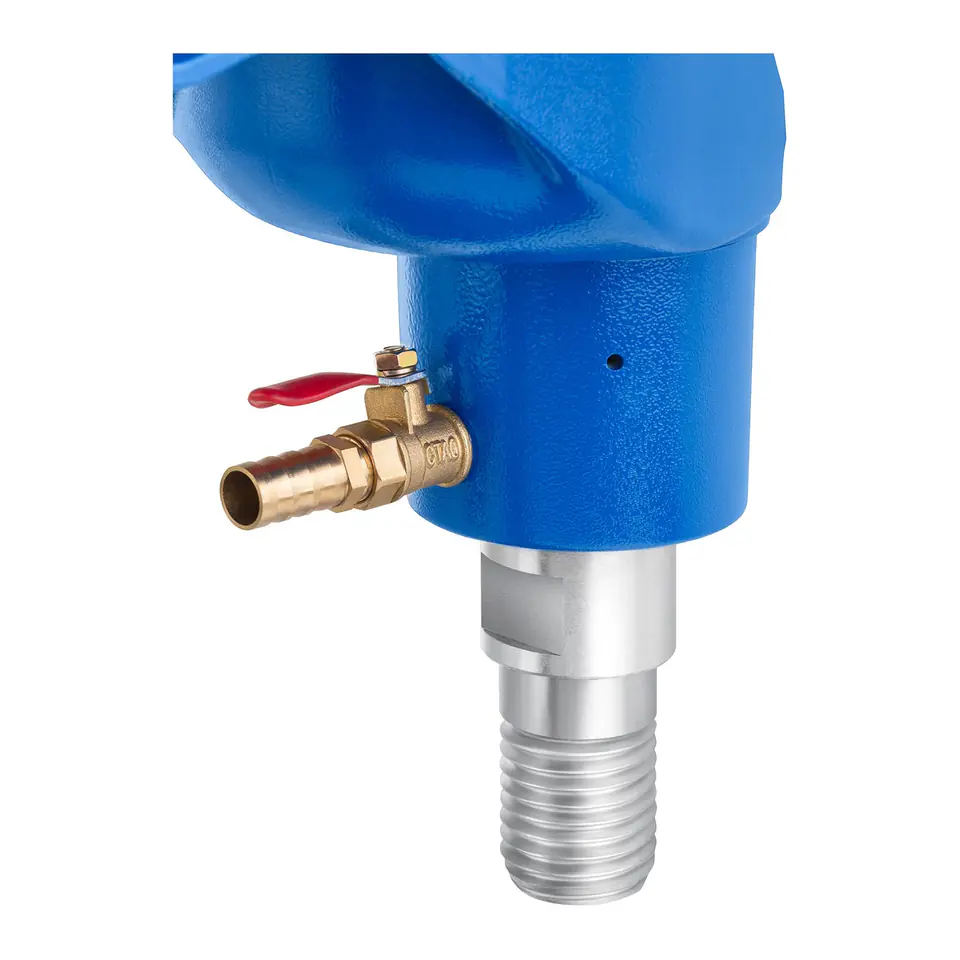

- - Diameter of the hose connection to the water - 1/2"
- - The length of the water hose - 3.1 m
- - Max. rotational speed (without load) - 570 rpm

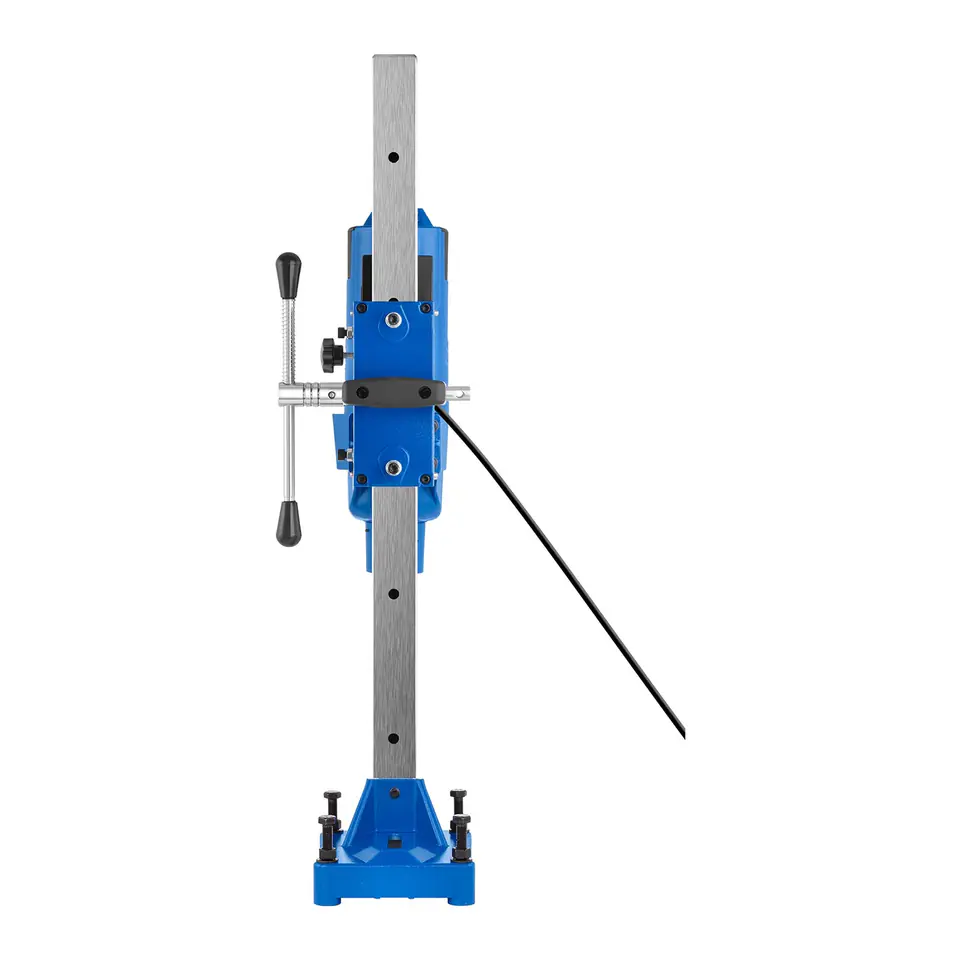

- - Guide range - 0-520 mm
- - Dry and wet drilling - Yes

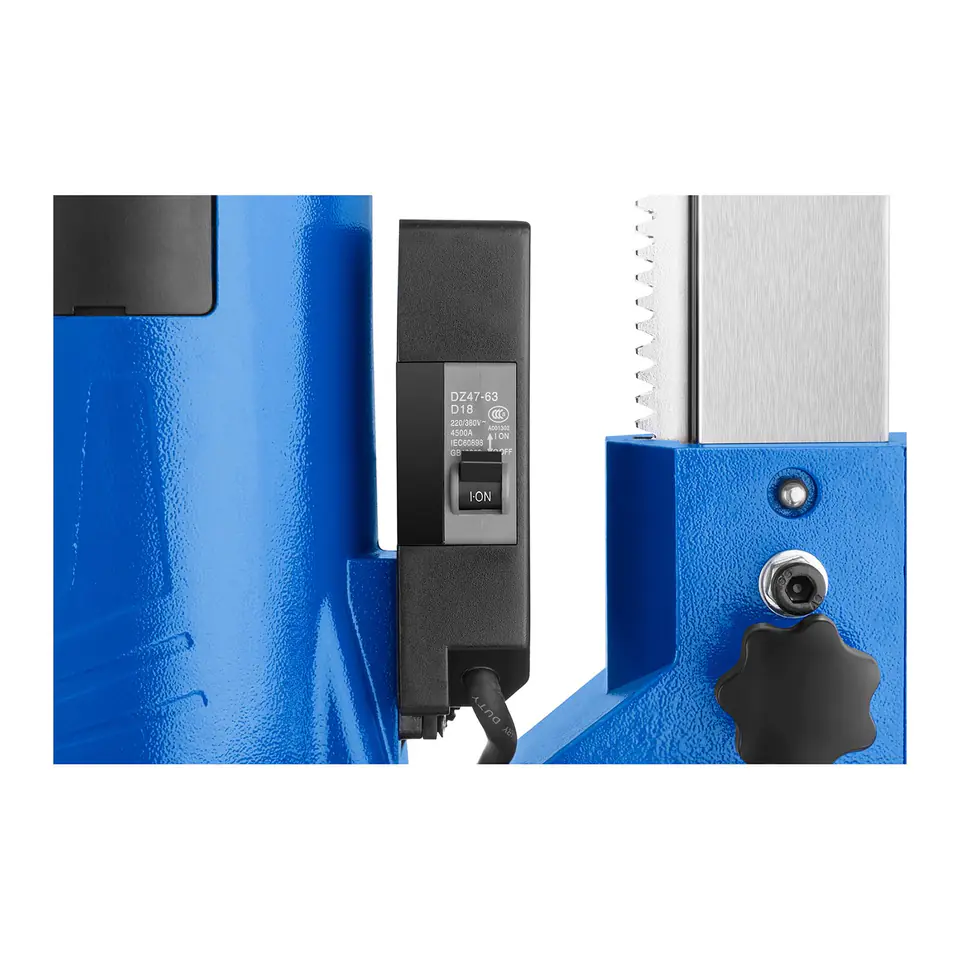

- - PRCD module - Yes
- - Power cord length - 3.2 m
- - Dimensions (LxWxH) - 31 x 18 x 102 cm
- - Weight - 20.9 kg
- - Shipping dimensions (LxWxH) - 93.5 x 35.5 x 23 cm
- - Shipping weight - 23.5 kg

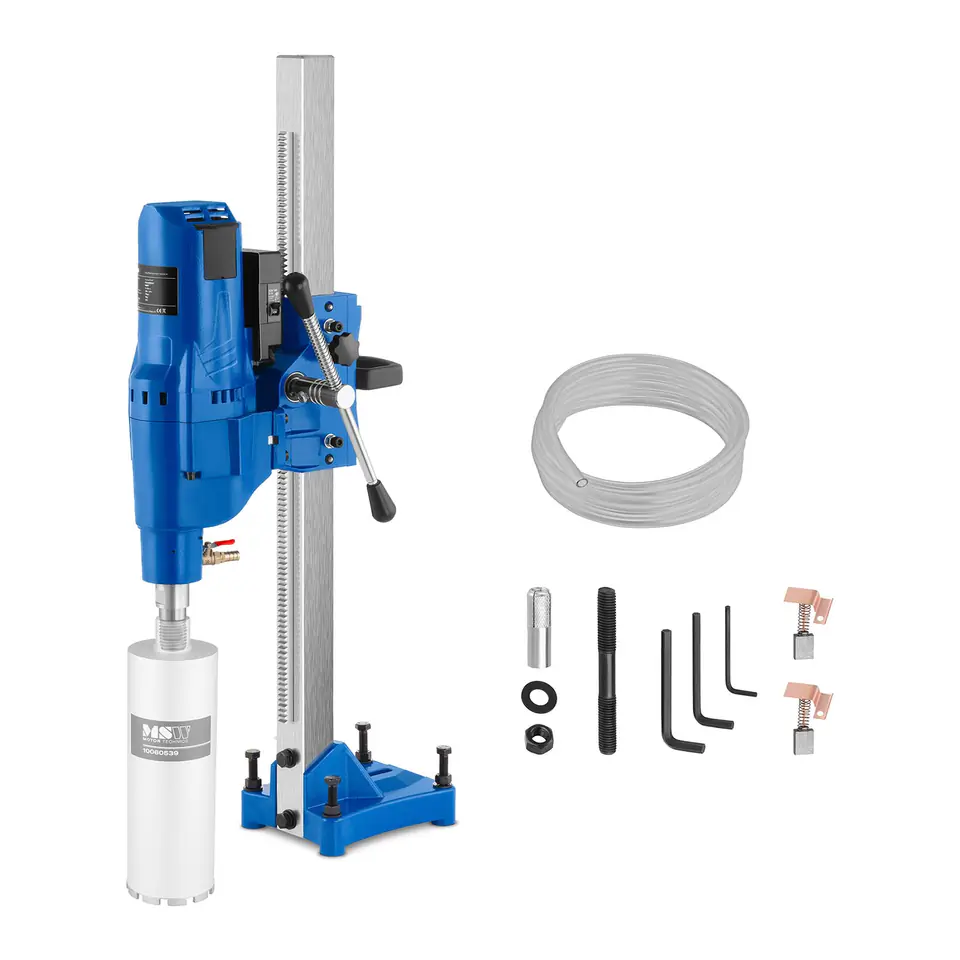

- - Concrete drilling rig

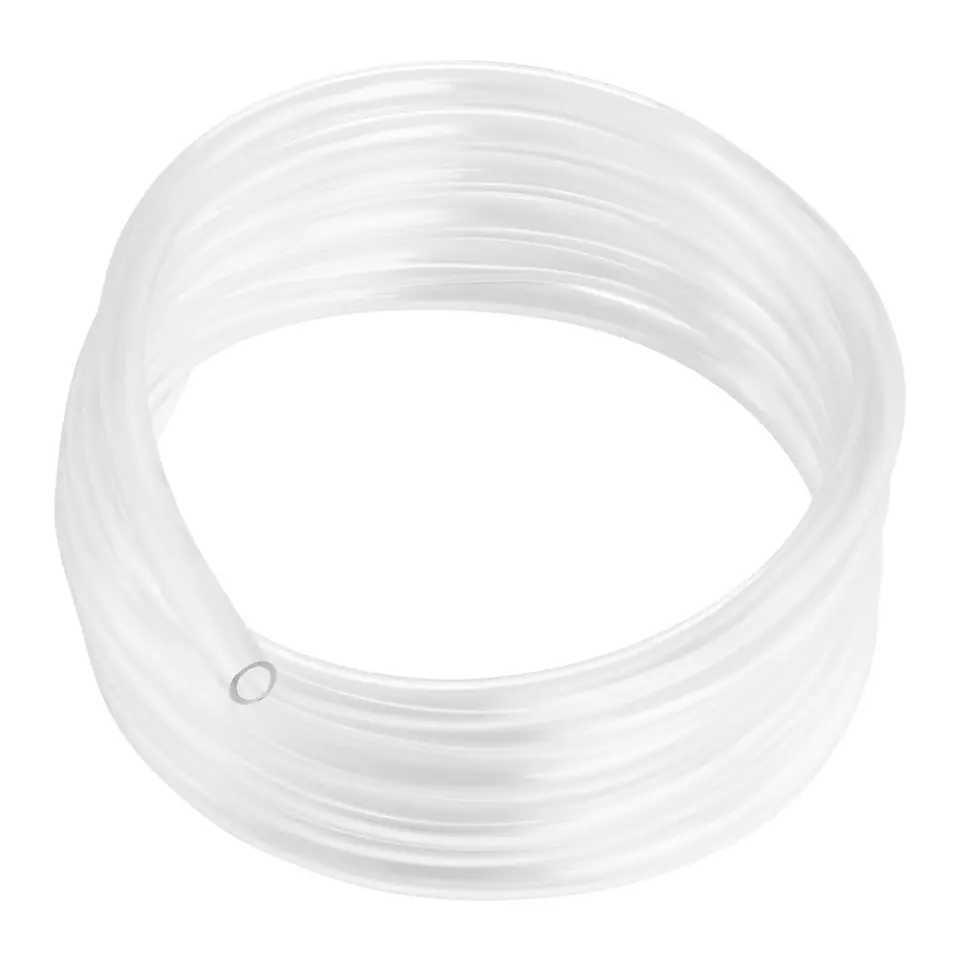

- - Water hose 3.1 m

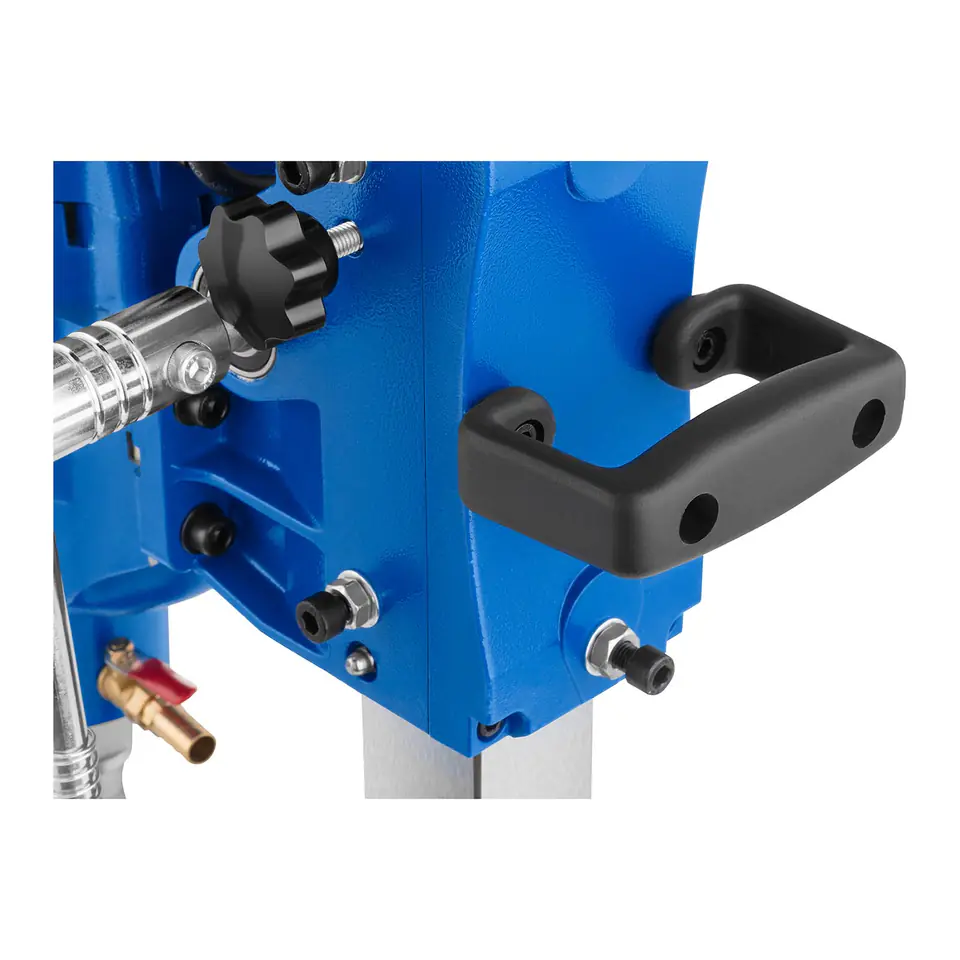

- - Rotatable handle

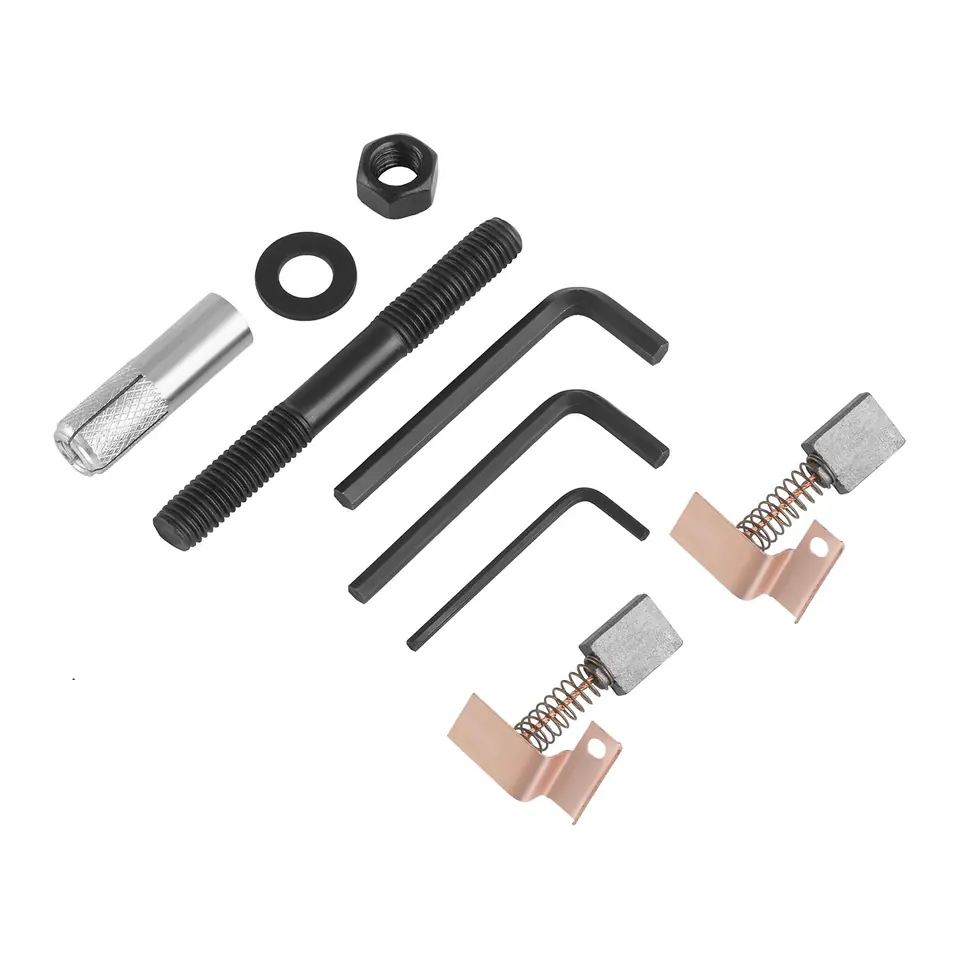

- - Allen keys – 3 pcs.
- - Rear guide handle
- - Anchor screw
- - Carbon brushes – 2 pcs.

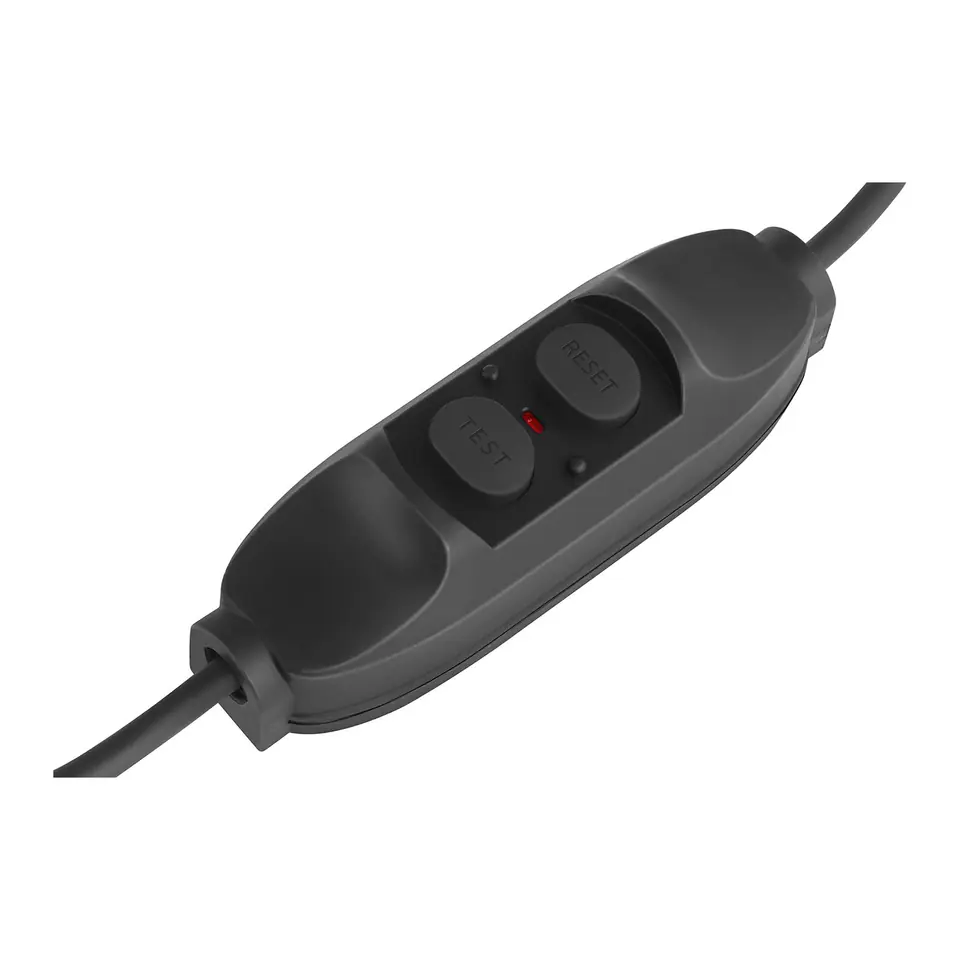

- - 3.2 m power cord with PRCD safety module
- - Manual EN
