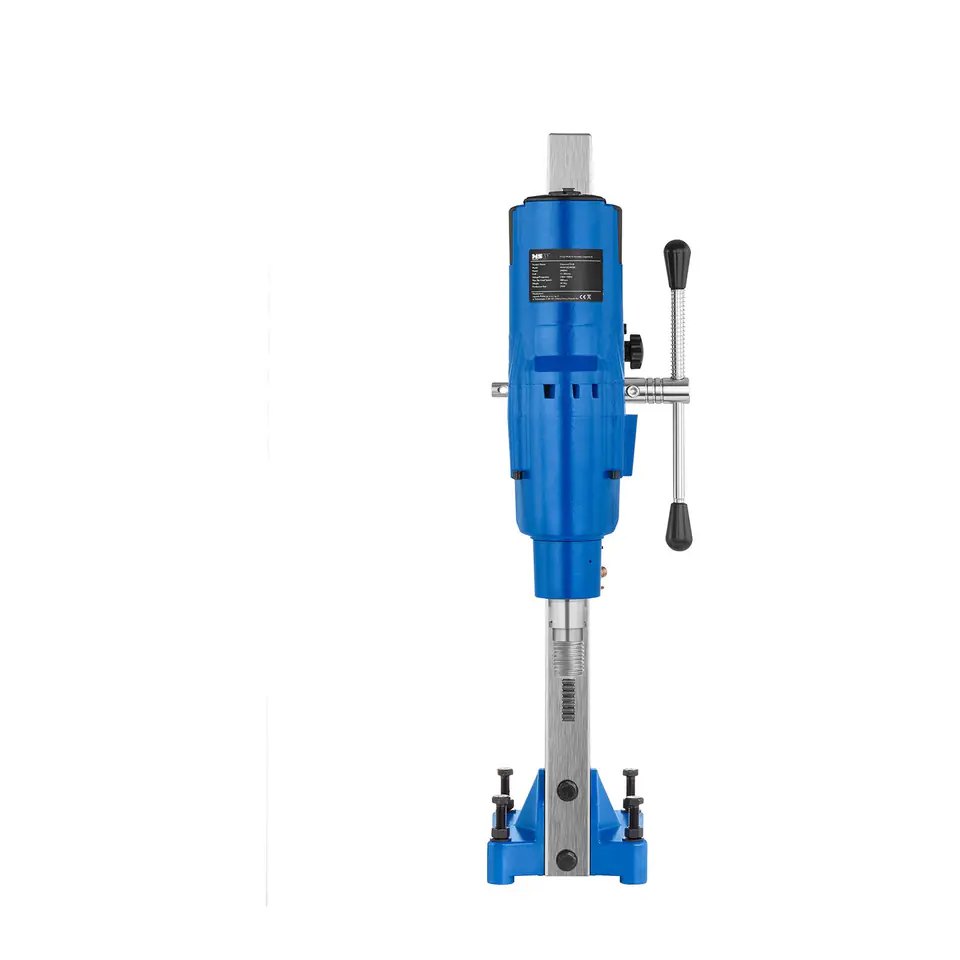

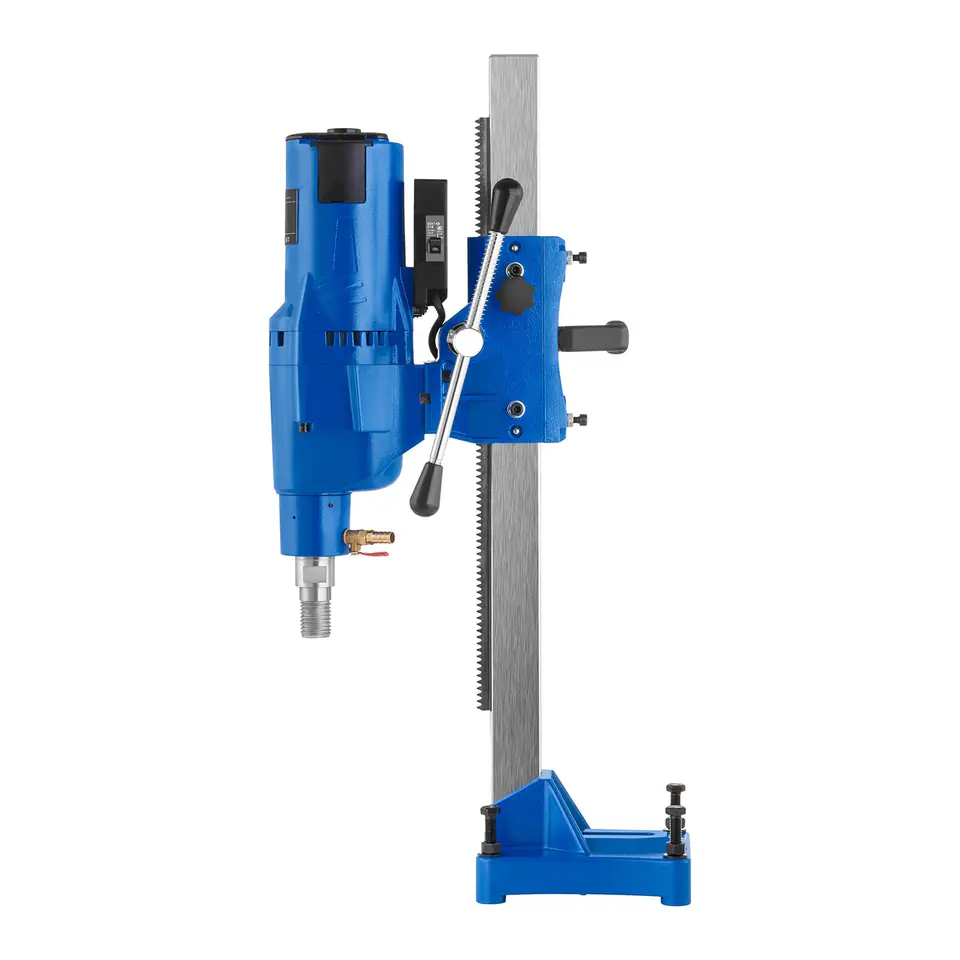

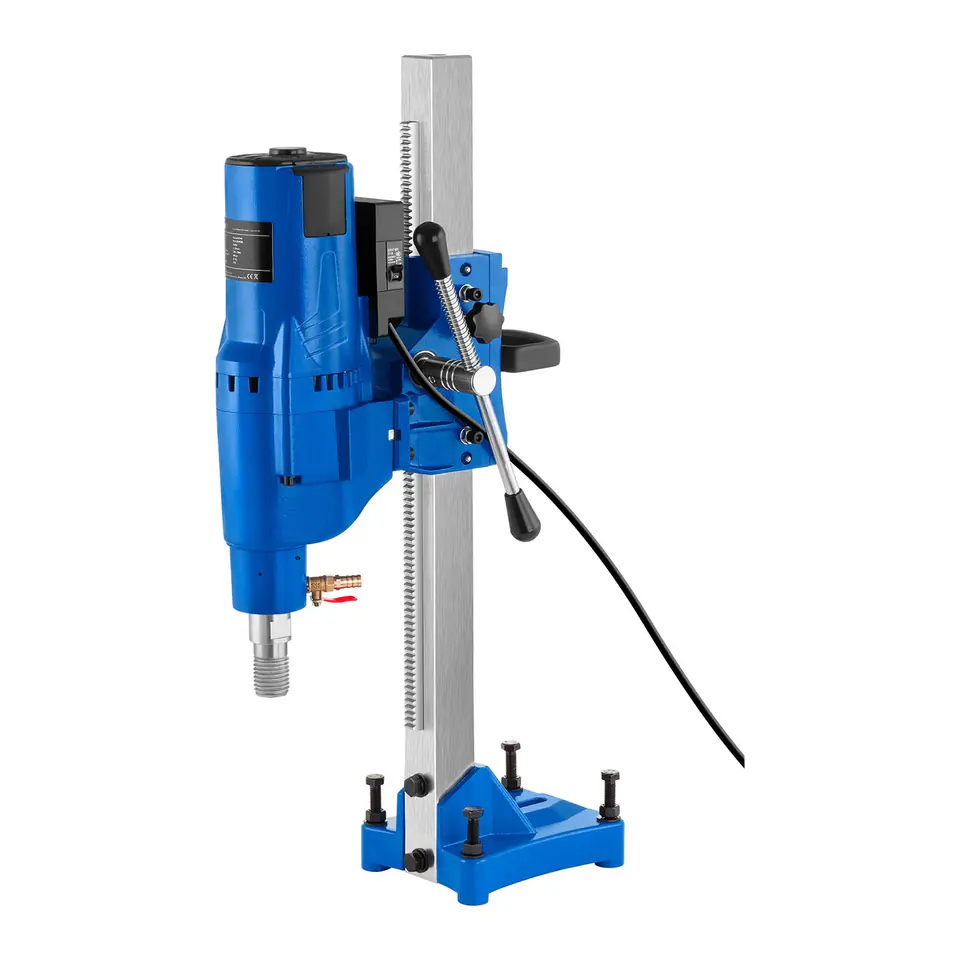

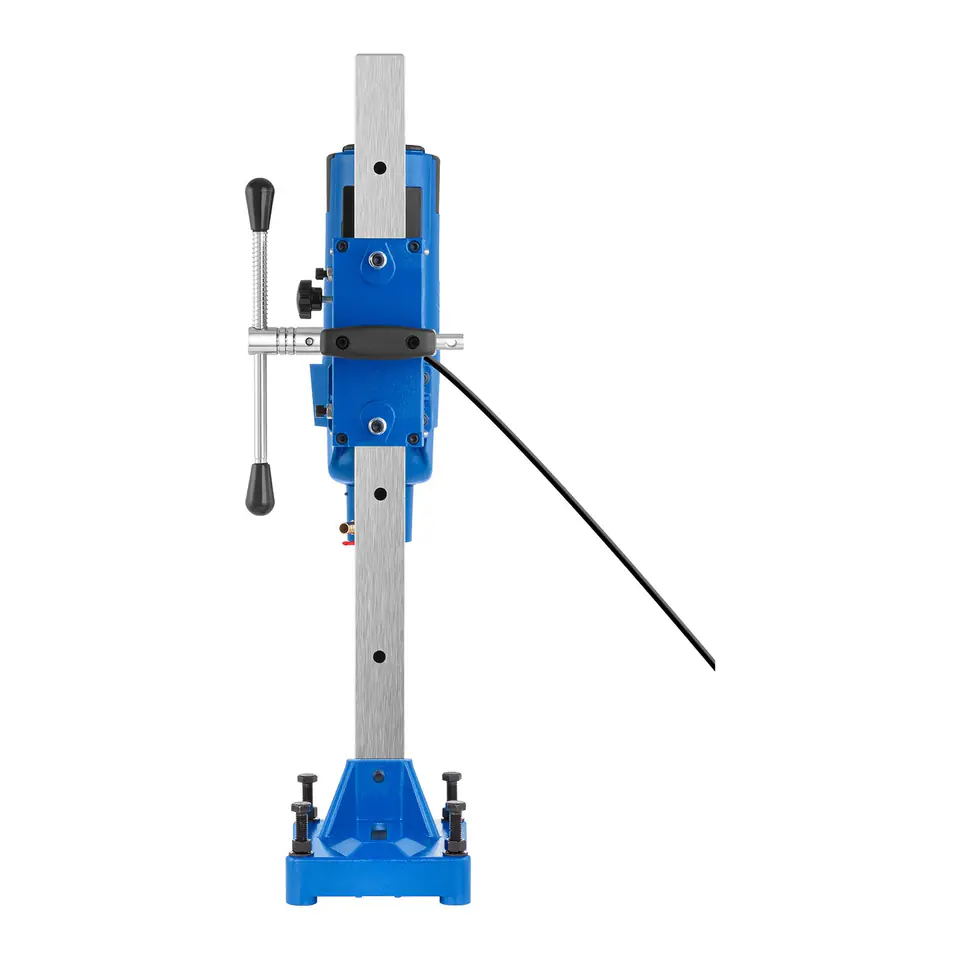

Vertical masonry drill 205 mm 3900W MSW-DDM205

This product is not available
Availability:
expected delivery
Brand:
MSW
Product code:
10060436 / 4250928684158

Specification

Sku:1009362
MSW 10060436 Professional drilling rig MSW-DDM205power 3900 W up to 580 rpm adjustment of boring depth in the range of 0 - 510 mmspecial fitting and hose diameter up to 205 mmPRCD module (residual current circuit breaker)Product features:
  • Reliability - solid construction allows wet and dry work,
  • Multitasking - the ability to drill in various hard materials such as brick, concrete, reinforced concrete or stone,
  • Versatility - compatibility with diamond drill bits with a diameter of up to 205 mm,
  • Security - built-in PRCD module.
Technical parameters:
  • - Model - MSW-DDM205
  • - Catalogue number - 10060436
  • - Housing material - Aluminum, steel, plastic
  • - Power - 3900 W
  • - Voltage/frequency - 230V/50Hz
  • - Sound pressure - 70 dB(A)
  • - Sound power - 85 dB(A)
  • - Max. drilling diameter - 205 mm
  • - Drill cap diameter - 1 1/4"
  • - Diameter of the hose connection to the water - 1/2"
  • - The length of the water hose - 3.1 m
  • - Max. rotational speed (without load) - 580 rpm
  • - Guide range - 0-510 mm
  • - Dry and wet drilling - Yes
  • - PRCD module - Yes
  • - Power cord length - 3.2 m
  • - Dimensions (LxWxH) - 29 x 20 x 91.5 cm
  • - Weight - 20 kg
  • - Shipping dimensions (LxWxH) - 85.5 x 36 x 24 cm
  • - Shipping weight - 22.5 kg

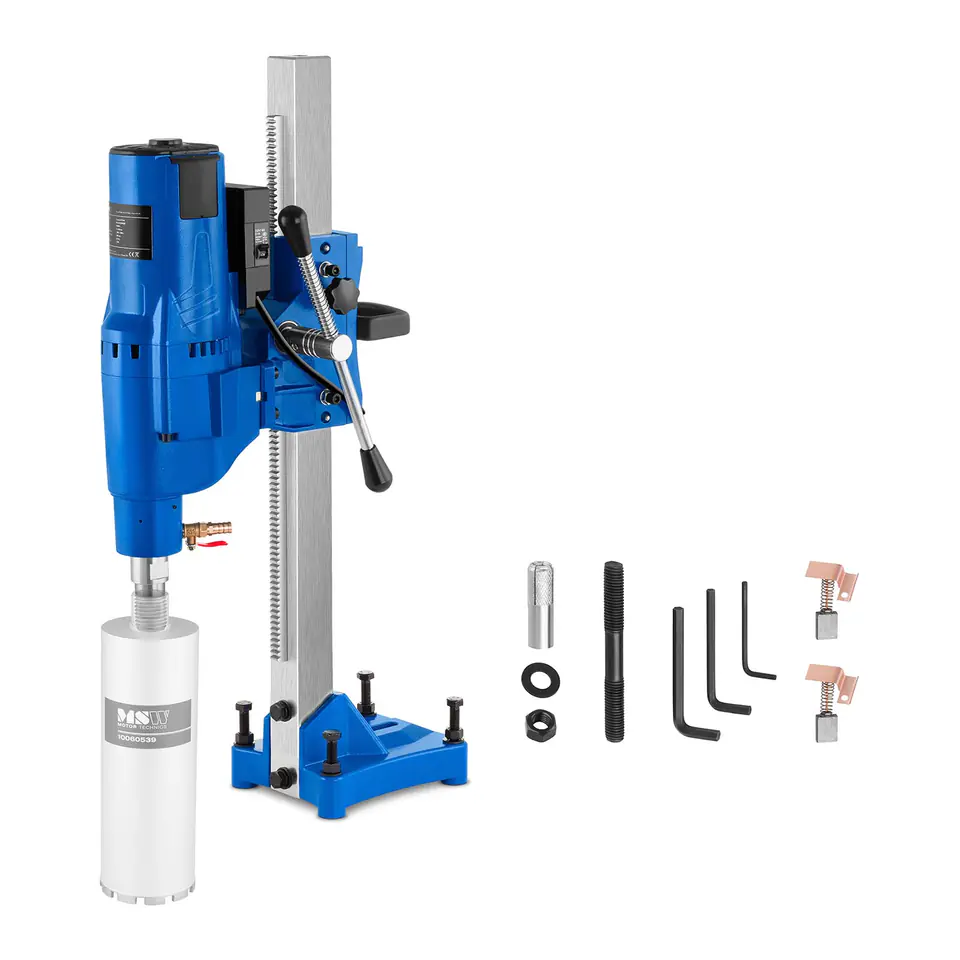

Included:
  • - Concrete drilling rig
  • - Water hose 3.1 m
  • - Rotatable handle

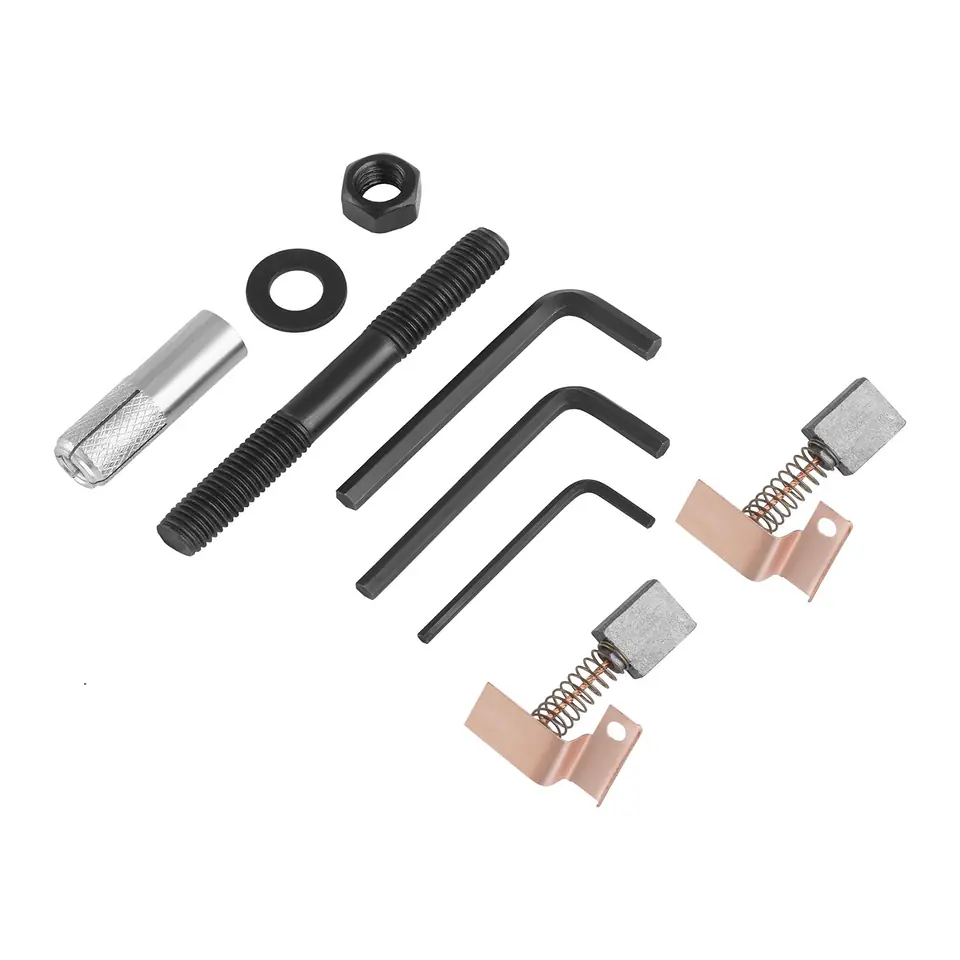

  • - Allen keys – 3 pcs.

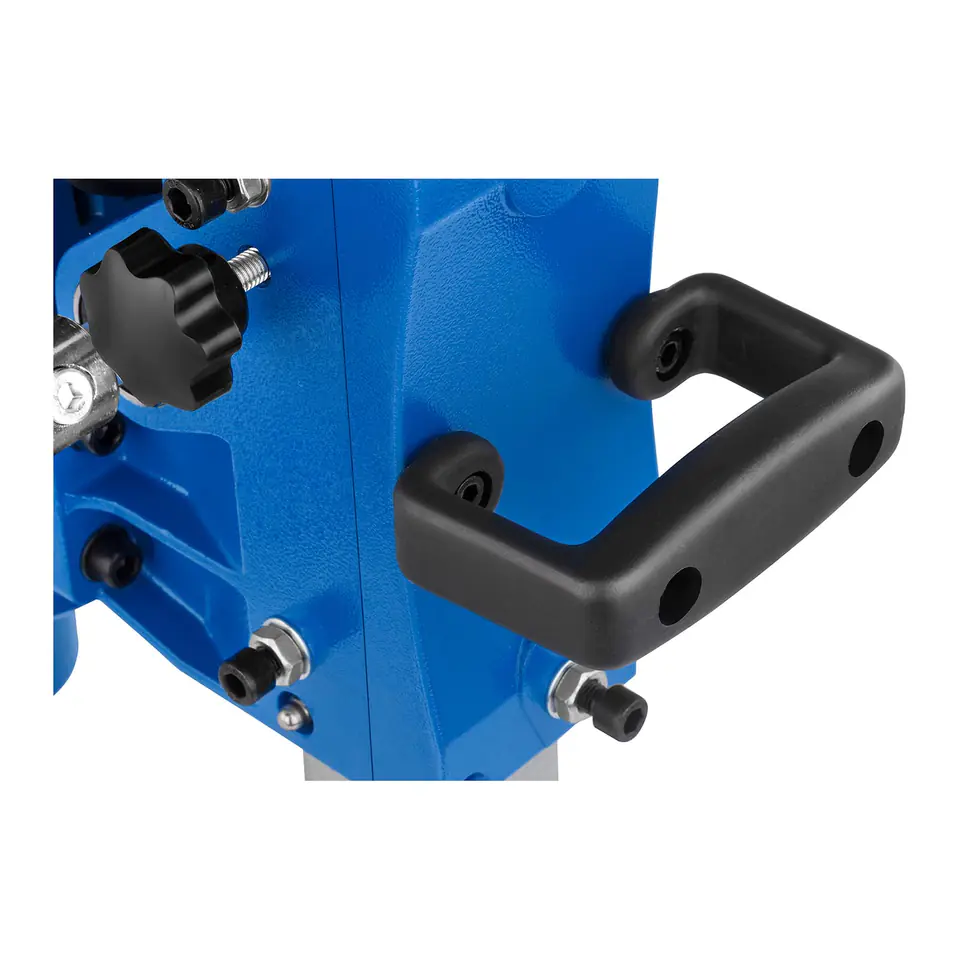

  • - Rear guide handle
  • - Anchor screw
  • - Carbon brushes – 2 pcs.

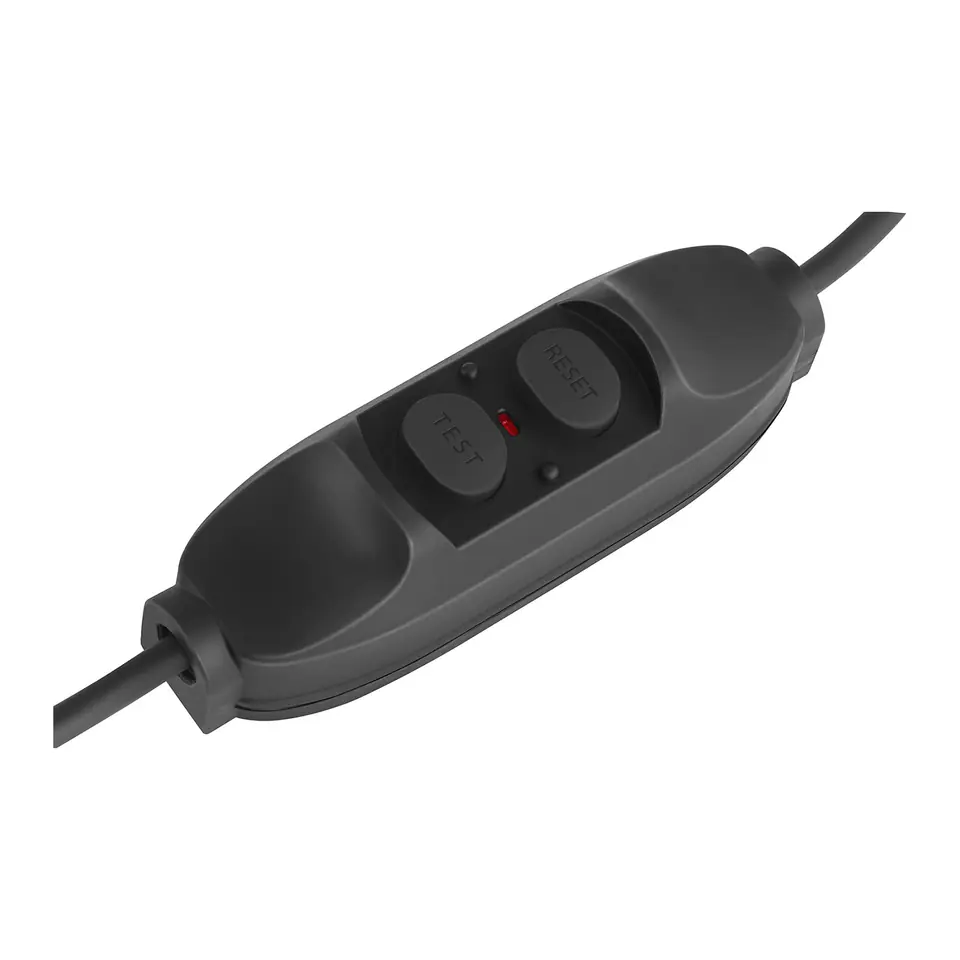

  • - 3.2 m power cord with PRCD safety module
  • - Manual EN

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
