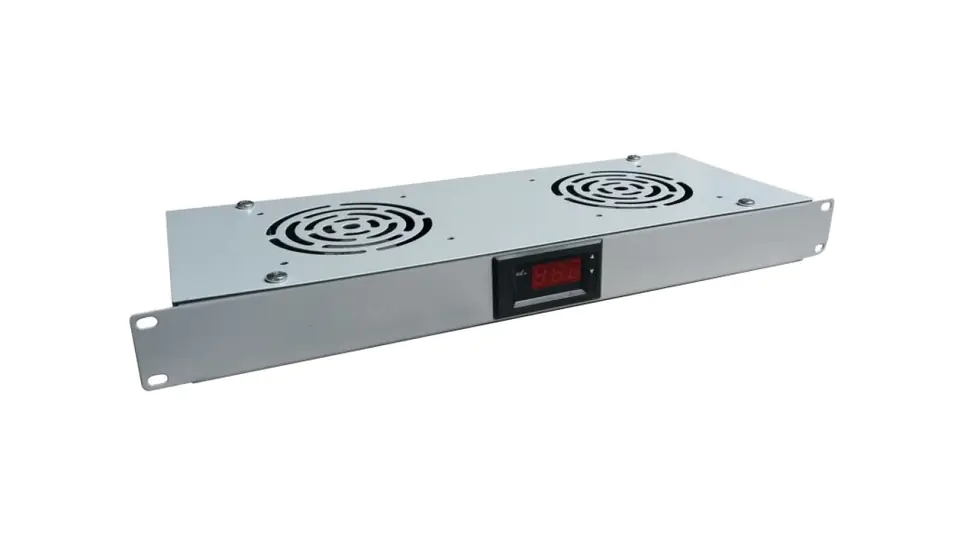

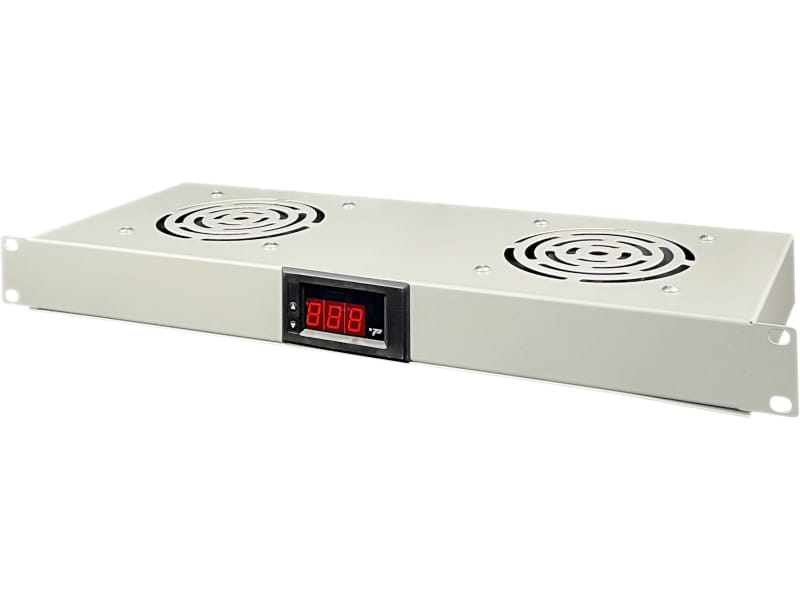

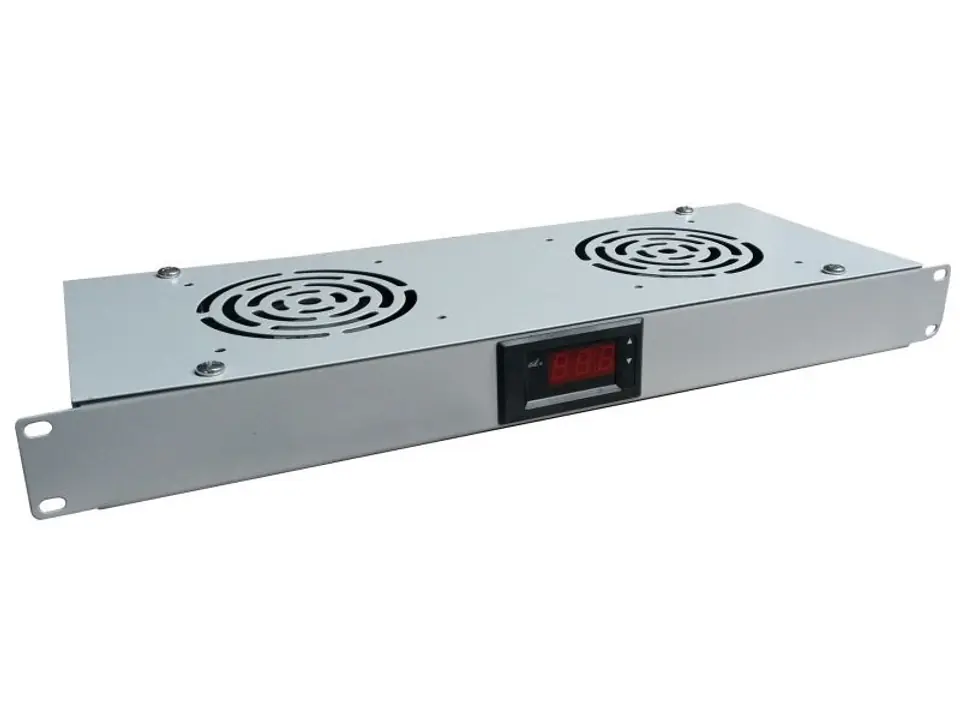

Ventilation panel designed for installation in rack cabinets in the 19-inch standard. The panel is equipped with a thermostat and a digital temperature control module. The temperature sensor with a cable length of up to 1.5 m allows you to place the sensor anywhere in the cabinet.
Product features:
- 2 fans
- Digital temperature gauge
- Easy assembly and programming
- programming temperature thresholds for switching on ventilation
- Initial sensor calibration
- setting the differential on and off ventilation

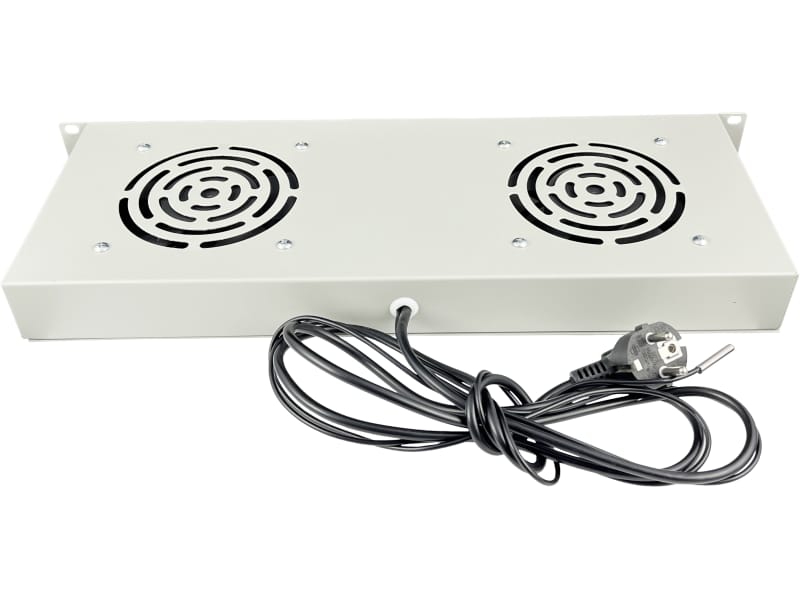

- power cable CEE 7/7 plug included
- power supply 230V AC +/- 10%
- Grey
Quick Start Guide
The ventilation panel has two plus and minus buttons, which are used to change the threshold of turning on the ventilation. After pressing two buttons at once, we can edit the additional SC and HY parameters. SC is a parameter of the initial calibration of the sensor in the range from -9.9 to 10 oC. HY determines the differential of switching on and off ventilation from the set temperature, i.e. the setpoint value + HY will start ventilation, the setpoint value - HY exclusive ventilation. If the message -L- appears on the display, it indicates that the sensor is missing or damaged.
| Wymiary | Wymiary2 |
|---|---|
| Szerokość | 440 mm |
| Głębokość | 170 mm |
| Wysokość | 50 mm |
