Manufacturer no: 10090337

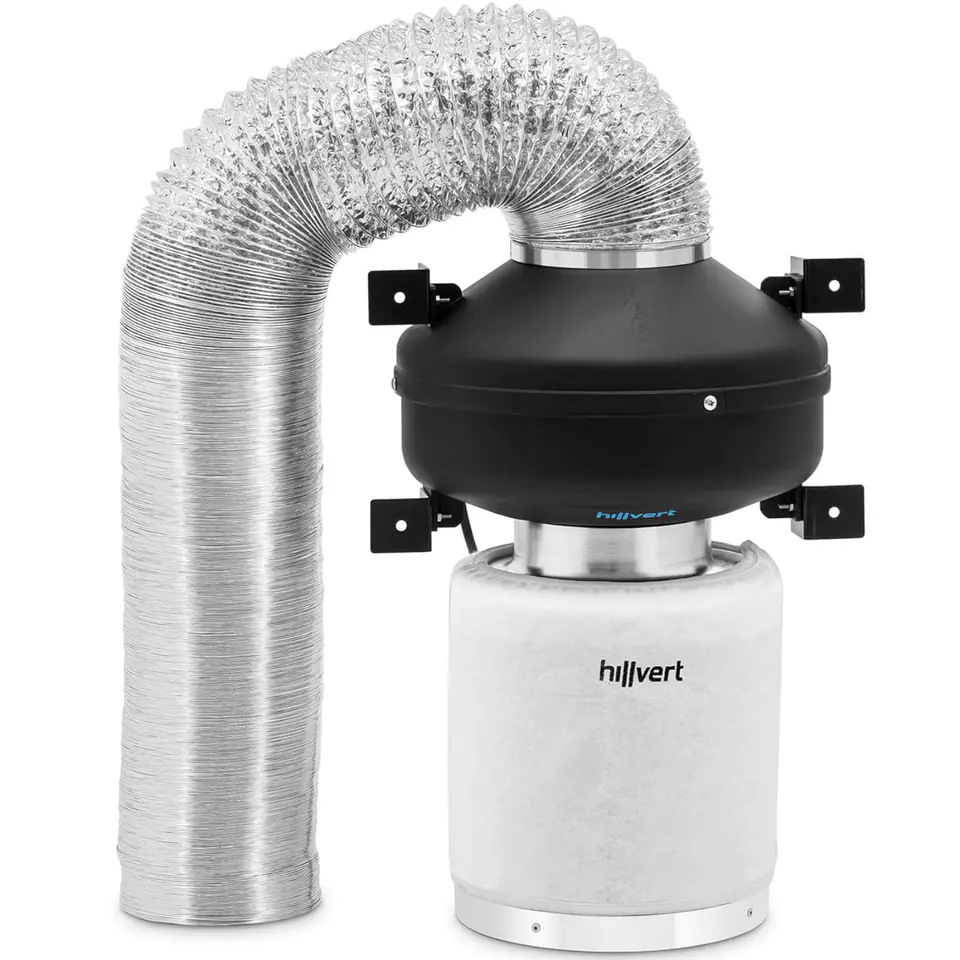

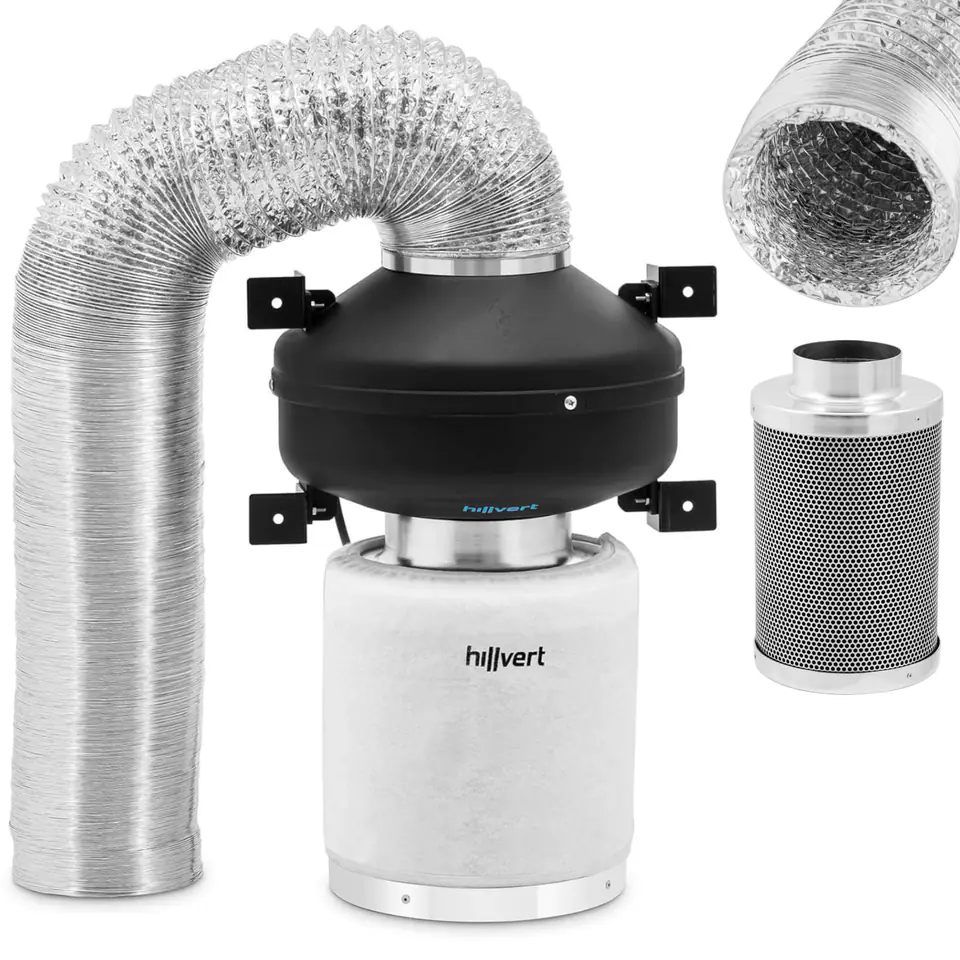

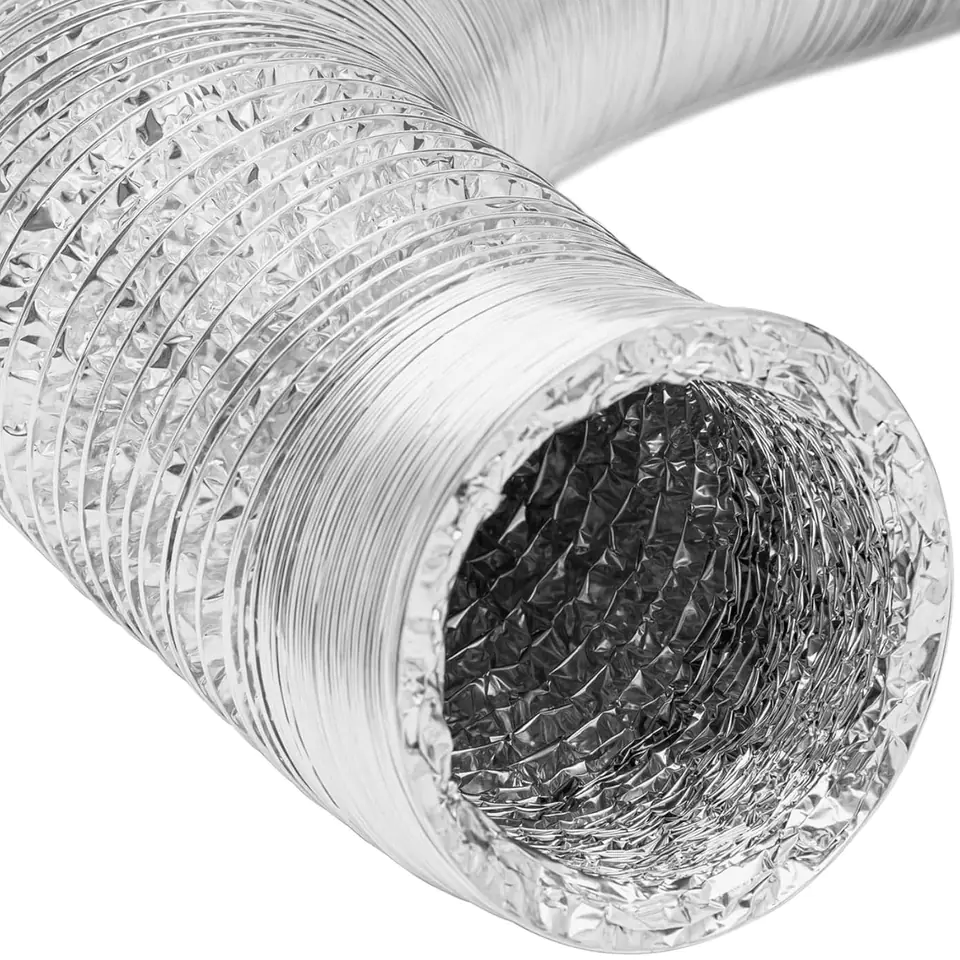

The Hilvert ventilation kit consists of products numbered 10090317, 10090330 and 10090328. The duct fan is quiet, very efficient and reliably extracts up to 382.2 m3 of air per hour. The device operates at constant pressure and with a power of 65 W. It has an outlet with a diameter of 124 mm. The ventilation pipe is easily stretchable up to 1000 cm, The spiral is covered on both sides with aluminum, which makes the pipe resistant to corrosion, reliably drains water vapor and stale air. The pipe is very flexible, its diameter is 125 mm. The activated carbon filter binds all kinds of unwanted particles, whether it is smoke, fumes, gasoline, chemicals, pesticides or animal odors. The porous surface acts like a sponge, binding any form of particles. It is equipped with a connection flange with a diameter of 128 mm. The outer diameter is 20 cm.
Product features:
- - The set consists of a duct fan, ventilation pipe and carbon filter,
- - Suitable for air conditioning, ventilation systems, growboxes and many others,
- - High airflow fan and carbon filter,
- - Made of durable materials,
- - Complete kit for easy assembly and installation.
- - Catalogue number - 10090337
- - Article status - New
- - Model - HT-AF-26
- - Voltage [V] - 230
- - Material - ABS, PA
- - Current [A] - 0,29
- - Air flow [m³/h] - 382,2
- - Hose length [cm] - 1000
- - Hole diameter [mm] - 125
- - Power [W] - 65
- - Outlet diameter [mm] - 124
- - Filter type - Activated carbon filter
- - Operating temperature range [C] - 85
- - Dimensions (LxWxH) [cm] - 32 x 32 x 47
- - Weight [kg] - 6,2
- - Shipping dimensions (LxWxH) [cm] - 75 x 40 x 35
- - Shipping weight [kg] - 8,7
- - Activated carbon filter

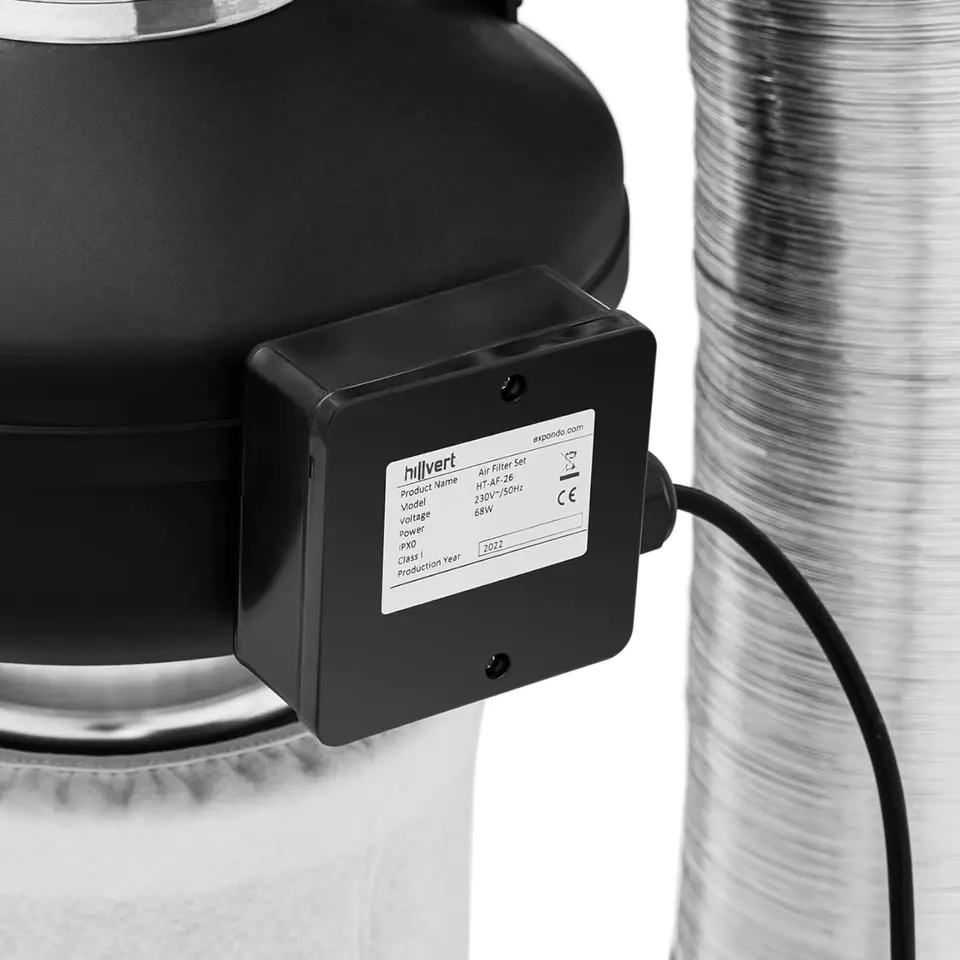

- - Duct fan
- - Ventilation pipe
