| 4g lte: | N |
|---|---|
| Adjustment shutter speed: | Auto/Manual |
| Alarm input/output: | N |
| Alarm inputs / outputs: | 1 / 1 |
| Aperture type: | Permanent |
| Audio: | Built-in Microphone External Microphone Input Audio Output Support Two-way Audio Detection Sound Detection |
| Audio codecs: | G.711a / G.711Mu / G.723 / G.726 / PCM |
| Audio rca outputs: | 1 |
| Bit rate: | 3 Kbp - 8192Kbps |
| Bit rate control: | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bluetooth: | No |
| Built-in loudspeaker: | Yes |
| Built-in microphone: | Yes |
| Camera shutter speed: | 1/3 - 1/100000 s |
| Case: | Dome, Metal |
| Closest focusing distance: | 0.9 m |
| Colour: | white |
| Compatible memory cards: | MicroSD (TransFlash), MicroSDXC, MicroSDHC |
| Connectivity technology: | Wired |
| Dc output voltage: | 12, 48 |
| Default administrator login / password: | admin / -Administrator password must be set on first run |
| Default ip address: | 192.168.1.108 |
| Degree of protection ik: | IK10 |
| Depth: | 111 mm |
| Detect distance (wide): | 63.6 m |

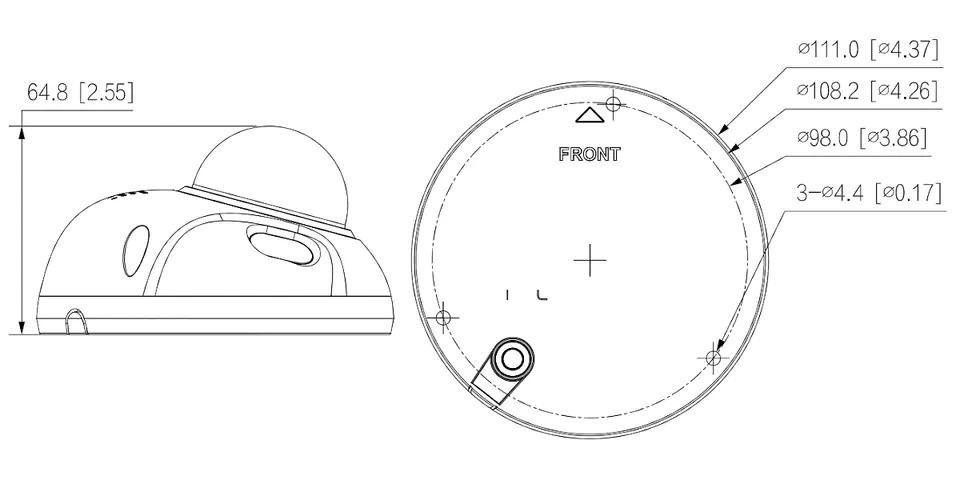

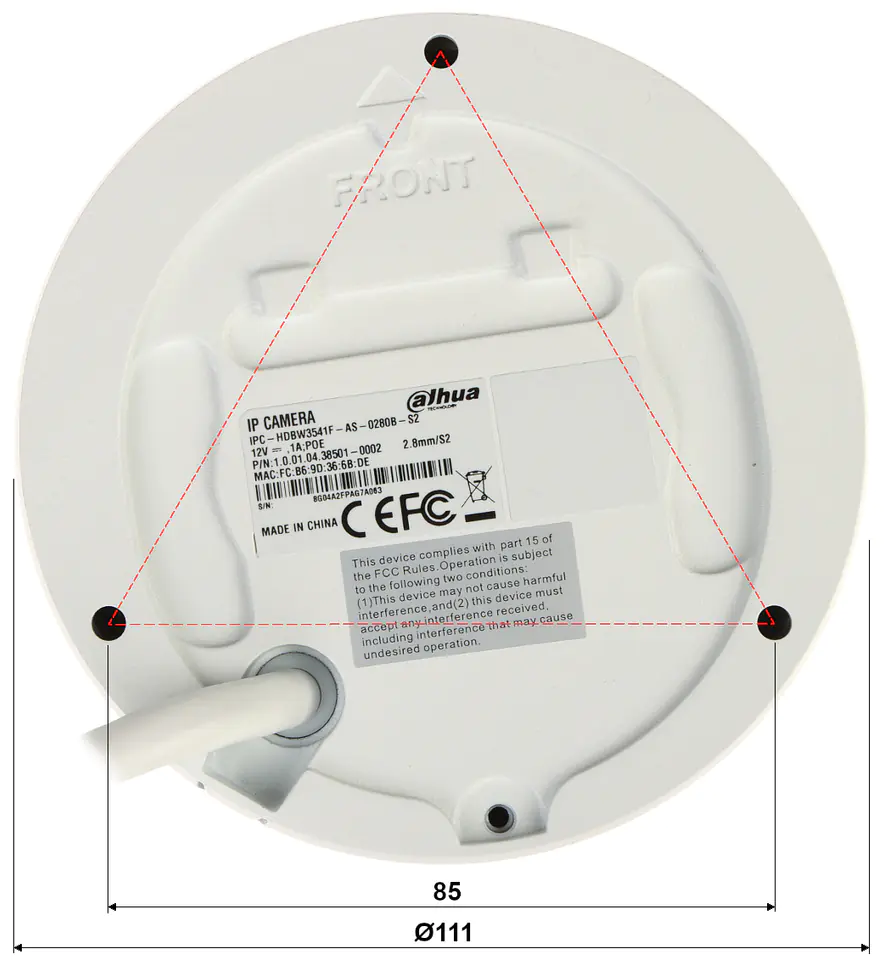

| Dimensions: | Ø 111 x 65 mm |
| Ethernet interface type: | 10 Megabit Ethernet, 100 Megabit Ethernet |
| Ethernet lan (rj-45) ports: | 1 |
| Focal length range: | 2.8 mm |
| Form factor: | Dome |
| Frame rate: | 25 / 30 fps |
| Height: | 64.8 mm |
| Horizontal rotation angle: | 0 - 355° |
| Housing material: | Metal, Plastic |
| Identify distance (wide): | 6.4 m |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| International protection (ip) code: | IP67 |
| Ir illuminator range: | 30 m |
| Led type: | IR |
| Lens type: | Fixed focal length lens |
| Lens viewing angle, vertical: | 58° |
| Main stream transmission speed: | 20 fps @ 5 Mpx 25 fps @ 4 Mpx |
| Max. number of on-line users: | 20 |
| Maximum aperture number: | 1.6 |
| Maximum memory card size: | 256 GB |
| Maximum resolution: | 2960 x 1668 px |
| Memory card slot: | Micro SD card support up to 256GB (local recording possible) |
| Minimum illumination: | 0.005 lx |
| Mobile app access port: | 37777 |
| Mobile operating systems supported: | Android, iOS |
| Mobile phone access: | Port: 37777 or cloud access (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app |
| Motion detection: | Yes |
| Mounting type: | Ceiling |
| Network interface: | 10/100 Base-T (RJ-45) |
| Network protocols: | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP |
| Networking standards: | IEEE 802.1x, IEEE 802.3af |
| Night vision: | Yes |
| Night vision distance: | 30 m |
| Noise reduction technology: | 3D noise reduction |
| Number of cameras: | 1 |
| Number of illumination leds: | 2 |
| Number of lenses: | 1 |
| Number of memory card slots: | 1 |
| Number of sensors: | 1 |
| Objective: | 2.8 mm |
| Operating relative humidity (h-h): | 0 - 95% |
| Operating temperature: | -40 °C ... 60 °C |
| Operating temperature (t-t): | -40 - 60 °C |
| Optical sensor size: | 25.4 / 2.7 mm (1 / 2.7") |
| Pc app access ports: | 37777 |
| People detection: | Yes |
| Placement supported: | External / Internal |
| Port onvif: | 80 |
| Power: | PoE (802.3af), 12 V DC / 470 mA |
| Power consumption: | ≤ 5.9 watts @ 12 volts DC ≤ 7.2 watts @ PoE |
| Power consumption (max): | 5.9 W |
| Power consumption (power over ethernet (poe)): | 7.2 W |
| Power consumption (typical): | 3.8 W |
| Power source type: | DC, PoE |
| Producer / brand: | DAHUA |
| Product colour: | White |
| Progressive scan: | Yes |
| Ram capacity: | 512 MB |
| Rca input: | 1 |
| Recognize distance (wide): | 12.7 m |
| Resolution: | 2960 x 1668 - 5 Mpx, 2688 x 1520 - 4 Mpx, 2560 x 1440 - 3.7 Mpx, 2048 x 1536 - 3 Mpx, 2304 x 1296 - 3 Mpx, 1920 x 1080 - 1080p, 1280 x 960 - 1.3 Mpx, 1280 x 720 - 720p |
| Rom capacity: | 128 MB |
| Rtsp url: | rtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main streamrtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream |
| Scales: | 0.43 kg |
| Scanning system: | Progressive |
| Sealing: | IP67 |
| Selected features: | WDR - 120 dB - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in the image ROI - improving the quality of selected parts of the image F-DNR (Defog) - Noise reduction associated with precipitation AI SSA - .AI Smart Scene Adaptive - auto-adaptation of the scene using deep learning algorithms to detect environmental conditions such as rain, fog, backlight, low light and flickering, in order to set the optimal image parameters SMD 4.0 - search for an object classified as: human, motor vehicle - increased detection distance and immunity to false alarms NAS - Network Attached Storage - allows you to connect storage resources directly to your computer network BLC/HLC - background light / strong light compensation Ability to change resolution, quality and bandwidth Motion detection Configurable privacy zones ICR - Mechanical IR filter Mirror - Mirror image IVS analysis : crossing the line, intrusion - classification of people and vehicles |
| Sensor size: | 5 MP |
| Sensor type: | HD CMOS |
| Signal-to-noise ratio (snr): | 56 dB |
| Standard: | TCP/IP |
| Storage temperature (t-t): | -40 - 60 °C |
| Supported graphics resolutions: | 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440, 1280 x 720, 2880 x 1620, 2960 x 1668, 704 x 480, 2688 x 1520, 640 x 480 (VGA), 352 x 240, 2304 x 1296, 352 x 288, 704 x 576, 1280 x 960 |
| Supported languages: | Polish, Czech, English, French, German, Italian, Portuguese, Russian, Spanish |
| Total megapixels: | 5 MP |
| Transducer: | 1/2.7" Progressive Scan CMOS |
| Two-way talk: | Yes |
| Type: | IP security camera |
| Vandal-resistant: | IK10 |
| Vertical rotation angle: | -20 - 70° |
| Video compression formats: | M-JPEG, AI Coding, H.264H, H.264B, H.264+, H.265+, H.265, H.264 |
| Video streaming: | Yes |
| Viewing angle: | 111°(manufacturer data) 104° (our tests) |
| Viewing angle, diagonal: | 132° |
| Warranty: | 3 years |
| Web access ports: | 80, 37777 |
| Web browser: | Yes |
| Web server: | Built-in |
| Web-based management: | Yes |
| Weight: | 423 g |
| Wi-fi: | No |
| Wide dynamic range (wdr): | 120 dB |
| Width: | 111 mm |
IP camera with efficient H.264 / H.265 image compression algorithm for clear and smoother image transmission at maximum resolution of 5 MPx
The possibility of PoE power in accordance with the 802.3af standard makes the device even more versatile and easier to installThanks to the "Starlight" technology, the camera only needs very low light to obtain a clear color image
The camera has a very flat profile, thanks to which it protrudes from the ceiling for only 65 mm
