| Adjustment shutter speed: | Auto/Manual |
|---|
| Alarm input channels: | 1 |
|---|

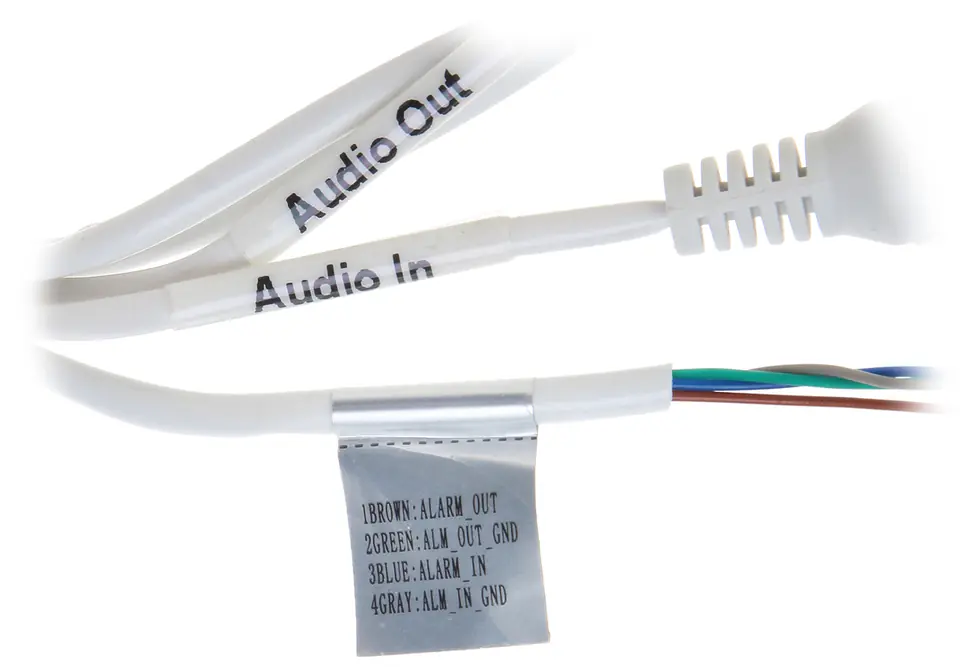

| Alarm inputs / outputs: | 1 / 1 |
|---|
| Alarm output channels: | 1 |
|---|
| Angle of rotation: | 355° |
|---|
| Audio: | Built-in Microphone External Microphone Input Audio Output Support Two-way Audio Detection Sound Detection |
|---|
| Audio formats supported: | PCM, G.726, G.711 A-law, G.711 μ-law |
|---|
| Audio input channels: | 1 channels |
|---|
| Audio output channels: | 1 channels |
|---|
| Back light compensation (blc): | Yes |
|---|
| Bit rate: | 12 kbps–6144 kbps |
|---|
| Bit rate control: | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
|---|
| Bluetooth: | No |
|---|
| Built-in hdd: | No |
|---|
| Built-in microphone: | Yes |
|---|
| Built-in speaker(s): | Yes |
|---|
| Camera shutter speed: | 1/3 - 1/100000 s |
|---|
| Camera shutter type: | Electronic |
|---|
| Card reader integrated: | Yes |
|---|

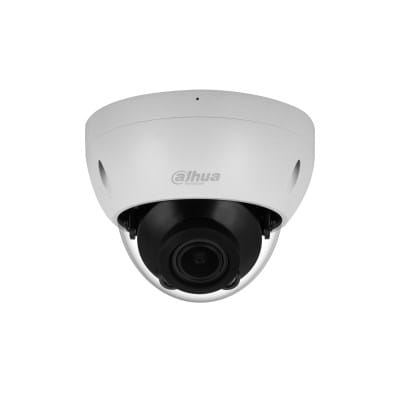

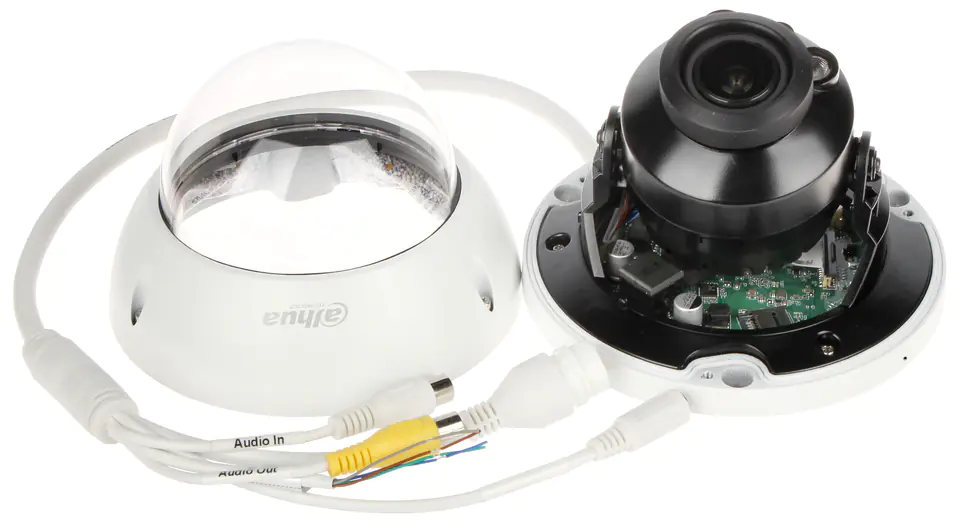

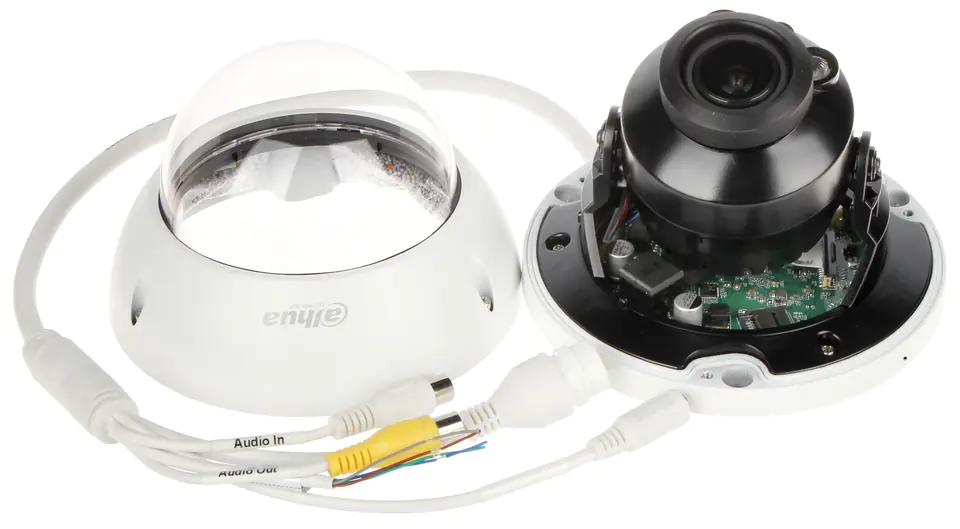

| Case: | Dome - Metal |
|---|
| Closest focusing distance: | 0.8 m |
|---|
| Colour: | white |
|---|
| Compatible memory cards: | MicroSD (TransFlash) |
|---|
| Connectivity technology: | Wired |
|---|
| Day/night mode: | Yes |
|---|
| Dc output voltage: | 12 |
|---|
| Default administrator login / password: | admin / -Administrator password must be set on first run |
|---|
| Default ip address: | 192.168.1.108 |
|---|
| Detect distance (tele): | 210 m |
|---|
| Detect distance (wide): | 64 m |
|---|

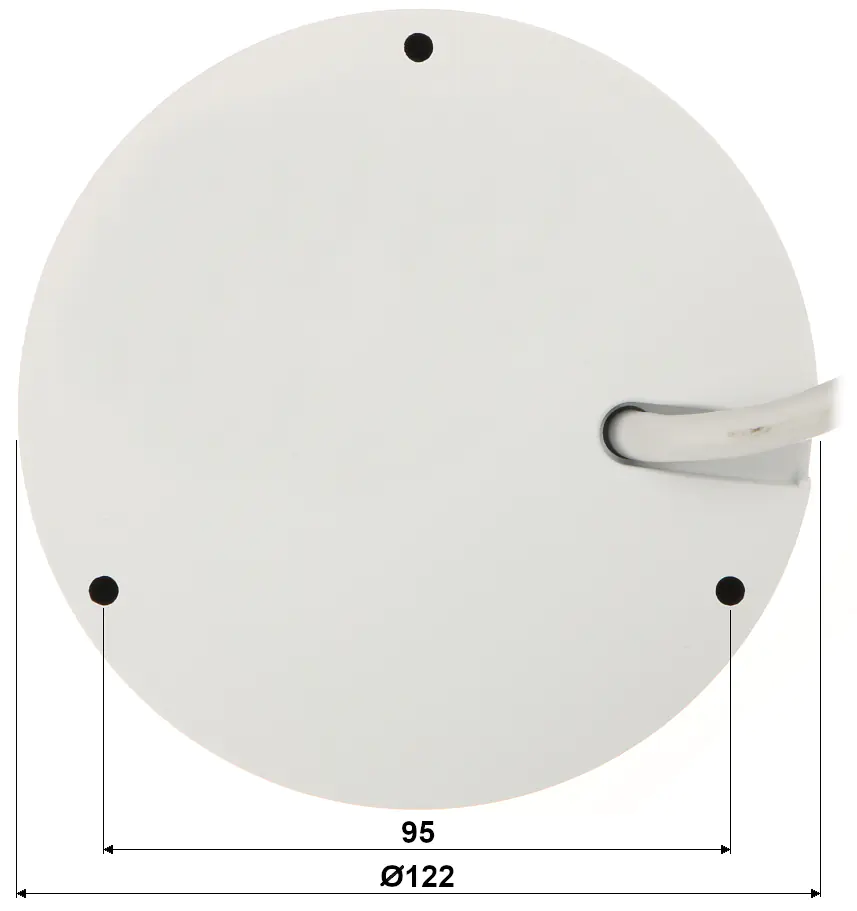

| Diameter: | 12.2 cm |
|---|

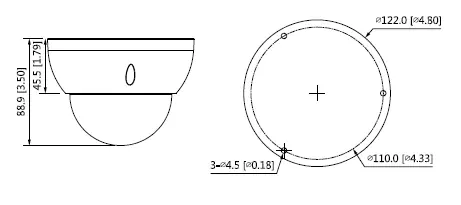

| Dimensions: | Ø 122 x 93.4 mm |
|---|
| Dynamic range: | 120 dB |
|---|
| Ethernet lan: | Yes |
|---|
| Ethernet lan (rj-45) ports: | 1 |
|---|
| Flash memory: | 128 MB |
|---|
| Focal length range: | 2.7 - 13.5 mm |
|---|
| Form factor: | Dome |
|---|
| Gain control type: | Auto/Manual |
|---|
| Height: | 93.4 mm |
|---|
| Highlight compensation (hlc): | Yes |
|---|
| Housing material: | Metal |
|---|
| Identify distance (tele): | 21 m |
|---|
| Identify distance (wide): | 6.4 m |
|---|
| Ik code: | IK10 |
|---|
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
|---|
| Internal memory: | 128 MB |
|---|
| International protection (ip) code: | IP67 |
|---|
| Ir illuminator range: | 40 m |
|---|
| Led type: | IR |
|---|
| Lens viewing angle, diagonal: | 125 - 34° |
|---|
| Lens viewing angle, horizontal: | 104 - 29° |
|---|
| Lens viewing angle, vertical: | 54 - 16° |
|---|
| Main stream transmission speed: | 20 fps @ 4 Mpx, 25 fps - 3.7 Mpx |
|---|
| Management software: | Smart PSS; DSS; DMSS |
|---|
| Max. number of on-line users: | 20 |
|---|
| Maximum memory card size: | 256 GB |
|---|
| Maximum resolution: | 2688 x 1520 pixels |
|---|
| Memory card slot: | Micro SD card support up to 256GB (local recording possible) |
|---|
| Minimum aperture number: | 1.5 |
|---|
| Mirror: | Yes |
|---|
| Mobile app access port: | 37777 |
|---|
| Mobile operating systems supported: | Android, iOS |
|---|
| Mobile phone access: | Port: 37777 or cloud access (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app |
|---|

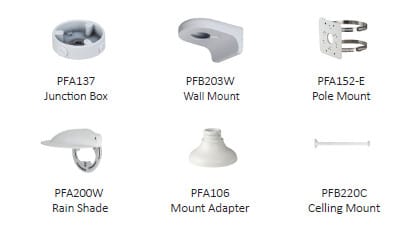

| Mounting type: | Ceiling |
|---|
| Network interface: | 10/100 Base-T (RJ-45) |
|---|
| Network protocols: | IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP |
|---|
| Night vision: | Yes |
|---|
| Night vision distance: | 40 m |
|---|
| Noise reduction: | Yes |
|---|
| Noise reduction technology: | 3D noise reduction |
|---|
| Number of cameras: | 1 |
|---|
| Number of illumination leds: | 2 |
|---|
| Number of privacy masking areas: | 4 |
|---|
| Number of users: | 6 user(s) |
|---|
| Objective: | 2.7 ... 13.5 mm - Motozoom |
|---|
| Observe distance (tele): | 84 m |
|---|
| Observe distance (wide): | 25.6 m |
|---|
| Onvif: | 21.06 |
|---|
| Operating relative humidity (h-h): | 0 - 95% |
|---|
| Operating temperature: | -30 °C ... 60 °C |
|---|
| Operating temperature (t-t): | -30 - 60 °C |
|---|
| Optical sensor size: | 25.4 / 2.9 mm (1 / 2.9") |
|---|
| Package weight: | 680 g |
|---|
| Pan range: | 0 - 355° |
|---|
| Pc app access ports: | 37777 |
|---|
| Placement supported: | Outdoor |
|---|
| Port onvif: | 80 |
|---|
| Power: | PoE (802.3af), 12 V DC / 540 mA |
|---|
| Power consumption: | ≤ 6.5 watts @ 12 volts DC, ≤ 7.7 watts @ PoE |
|---|
| Power consumption (max): | 6.5 W |
|---|
| Power consumption (power over ethernet (poe)): | 3.2 W |
|---|
| Power consumption (typical): | 2.3 W |
|---|
| Power source type: | DC, PoE |
|---|
| Producer / brand: | DAHUA |
|---|
| Product colour: | White |
|---|
| Progressive scan: | Yes |
|---|
| Recognize distance (tele): | 42 m |
|---|
| Recognize distance (wide): | 12.8 m |
|---|
| Resolution: | 2688 x 1520 - 4 Mpx, 2560 x 1440 - 3.7 Mpx, 2304 x 1296 - 3 Mpx, 1920 x 1080 - 1080p, 1280 x 960 - 1.3 Mpx1280 x 720 - 720p |
|---|
| Rtsp url: | rtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main streamrtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream |
|---|
| Scales: | 0.51 kg |
|---|
| Sealing: | IP67 |
|---|
| Selected features: | Lens motozoom WDR - 120 dB - Wide dynamic range of 3D-DNR lighting - Digital image noise reduction ROI - improving the quality of selected parts of the image BLC/HLC - compensation of background light / strong light Ability to change resolution, quality and bandwidth Motion detection Configurable privacy zones ICR - Mechanical IR filter Mirror - Mirror image SMD PLUS - search for an object classified as: human, motor vehicle IVS analysis : crossing the line, intrusion - classification of people and vehicles |
|---|
| Sensor size: | 4 MP |
|---|
| Sensor type: | CMOS |
|---|
| Signal-to-noise ratio (snr): | 56 dB |
|---|
| Standard: | TCP/IP |
|---|
| Storage temperature (t-t): | -40 - 60 °C |
|---|
| Supported graphics resolutions: | 2560 x 1440, 352 x 240, 2304 x 1296, 1920 x 1080 (HD 1080), 640 x 480 (VGA), 1280 x 720 (HD 720), 704 x 480, 2688 x 1520, 352 x 288, 704 x 576, 1280 x 960 |
|---|
| Supported languages: | Polish, Czech, English, French, German, Hungarian, Italian, Portuguese, Romanian, Russian, Spanish, Turkish, Ukrainian |
|---|
| Supported network protocols: | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP |
|---|
| Tilt angle range: | 0 - 75° |
|---|
| Total megapixels: | 4 MP |
|---|
| Transducer: | 1/2.9" Progressive Scan CMOS |
|---|
| Type: | IP security camera |
|---|
| Vandal-resistant: | IK10 |
|---|
| Video compression formats: | H.264H, H.265, H.264B, M-JPEG, H.264 |
|---|
| Video motion detection: | Yes |
|---|
| Viewing angle: | 108 ° ... 30 ° (manufacturer data) 102 ° ... 31° (our tests) |
|---|
| Warranty: | 3 years |
|---|
| Web access ports: | 80, 37777 |
|---|
| Web browser: | No |
|---|
| Web server: | Built-in, Web Viewer |
|---|
| Weight: | 520 g |
|---|
| White balance: | Street lamp, Manual, Auto, Outdoor, Regional custom, Natural |
|---|
| Wi-fi: | No |
|---|
| Wide dynamic range (wdr): | Yes |
|---|
