| Alarm input/output: | Yes |
|---|---|
| Alarm inputs / outputs: | 1 / 1 |
| Angle of rotation: | 360° |
| Anti-flicker: | Yes |
| Audio: | Built-in Microphone External Microphone Input Audio Output Support Two-way Audio |
| Audio formats supported: | MP3 |
| Back light compensation (blc): | Yes |
| Behavior analysis: | Intrusion detection, Line crossing detection |
| Bit rate: | 32 Kbps - 8 Mbps |
| Bit rate control: | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bluetooth: | No |
| Built-in hdd: | No |
| Built-in microphone: | Yes |
| Camera pan control: | Yes |
| Camera shutter speed: | 1/3 - 1/100000 s |
| Camera tilt control: | Yes |
| Card reader integrated: | Yes |
| Case: | Dome, Aluminum + Plastic |
| Colour: | white |
| Compatible memory cards: | MicroSDHC, MicroSD (TransFlash), MicroSDXC |
| Connectivity technology: | Wired |
| Day/night mode: | Yes |
| Dc output voltage: | 12 |
| Default administrator login / password: | admin / -Administrator password must be set on first run |
| Default ip address: | 192.168.1.64 |
| Diameter: | 11 cm |

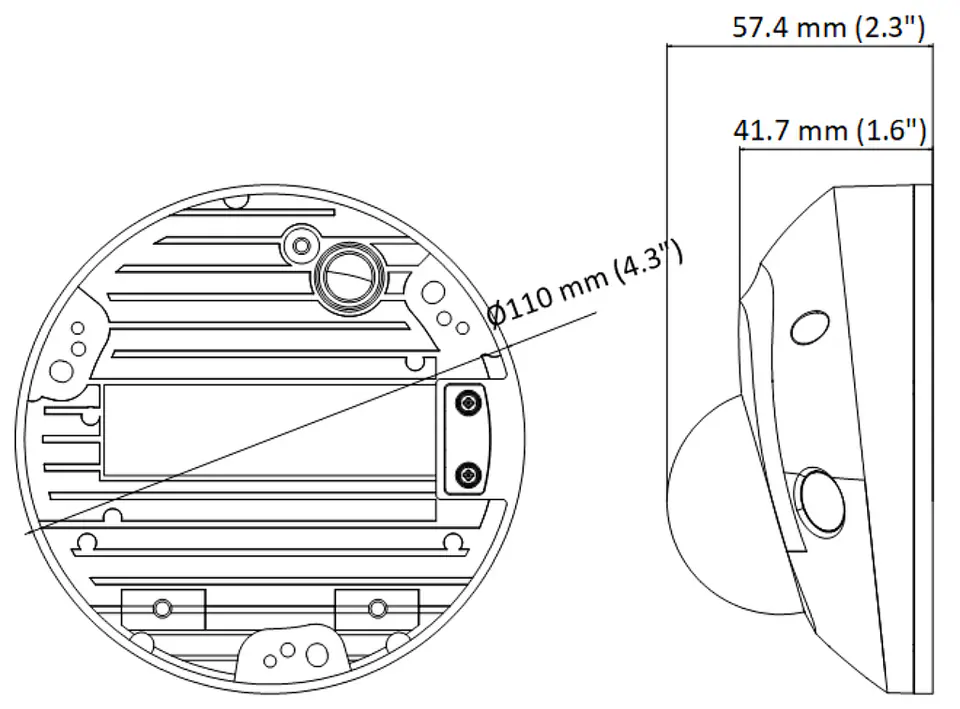

| Dimensions: | Ø 110 x 57 mm |
| Ethernet interface type: | Fast Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Fixed focal length: | 2.8 mm |
| Form factor: | Dome |
| Frame rate: | 30 fps |
| Heartbeat: | Yes |
| Height: | 57.4 mm |
| Highlight compensation (hlc): | Yes |
| Housing material: | Aluminium |
| Https encryption: | Yes |
| Ik code: | IK08 |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Image quality adjustment: | Brightness, Sharpness, Saturation, Contrast |
| Infra-red wavelength: | 850 nm |
| Infrared (ir) cut-off filter: | Yes |
| Intelligent video surveillance (ivs) system features: | Scene change |
| International protection (ip) code: | IP67 |
| Ip address filtering: | Yes |
| Ir illuminator range: | 30 m |
| Led type: | IR |
| Main stream transmission speed: | 25 fps @ 4 Mpx |
| Max. number of on-line users: | 6 |
| Maximum aperture number: | 1.4 |
| Maximum memory card size: | 256 GB |
| Maximum resolution: | 2688 x 1520 pixels |
| Memory card slot: | Micro SD card support up to 256GB (local recording possible) |
| Mirror: | Yes |
| Mobile app access port: | 8000 |
| Mobile phone access: | Port: 8000 or cloud access (P2P) Android: Free Hik-Connect app iOS: Free Hik-Connect app |
| Mounting type: | Ceiling/wall |
| Network interface: | 10/100 Base-T (RJ-45) |
| Network protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, IEEE 802.1x, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets |
| Networking standards: | IEEE 802.1x, IEEE 802.3af |
| Night vision: | Yes |
| Night vision distance: | 30 m |
| Noise reduction: | Yes |
| Noise reduction technology: | 3D noise reduction |
| Number of cameras: | 1 |
| Number of languages: | 33 |
| Number of lenses: | 1 |
| Number of sensors: | 1 |
| Number of users: | 32 user(s) |
| Objective: | 2.8 mm |
| Operating relative humidity (h-h): | 0 - 95% |
| Operating temperature: | -30 °C ... 60 °C |
| Operating temperature (t-t): | -30 - 60 °C |
| Optical sensor size: | 25.4 / 3 mm (1 / 3") |
| Package depth: | 134 mm |
| Package height: | 108 mm |
| Package weight: | 620 g |
| Package width: | 134 mm |
| Pan range: | -30 - 30° |
| Password protection: | Yes |
| Pc app access ports: | Port: 8000 or access via cloud (P2P) - iVMS-4200 application |
| Placement supported: | Outdoor |
| Port onvif: | 80 |
| Power: | PoE (802.3af), 12 V DC / 580 mA |
| Power consumption: | ≤ 6.5 W @ PoE (802.3af)≤ 5.5 W @ 12 V DC |
| Power consumption (max): | 6 W |
| Power consumption (power over ethernet (poe)): | 7 W |
| Power source type: | DC, PoE |
| Privacy masking: | Yes |
| Producer / brand: | Hikvision |
| Product colour: | White |
| Progressive scan: | Yes |
| Quality of service (qos) support: | Yes |
| Region of interest (roi) encoding: | Yes |
| Reset button: | Yes |
| Resolution: | 2688 x 1520 - 4 MP, 1920 x 1080 - 1080p, 1280 x 720 - 720p |
| Rtsp url: | Main stream : rtsp://user:password o@192.168.1.64:554/Streaming/Channels/101/ Secondary stream : rtsp://user:password o@192.168.1.64:554/Streaming/Channels/102/ |
| Sample rate: | 48 kHz |
| Sap code: | 311316904 |
| Scales: | 0.41 kg |
| Scanning system: | Progressive |
| Sealing: | IP67 |
| Selected features: | AcuSense WDR Series Camera - 120 dB - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in the image ROI - improving the quality of selected parts of the image EXIR - technology of high-efficiency infrared LEDs that evenly illuminate the entire scene, both the central point and corners NAS support - Network Attached Storage - allows you to connect memory resources directly to the computer network ANR - recording the image on the card in the absence of communication with the recorder (network failure) and subsequent synchronization Anti-Flicker - Technology eliminating the tiring effect of image flicker BLC - backlight compensation (background) HLC - Strong light compensation (spot) AGC - Automatic image gain adjustment Day/night mode ICR filter - cooperation with IR illuminators Ability to change resolution, quality and bandwidth Motion detection - classification of people and vehicles Configurable privacy zones Mirror - Mirror image Sharpness - Sharpen image contours Filtering false alarms based on person and vehicle recognition Intelligent Image Analysis: Intrusion, Line Crossing, Video Tampering, Area Entry / Area Exit Detection, Scene Change, Advanced Face Capture Features |
| Sensor size: | 4 MP |
| Sensor type: | CMOS |
| Standard: | TCP/IP |
| Storage relative humidity (h-h): | 0 - 95% |
| Storage temperature (t-t): | -30 - 60 °C |
| Supported languages: | Polish, Bulgarian, Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Latvian, Lithuanian, Norwegian, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Ukrainian |
| Tilt angle range: | 0 - 75° |
| Total megapixels: | 4 MP |
| Transducer: | 1/3" Progressive Scan CMOS |
| Type: | IP security camera |
| Vandal-resistant: | IK08 |
| Video compression formats: | H.264, M-JPEG, H.264+, H.265, H.265+ |
| Video motion detection: | Yes |
| Video streaming: | Yes |
| Viewing angle: | 103°(manufacturer data) 96° (our tests) |
| Voice codecs: | G.711, G.722.1, G.726, PCM, MP2L2 |
| Warranty: | 3 years |
| Web access ports: | 80 |
| Web server: | Built-in |
| Web-based management: | Yes |
| Weight: | 380 g |
| Wi-fi: | No |
| Wide dynamic range (wdr): | Yes |
IP camera with efficient H.264 / H.265 image compression algorithm for clear and smoother image transmission at maximum resolution of 4 MPx
The possibility of PoE power supply, in accordance with the 802.3af standard, makes the device even more versatile and easier to installPowered by Darkfighter - the camera has a very good sensitivity, dedicated to low light conditions
The camera has extensive intelligent image analysis functions
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
