VANDAL-PROOF IP CAMERA BCS-L-DIP24FC-AI2 NightColor - 4 Mpx 3.6 mm

€294.91
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
BCS
Product code:
BCS-L-DIP24FC-AI2 / 5902887067211

Specification

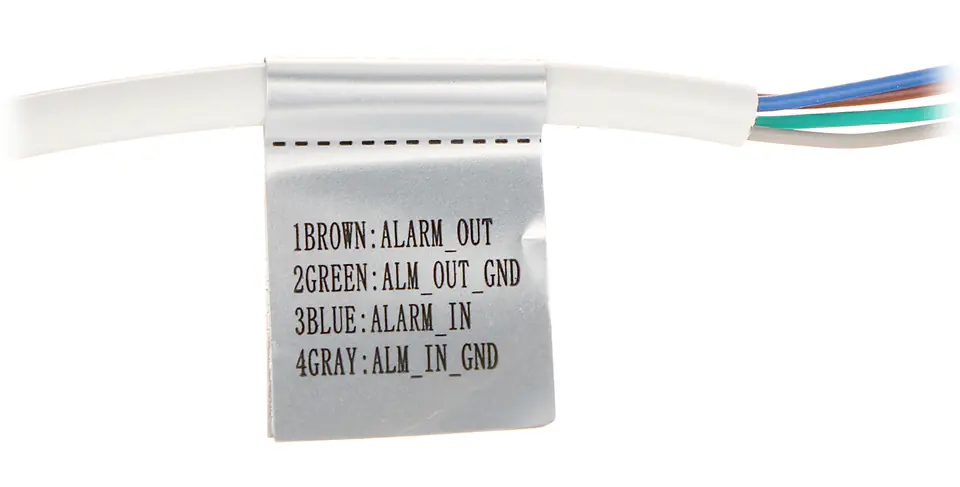

Alarm inputs / outputs:1  / 1
Audio:External microphone input Audio output Support two-way audio Sound detection
Case:Dome - Metal
Colour:white
Default administrator login / password:admin / -Administrator password must be set on first run
Default ip address:192.168.1.108

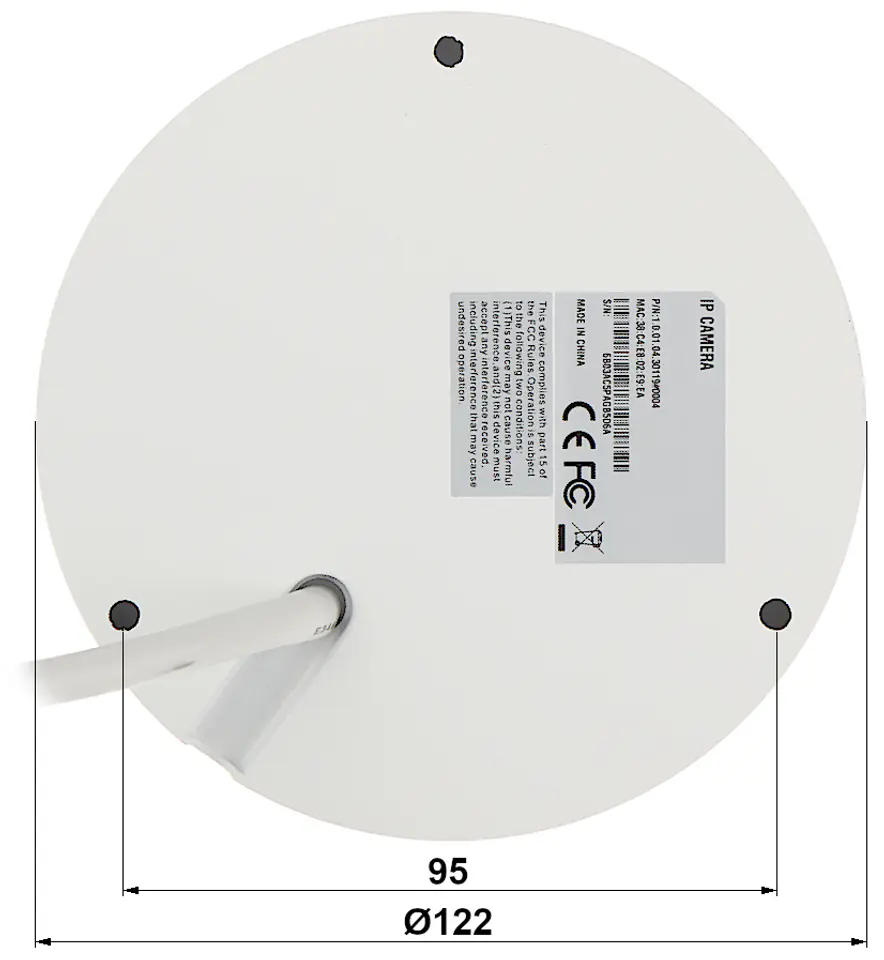

Dimensions:Ø 122 x 90 mm
Image compression method:H.265+ / H.265 / H.264+ / H.264 / MJPEG
Main stream transmission speed:25 fps @ 4 Mpx
Max. number of on-line users:20

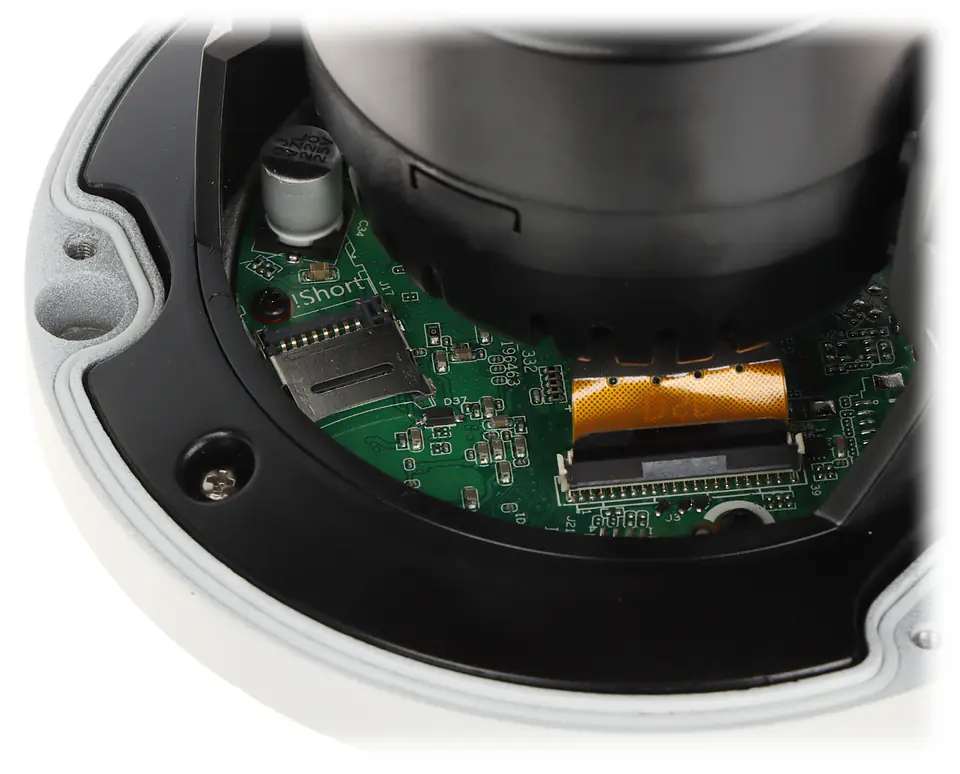

Memory card slot:Micro SD card support up to 256GB (local recording possible)
Mobile app access port:37777
Mobile phone access:Port: 37777 or cloud access (P2P) Android: Free BCS Manager app iOS (iPhone): Free BCS Manager app
Network interface:10/100 Base-T (RJ-45)
Network protocols:IPv4/IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, IEEE 802.1x, SNMP
Objective:3.6 mm
Onvif:20.06
Operating temperature:-40 °C ... 60 °C
Pc app access ports:37777
Port onvif:80
Power:PoE (802.3af), ePoE, 12 V DC / 370 mA
Power consumption:≤ 4.4 watts
Producer / brand:BCS
Resolution:2688 x 1520 - 4 Mpx, 2560 x 1440 - 3.7 MP, 2304 x 1296 - 3 MP, 1920 x 1080 - 1080p, 1280 x 960 - 1.3 MP, 1280 x 720 - 720p
Rtsp url:rtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main streamrtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream
Scales:0.46 kg
Sealing:IP67
Selected features:WDR - 120 dB - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in the image ROI - improving the quality of selected parts of the image BLC/HLC - compensation of background light / strong light Ability to change resolution, quality and throughput Motion detection Configurable privacy zones Mirror - Image mirroring heat map - marking areas with different traffic levels in the image with appropriate colors IVS analysis : crossing the line, Intrusion - Classification of people and vehicles, abandoned/missing object, fast movement, suspicious activity detection, scene change, illegal parking, gathering detection, people counting - detection and operation of 4 independent areas, face detection - advanced face recognition and search functions
Sensor size:4 MP
Standard:TCP/IP
Supported languages:Polish, Czech, English, French, German, Italian, Portuguese, Russian, Spanish
Transducer:1/1.8" Progressive Scan CMOS
Vandal-resistant:IK10
Viewing angle:93°(manufacturer data) 90° (our tests)
Warranty:3 years
Web access ports:80, 37777
Web server:Built-in

IP camera with efficient H.265 / H.264 image compression algorithm for clear and smoother image transmission at a maximum resolution of 4 MPxThe NightColor series camera allows you to get crisp, colorful images even in very unfavorable lighting conditions

The possibility of PoE power supply, in accordance with the 802.3af standard, makes the device even more versatile and easier to installThe camera meets the IP67 protection classThe device is equipped with ePoE technology, which allows transmission up to 800 m at 10 Mb/s or 300 m at 100 Mb/s via twisted pair cable category 5e

The NightColor series camera does not have a black and white mode

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
