VANDAL-PROOF CAMERA AHD, HD-CVI, HD-TVI, PAL HAC-HDBW2241RA-Z-A-27135-S2-DIP - 1080p 2.7 ... 13.5 mm - <strong>MOTOZOOM </strong>DAHUA

€109.71
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Dahua
Product code:
HAC-HDBW2241RA-Z-A-27135-S2-DIP / 6923172524492

Specification

Audio:Built-in microphone - HD-CVI only
Case:Dome, Metal
Colour:white

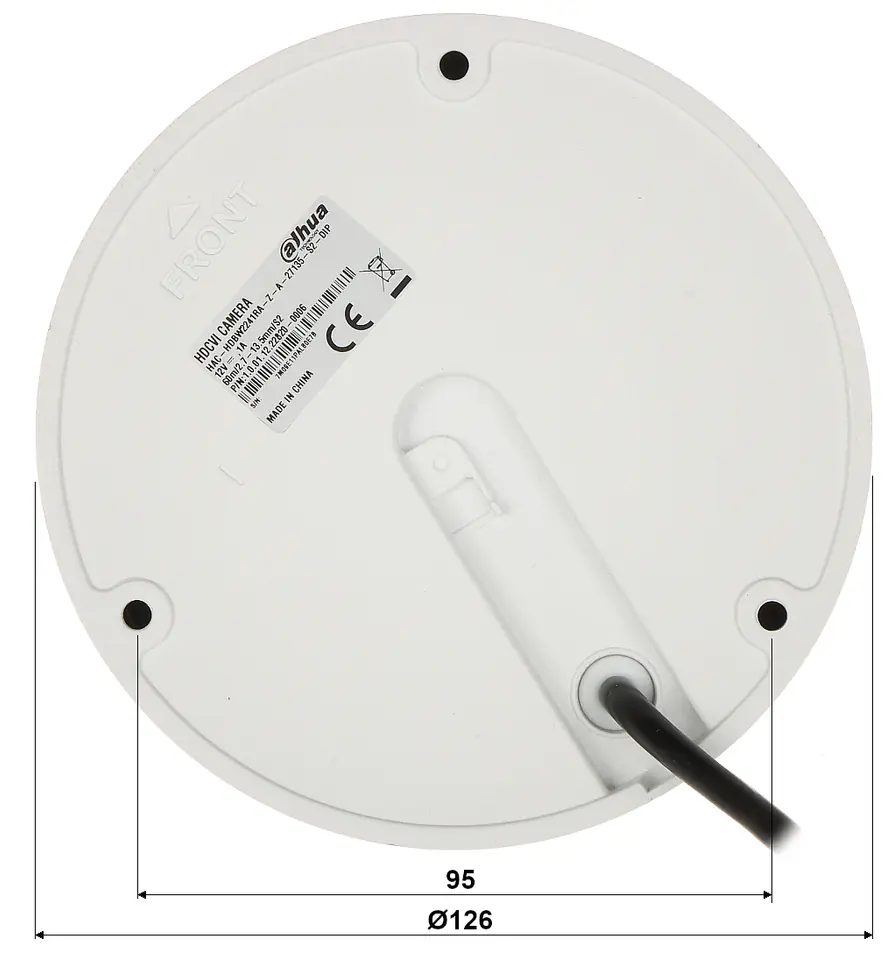

Dimensions:Ø 126 x 100 mm
Ir illuminator power adjustment:Automatic
Ir illuminator range:60 m
Objective:2.7  ... 13.5 mm - Motozoom - AutoFocus
Operating temperature:-30 °C ... 60 °C
Osd on-screen menu:OSD menu available via DAHUA DVR
Power:12 V DC / 580 mA
Power consumption:≤ 6.9 watts
Producer / brand:DAHUA
Resolution:1920 x 1080 - 1080p ,960 x 576 - 960H, PAL
S/n ratio (s/n):> 65 dB
Scales:0.64 kg
Sealing:IP67
Selected features:Motozoom lens - Control possible only from Dahua DVRs in HD-CVI WDR mode - 130 dB - Wide dynamic range of 3D-DNR lighting - Digital image noise reduction F-DNR (Defog) - Noise reduction associated with precipitation Day/night mode ICR - Mechanical IR filter BLC/HLC - Background light / strong light compensation Auto white balance AGC - Automatic image gain adjustment Mirror - Image mirroring Privacy zones - Max. 8 Sharpness - Sharpening image outlines
Sensor size:2.1 MP
Standard:AHD, HD-CVI, HD-TVI, CVBS
Transducer:Progressive Scan CMOS
Vandal-resistant:IK10
Video output:AHD / HD-CVI / HD-TVI / CVBS - 1 Vpp / 75 Ω
Viewing angle:108 ° ... 30 °
Warranty:3 years

Megapixel camera with 1/2.7" CMOS sensor and AHD / HD-CVI / HD-TVI / PAL interface

The AHD / HD-CVI / HD-TVI interface allows transmission of analog video signal via coaxial cable at max. 8 Mpx (4K UHD)There are no delays during transmission and the original, high image quality is preserved

In the case of video transmission using twisted pair cables and impedance matching transformers, it is necessary to take into account the possibility of signal reflections and penetration of signals between each other

The motozoom lens used with a focal length of 2.7 ... 13.5 mm allows remote adjustment of the viewing angleThe camera meets IP67 protection class

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
