VANDAL-PROOF CAMERA AHD, HD-CVI, HD-TVI, PAL HAC-HDBW2241F-A-0280B-S2-DIP - 1080p 2.8 mm DAHUA

€77.57
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Sep 23 - Tue, Sep 24
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Dahua
Product code:
HAC-HDBW2241F-A-0280B-S2-DIP / 6923172523310

Specification

Audio:Built-in microphone - HD-CVI only
Case:Dome, Metal
Colour:white

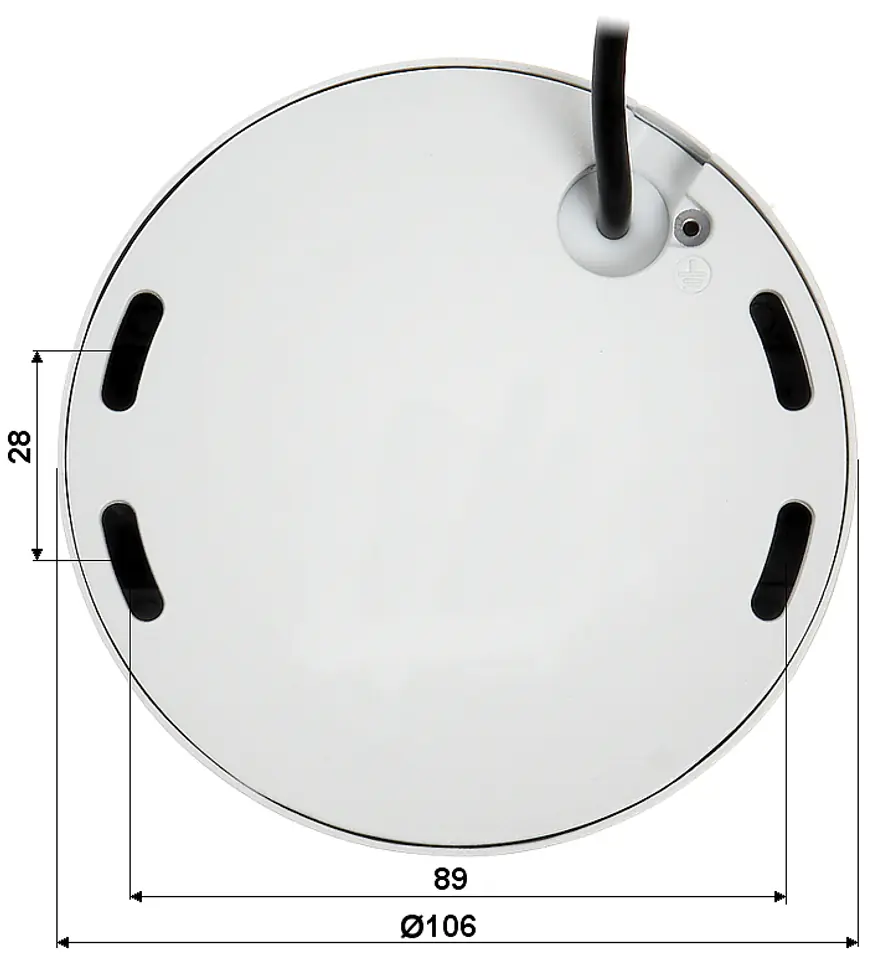

Dimensions:Ø 106 x 51 mm
Ir illuminator power adjustment:Automatic
Ir illuminator range:30 m
Objective:2.8 mm
Operating temperature:-40 °C ... 60 °C
Osd on-screen menu:OSD menu available via DAHUA DVR
Power:12 V DC / 225 mA
Power consumption:≤ 2.7 watts
Producer / brand:DAHUA
Resolution:1920 x 1080 - 1080p ,960 x 576 - 960H, PAL
S/n ratio (s/n):> 65 dB
Scales:0.33 kg
Sealing:IP67
Selected features:WDR - 130 dB - Wide dynamic range of 3D-DNR lighting - Digital image noise reduction BLC/HLC - Background light / strong light compensation ICR - Mechanical IR filter Day/night mode Auto white balance AGC - Automatic image gain adjustment Sharpness - Sharpen image contours Mirror - Image mirroring Privacy zones - max. 8
Sensor size:2.1 MP
Standard:AHD, HD-CVI, HD-TVI, PAL
Transducer:Progressive Scan CMOS
Vandal-resistant:IK10
Video output:AHD / HD-CVI / HD-TVI / PAL, 1 Vpp / 75 Ω - selectable by switch
Viewing angle:109° (manufacturer data) 101° (our tests)
Warranty:3 years

Megapixel camera with Progressive scan CMOS sensor and AHD / HD-CVI / HD-TVI / PAL interfaceThanks to the "Starlight" technology, the camera only needs very low light to obtain a clear color image

The AHD / HD-CVI / HD-TVI interface allows transmission of analog video signal via coaxial cable at max. 8 Mpx (4K UHD)Thanks to this, it is possible to transmit HD images over a distance of up to 500 m with low installation costsDuring transmission, there are no delays and the original, high image quality is preserved

The camera has a very flat profile, thanks to which it protrudes from the ceiling for only 51 mm

In the case of video transmission using twisted pair cables and impedance matching transformers, it is necessary to take into account the possibility of signal reflections and penetration of signals between each other

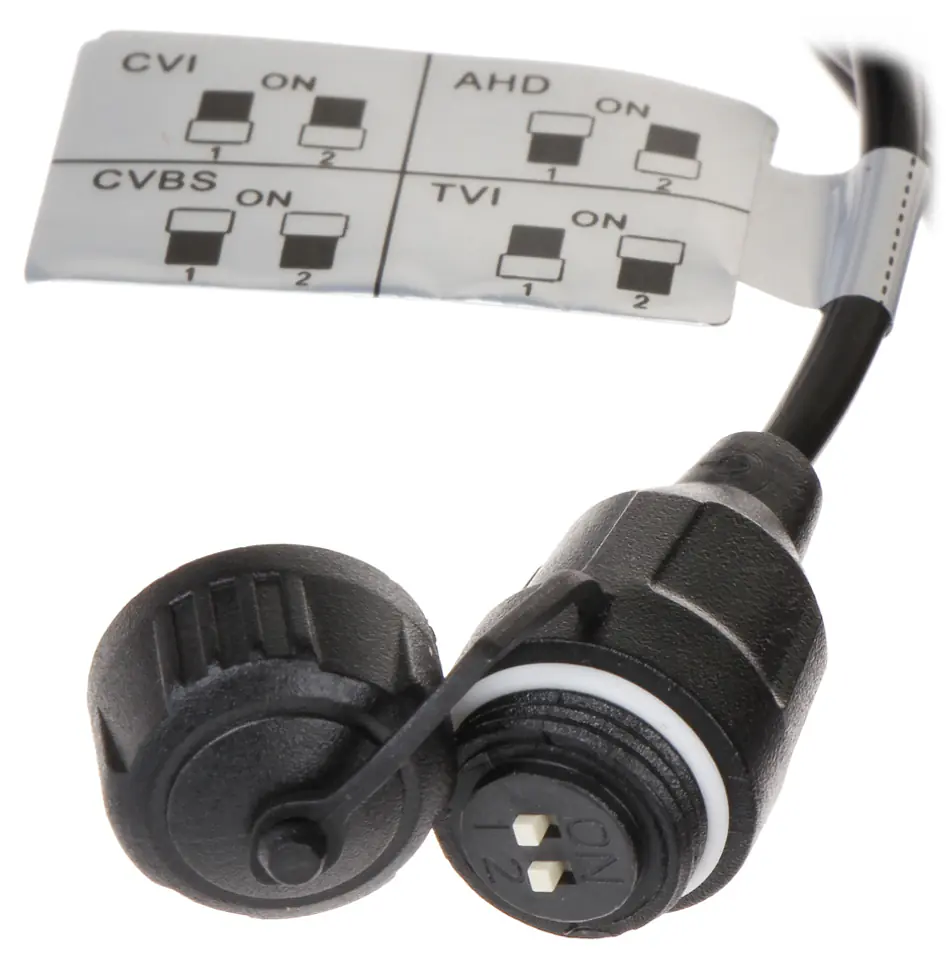

The camera meets IP67 protection classAttention! The camera is set to HD-CV by defaultChanges to the standard are made using the configuration switches

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
