| Case:: | Dome, Metal |
|---|---|
| Colour:: | white |

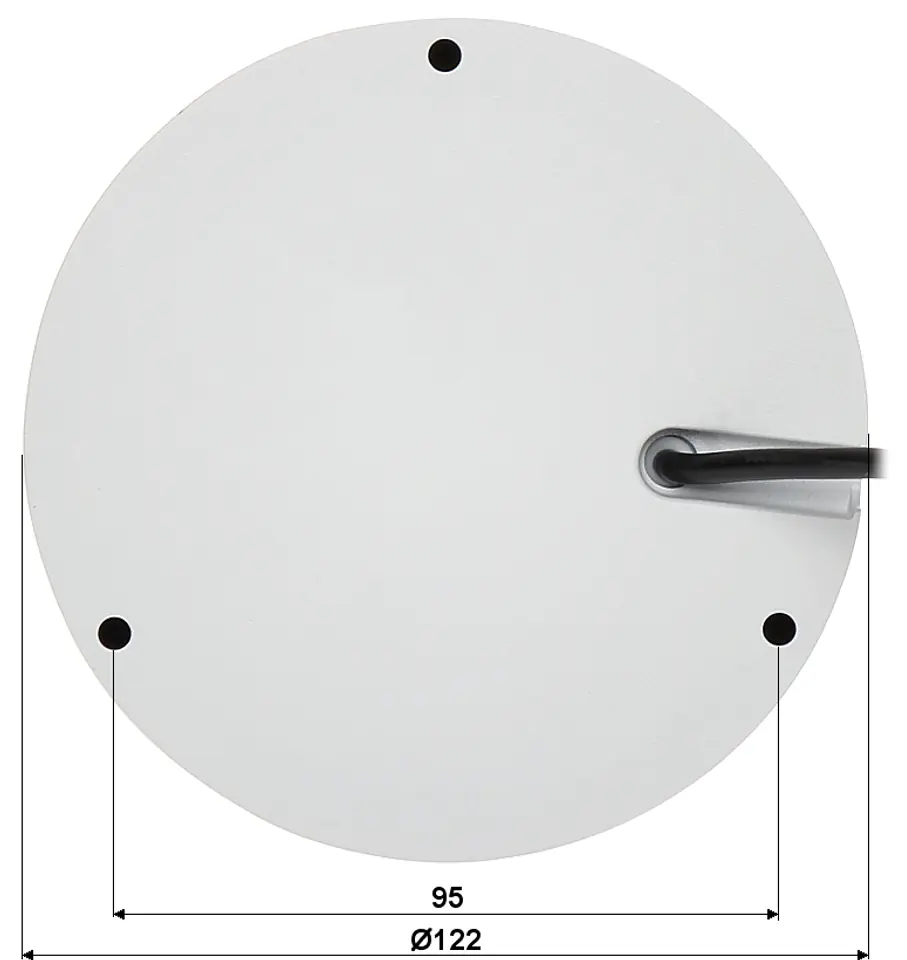

| Dimensions:: | Ø 122 x 89 mm |
| Ir illuminator power adjustment:: | Automatic |
| Ir illuminator range:: | 30 m |
| Manufacturer / brand:: | DAHUA |
| Matrix size:: | 5 Mpx |
| Objective:: | 2.7 ... 12 mm - Motozoom - The camera does not have an autofocus function |
| Operating temperature :: | -30 °C ... 60 °C |
| Osd menu:: | OSD menu available via DAHUA recorder |
| Power consumption:: | 5.5 watts ≤ |
| Power:: | 12 VDC / 460 mA |
| Resolution:: | 2880 x 1620 - 5 Mpx @ 25 fps - HD-CVI only: 16 aspect ratio: 9,2560 x 1440 - 3.7 Mpx @ 25 fps,1920 x 1080 - 1080p @ 25 fps - HD-CVI only,960 x 576 - 960H, PAL |
| S/n ratio:: | > 65 dB |
| Scales:: | 0.44 kg |
| Sealing:: | IP67 |
| Selected features:: | D-WDR - Wide Dynamic Range 2D-DNR Lighting - Digital Image Noise Reduction Day/Night Mode Automatic White Balance BLC - Back light (Background) HLC Compensation - ICR Strong Light Compensation (Spot) - AGC Mechanical IR Filter - Auto Image Gain Adjustment Privacy Zones - Max. 8 Mirror - Mirror image |
| Standard:: | AHD / HD-CVI / HD-TVI / CVBS |
| Transducer:: | 1/2.7" Progressive Scan CMOS |
| Vandal proof:: | IK10 |
| Video output:: | AHD / HD-CVI / HD-TVI / PAL - 1 Vpp / 75 Ω |
| Viewing angle:: | 107 ° ... 34° (manufacturer data) 102° ... 35 @ HD-CVI (our tests) 88° ... 30°@AHD/HD-TVI (our tests) |
| Warranty:: | 3 years |

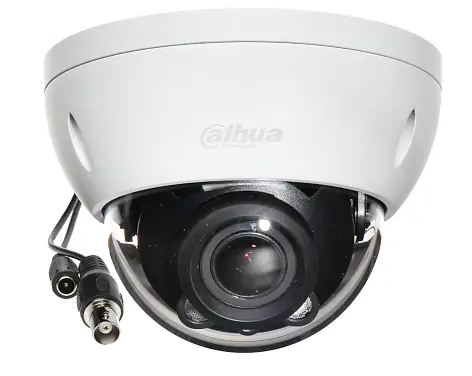

Megapixel camera with 1/2.7" CMOS sensor and AHD / HD-CVI / HD-TVI / PAL interface
The AHD / HD-CVI / HD-TVI interface allows the transmission of analog video signal via coaxial cable in max. 8 Mpx (4K UHD)There are no delays during transmission and the original, high image quality is maintained
Used motozoom lens with focal length 2.7 ... 12 mm allows remote adjustment of the viewing angle
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
