VANDAL PROOF CAMERA AHD, HD-CVI, HD-TVI, PAL HAC-HDBW1500E-0280B-S2 - 5 Mpx 2.8 mm DAHUA

€52.67
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Dahua
Product code:
HAC-HDBW1500E-0280B-S2 / 6939554951398

Specification

Case::Dome, Metal
Colour::white
Cooperation with ir illuminator::ICR - Mechanical IR filter

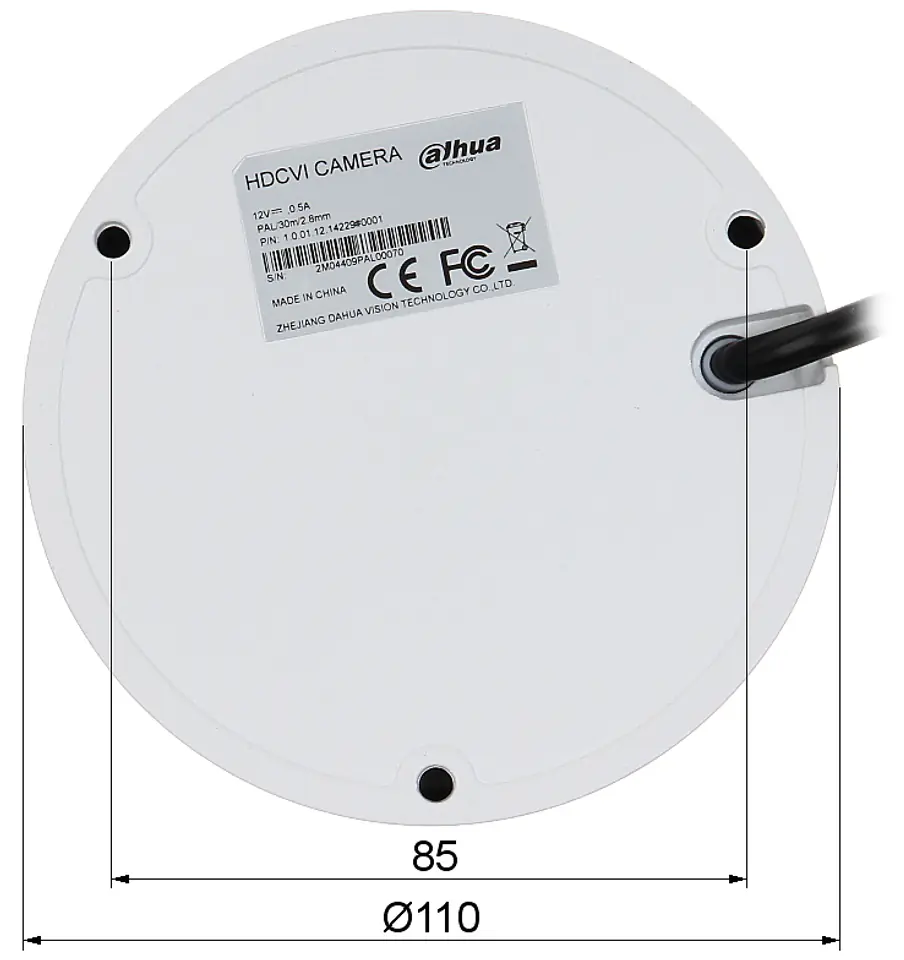

Dimensions::Ø 110 x 81 mm
Ir illuminator power adjustment::Automatic
Ir illuminator range::30 m
Manufacturer / brand::DAHUA
Matrix size::5 Mpx
Objective::2.8 mm, F1.85
Operating temperature ::-40 °C ... 60 °C
Osd menu::OSD menu available via dvr
Power consumption::≤ 4.2 watts
Power::12 VDC / 330 mA
Resolution::2880 x 1620 - 5 Mpx@HD-CVI : Aspect ratio 16 : 9 ,2560 x 1440 - 3.7 Mpx ,1920 x 1080 - 1080p ,960 x 576 - 960H, PAL
Scales::0.33 kg
Sealing::IP67
Selected features::D-WDR - Wide Dynamic Range 2-DNR - Digital Image Noise Reduction BLC - Configurable HLC Backlight Compensation - Strong Light (Spot) ICR Compensation - AGC Mechanical IR Filter - Automatic Image Gain Adjustment Day/Night Mode Auto White Balance Privacy Zones
Standard::AHD / HD-CVI / HD-TVI / CVBS
Supported languages::Polish, English, French, German, Italian, Portuguese, Russian, Spanish
Transducer::1/2.7" Progressive Scan CMOS
Vandal proof::IK10
Video output::AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω
Viewing angle::98° (manufacturer data) 103° @ HD-CVI / 90 ° @ AHD / HD-TVI (our tests)
Warranty::3 years

Megapixel camera with 1/2.7" CMOS sensor and AHD / HD-CVI / HD-TVI / PAL interface

The AHD / HD-CVI / HD-TVI interface allows the transmission of analog video signal via coaxial cable in max. 8 Mpx (4K UHD)There are no delays during transmission and the original, high image quality is maintained

In the case of video transmission by twisted pair and impedance matching transformers, it is important to bear in mind the possibility of signal reflections and signal penetration between each other

The camera meets ip67 protection class

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
