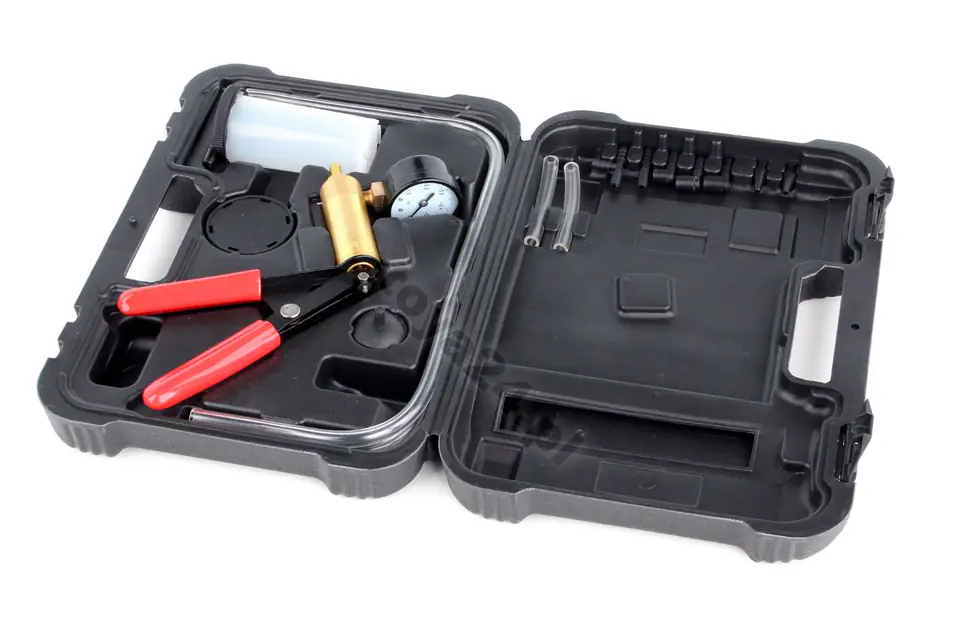

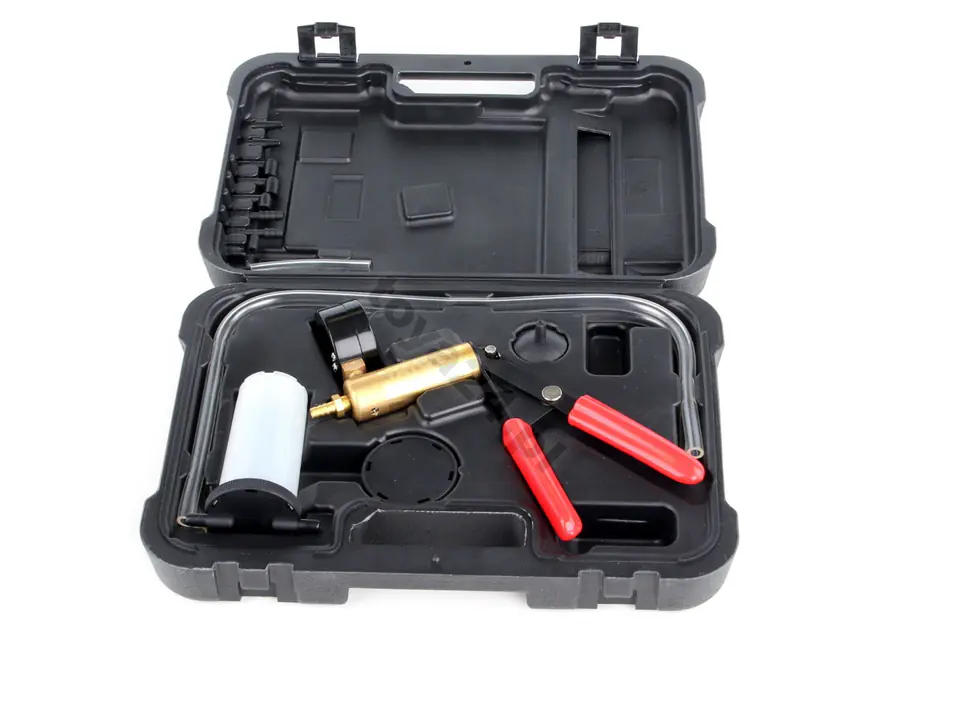

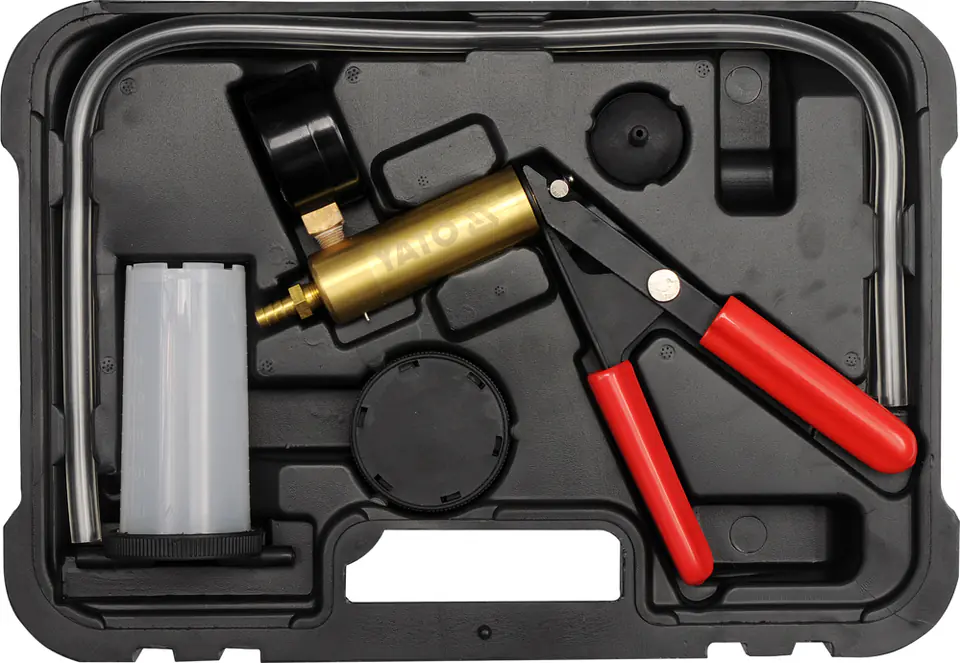

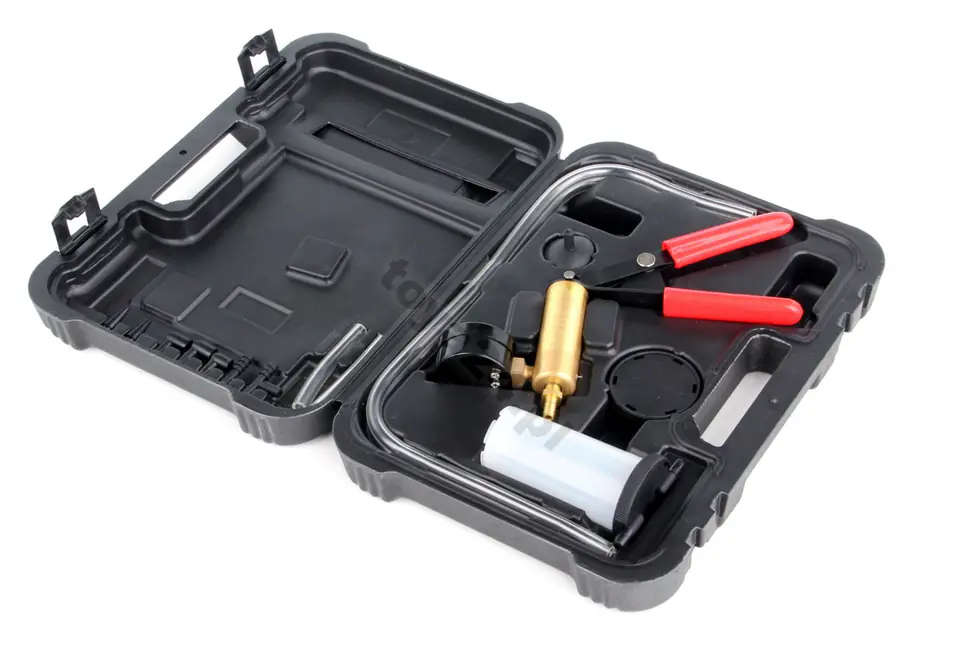

VACUUM-PRESSURE PUMP 16 PARTS

Product description
A vacuum pump is a multifunctional device used to diagnose systems in cars and technology, the operation of which is based on pressure or vacuum.

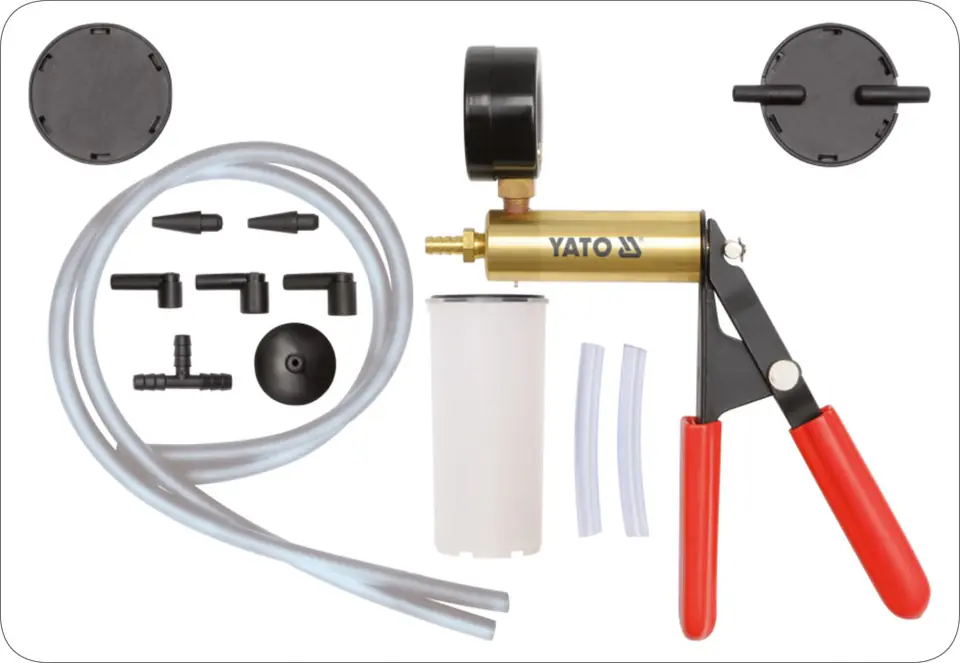

It is equipped with accessories that can be used in almost any engine or system.

Measuring range: -1 to 0 bar.
Purpose / Application
With the help of a pump, diagnostics can be carried out m.in the following systems and systems:

Computerized engine control equipment:
- barometric pressure sensor (BARO)
- PVC system
- exhaust gas recirculation (EGR) system
- thick-layer pressure sensors (MAP)

Ignition control devices:
- vacuum ignition advance
- delay valve: SDV, RCV

Braking:
- classic brakes
- ABS brakes
- air brakes
- brake lines
- brake servo

Other systems:
- air conditioning
- cruise control
- fuel tank and fuel installation
- vacuum door closing system
How to use
Exhaust Gas Recirculation (EGR) System Diagnostics
The valve of the EGR system is an example of a valve actuated by vacuum.
In the absence of vacuum, the valve is closed and the exhaust gases do not escape from the valve.
If a vacuum is supplied to the valve, it is opened, allowing the exhaust gases to be recirculated.

Diagnostics of thick-layer pressure sensors (MAP)
•Assemble the pump and tank system as in the case of bleeding brake calipers, and then connect to the vacuum connection of the sensor.
•Press the pump lever until the hand shows -0.5 bar. Finish pumping and observe the pointer, it should be stationary. If the pointer is moving, the MAP sensor is damaged.
•During operation, the MAP sensor sends feedback signals to the control computer.
The signal has a frequency between 85 Hz and 160 Hz depending on the vacuum level.
A frequency meter is necessary to measure the frequency, it must be connected according to the instructions of the sensor and the meter.

Bleeding of brake calipers.
•Make sure that the expansion tank of the braking system is filled with fluid to the nominal volume.
•Venting is carried out in the following order:
- brake pump, if equipped with a vent valve
- brake calipers in order from the nearest cylinder to the farthest
•Connect a short hose to the connection located on the bottom of the pump tank cover.
•Close the pump tank with the lid.
•Connect long hoses to the cover connections. The end of one of the long hoses is connected to the pump, and the other to the vent valve (calamite) of the brake caliper. If necessary, use an adapter.
•Press the pump lever 10 - 15 times to create a vacuum in the pump tank.
•Unscrew the vent valve by 1/4 - 1/2 turn so that the pump tank fills with liquid to a height of about 5 cm. Tighten the vent valve.
•Disconnect the pump line from the vent valve, the clamp venting procedure has been completed.
•Before repeating the bleeding procedure in the next caliper, empty the pump tank of brake fluid and make up the brake fluid level in the brake system to the nominal level.
Specifications
Index NumberYT-0673
EAN5906083906732
Markayato
Gross Weight (packaged)1.4500
Master Carton MC10
Pal120
Pressure [MPa]0-0,20-0,41
PackagingBMC
Number of elements [pcs.] 16
