| Ac current measurement:: | 200 μA ± (1.5%) @ 0.1 μA ,2000 μA ± (1.5%) @ 1 μA ,20 mA ± (1.5%) @ 0.01 mA ,200 mA ± (1.5%) @ 0.1 mA ,2 A ± (2.5%) @ 0.001 A ,10 A ± (2.5%) @ 0.01 A |
|---|---|
| Ac voltage measurement:: | 2 V ± (0.8%) @ 0.001 V ,20 V ± (0.8%) @ 0.01 V ,200 V ± (1.0%) @ 0.1 V ,600 V ± (1.0%) @ 1 V |
| Capacitance measurement:: | 9.999 nF ± (4%) @ 0.001 nF ,99.99 nF ± (4%) @ 0.01 nF ,999.9 nF ± (4%) @ 0.1 nF ,9.999 μF ± (4%) @ 0.001 μF ,99.99 μF ± (4%) @ 0.01 μF ,999.9 μF ± (4%) @ 0.1 μF ,9.999 mF ± (5%) @ 0.001 mF ,99.99 mF @ 0.01 mF - illustrative measurement |
| Dc current measurement:: | 200 μA ± (1.0% + 5) @ 0.1 μA ,2000 μA ± (1.0% + 5) @ 1 μA ,20 mA ± (1.0% + 5) @ 0.01 mA ,200 mA ± (1.0% + 5) @ 0.1 mA ,2 A ± (2.0% + 10) @ 0.001 A ,10 A ± (2.0% + 10) @ 0.01 A |
| Dc voltage measurement:: | 2 V ± (0.5%) @ 0.001 V ,20 V ± (0.5%) @ 0.01 V ,200 V ± (0.8%) @ 0.1 V ,600 V ± (0.8%) @ 1 V |
| Dimensions:: | 68 x 147 x 48 mm |
| Frequency measurement:: | 9.999 Hz ... 9.999 MHz ± (1%) @ 0.001 Hz ... 0.001 MHz |
| Manufacturer / brand:: | UYIGAO |
| Measurement of the rectangular signal fill factor:: | 0.1 ... 99.9 % ± (3.0%rd) @ 0.1 % |

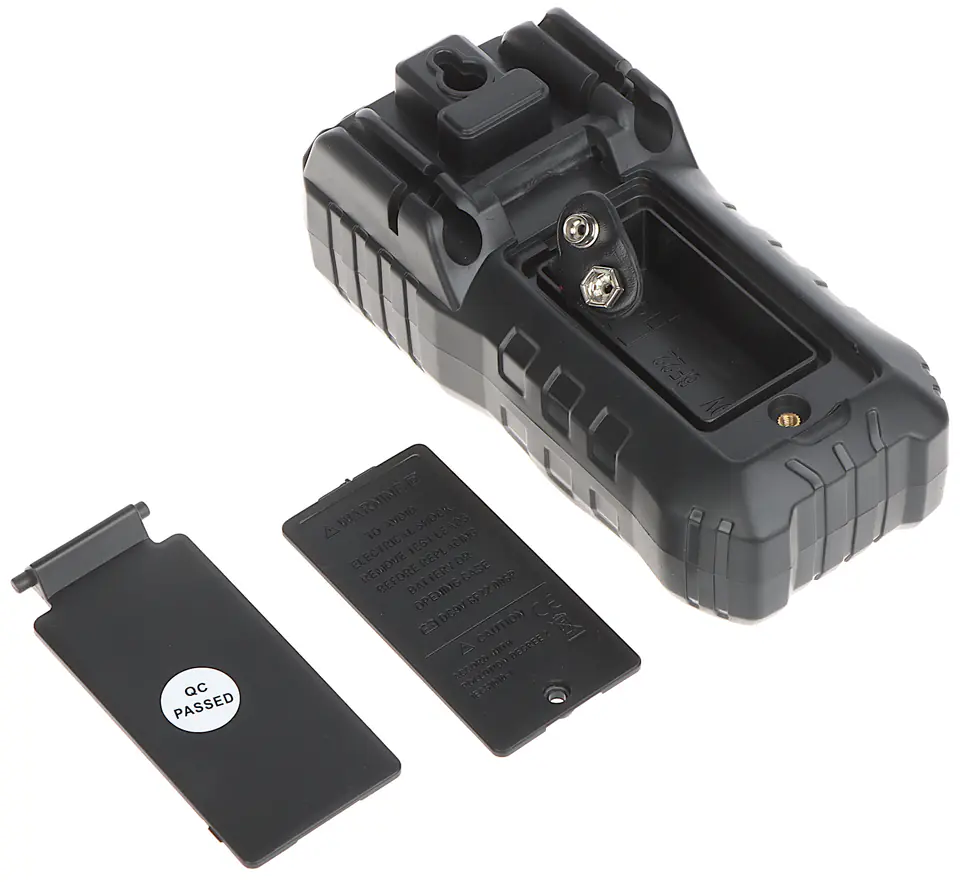

| Power:: | 9V battery, type 6F22 (not included) |
| Resistance measurement:: | 200 Ω ± (0.8%) @ 0.1 Ω .2 kΩ ± (0.8%) @ 0.001 kΩ ,20 kΩ ± (0.8%) @ 0.01 kΩ ,200 kΩ ± (0.8%) @ 0.1 kΩ ,2 MΩ ± (1.2%) @ 0.001 MΩ ,20 MΩ ± (1.2%) @ 0.01 MΩ |
| Scales:: | 0.2 kg |

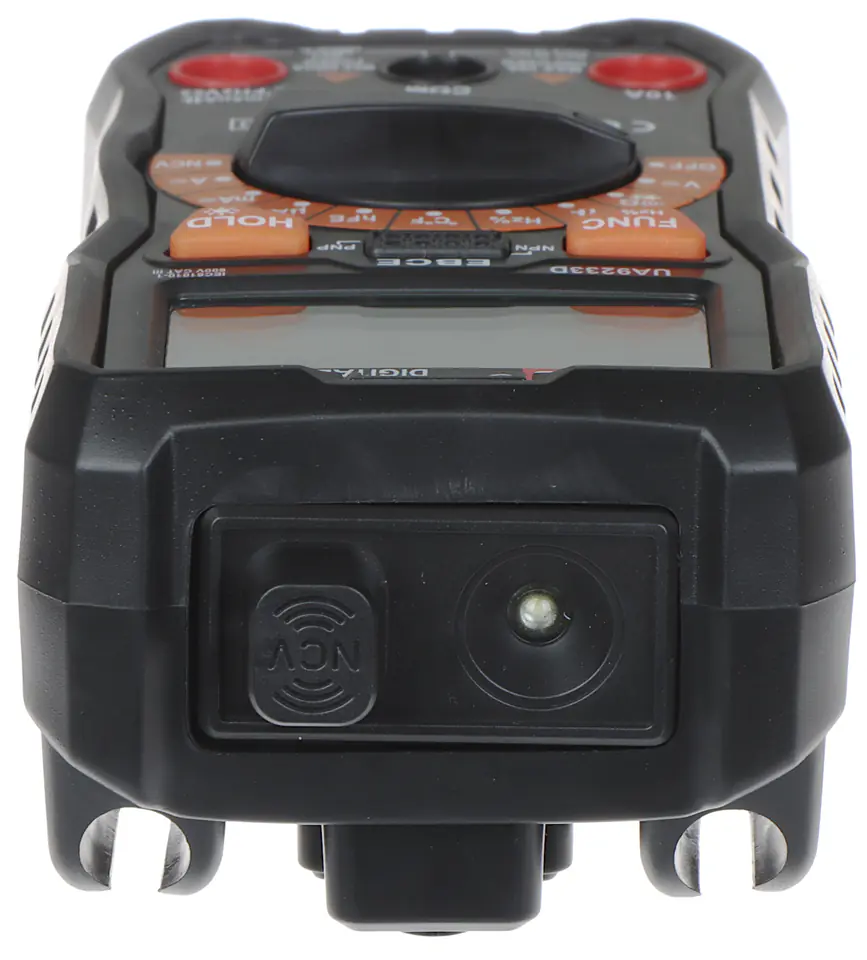

| Selected features:: | Large, easy-to-read LCD display with Hold backlight - NCV meter indication stop - electric field detection function Built-in LED flashlight Aesthetic and solid workmanship |
| Temperature measurement:: | °C : -20 ... 300 °C ± (1.0%) @ 1 °C ,301 ... 1000 °C ± (1.9%) @ 1 °C, °F :-4 ... 600°F ± (1.2%) @ 1°F,601 ... 1832 °F ± (1.9%) @ 1 °F |
| Warranty:: | 2 years |

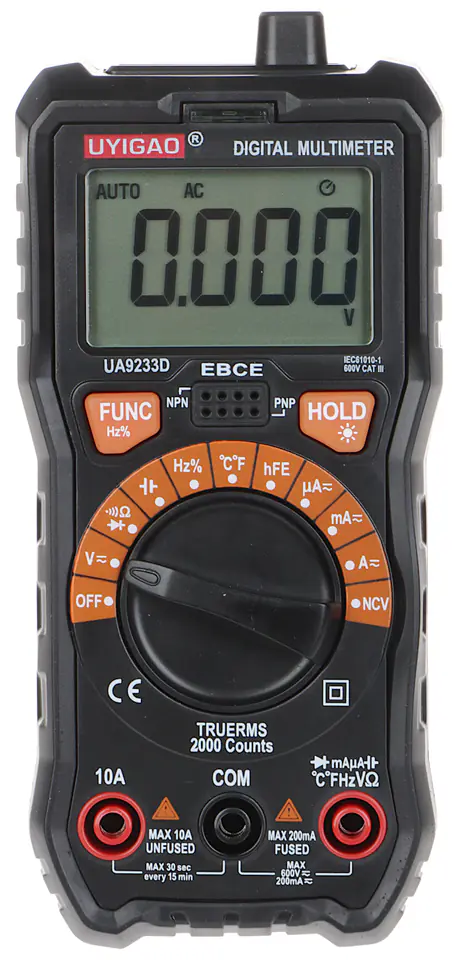

MM-UA9233D is a universal digital meter used to measure: voltage, current, resistance, capacitance, frequency, temperature and checking the correct operation of diodesThe device has an automatic change of measurement rangesIn addition, the meter has the function of detecting the electric field (NCV)

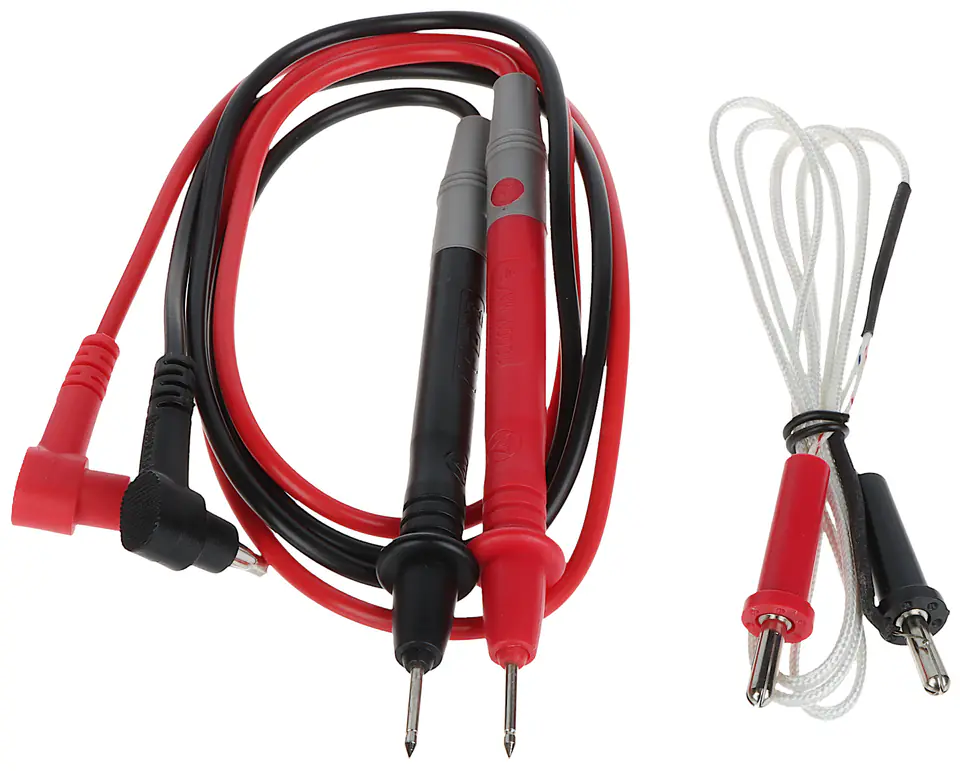

The set includes a thermocouple type "K" (chromel/alumel)
