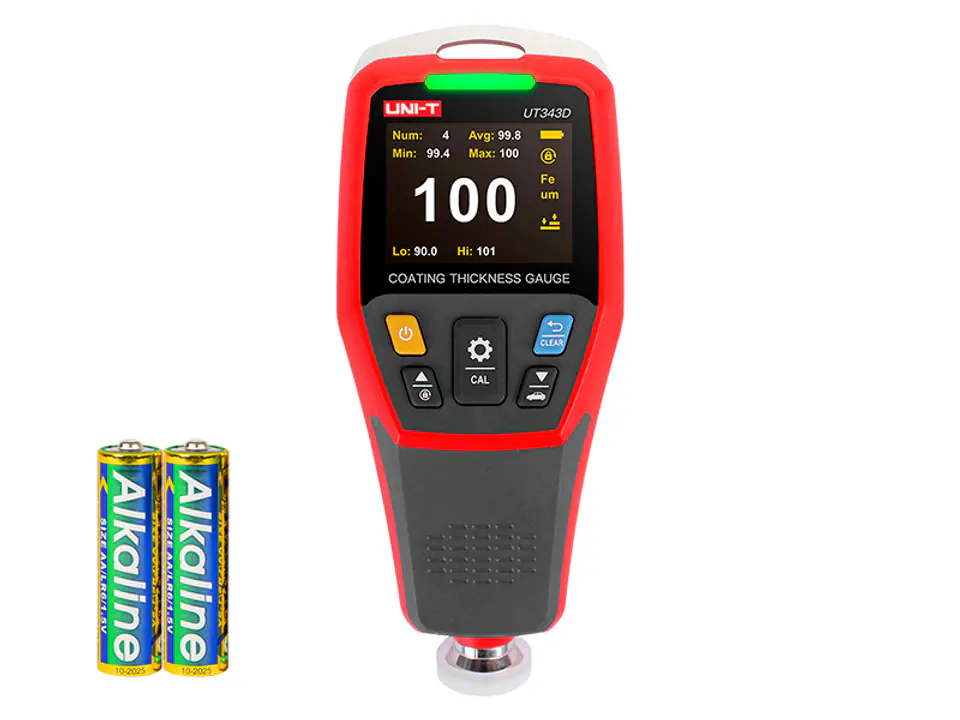

The meter allows you to measure the thickness of the varnish on ferrous and non-ferrous metals. The unique quick test function allows you to set the thickness range and using a three-color diode and a sound signal, the meter informs whether the tested coating is within the set range. The automatic reversal function of the display helps to read the results regardless of the measurement location. The memory of the device allows you to remember 500 measurements, which can then be analyzed using dedicated software.
Specification:
- Measuring range: 0~1250um
- Accuracy: ±(3%H+1)um
- Resolution: 0.1um (0~99.9um); 1um (100~1250um)
- Measurement method: single / continuous
- Measurement mode: max/min/avg
- Metal type: ferrous/independent
- LCD display: 2 inches (320 x 240 inches)
- Memory: 500
- Power supply: 2 x 3V battery (R03)
- Weight: 175 g
- Dimensions: 153.5mm x 64.5mm x 41mm
- Features:
backlight adjustment, automatic screen rotation, unit conversion
audio alarm, led alarm, dedicated software, auto power off
low battery indicator, USB, quick test mode
