USB INTERFACE - UART 3.3V ESP-01-CH340-ESP8266

€8.13
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
moderate quantity
Product code:
ESP-01-CH340-ESP8266 / 5902887074219

Specification

Compatibility:ESP01, ESP01 and others
Connector type:1 x USB-A plug, 1 x 8x goldpin socket (dedicated for ESP01 / ESP01S), 8 x goldpin plug - Pin pins
Dimensions:50 x 14 x 12 mm
Power:5 V - from USB port
Power output:3.3 volts
Scales:0.004 kg
Selected features:Reset button
Ttl voltage:3.3 volts
Usb <> ttl converter:CH340
Warranty:2 years

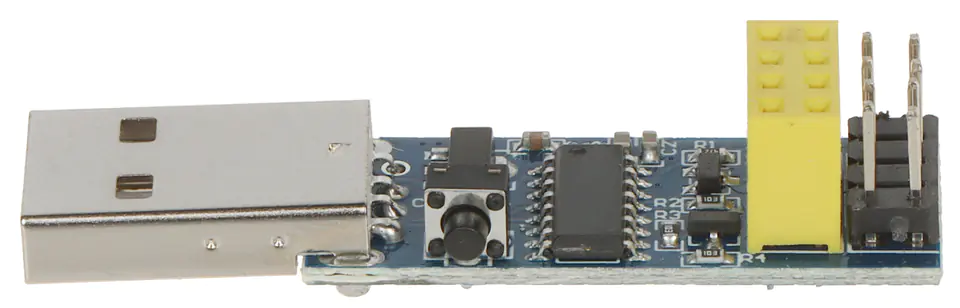

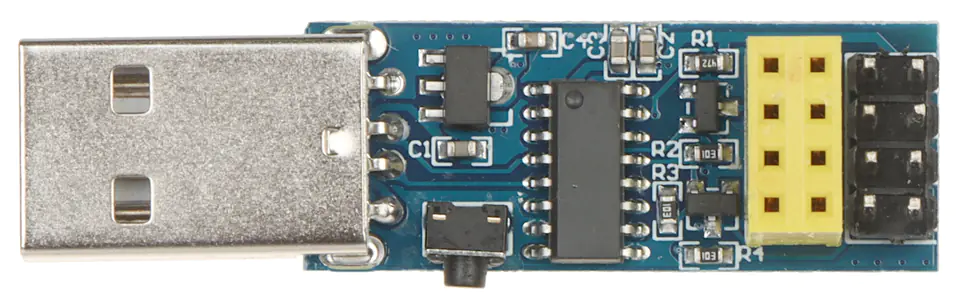

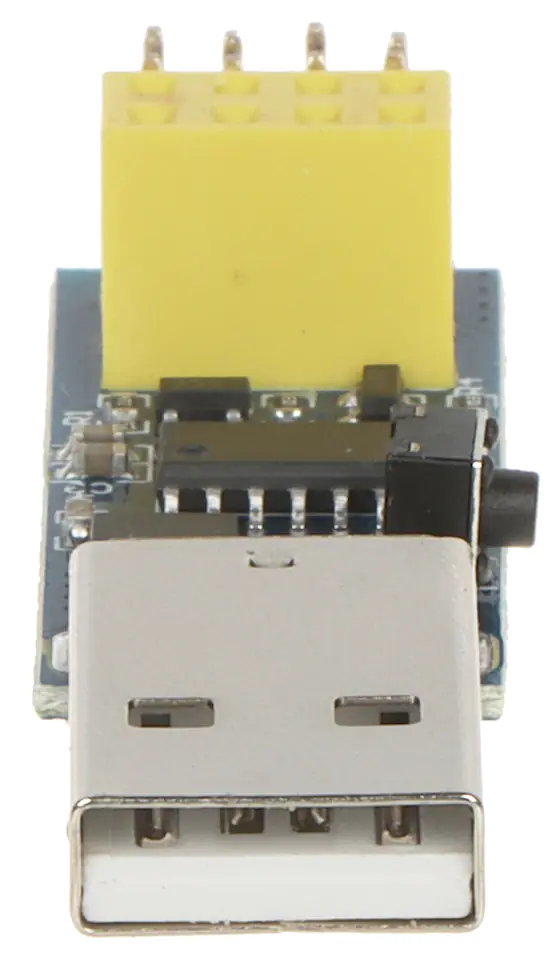

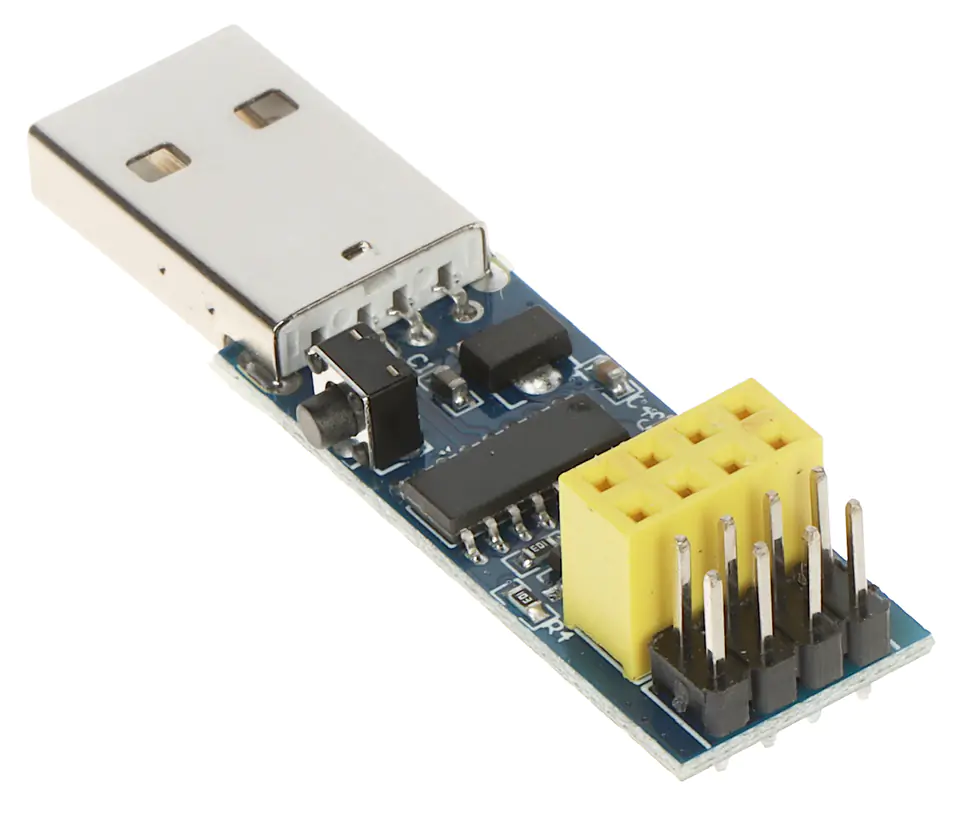

The ESP-01-CH340-ESP8266 interface (also called a programmer) is an intermediary device in data exchange between a computer (USB port) and modules based on the ESP8266 chip (using asynchronous 3.3V UART communication)The programmer allows, for example, to save your own program in the memory of the connected controller, or to communicate the computer with the module via the USB portThe device was made on the basis of the popular CH340 converter

The presented UART interface model is equipped with a dedicated goldpin socket for connecting the ESP-01SPoza module with a dedicated socket, the device has goldpin pins for all pins, so they can be easily used for communication with other modules built on the basis of the Espressivo chip

The device is fully compatible with commonly used development environments: Arduino IDE, ESP8266Flasher and Espressif FLASH_DOWNLOAD_TOOLSW depending on the operating system used, the correct operation of the interface may require the installation of appropriate drivers

The programmer is powered from the USB port and does not require external power supply

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
