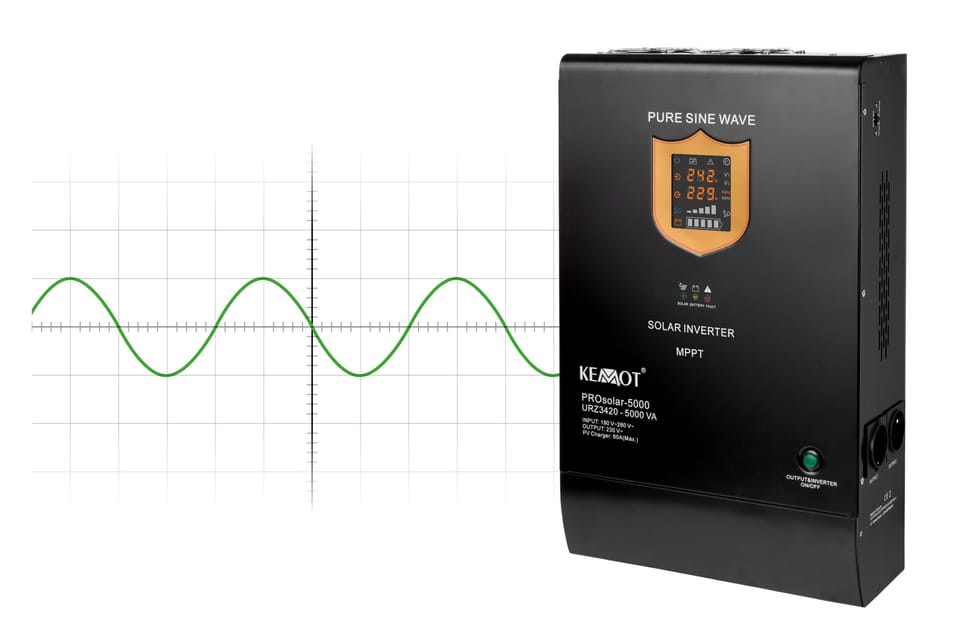

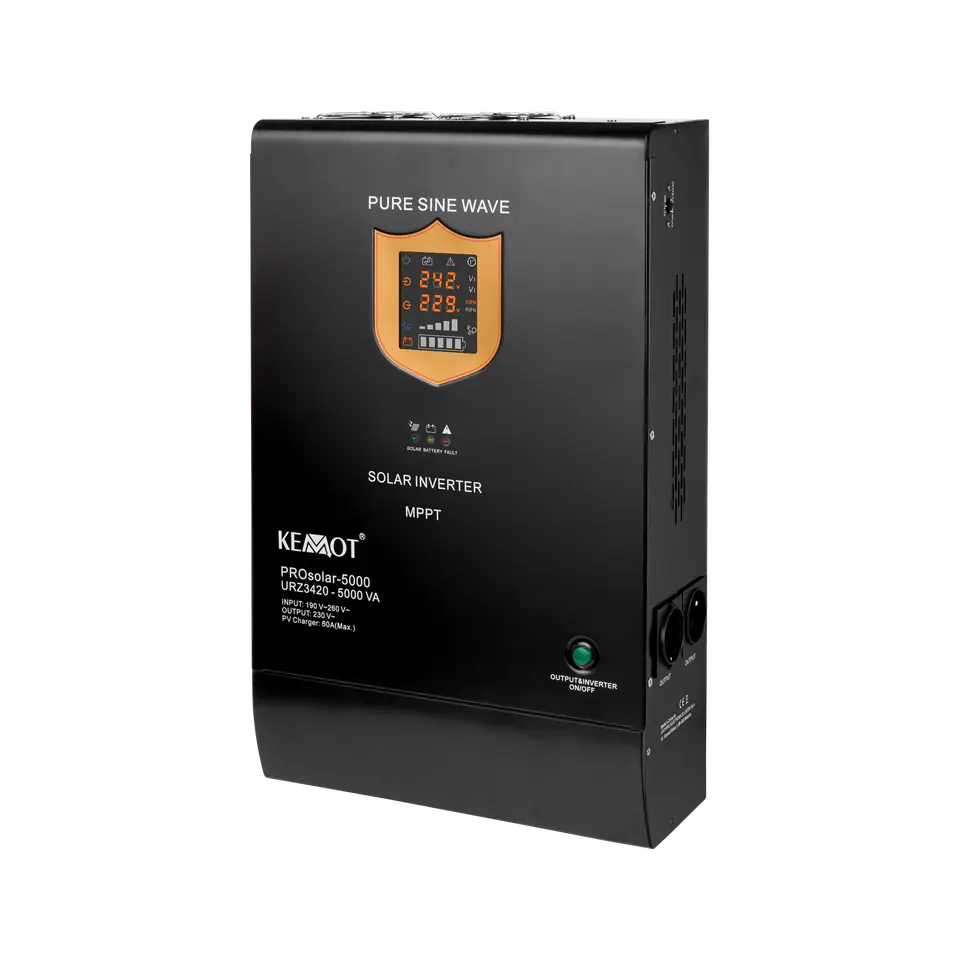

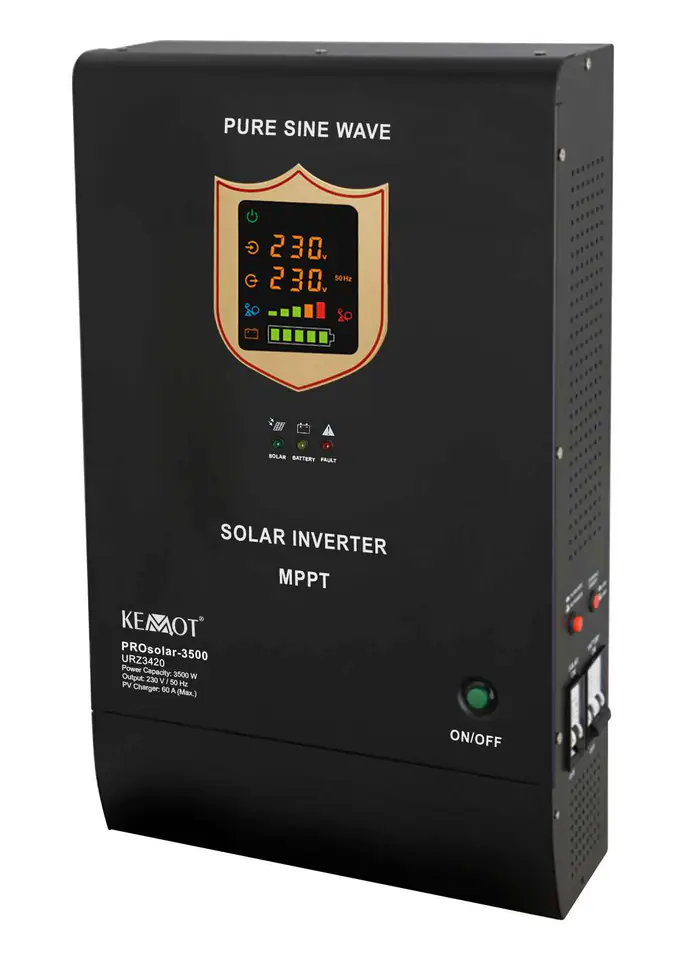

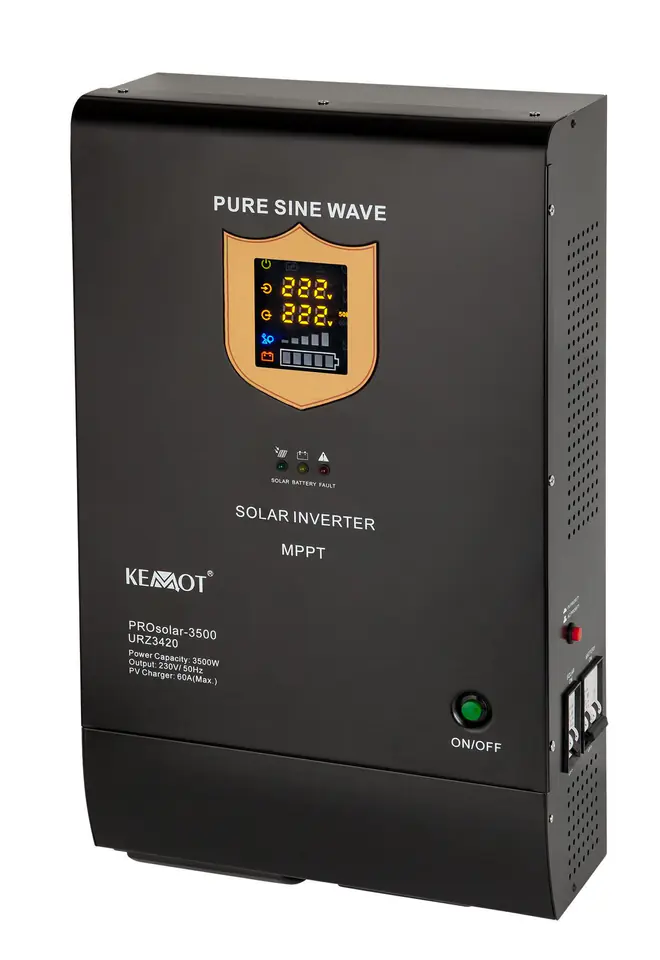

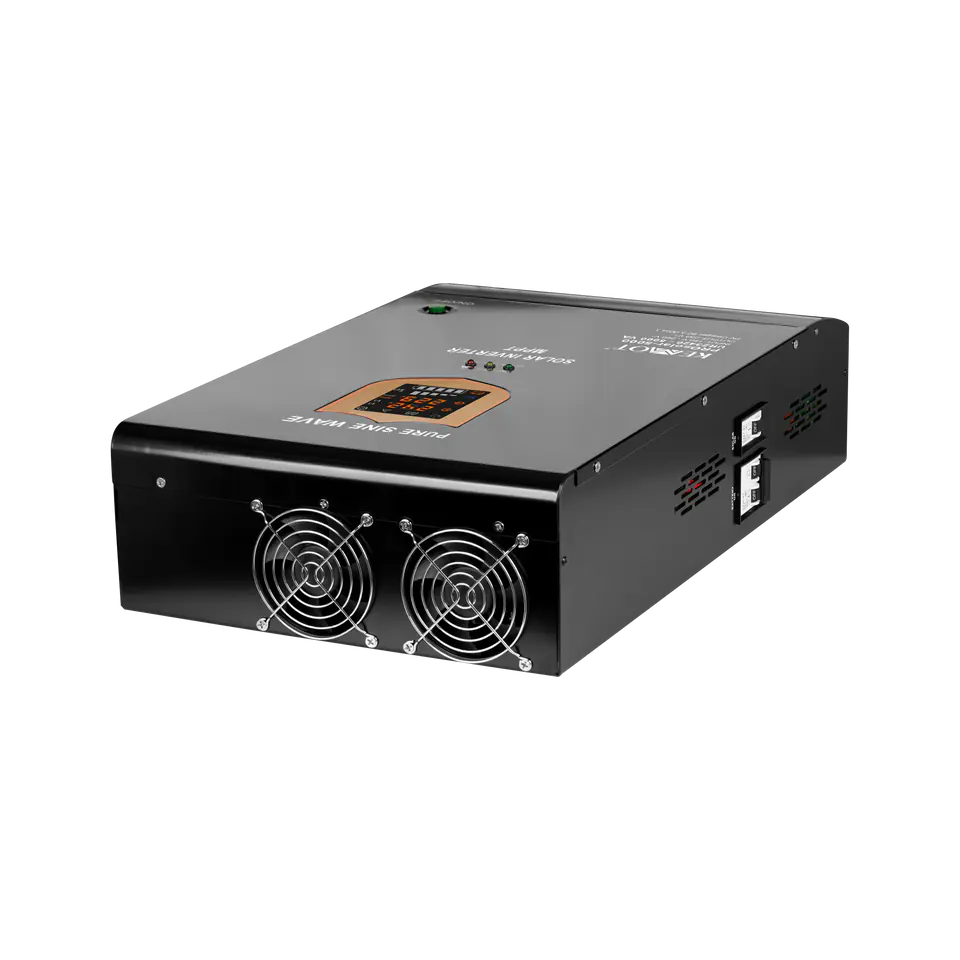

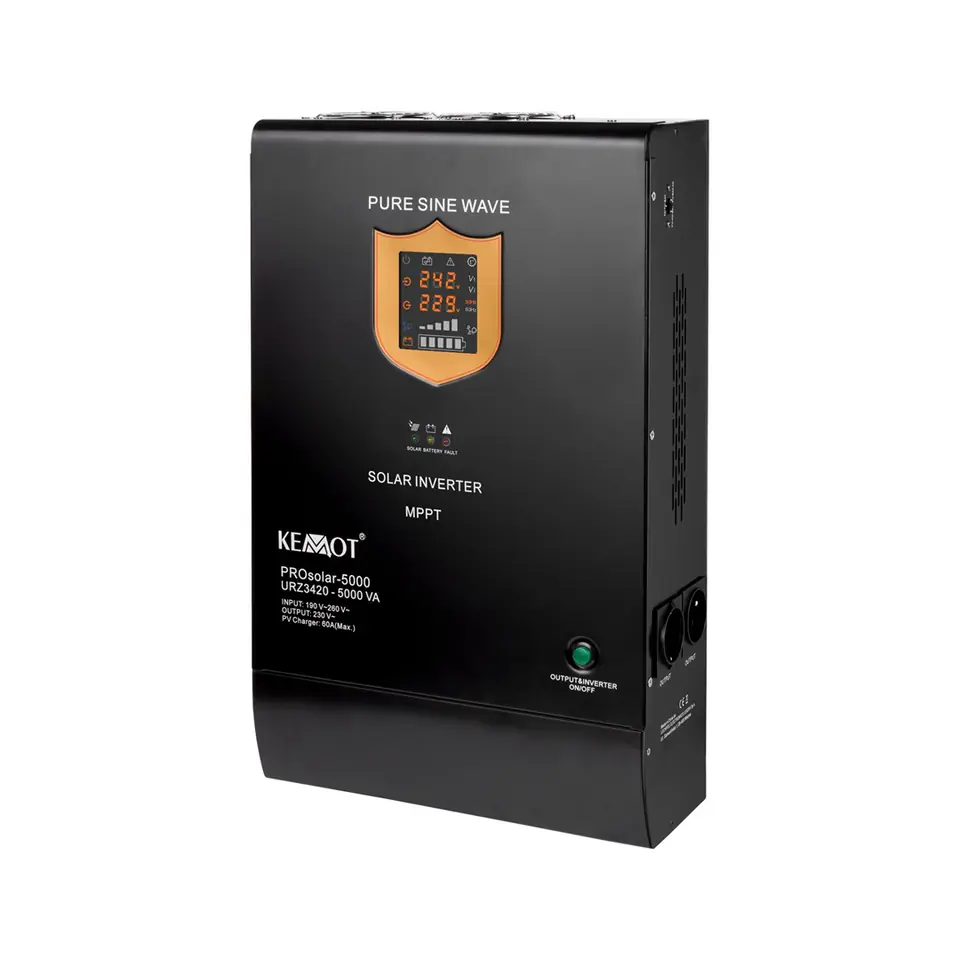

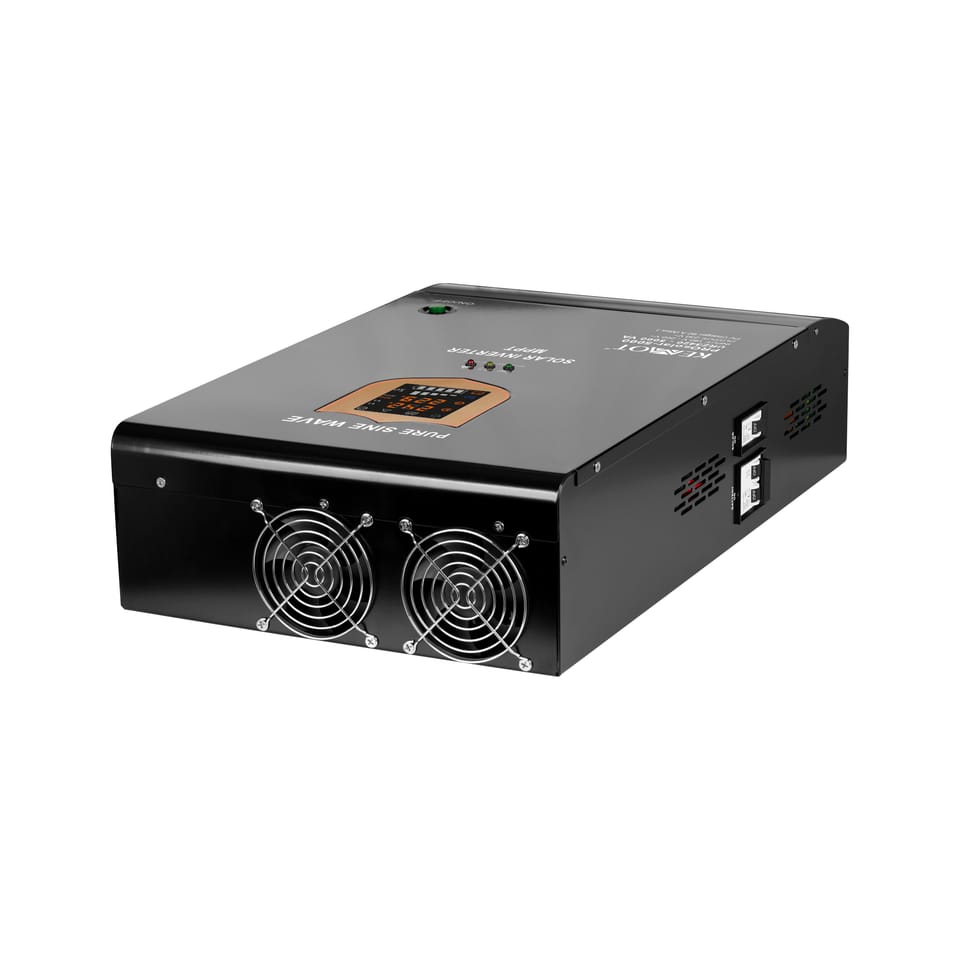

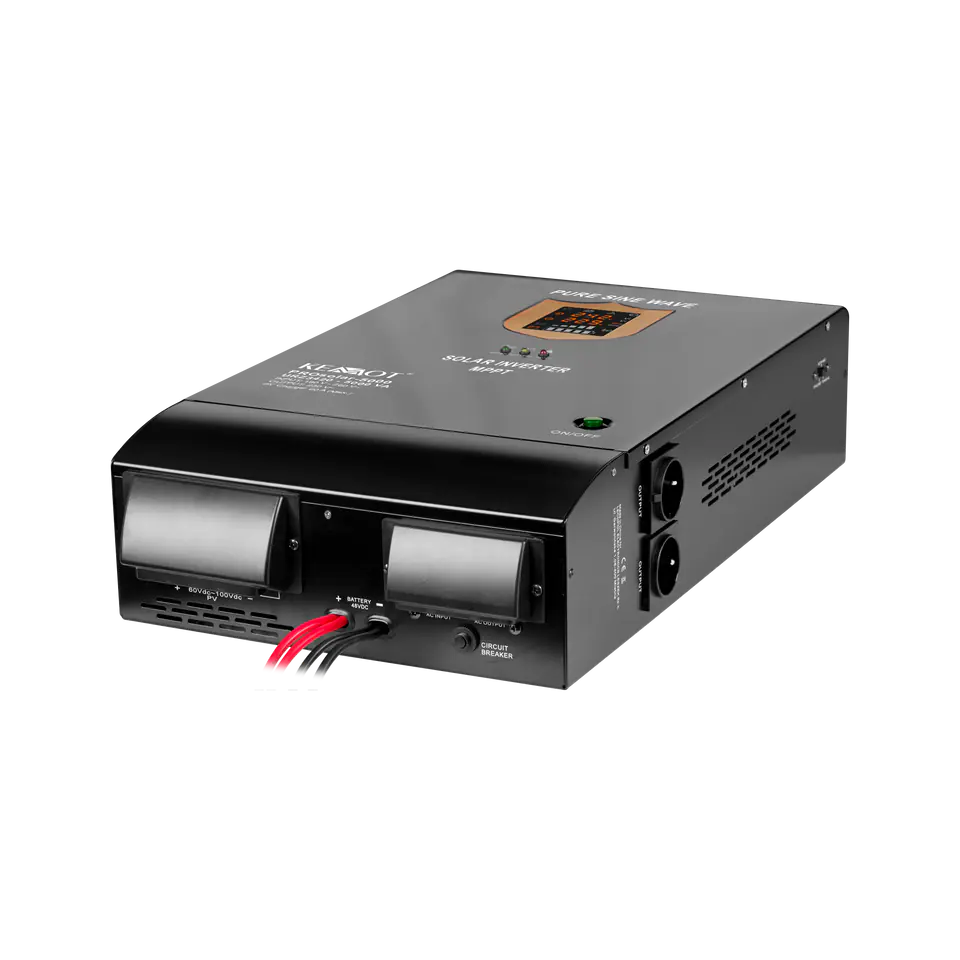

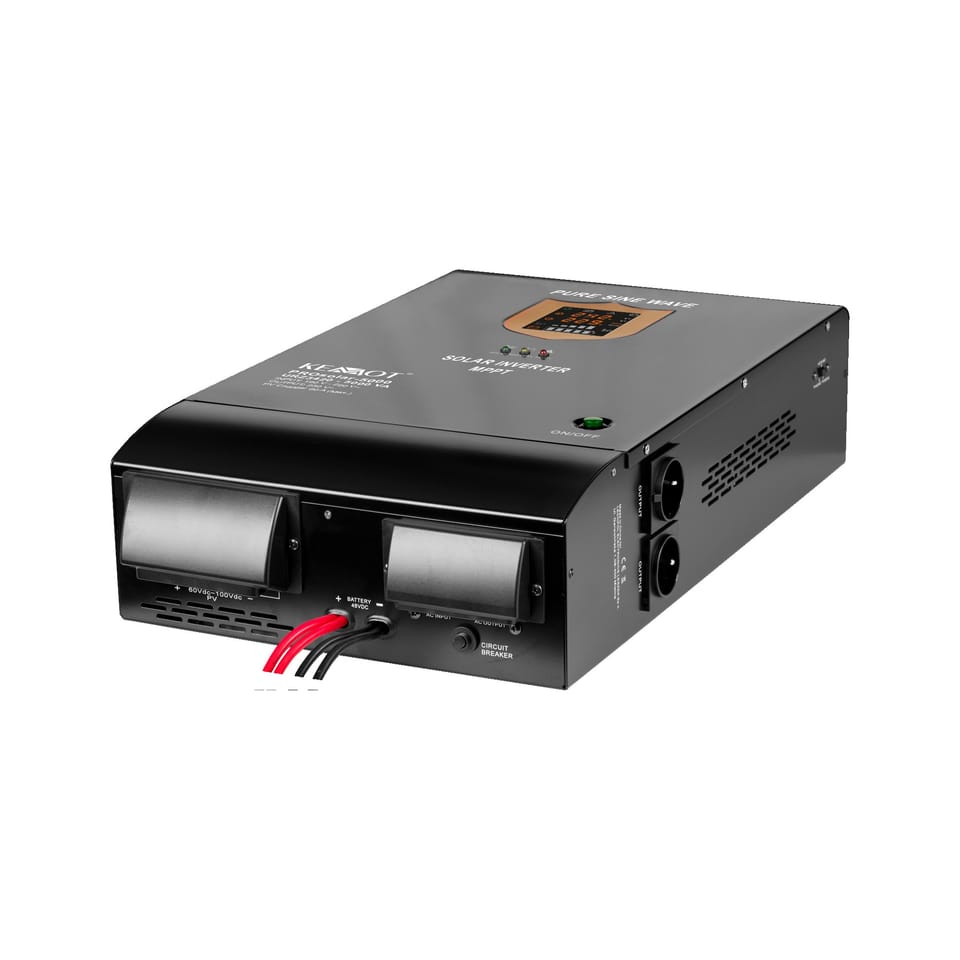

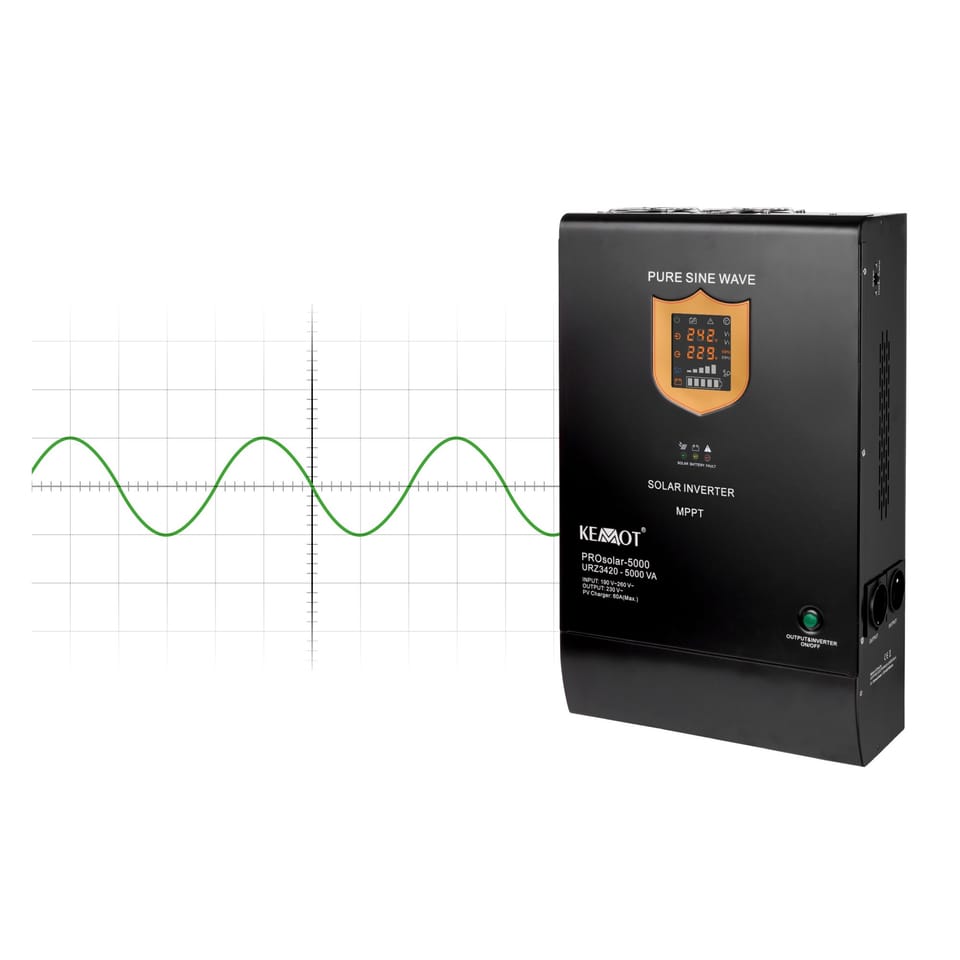

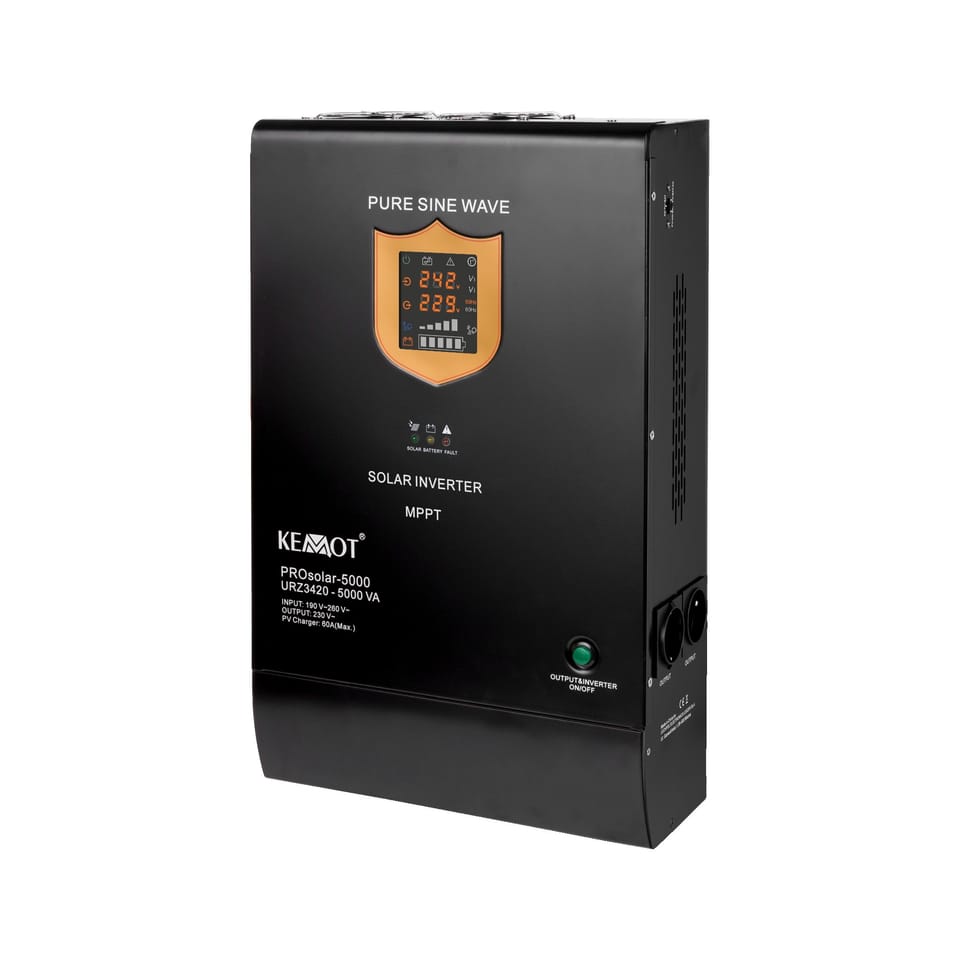

URZ3420 Solar converter Kemot ProSolar-3500
Technical data:
- Model: URZ3420 - 5000 VA
- Power: 3500W
- Battery Voltage: 48V DC

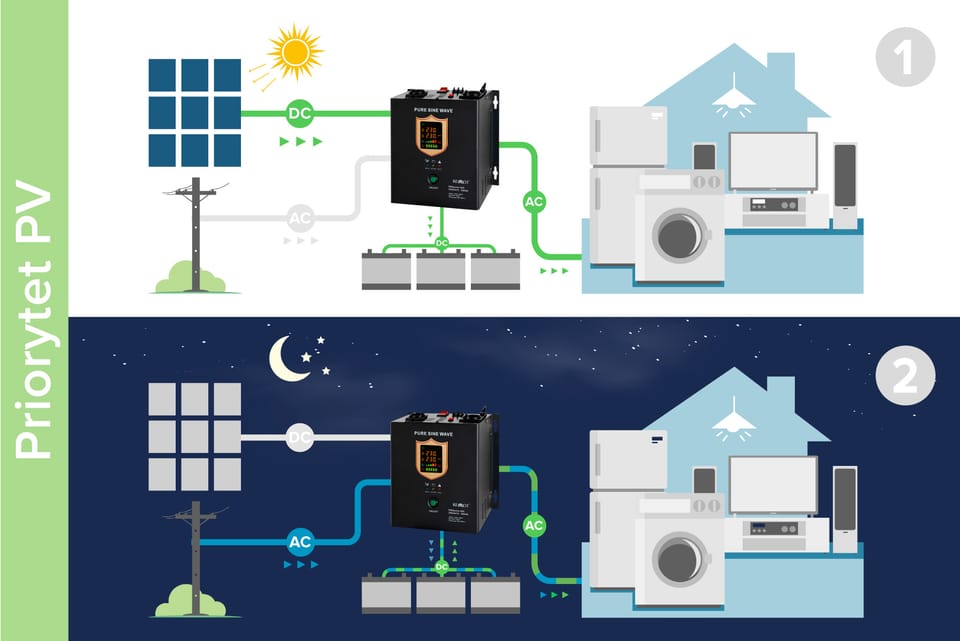

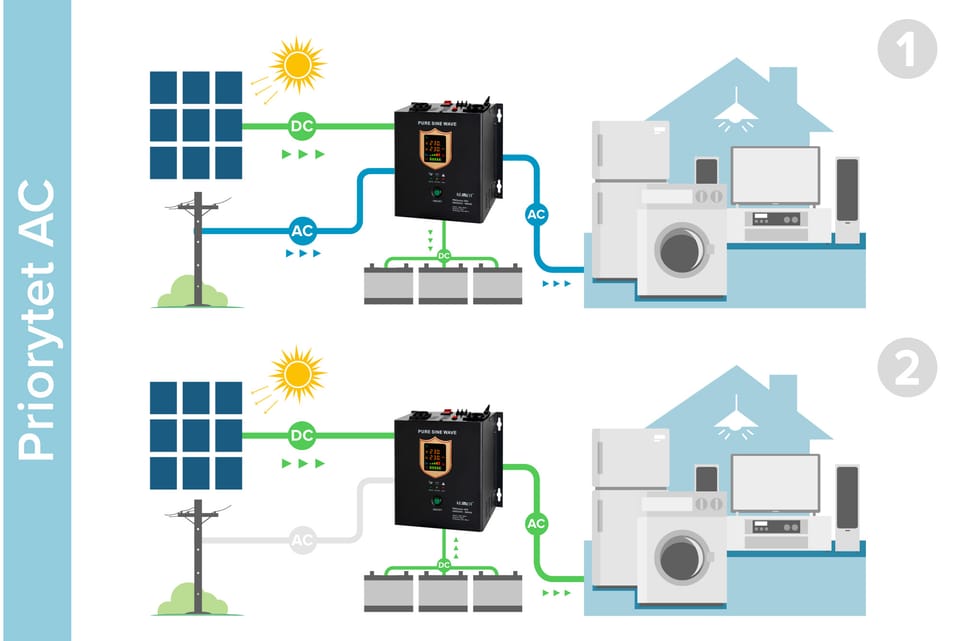

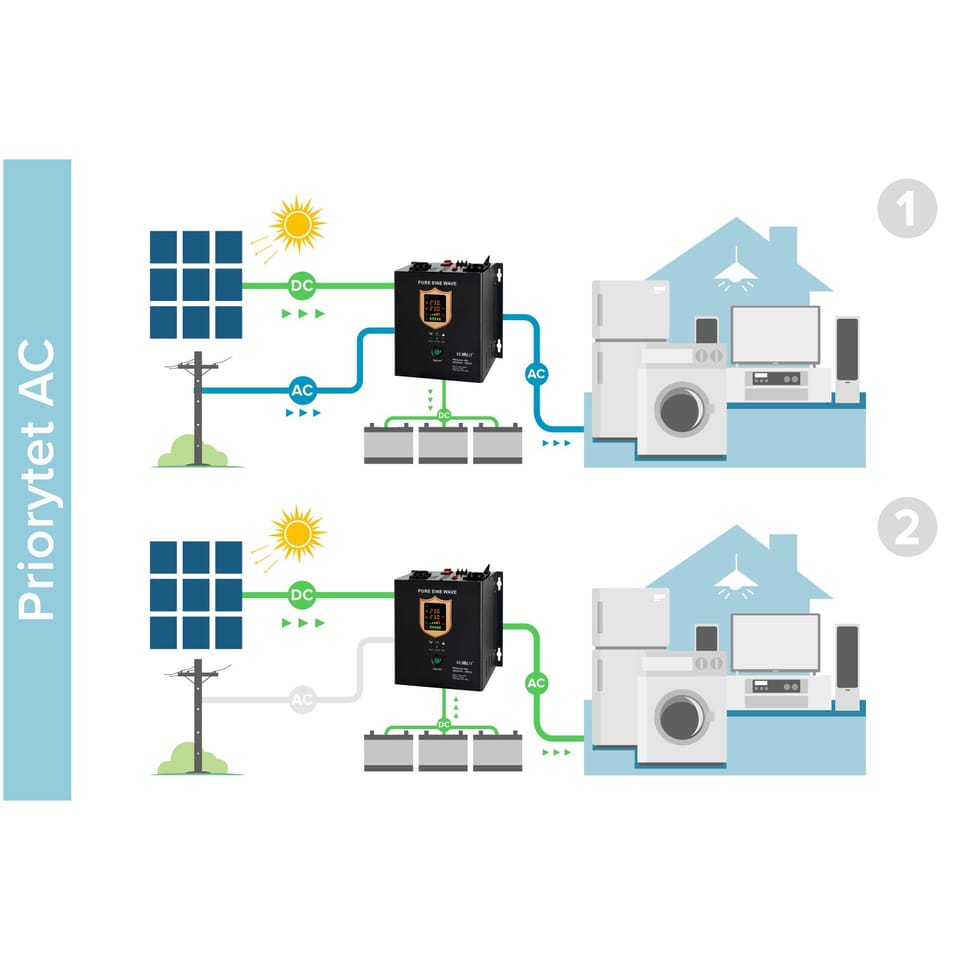

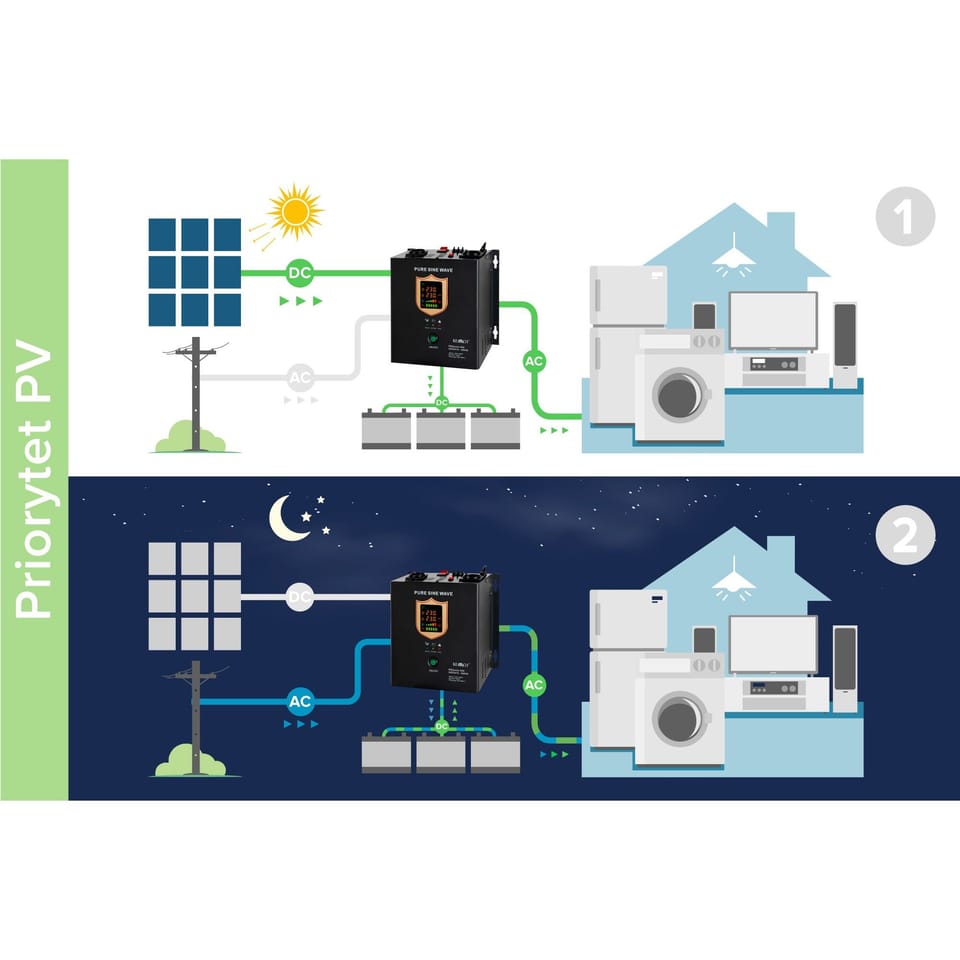

- Operating mode: PV (PV / photovoltaic priority) / AC (AC / mains priority)
PV mode:
- Input voltage range: 60 V DC – 100 V DC
- Max. charging current: 60 A (depending on the photovoltaic cell used)
- Max. conversion efficiency: 98%
AC mode:
- Input Voltage Range: 200V AC~275V AC
- Input Frequency Range: 45-65Hz
- Output Voltage Range: 206V AC~242V AC
- Input power factor (AC/DC): 98%
- Efficiency: AC power mode >= 96%
- Charging current: 10A
Inverter output:
- Inverter output voltage: 230V ±3%
- Output Frequency: 50Hz/60Hz ±0.3Hz
- Output power factor: >= 0.8
- Waveform distortion: Resistive load =< 3%
- Switching time from PV to AC mode: 4 ms as standard; Max. 6 ms
- Efficiency: Inverter mode >= 80%
- Inverter overload: 110%-130% off after 30 s, 130%-150% off after 3 s
- Short circuit: Auto power off
Other:
- Ambient temperature 0~40°C
- Air Humidity 10%~90%
- Sound level =< 50 dB
