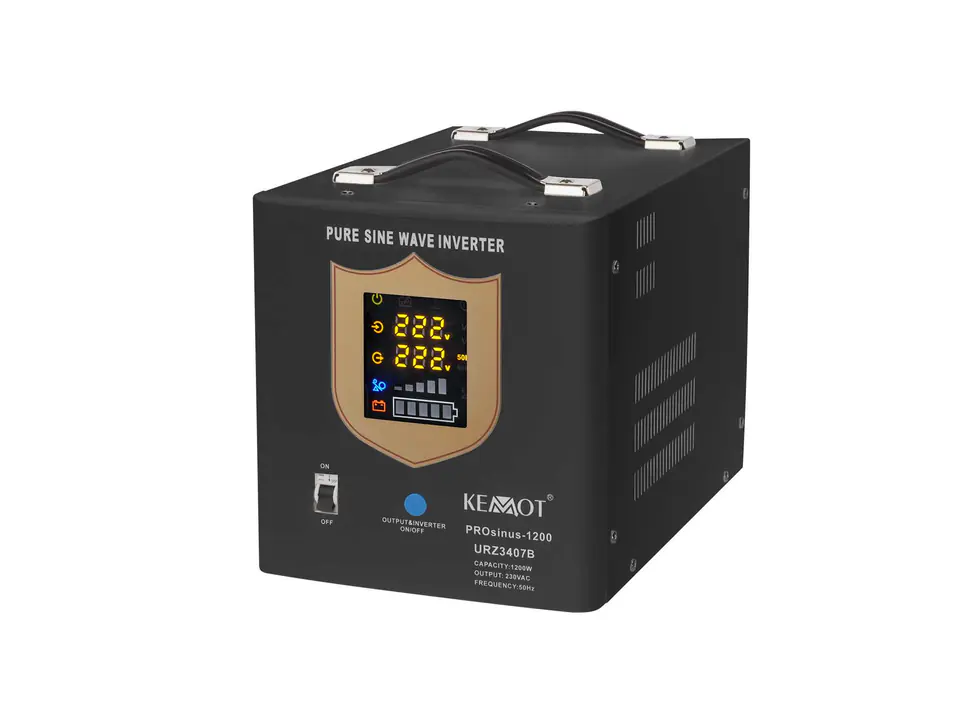

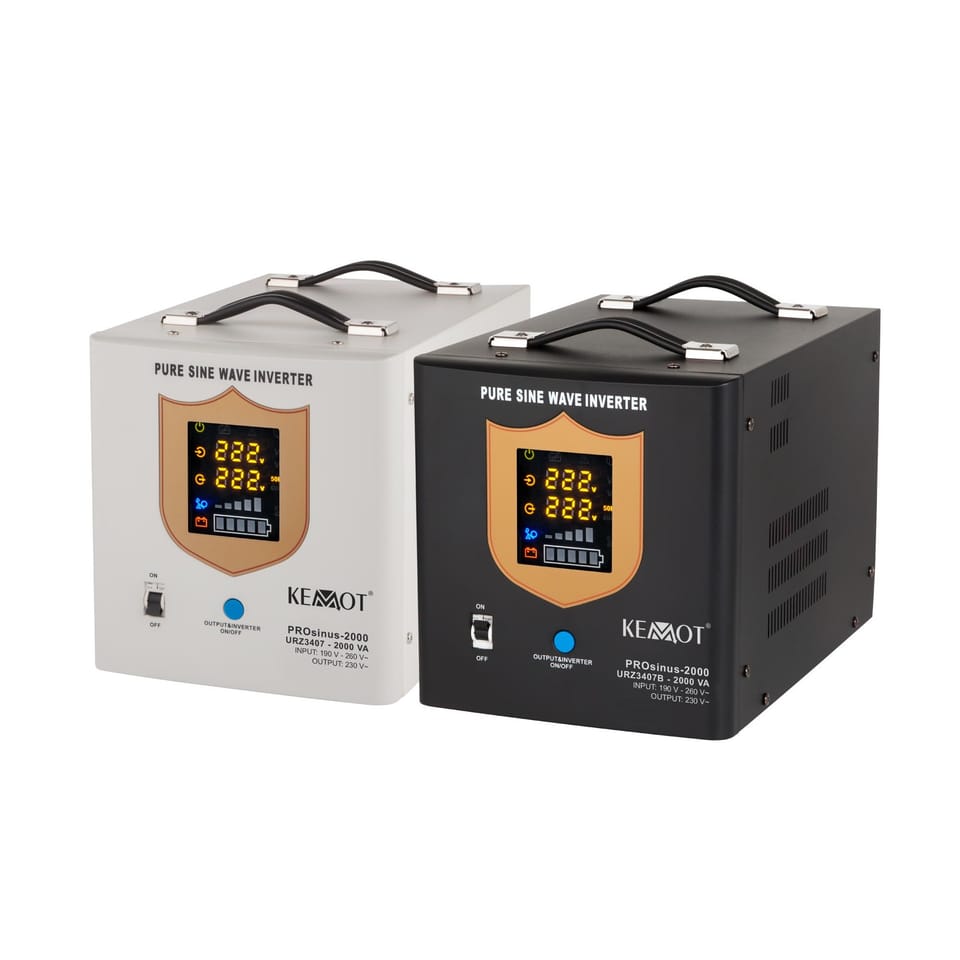

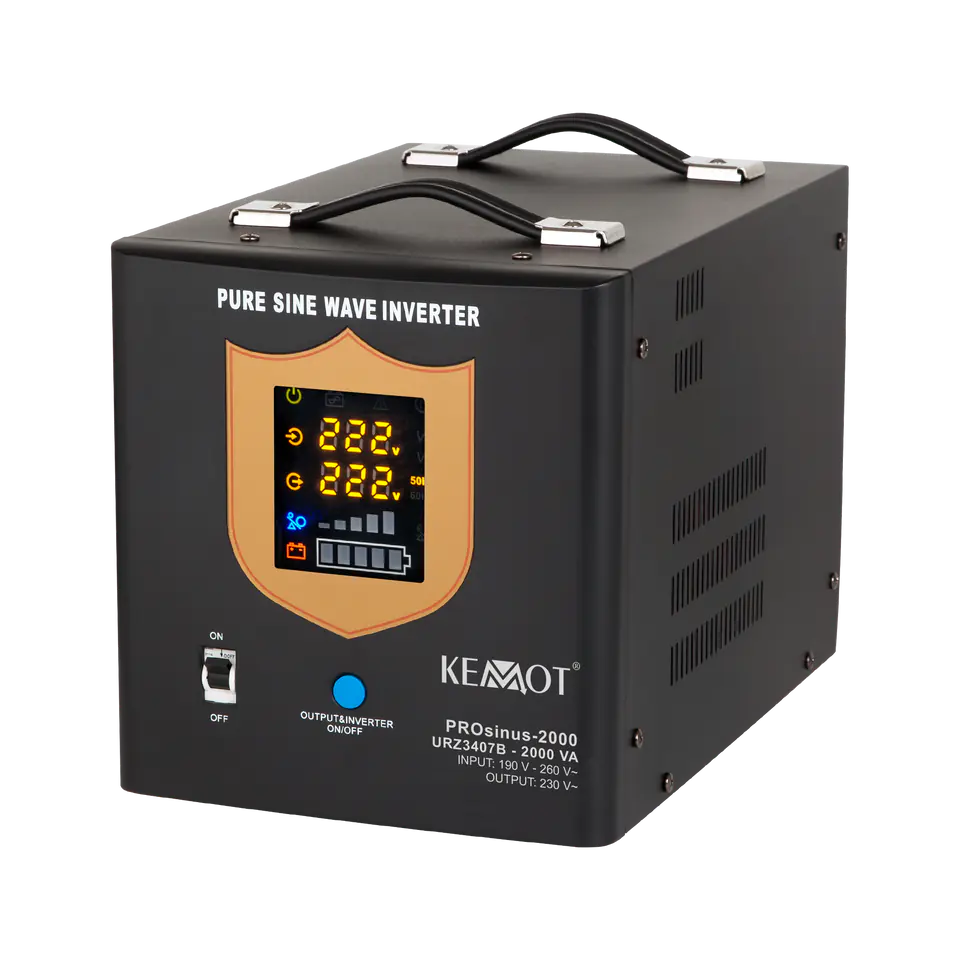

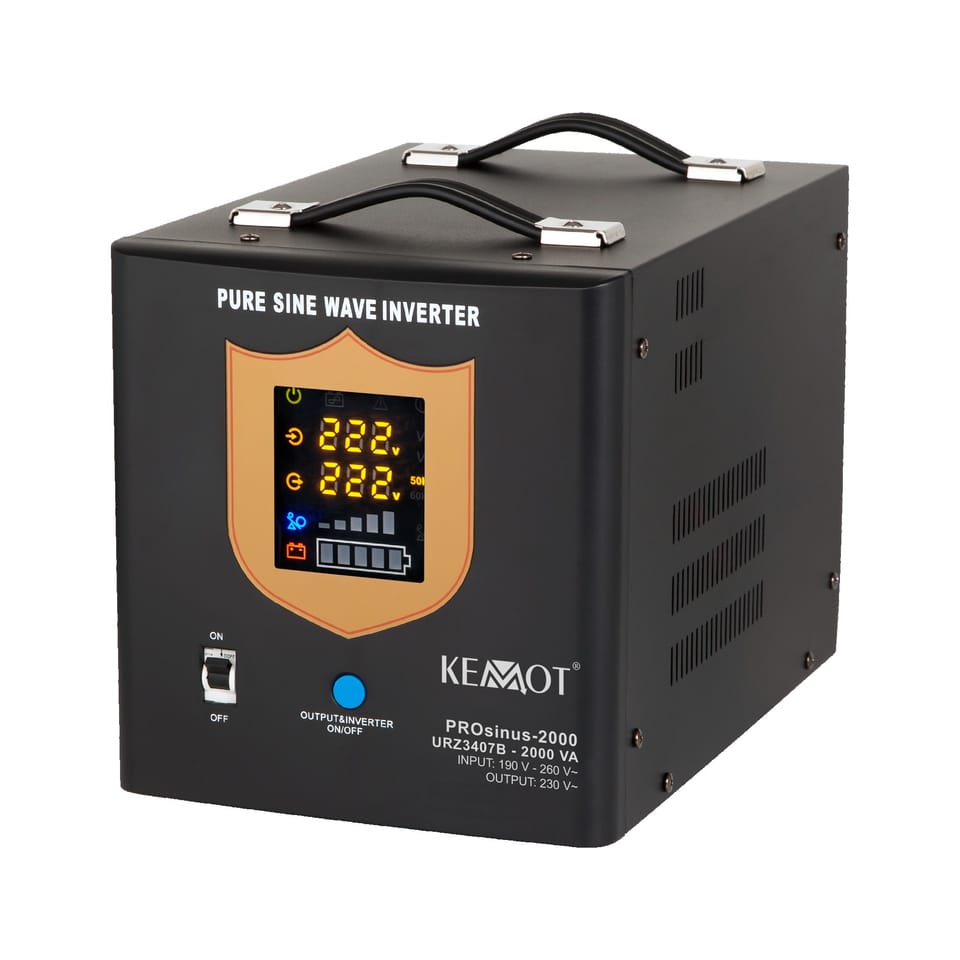

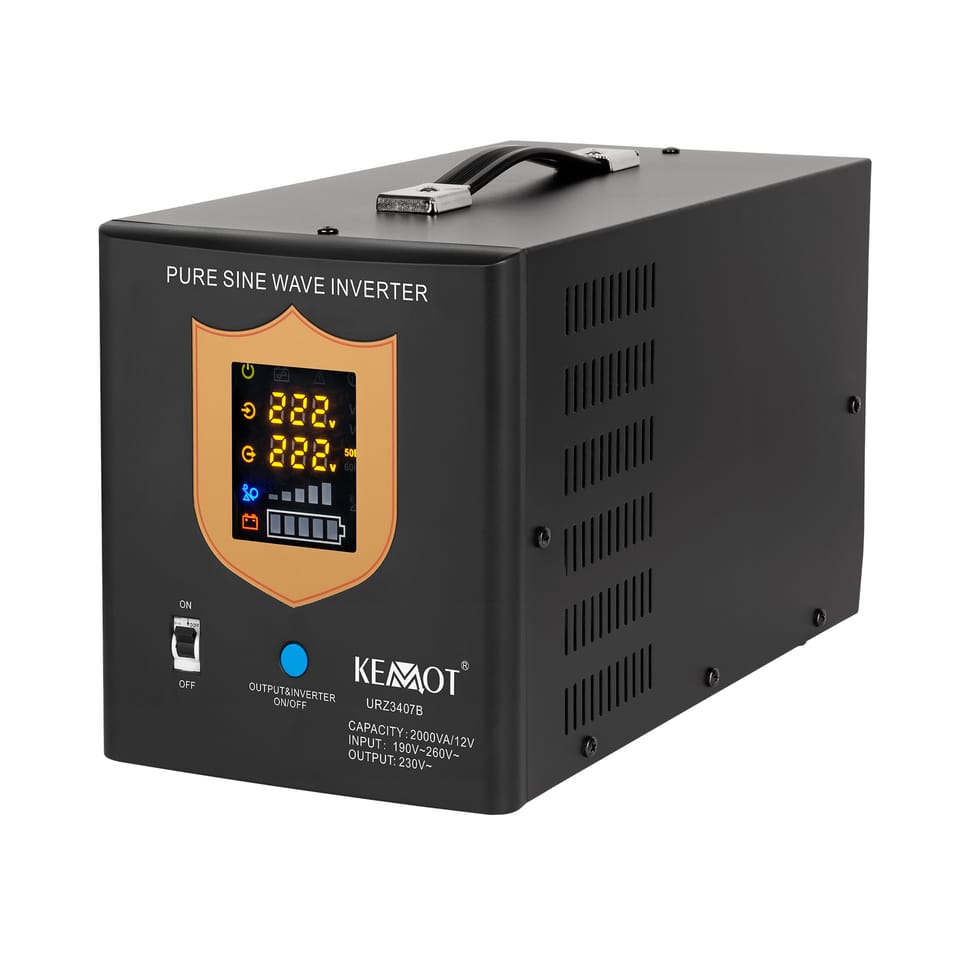

URZ3407B Emergency Power Source Kemot PROsinus-1200
The KEMOT PROsinus-1200 emergency power source is a drive with pure sine waveform and charging function
it is designed for AC voltage supply of receivers with a rated voltage of 230 VAC and power up to 1200 W:

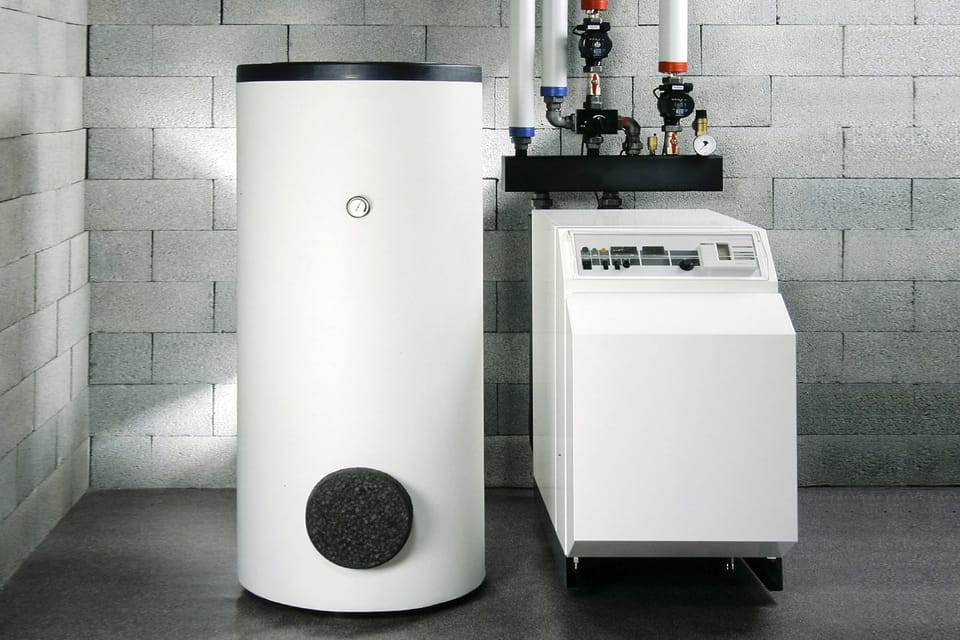

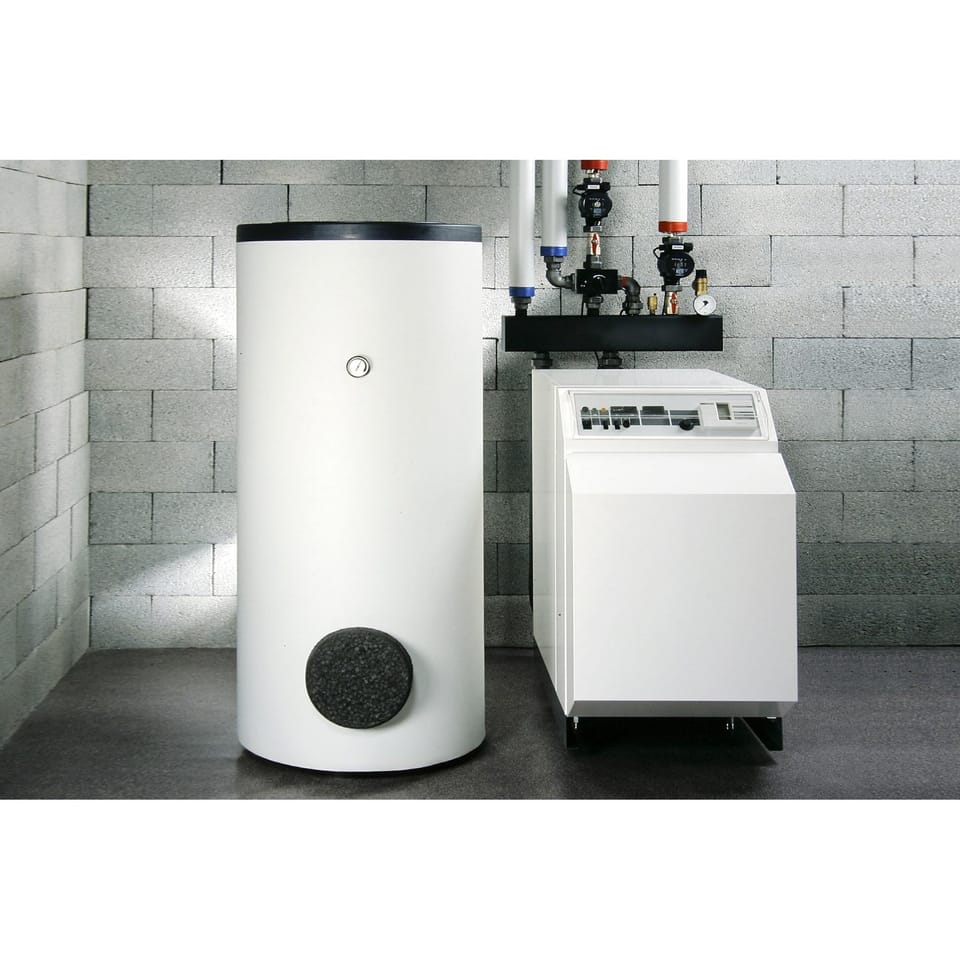

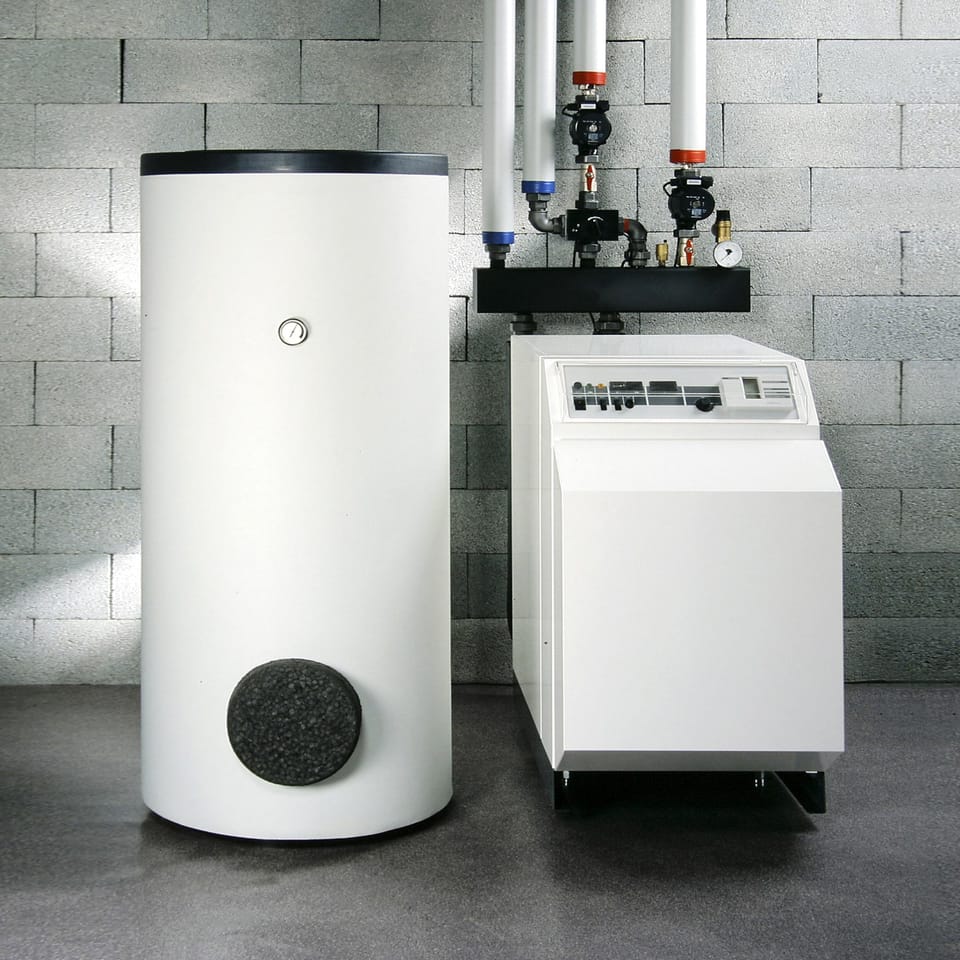

- Central heating pumps
- Induction pumps
- Pumps in fireplace installations
- Installation automation equipment using heat convectors
- Other devices with a power supply of up to 1200 W

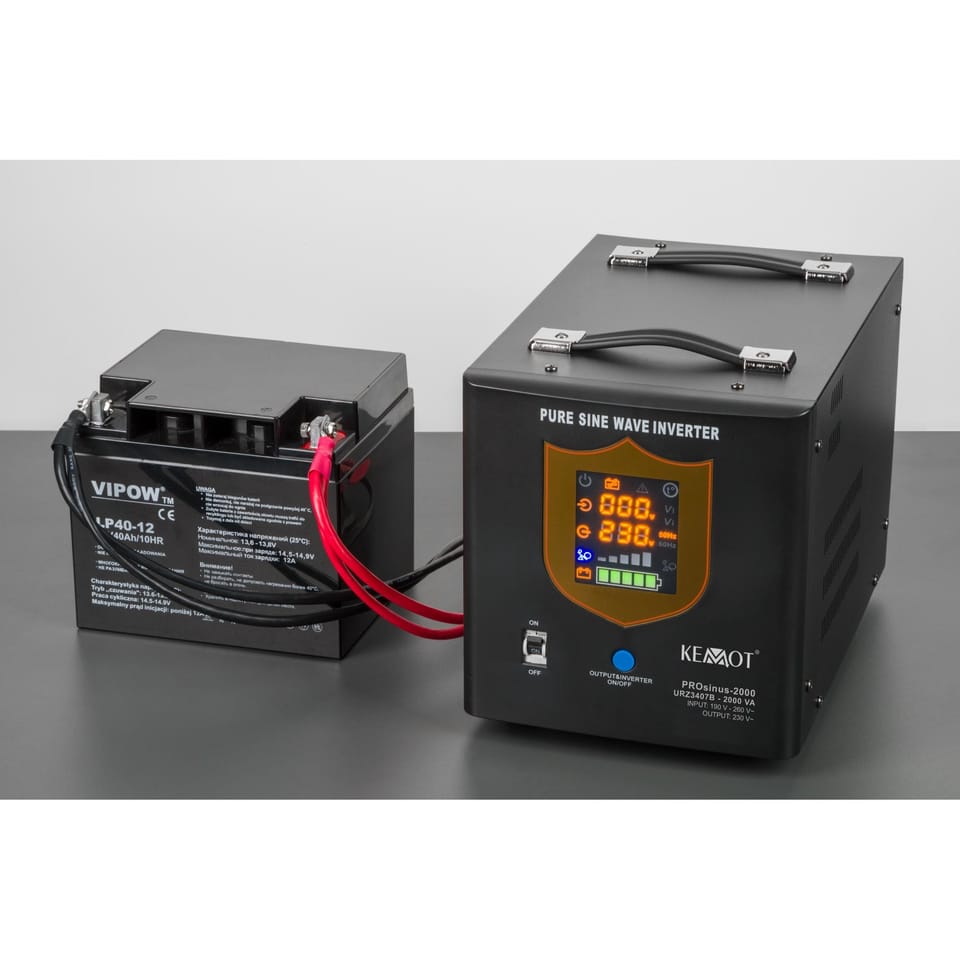

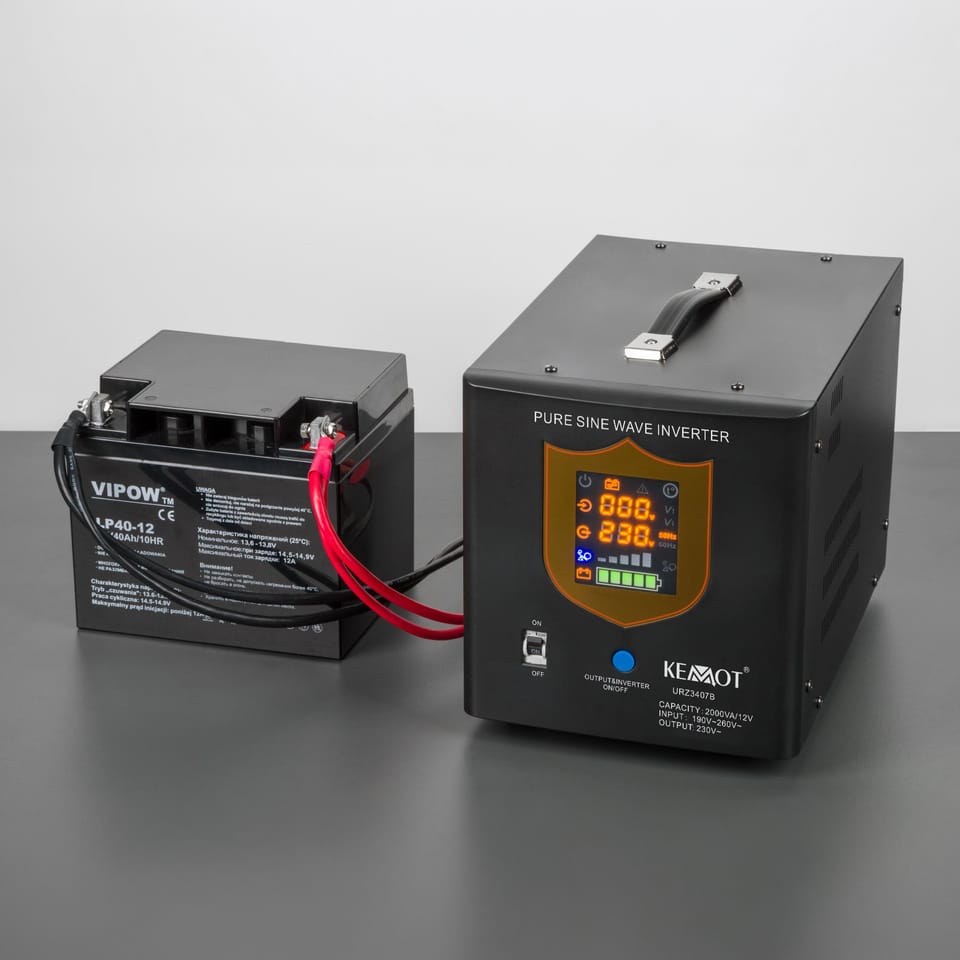

Due to the PURE SINUSOIDAL course of the output voltage (supplying the receivers), the device ensures stable operation of the receivers and no effect of overheating of induction receivers such as pumps or fans. Together with the 12V battery, it is a complete 230 VAC guaranteed power supply device. The unit is equipped with a battery protection system against overload, short circuit, overvoltage, too high or too low voltage and overheating.

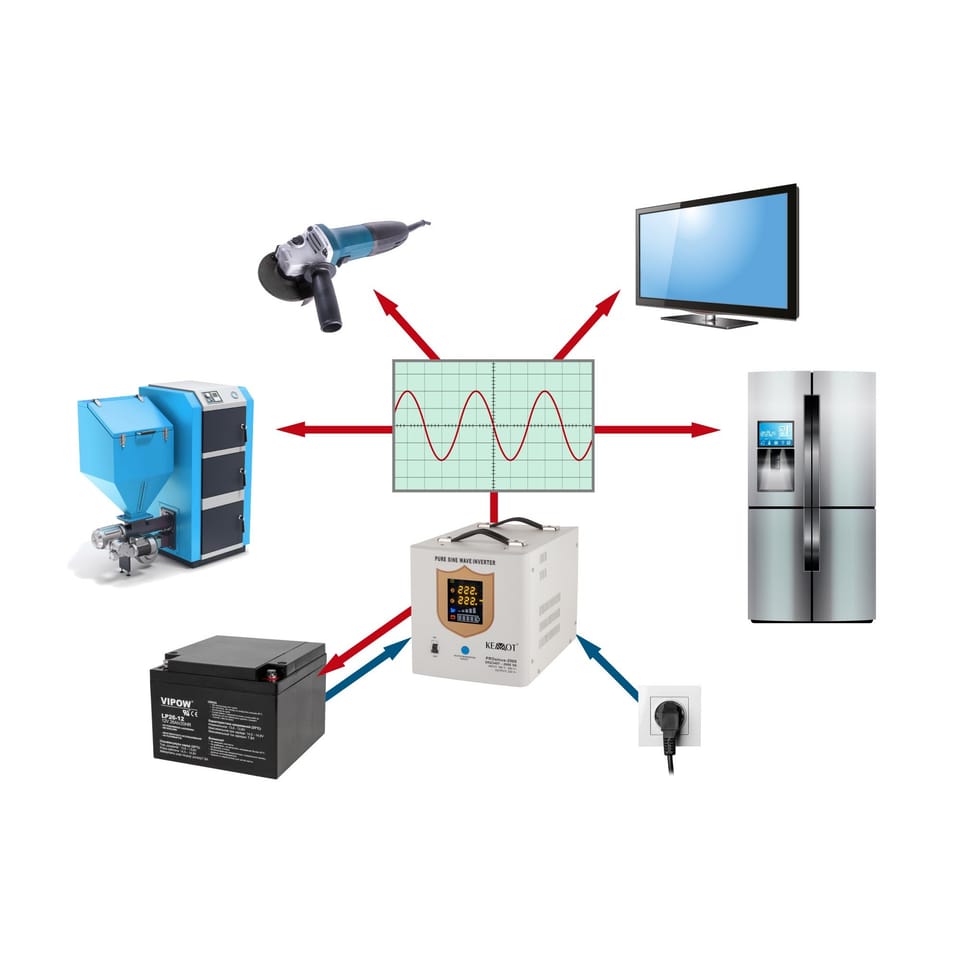

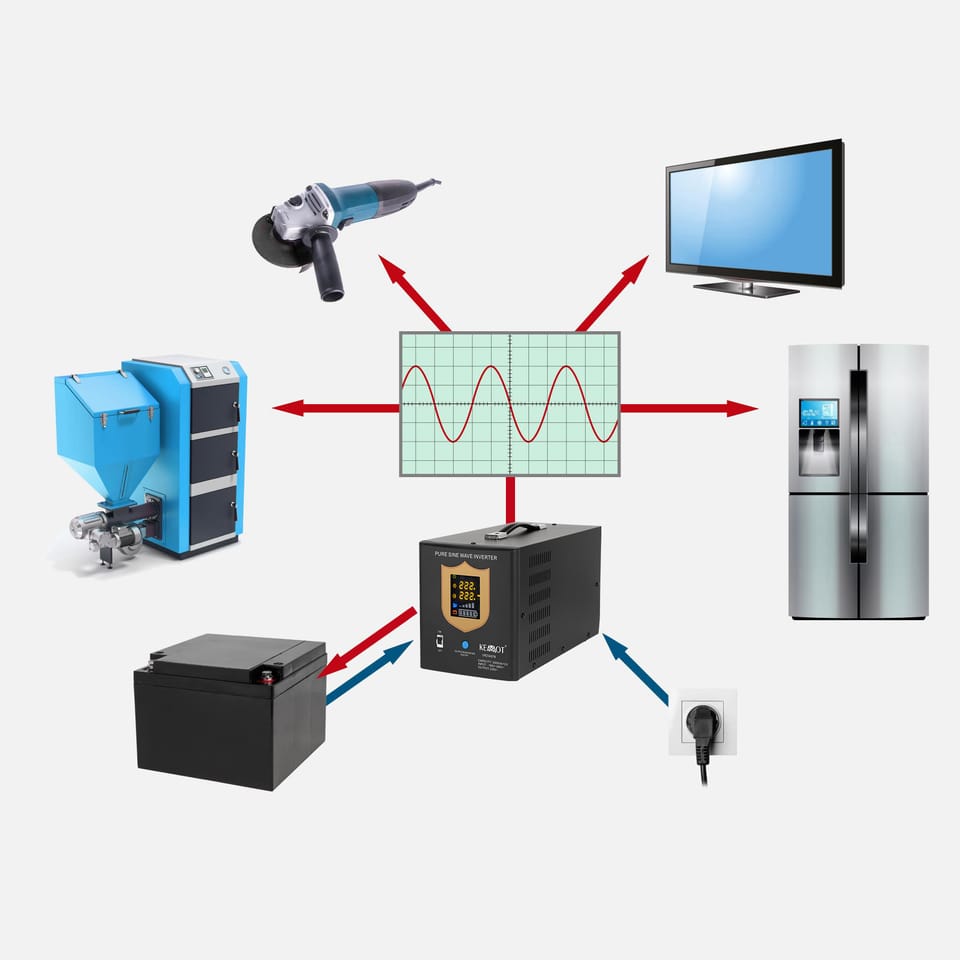

The device can work in three modes:
- As an emergency power source with charging function - converts the DC voltage of 12V DC supplied from the external battery to the alternating voltage of 230V AC and recharges the external battery.
- As a rectifier - recharges the external battery (the device must be connected to a 230 V AC mains supply)
- As a converter - converts 12V DC voltage fed from an external battery to 230 V AC AC

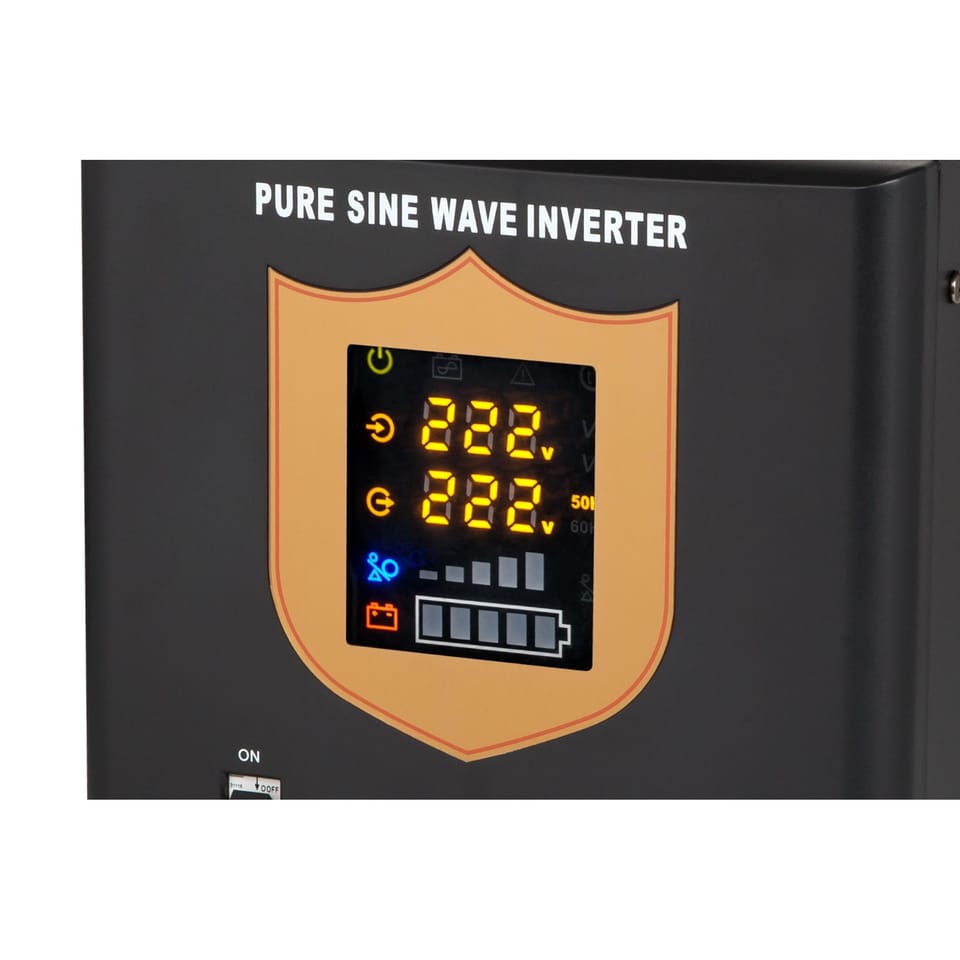

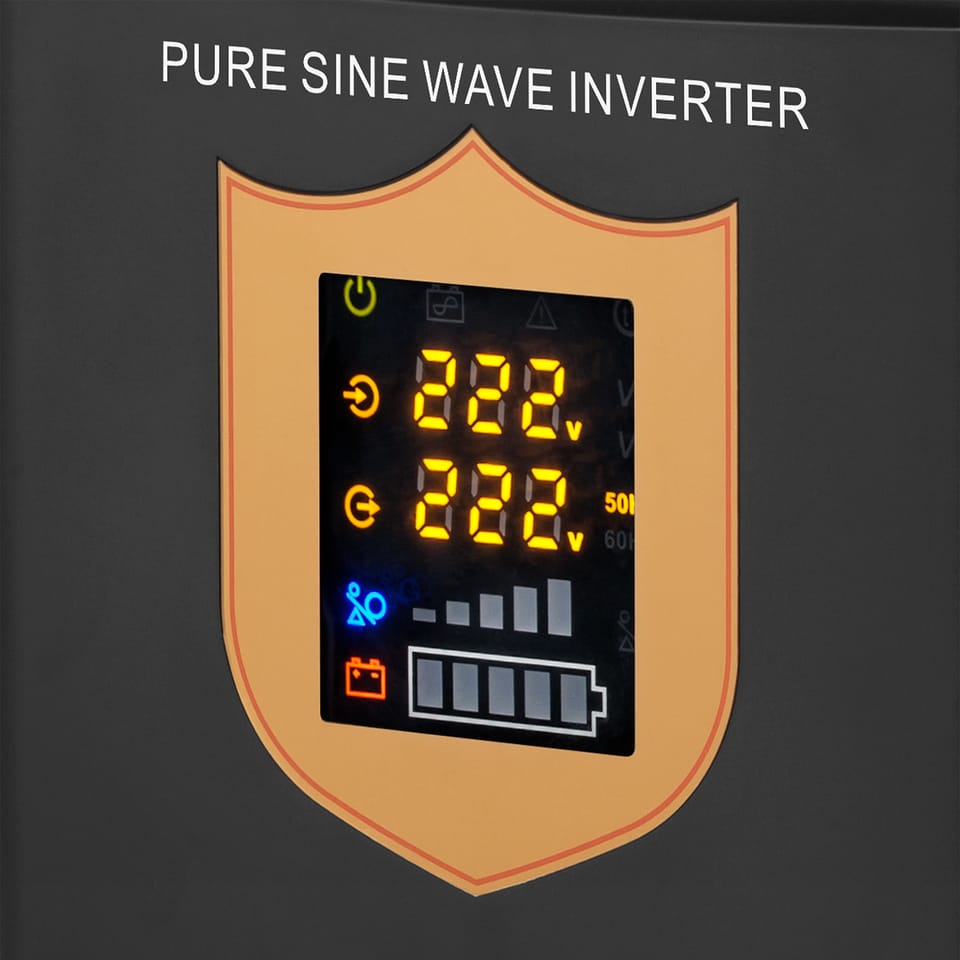

The device is equipped with a clear and clear LED display with indicators of the current status:
- Seeding
- Input voltage
- Output voltage and frequency
- Load level
- Battery level
Specification:
- Rated power: 1200W
- Battery type: 12 V DC
- Maximum battery voltage: 15 V DC
- Input Voltage Range: 180~275V AC
- Input Frequency: 45~60Hz
- Output Voltage Range: 230V AC +/-8%
- Output frequency: 50/60 Hz +/-0.5 Hz
- Output voltage shape: pure sine wave
- Output efficiency >=85% (DC to AC)
- Battery charging current: max. 10 A
- Switching time: <=4 ms
- Protection: against overload, short circuit, too high or too low voltage
- Operating temperature: 0-40°C
- Permissible air humidity 10 - 90%
- Weight: 11.3 kg
- Size: 34x22x23 cm
