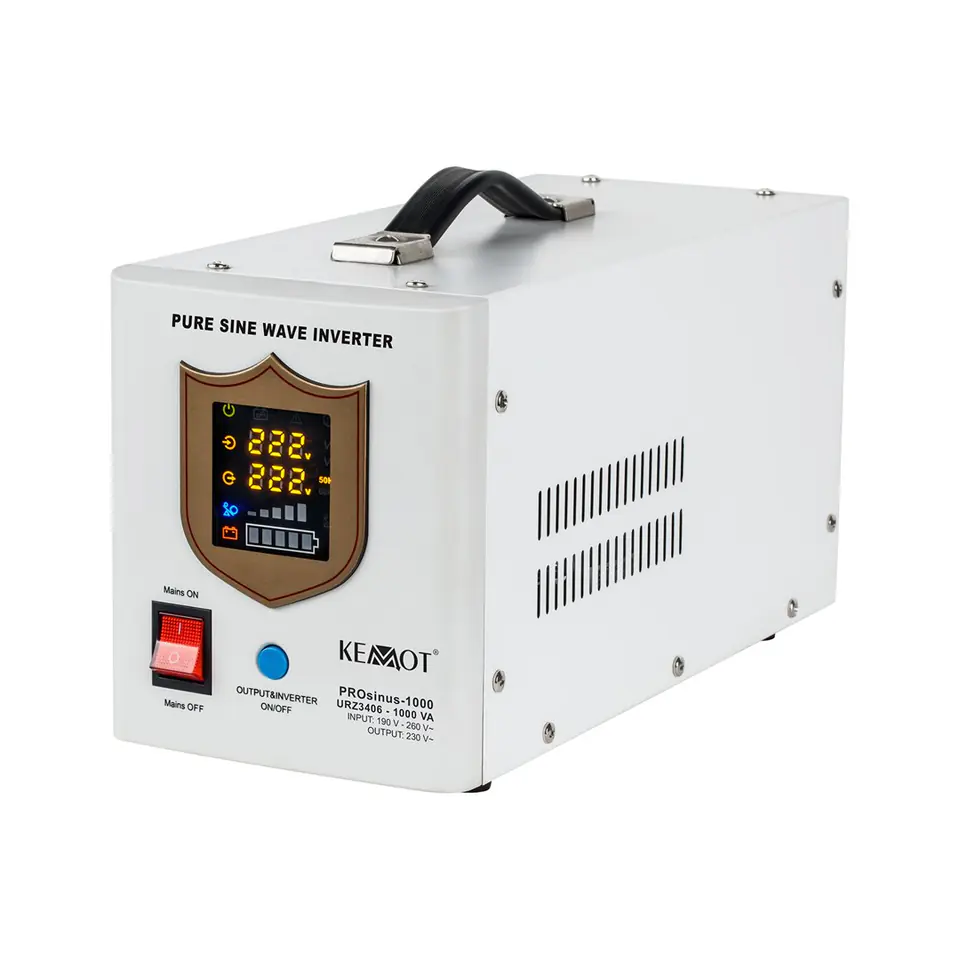

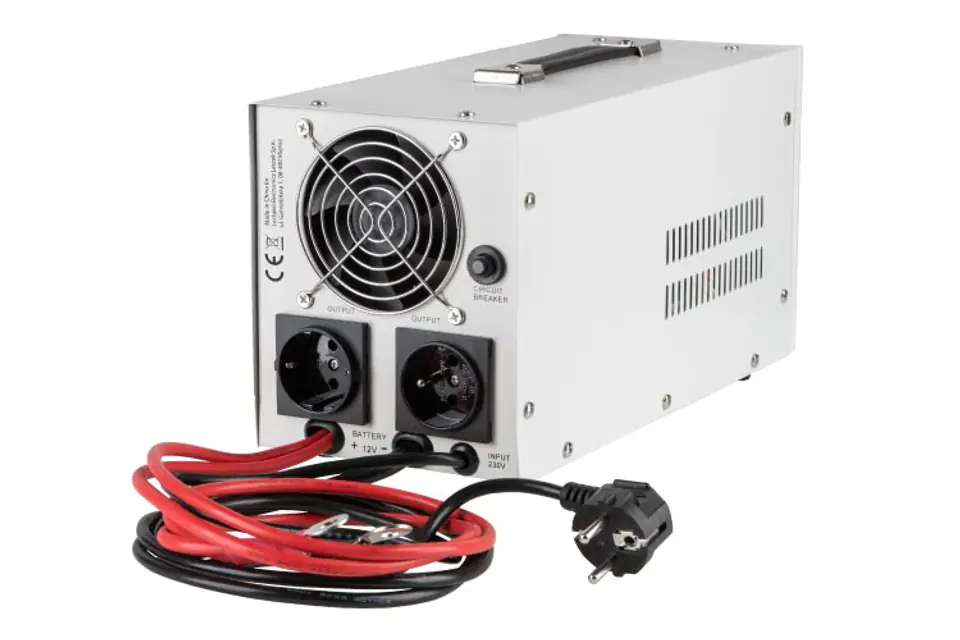

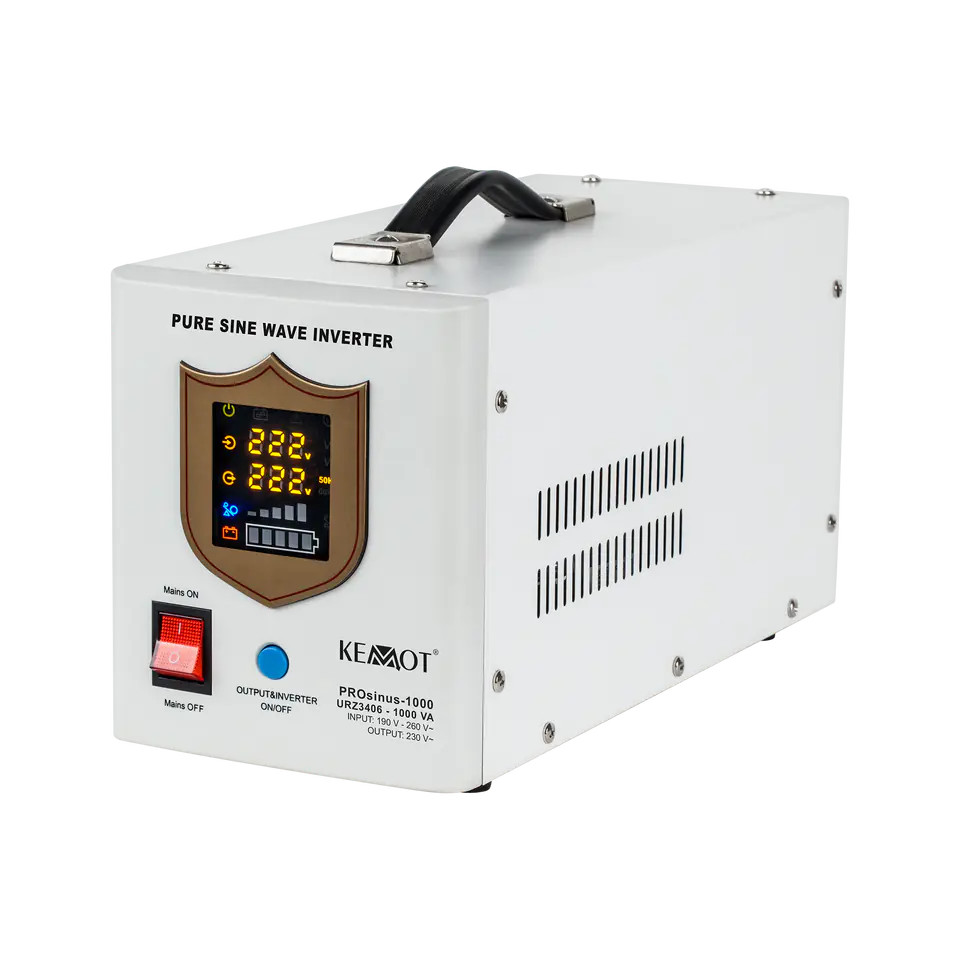

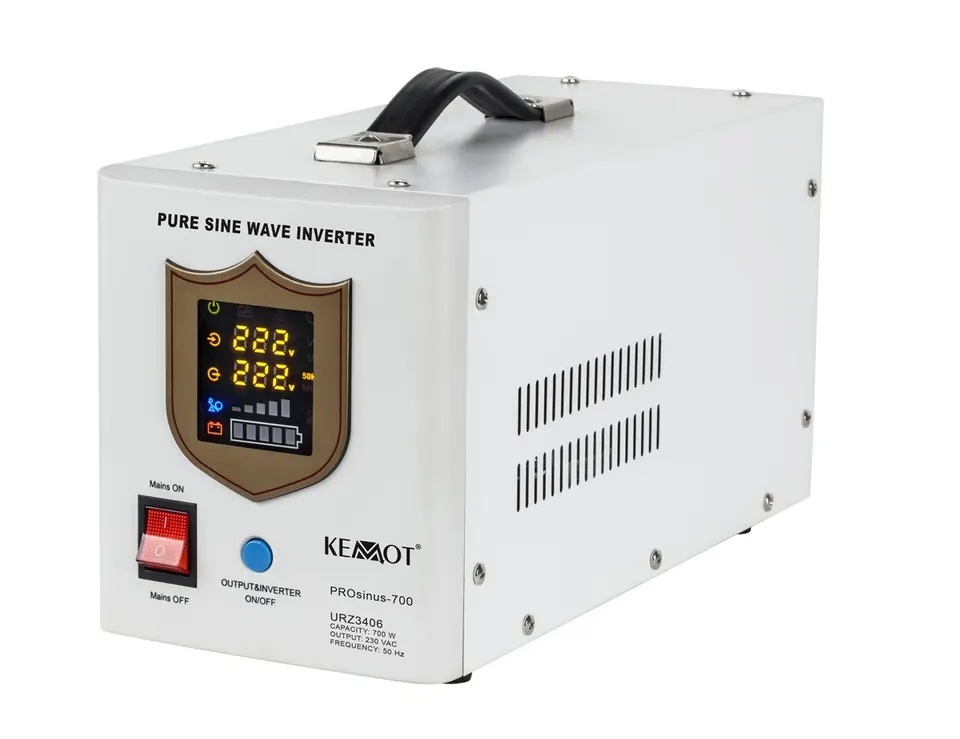

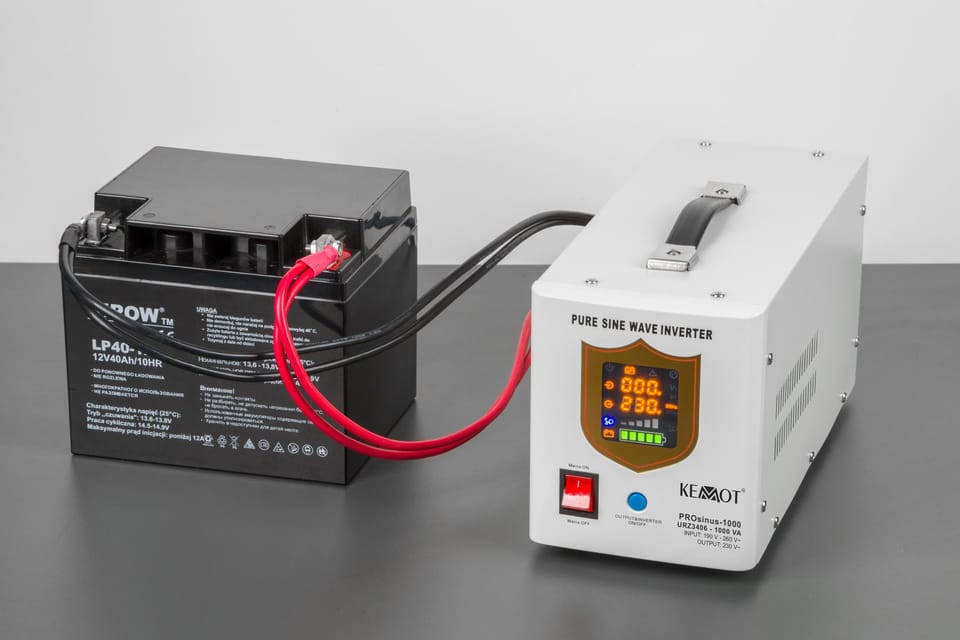

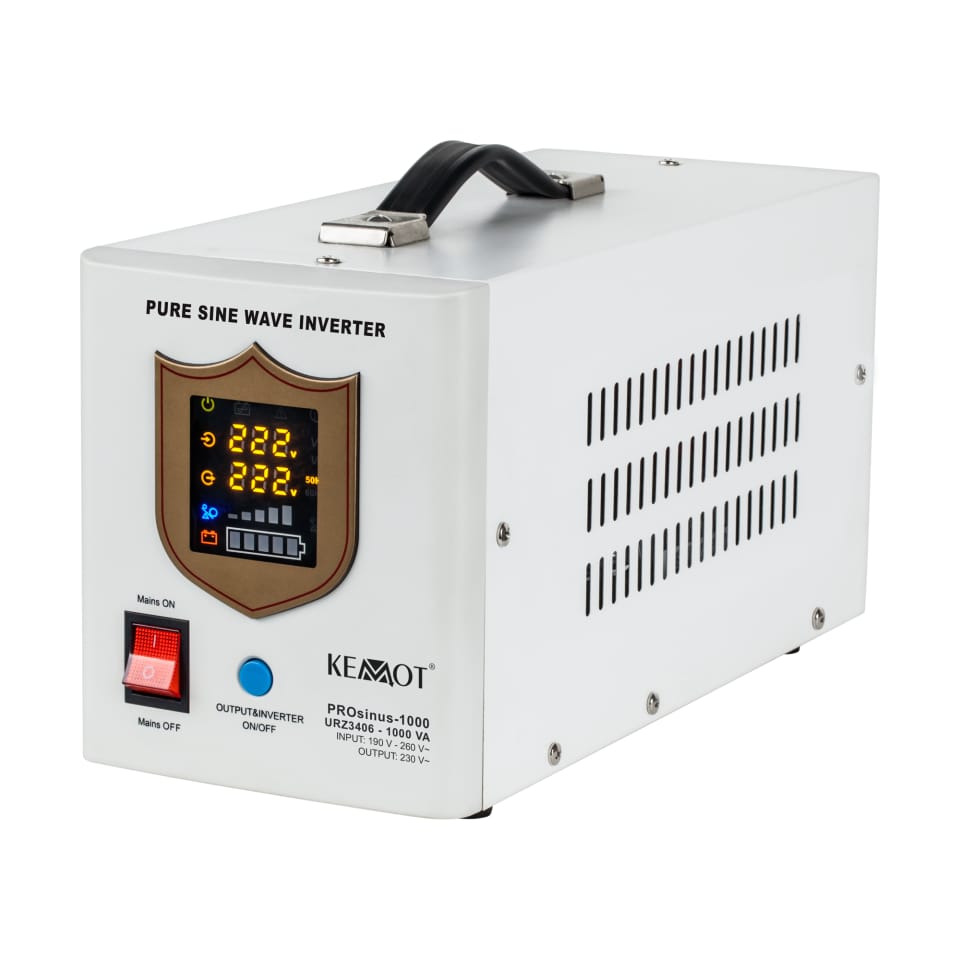

URZ3406 Emergency power source Kemot PROsinus-700
The KEMOT PROsinus-700 emergency power source is a drive with pure sine waveform and charging function.
It is designed to supply AC voltage to receivers with a rated voltage of 230 VAC and power up to 700W m.in:

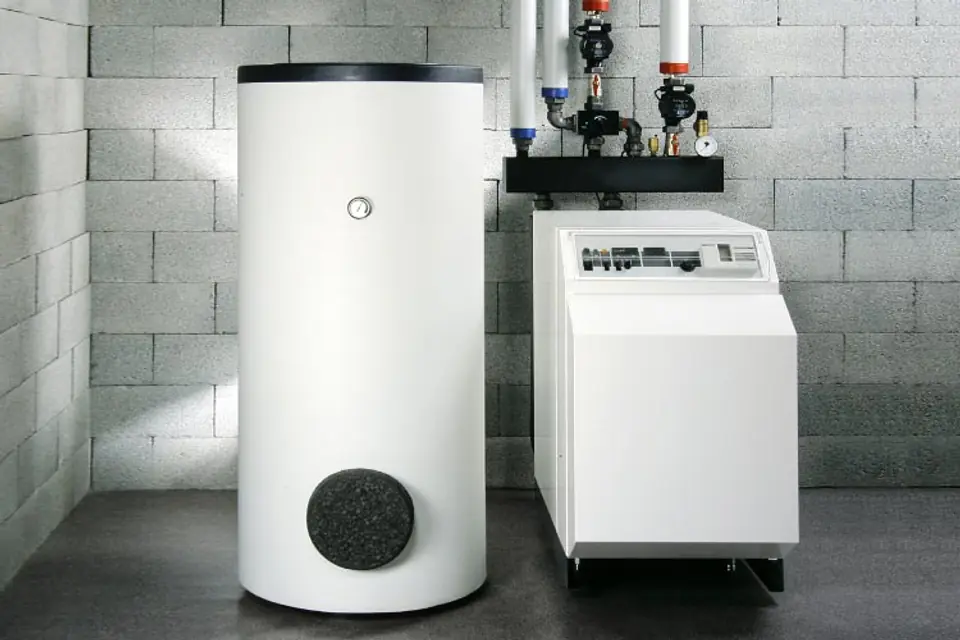

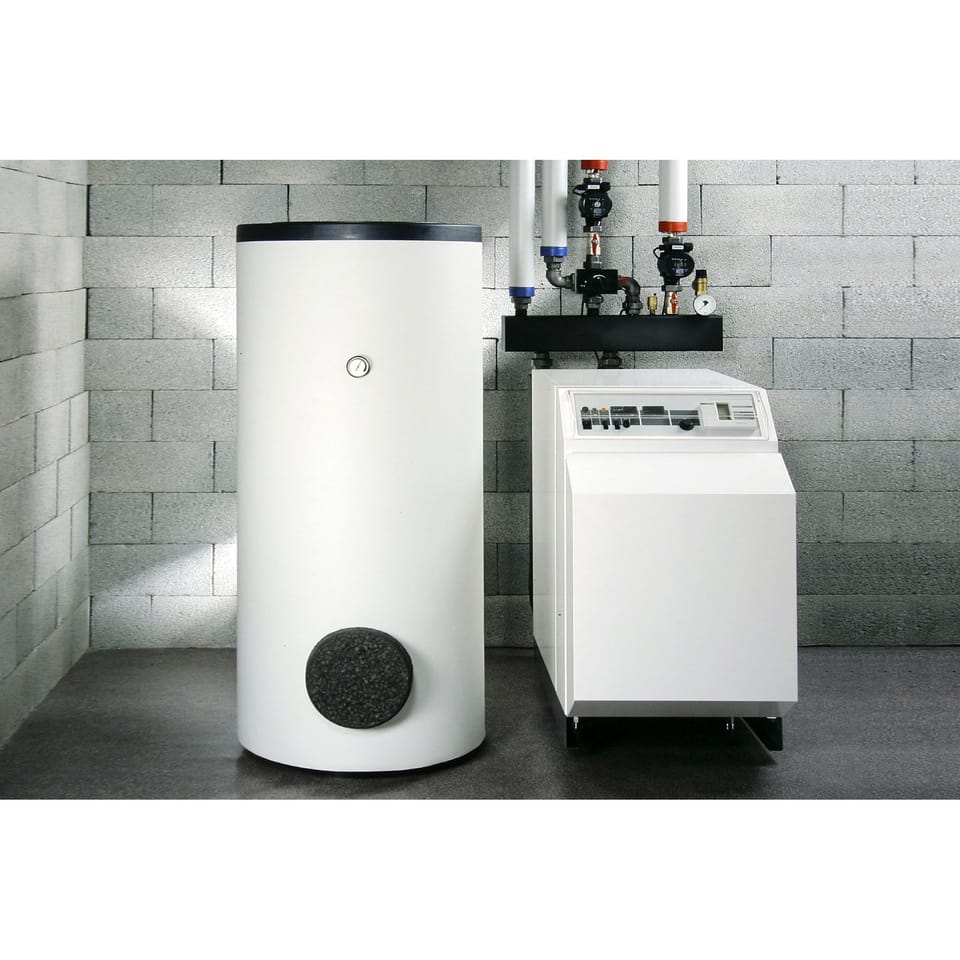

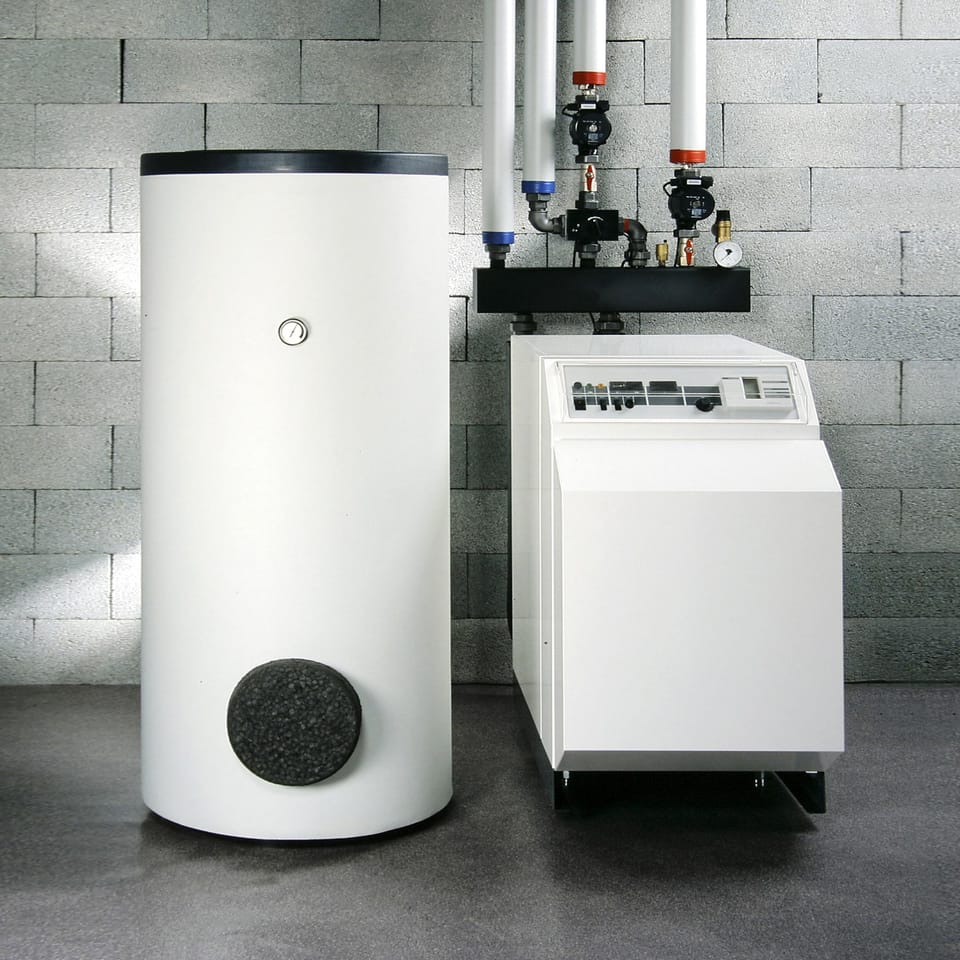

- Central heating pumps
- Induction pumps
- Pumps in fireplace installations
- Installation automation equipment using heat convectors
- Other devices with a power supply of up to 700w (900w at the peak)

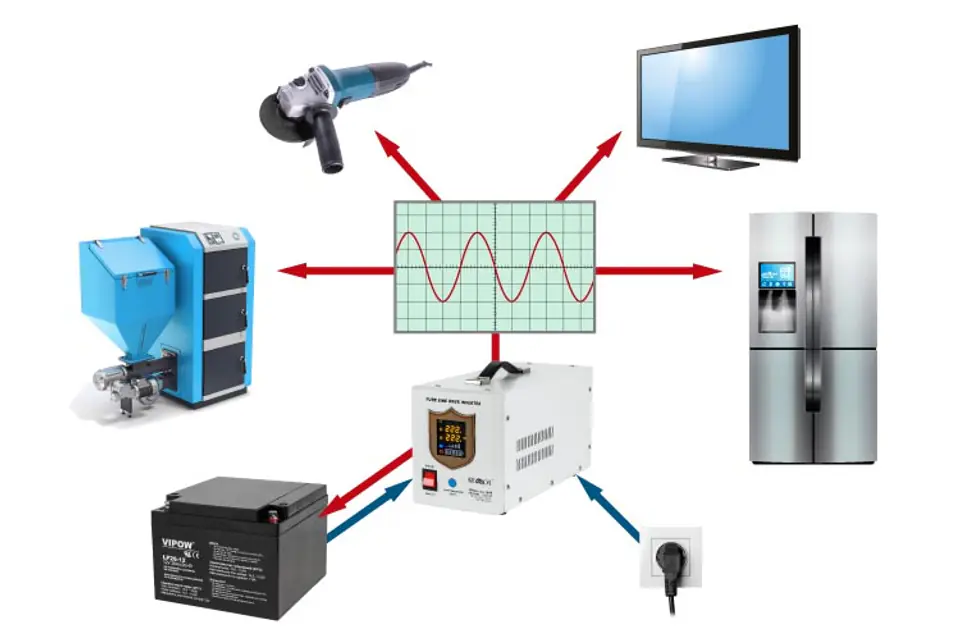

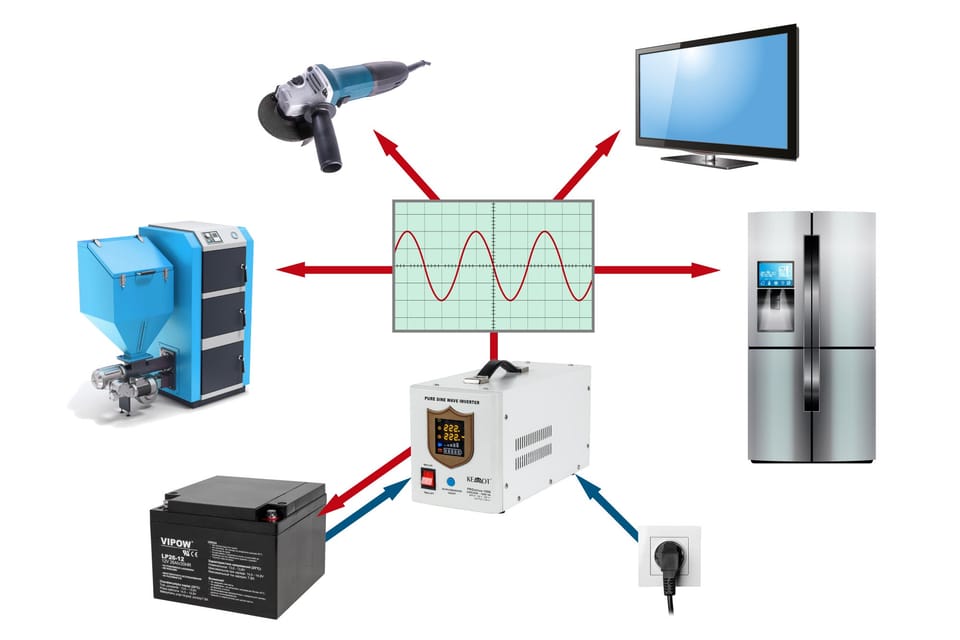

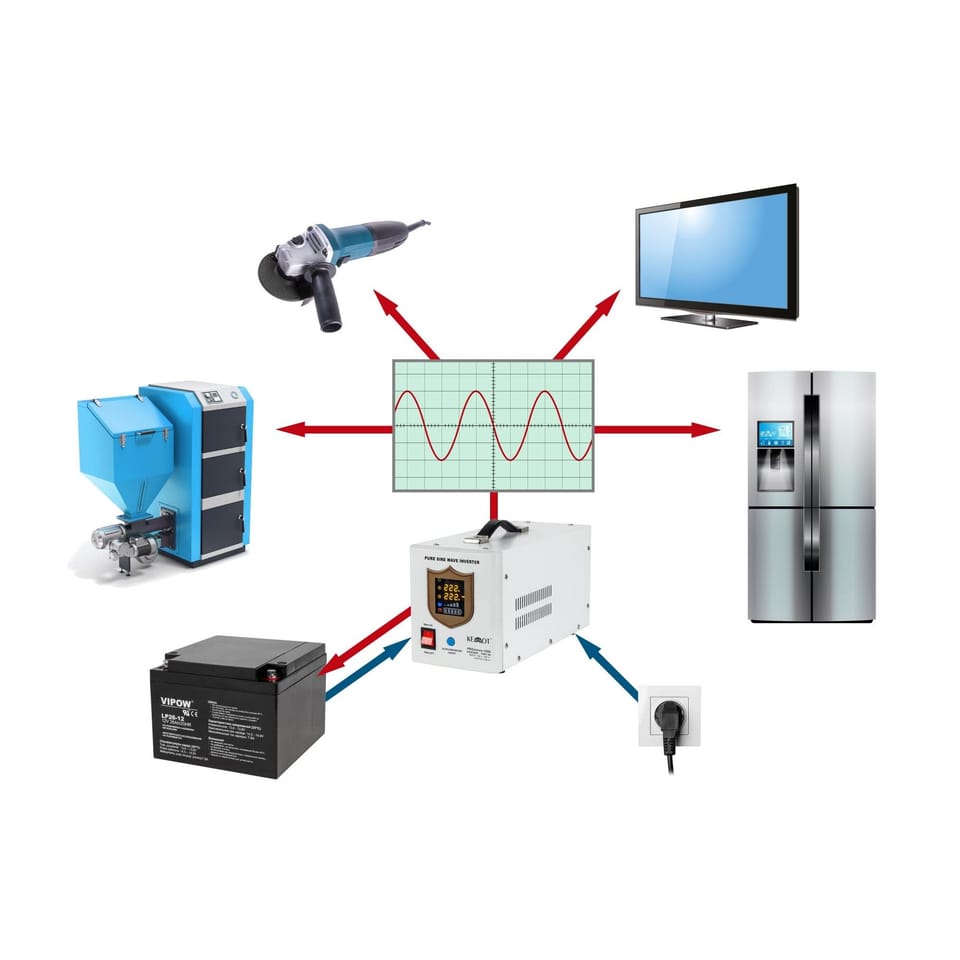

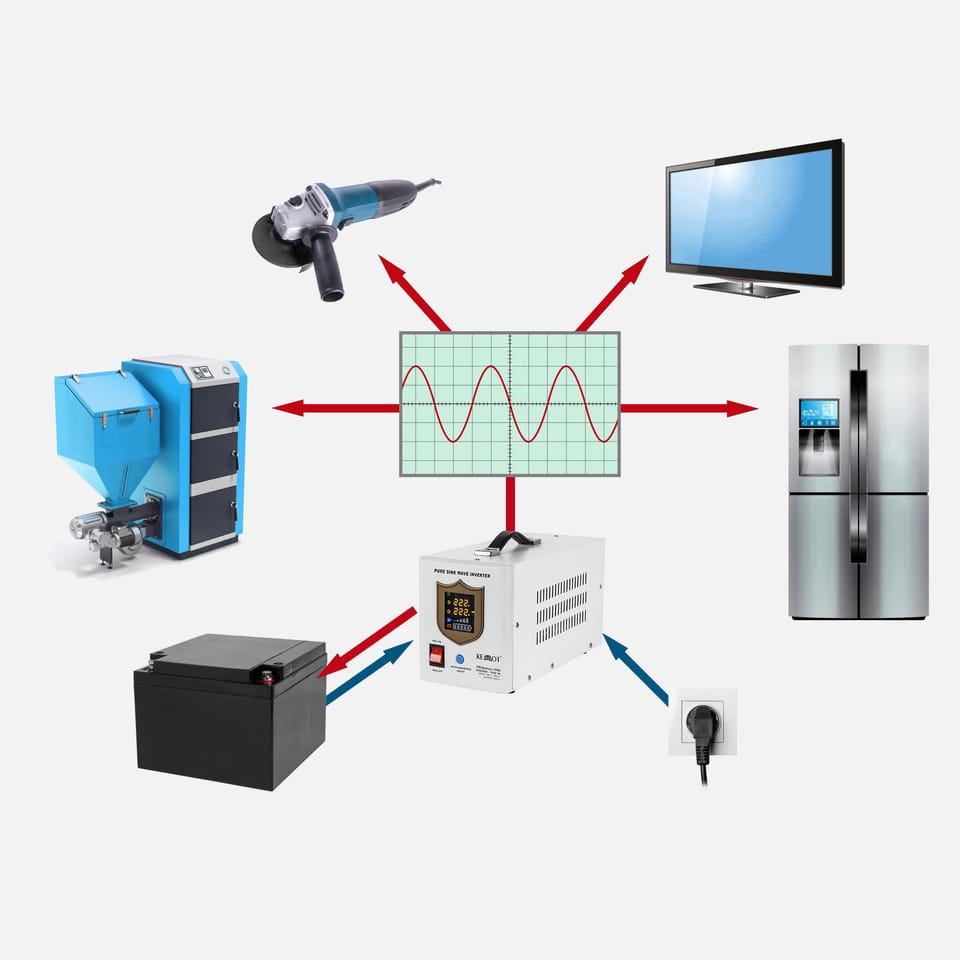

The device can work in three modes:

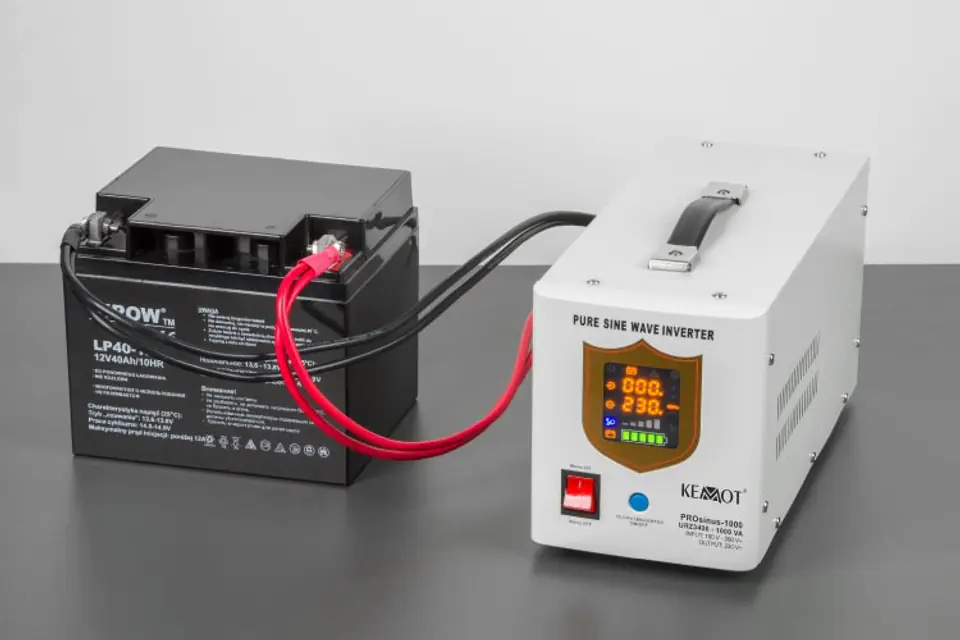

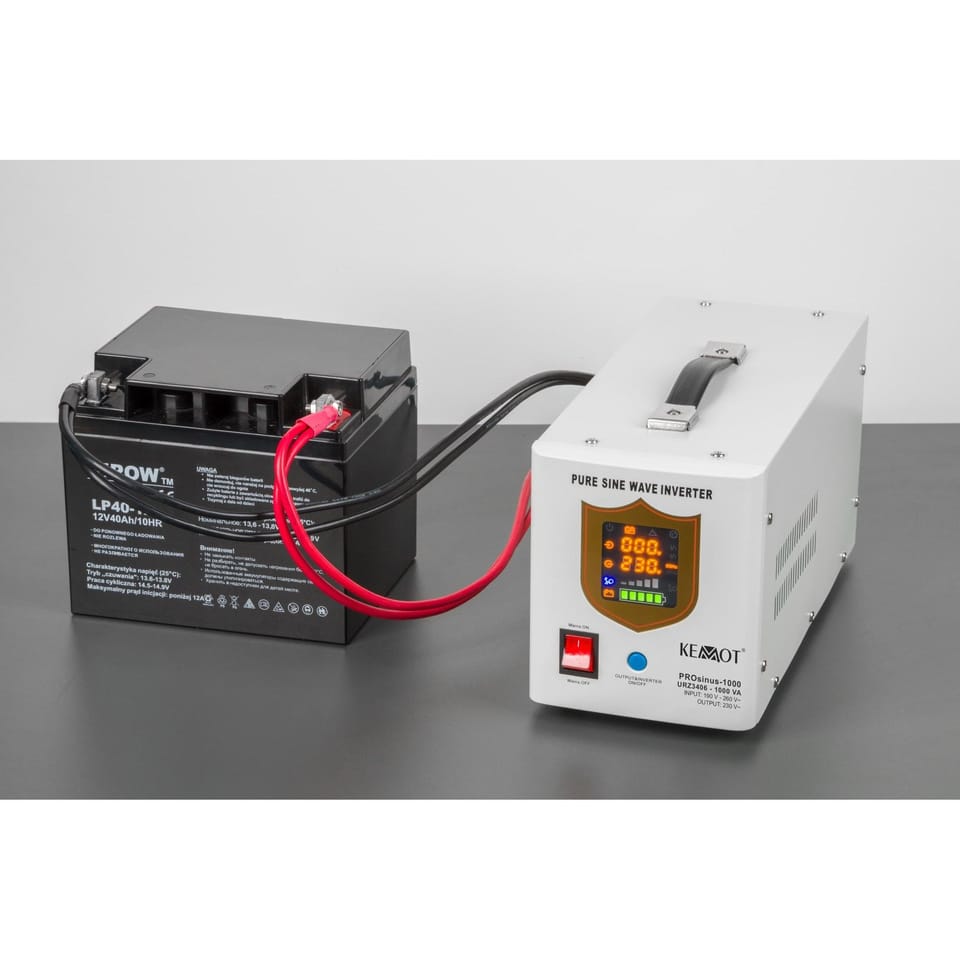

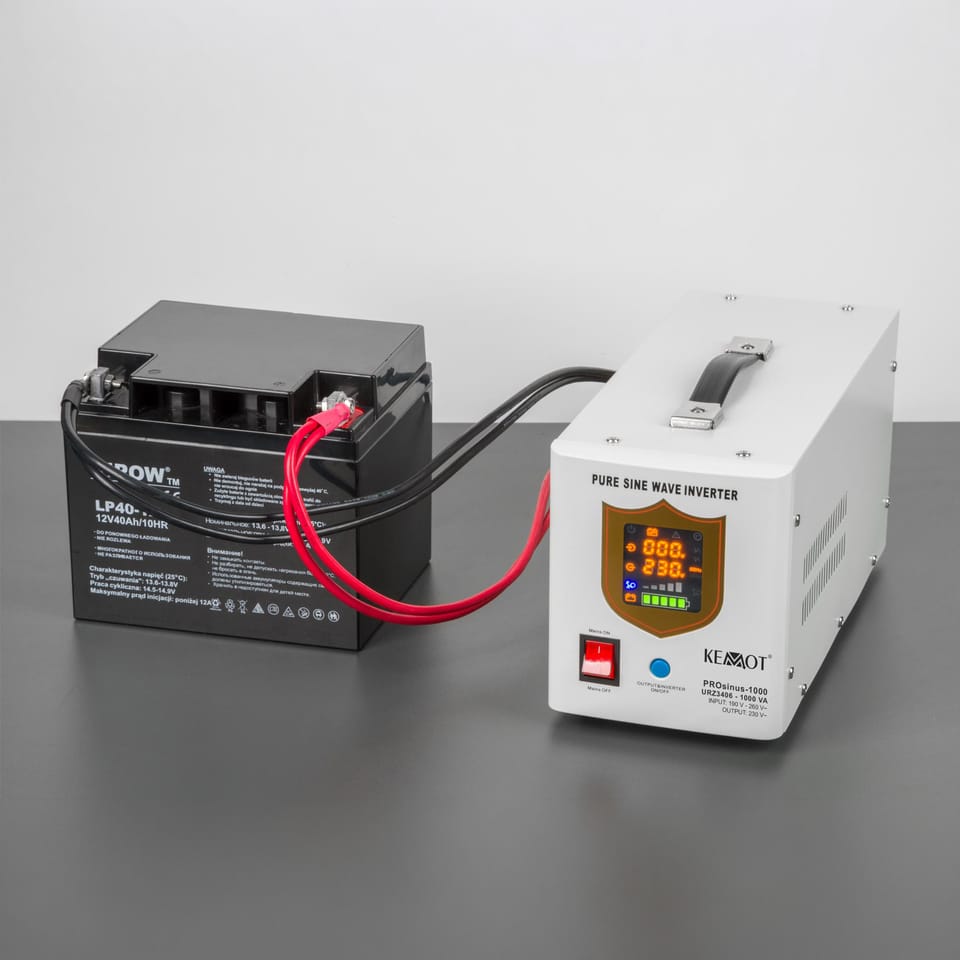

- As an emergency power source with charging function - converts 12V DC DC voltage fed from an external battery to voltage
- variable 230V AC and recharges the external battery.
- As a rectifier - recharges the external battery (the device must be connected to 230V AC mains power supply)
- As a converter - converts 12V DC voltage fed from an external battery to 230V AC ac

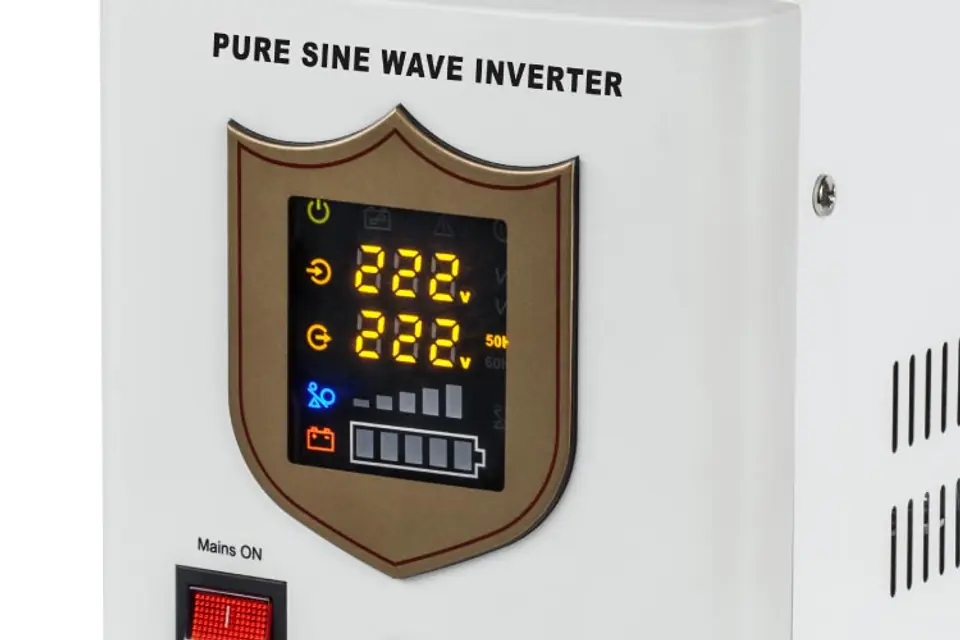

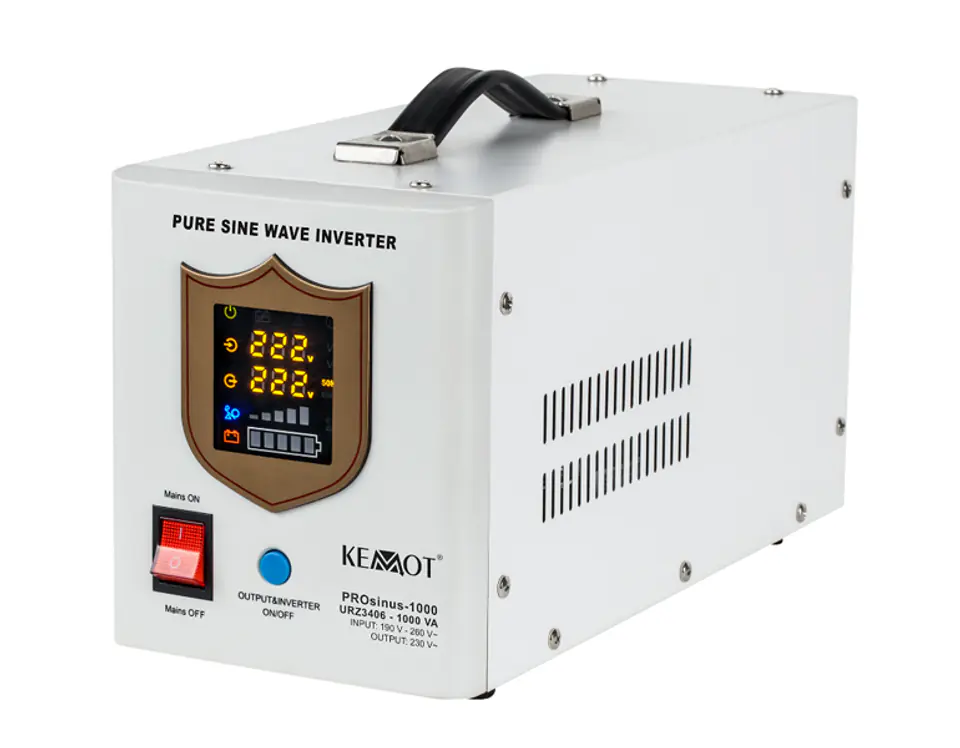

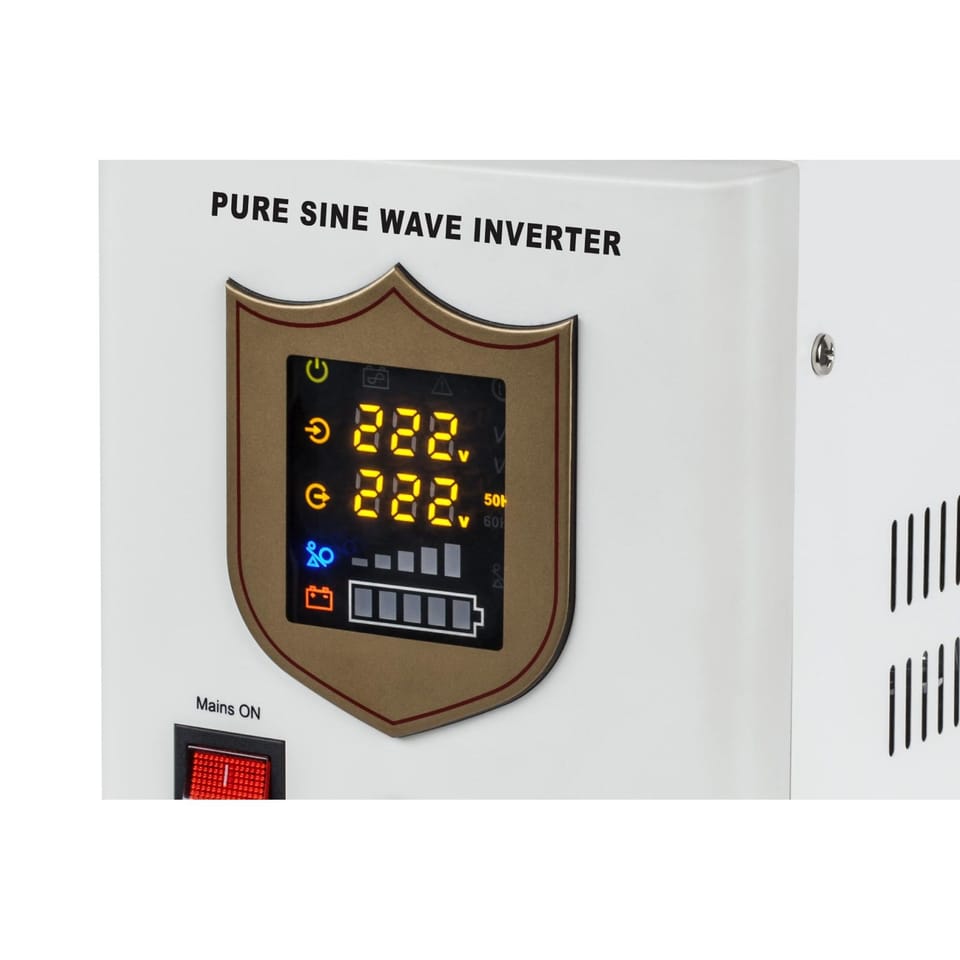

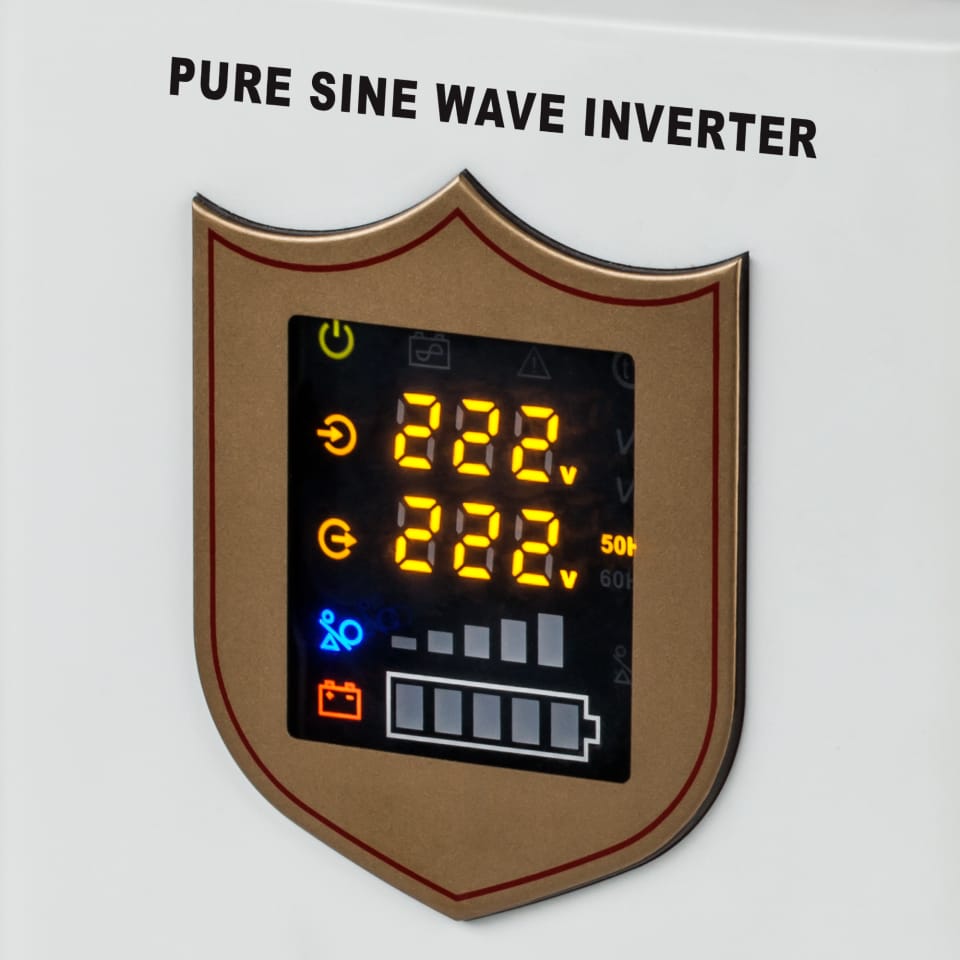

The device is equipped with a clear and clear LED display with indicators of the current Status
Power:
- Input voltage
- Output voltage and frequency
- Load level
- Battery level
Specification:
- Rated power: 700W
- Battery Type: 12V DC
- Maximum battery voltage: 15V DC
- Input Voltage Range: 180~275V AC
- Input Frequency: 45~60Hz
- Output Voltage Range: 230V AC +/-8%
- Output frequency: 50/60Hz +/-0.5Hz
- Output voltage shape: pure sine wave
- Output efficiency >=85% (DC to AC)
- Battery charging current: max. 10A
