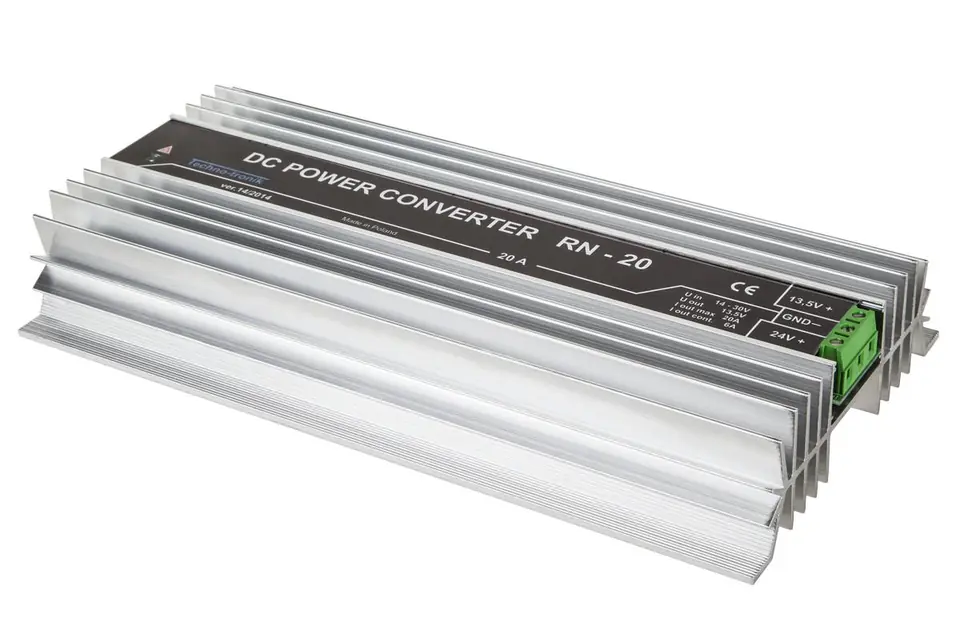

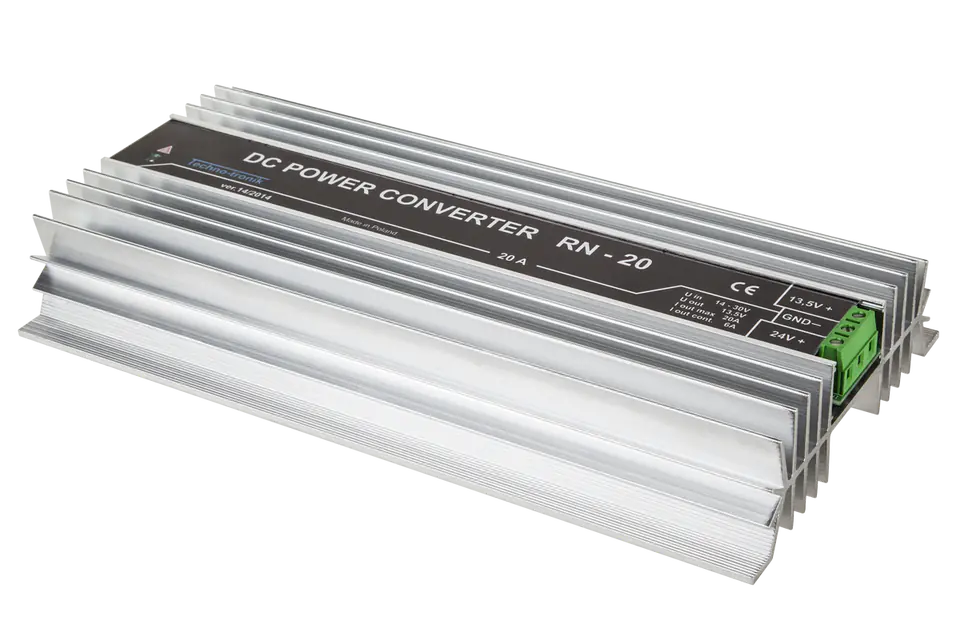

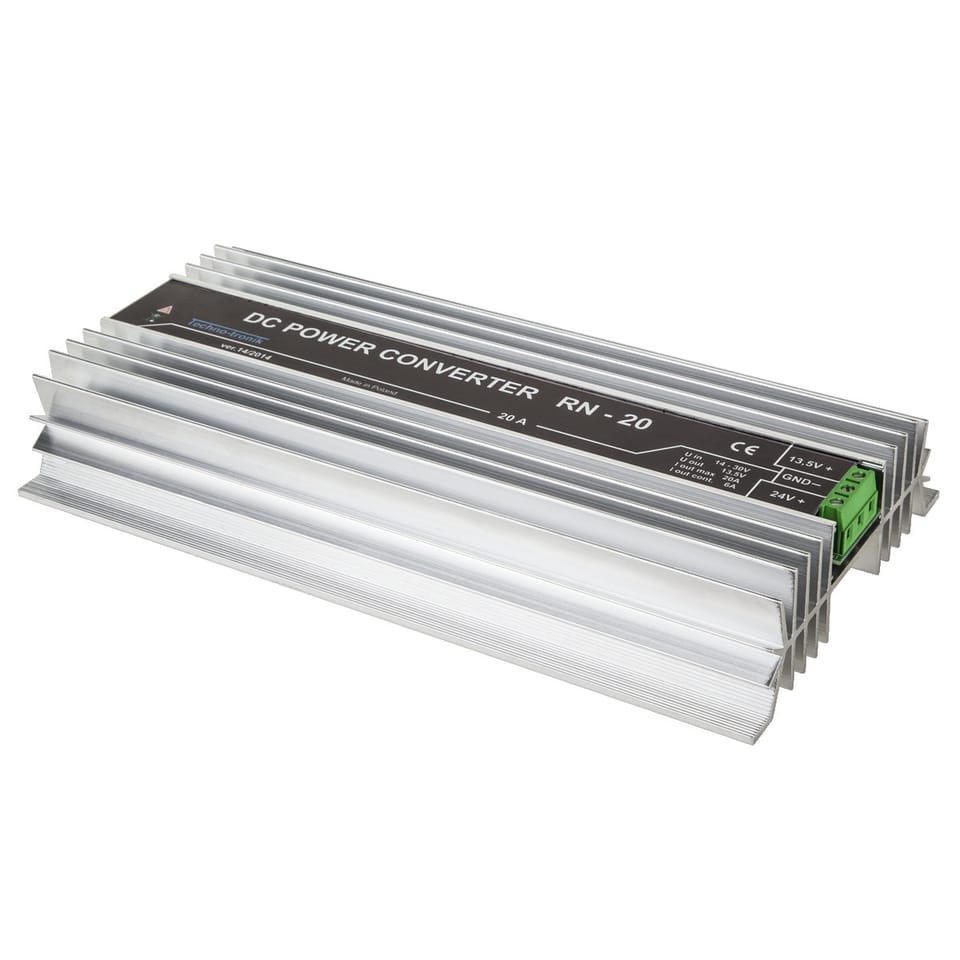

URZ0823 Voltage reducer RN-20 20A
Designed to lower the voltage found in trucks 24V, to a voltage of 12V. Used to power car radios, CB radios, vacuum cleaners, SAT equipment, refrigerators, etc.
Available in many voltage versions 5 - 20V
Technical data :
- Input voltage : 20-30V
- Output voltage : 13V ±1V
- Maximum output current
- Instantaneous < 2 min: 20A
- Maximum output current
- Continuous : 6A
- The reducer has protections: overload, short-circuit, overvoltage.
Dimensions:
- Length : 250 mm
- Width : 130 mm
- Height : 40 mm
