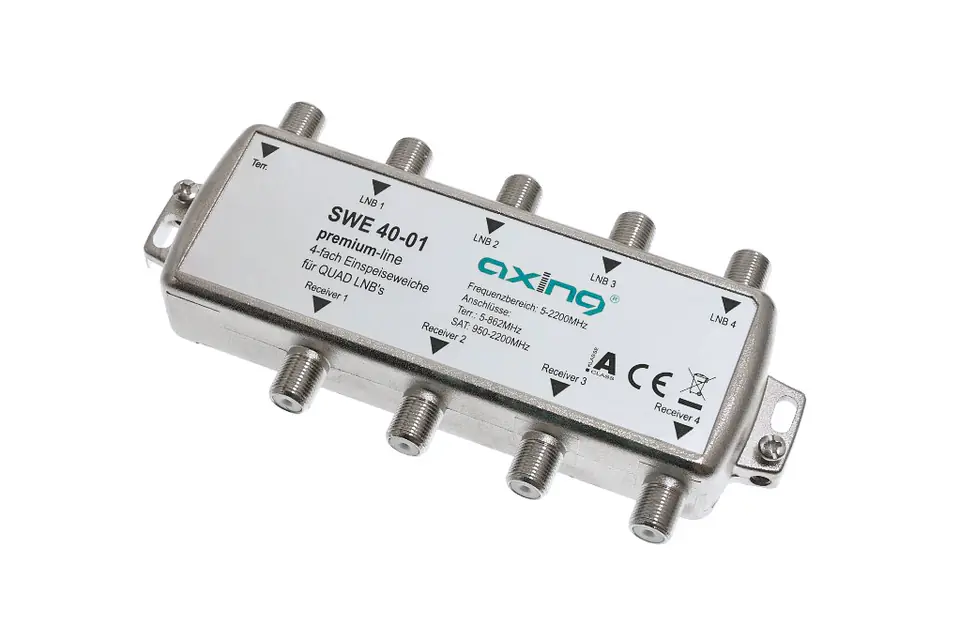

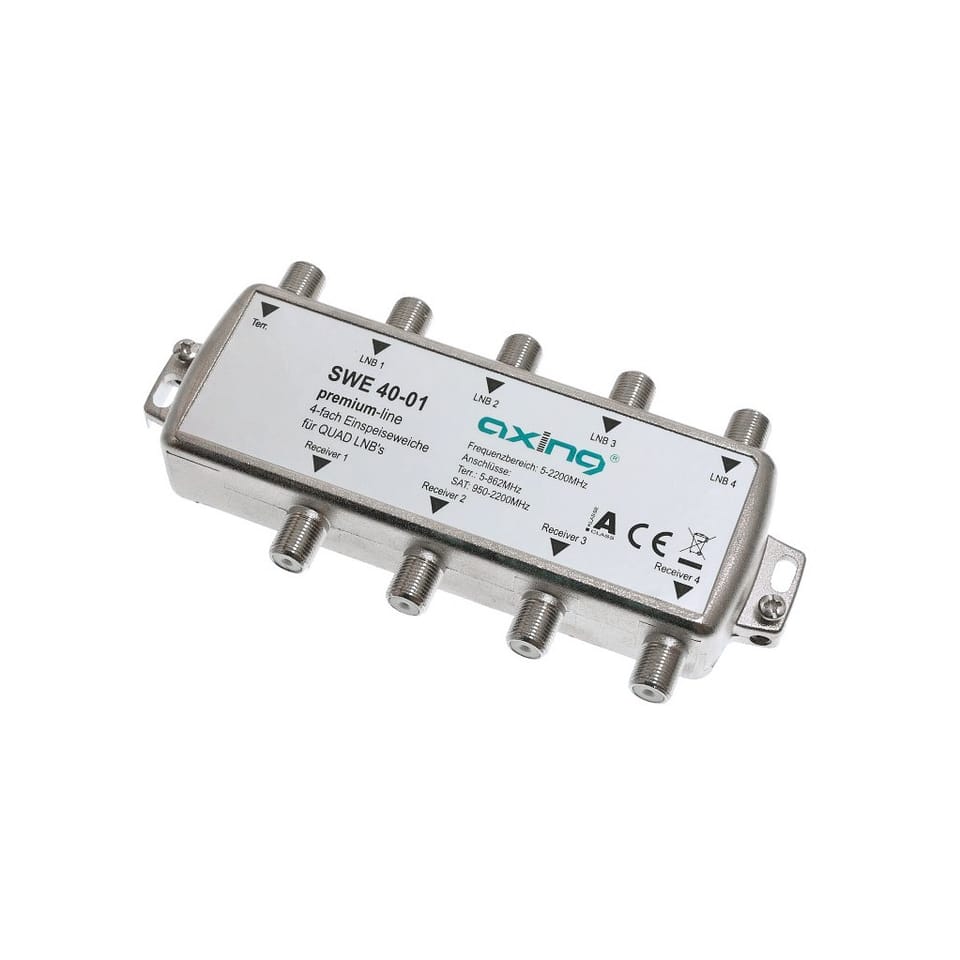

URZ0548 Ax Adder SWE 4-01
The SWE 40-01 crossover allows you to combine terrestrial TV signals (ter-frequency input in the range of 47-860MHz) with four sat signals (frequencies in the range of 950-2150 MHz from two polarizations) and transmit them to 4 independent reception points;
four GARSAT sockets are needed to separate the signal summed up into radio television and satellite;
Technical data:
- Model: Axing SWE40-01
- frequency range for inputs. RTV: 47-862 MHz
- frequency range for inputs. Sat: 950-2250MHz
- attenuation of RTV 8dB passage
- attenuation of sat 2dB passage
- inputs/outputs - F-type sockets
- passive element that does not require power supply
- for internal use
- dimensions: 138x127x48mm
- spacing of mounting holes: 120mm (horizontal) and 110mm (vertical)
