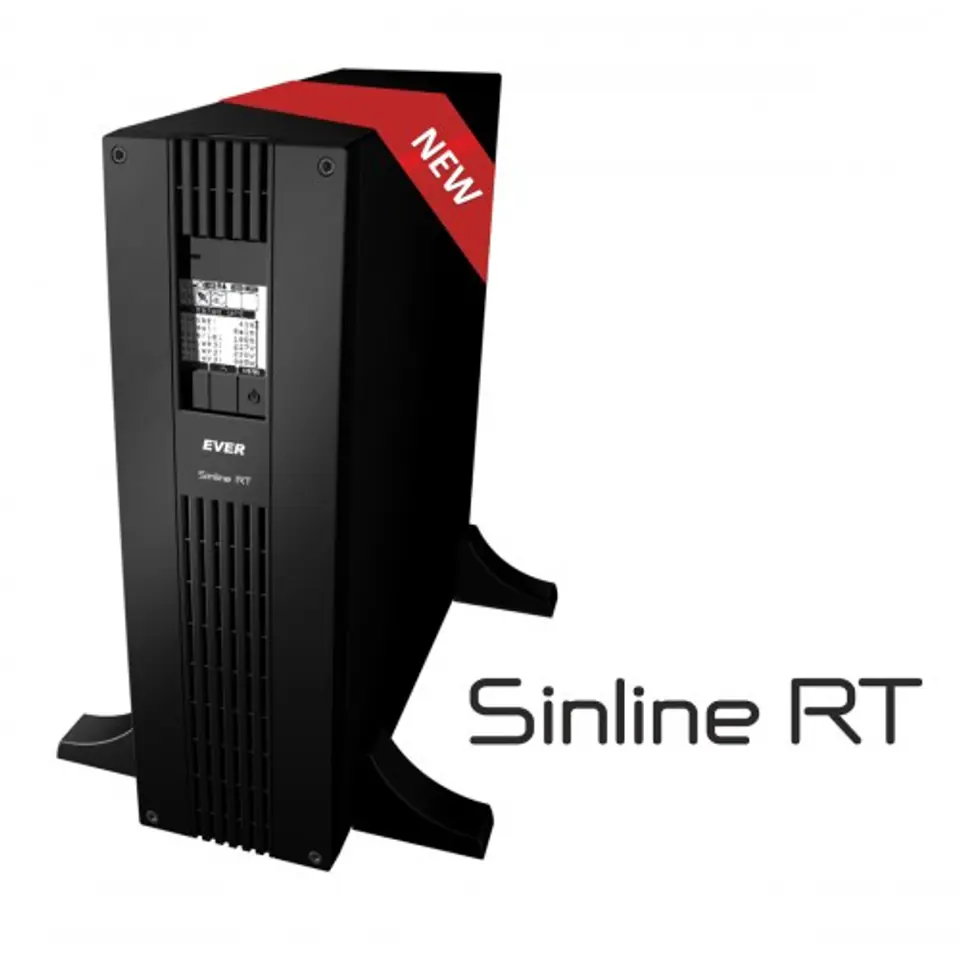

SINLINE RT XL is the latest series of advanced power supplies in which the output active power can attain apparent power. These power supplies are designed for servers, small computer networks and workstations as well as other electrical, electronic and IT equipment. In addition, this series has a LAN filter (1Gbit / s), the ability to manage the output sockets, connect an additional battery module and replace the battery by the user. The LCD graphic display gives the user complete control over the device.
Thanks to the optional power supply in the RS232 / RS485 communication interface with MODBUS protocol and the potential-free output and control inputs, it is possible to integrate the device into the automation systems. The Rack / Tower housing makes it easy to change the way you install the unit.
The built-in automatic voltage regulation (AVR) allows the input voltage to be adjusted to acceptable levels without consuming battery power. The integrated battery charging system with thermal compensation additionally protects internal batteries, extending their service life.
Power supplies have a built-in communication system via a standard network interface (SNMPv1, HTTP) and a USB HID interface that allows the UPS to work with other devices without installing software. In addition, this series allows you to start the device from the battery without having to connect the UPS to the mains supply. "Cold start". Optionally, the UPS has the Emergency Power Off (EPO) function.

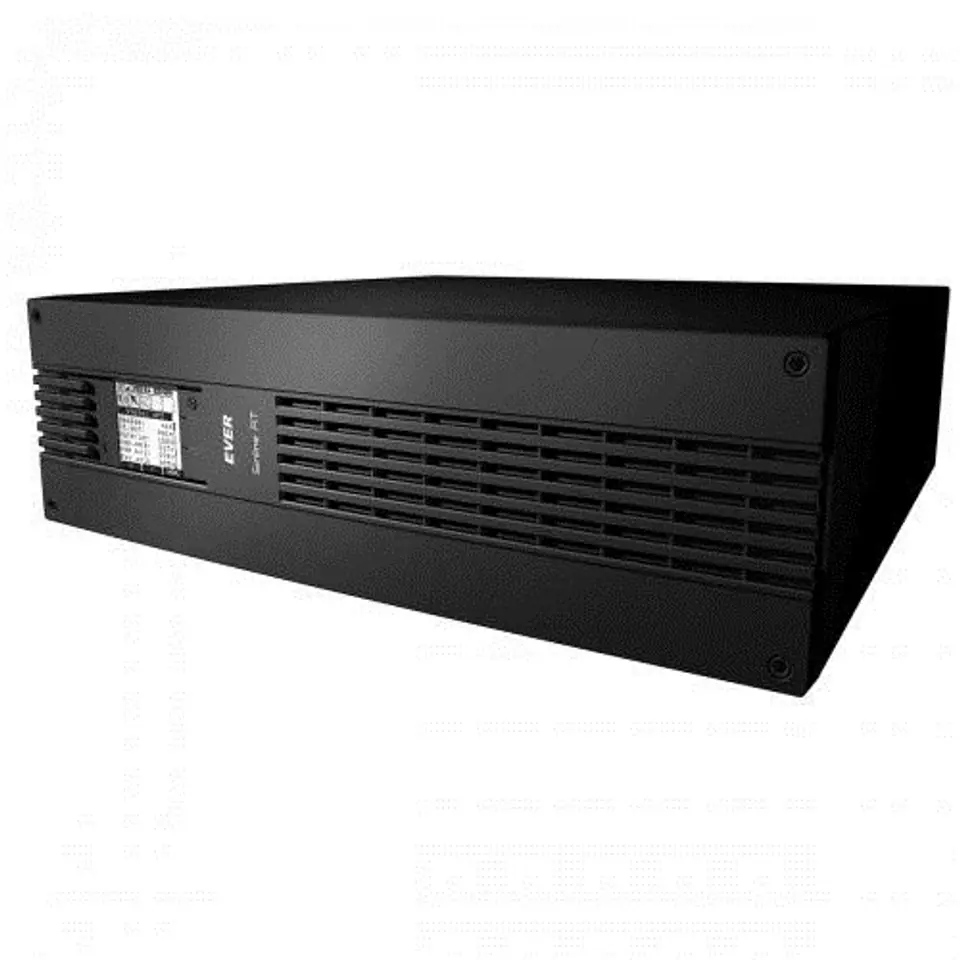

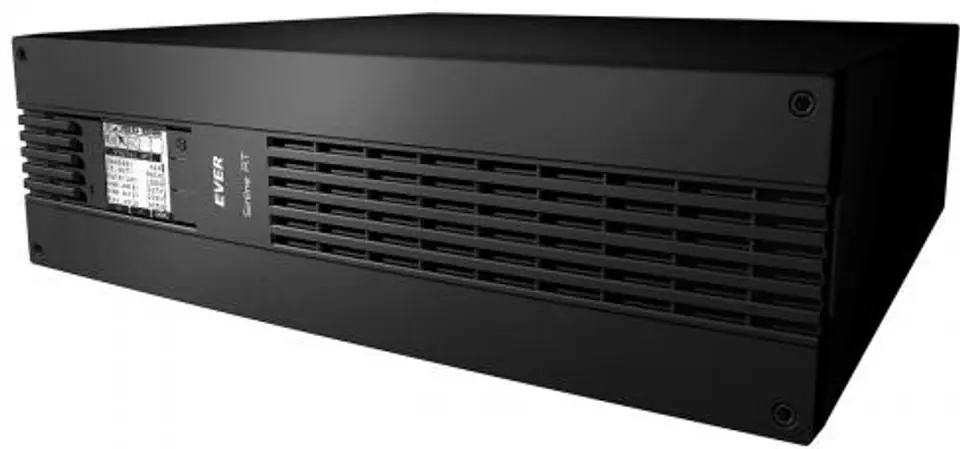

UPS SINLINE RT XL 1650VA
€1,073.64
Shipping from warehouse: M7
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- running out
- Brand:
- EVER
- Product code:
- W/SRTXRT-001K65/00 / 5907683603786
Share this product:
Specification

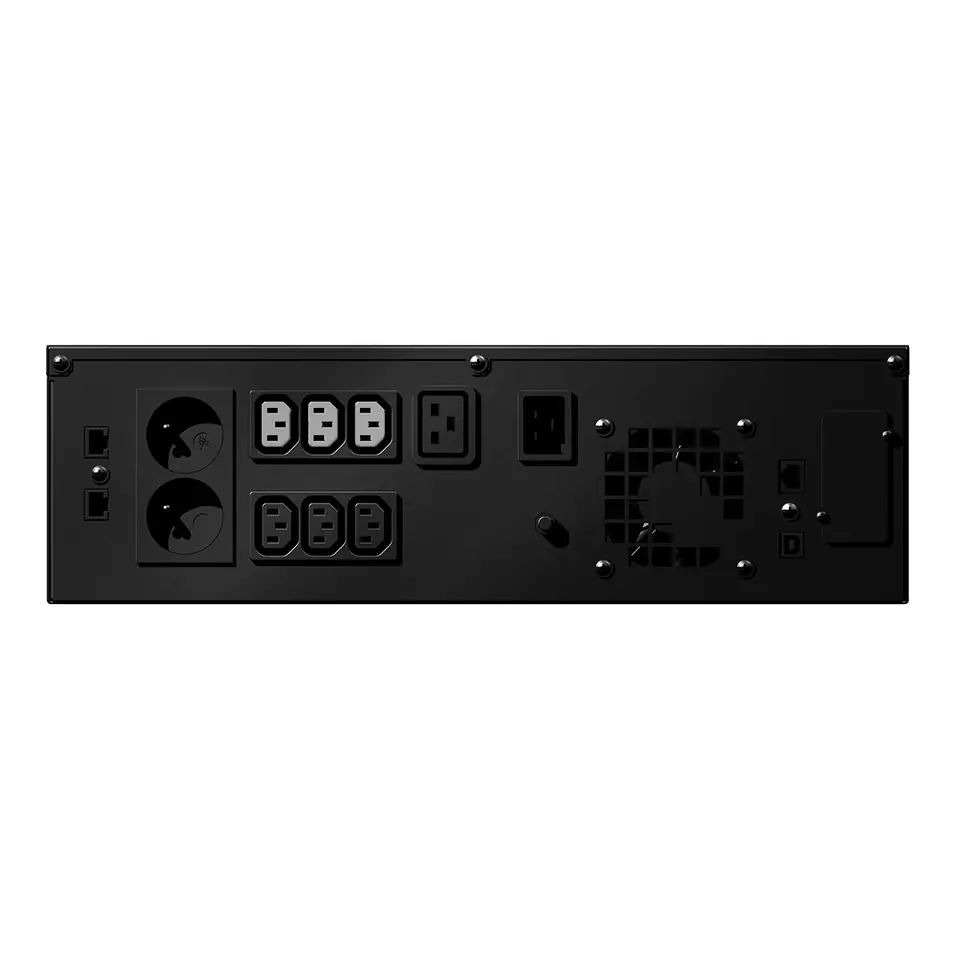

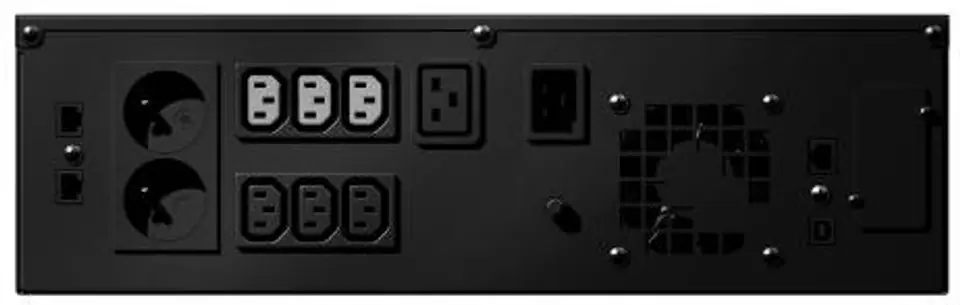

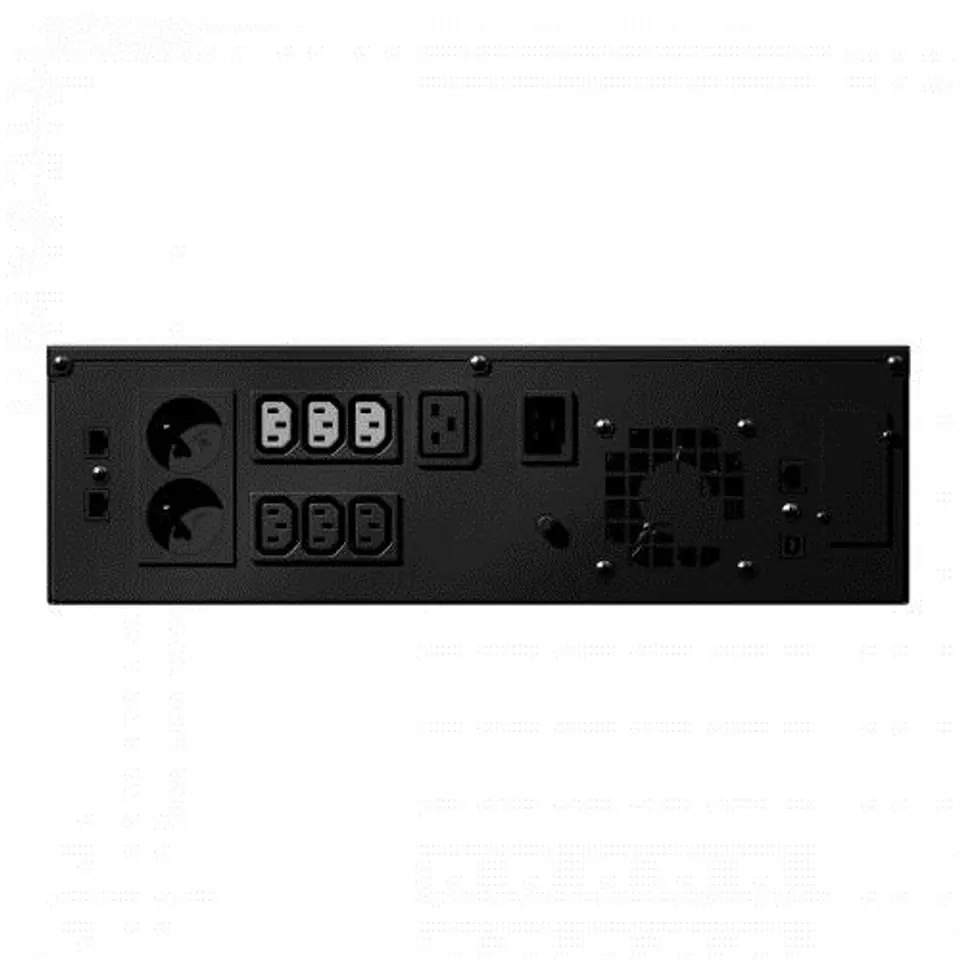

| Ac outlet types: | C13 coupler, C19 coupler |
|---|---|
| Ac outlets quantity: | 9 AC outlet(s) |
| Automatic voltage regulation (avr): | Yes |
| Battery capacity: | 7 Ah |
| Battery recharge time: | 4 h |
| Battery voltage: | 12 V |
| Cables included: | Input power cable |
| Cold start: | Yes |
| Cooling type: | Active |
| Depth: | 460 mm |
| Display type: | LCD |
| Emergency power off (epo): | Yes |
| Ethernet lan (rj-45) ports: | 1 |

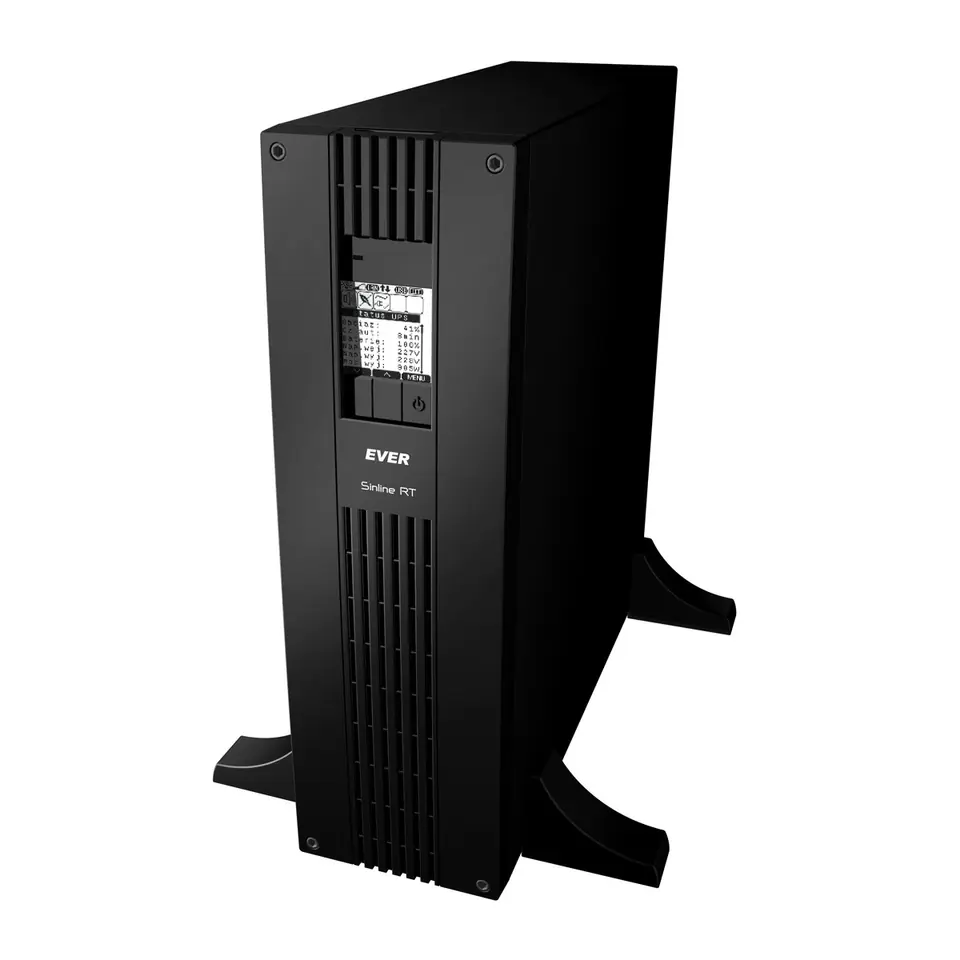

| Form factor: | Rackmount/Tower |
| Height: | 132 mm |
| Input frequency: | 50 Hz |
| Input operation voltage (max): | 281 V |
| Input operation voltage (min): | 178 V |
| International protection (ip) code: | IP20 |
| Led indicators: | Yes |
| Manual: | Yes |
| Maximum current: | 16 A |
| Number of batteries supported: | 4 |
| Number of input phases: | 1 |
| Number of output phases: | 1 |
| Number of phases: | 1 |
| Operating altitude: | 0 - 1000 m |
| Operating relative humidity (h-h): | 20 - 80% |
| Operating temperature (t-t): | 0 - 40 °C |
| Output operation voltage (max): | 253 V |
| Output operation voltage (min): | 195 V |
| Output power: | 1650 W |
| Output power capacity: | 1.65 kVA |
| Package height: | 247 mm |
| Package width: | 547 mm |
| Power plug: | C20 coupler |
| Power protection features: | Short circuit, Overload |
| Product colour: | Black |
| Quick installation guide: | Yes |
| Rubber feet: | Yes |
| Storage relative humidity (h-h): | 20 - 95% |
| Storage temperature (t-t): | 0 - 45 °C |
| Surge protection: | Yes |
| Typical backup time at full load: | 3 min |
| Typical backup time at half load: | 6 min |
| Ups topology: | Line-Interactive |
| Usb 2.0 ports quantity: | 1 |
| Waveform: | Sine |
| Weight: | 26 kg |
| Width: | 440 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
