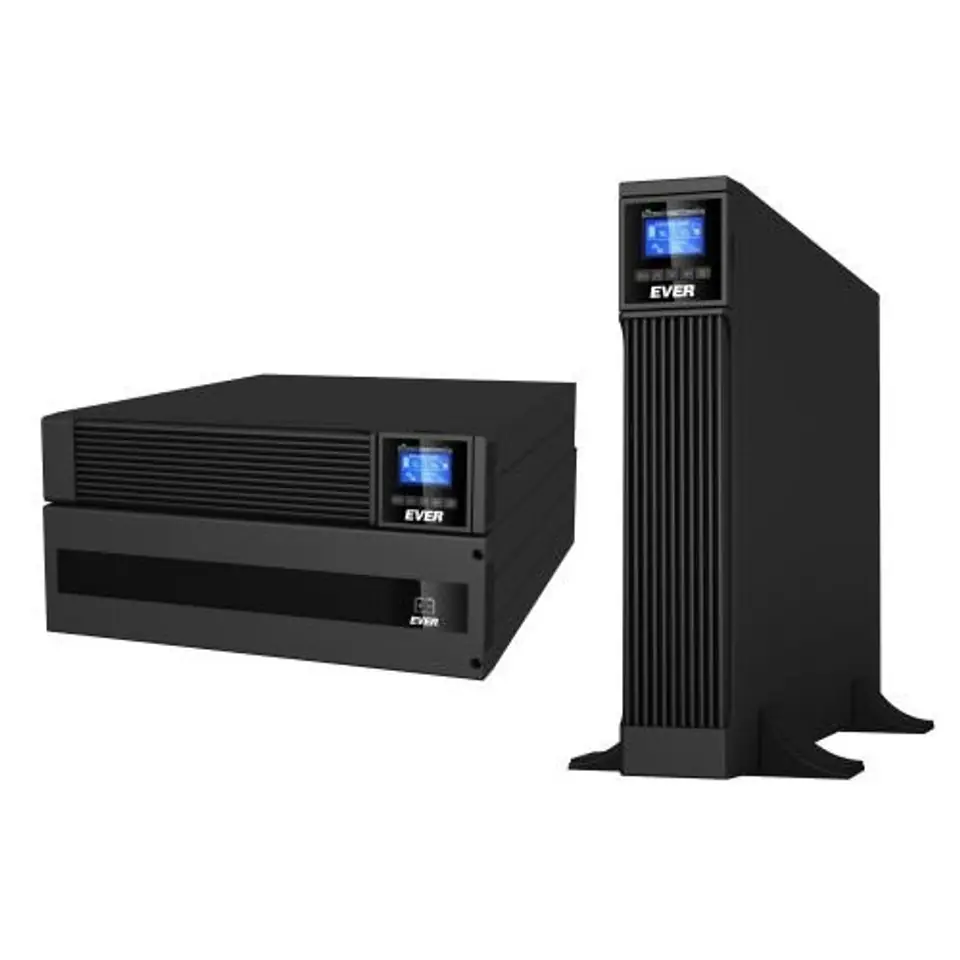

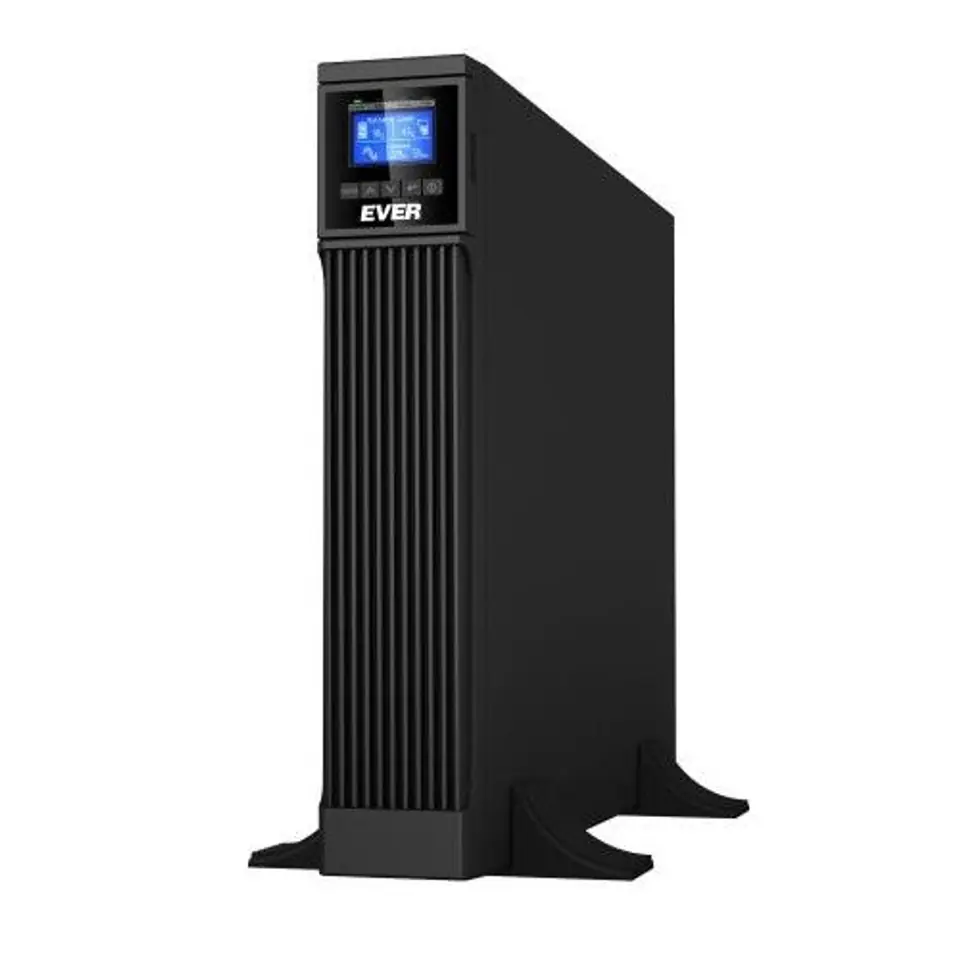

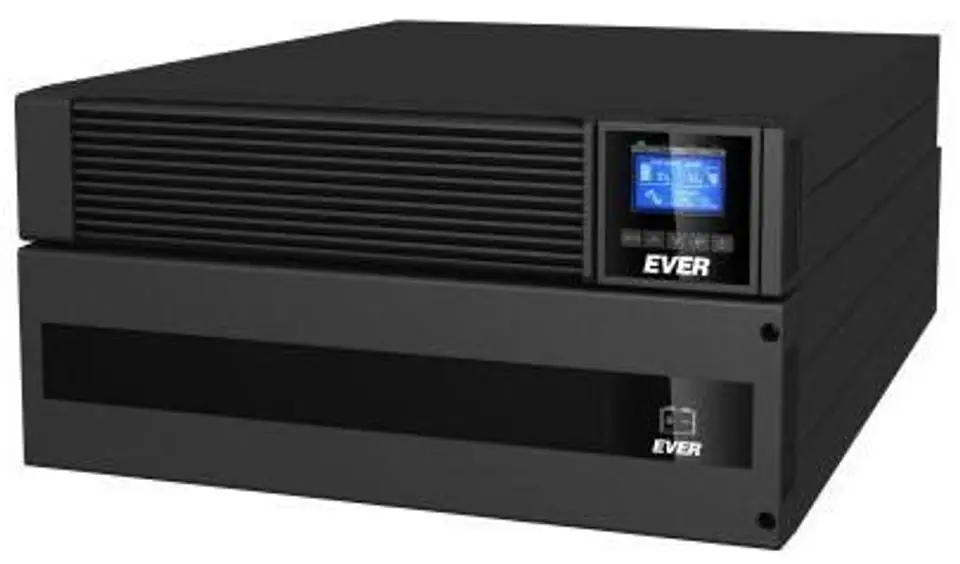

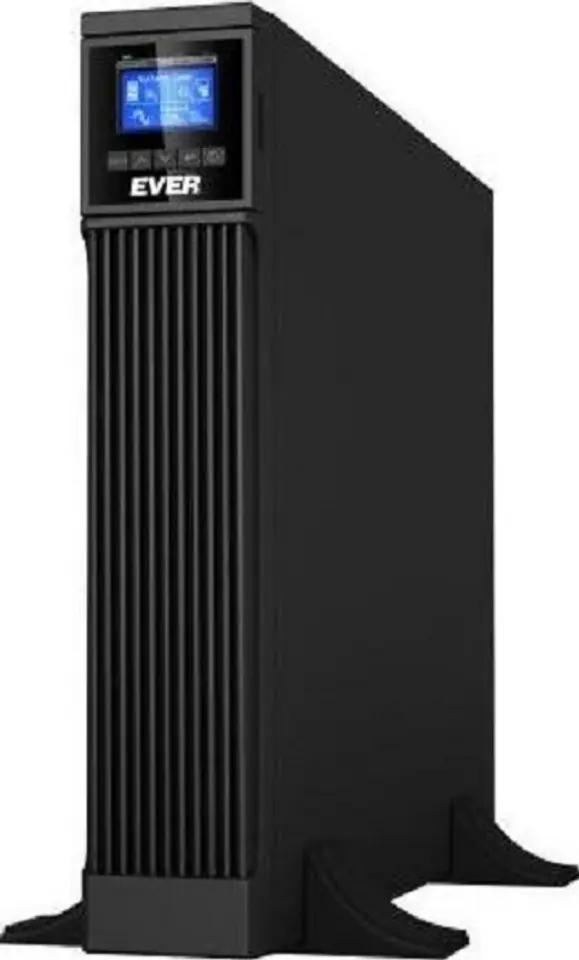

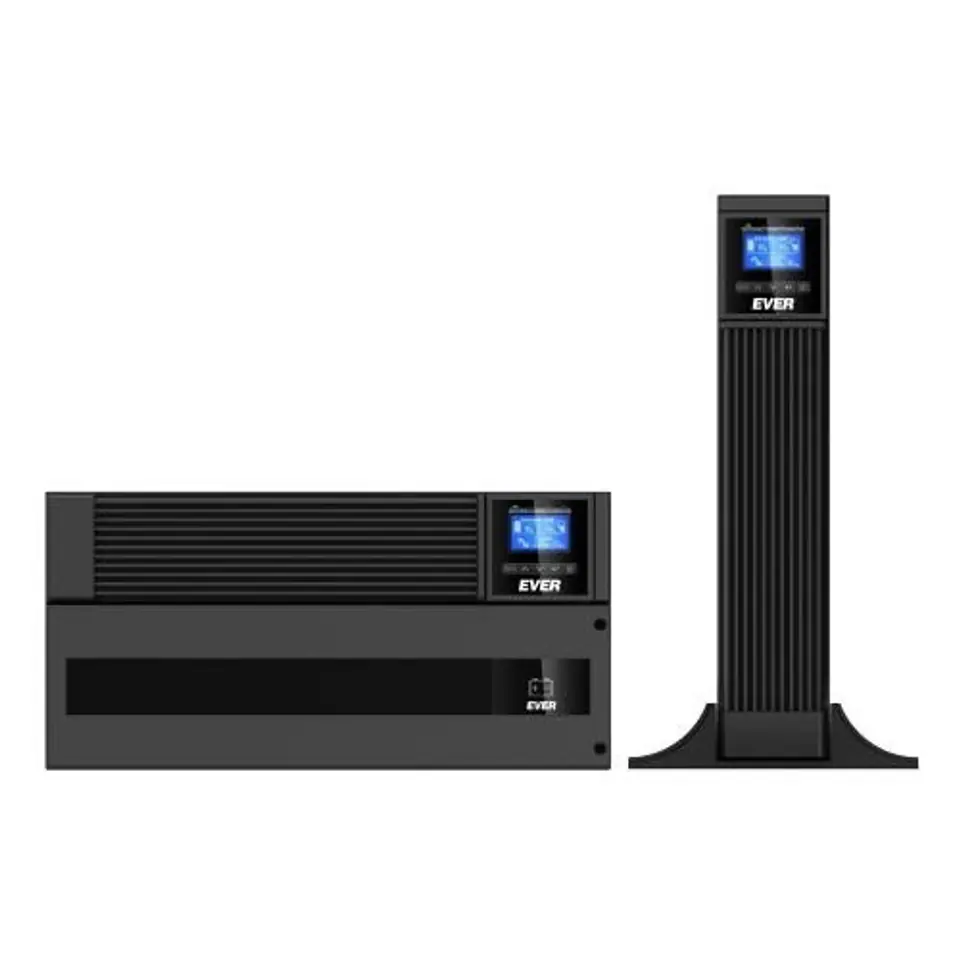

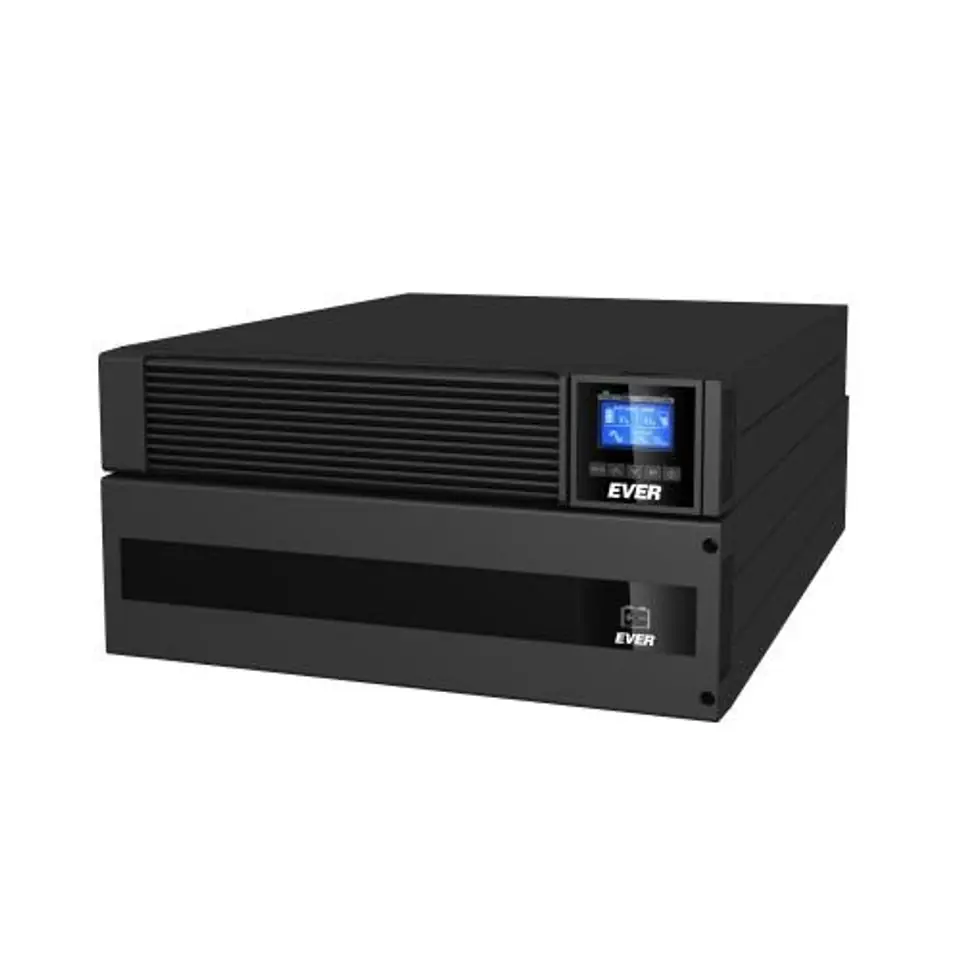

POWERLINE RT PLUS 6 - 10 kVA is the latest series of UPS, constructed in the double conversion topology (VFI), in which the output active power reaches the apparent power value. These power supplies are intended for: servers, telecommunications equipment, data centers and IT infrastructure to ensure protection of connected devices against problems occurring in the power supply network, such as power outages, voltage increases and dips, surges and harmonic distortions.
The power supplies have been equipped with an extensive communication system via the management card, RS232 communication interface and USB HID, which enables the UPS to work with other devices without the need to install the software. Thanks to the built-in potential free contacts (1 - input, 1 - output) there is the possibility of remote control of the power supply and signaling of its specific operating states. POWERLINE RT PLUS 6-10 kVA power supplies do not have internal batteries - at least 1 battery module is required to provide emergency power backup.
CHARACTERISTIC
- Output active power equal to apparent power (PF = 1)!
- Rack / Tower case with a graphical LCD display
- ECO mode
- EPO (Emergency Power Off)
- The ability to manage the output sockets (1 section - available after connecting to the PDU)
- The Start-on-battery function allows you to start the UPS when there is no mains voltage
- Charging current configurable from the LCD level (from 1 A to 4 A)
- The possibility of increasing the number of output sockets by connecting to the PDU
- Up to 6 pcs of battery modules can be connected
- Parallel work to 3 units
COMMUNICATION

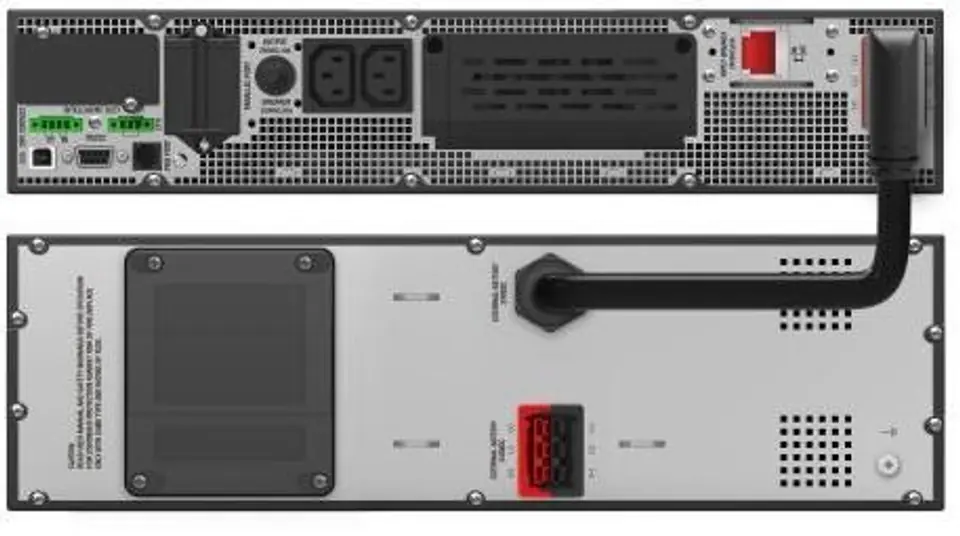

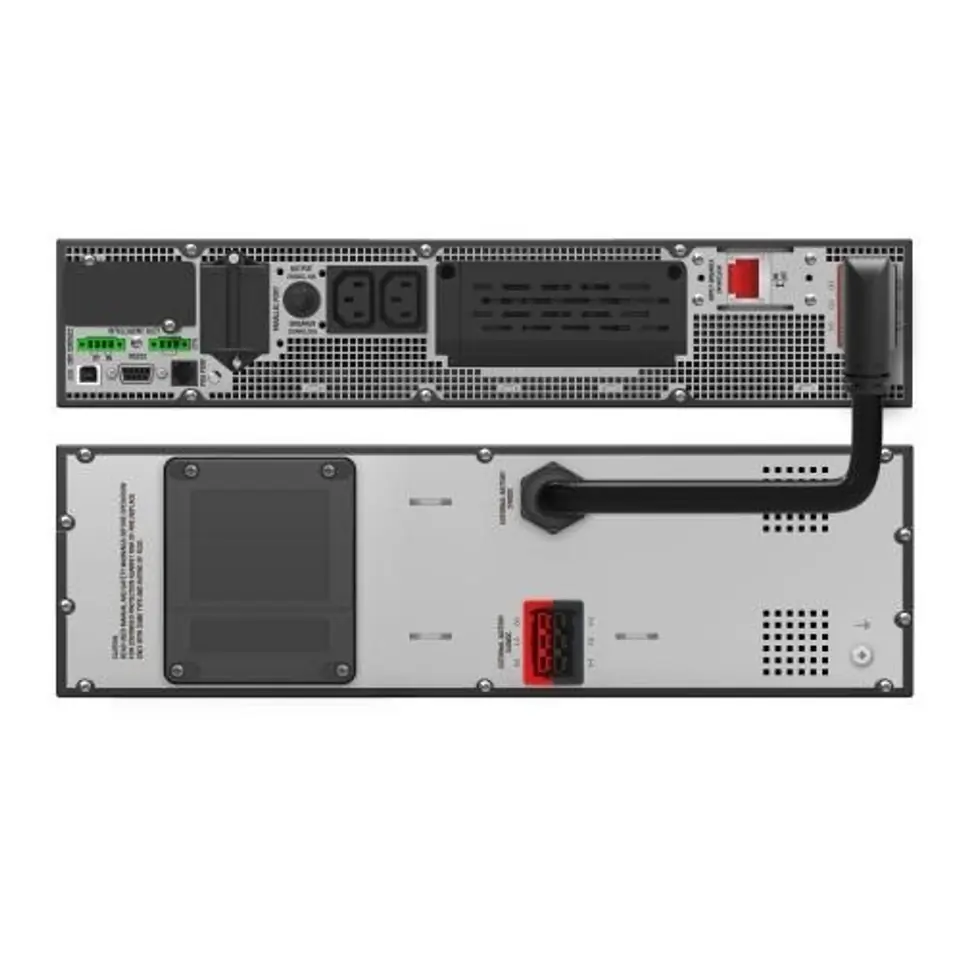

- Potential-free contacts as standard (input (1), output (1))
- USB HID, RS232 communication interface
- The network card manages SNMP
